Compact seed drill Falcon Compact

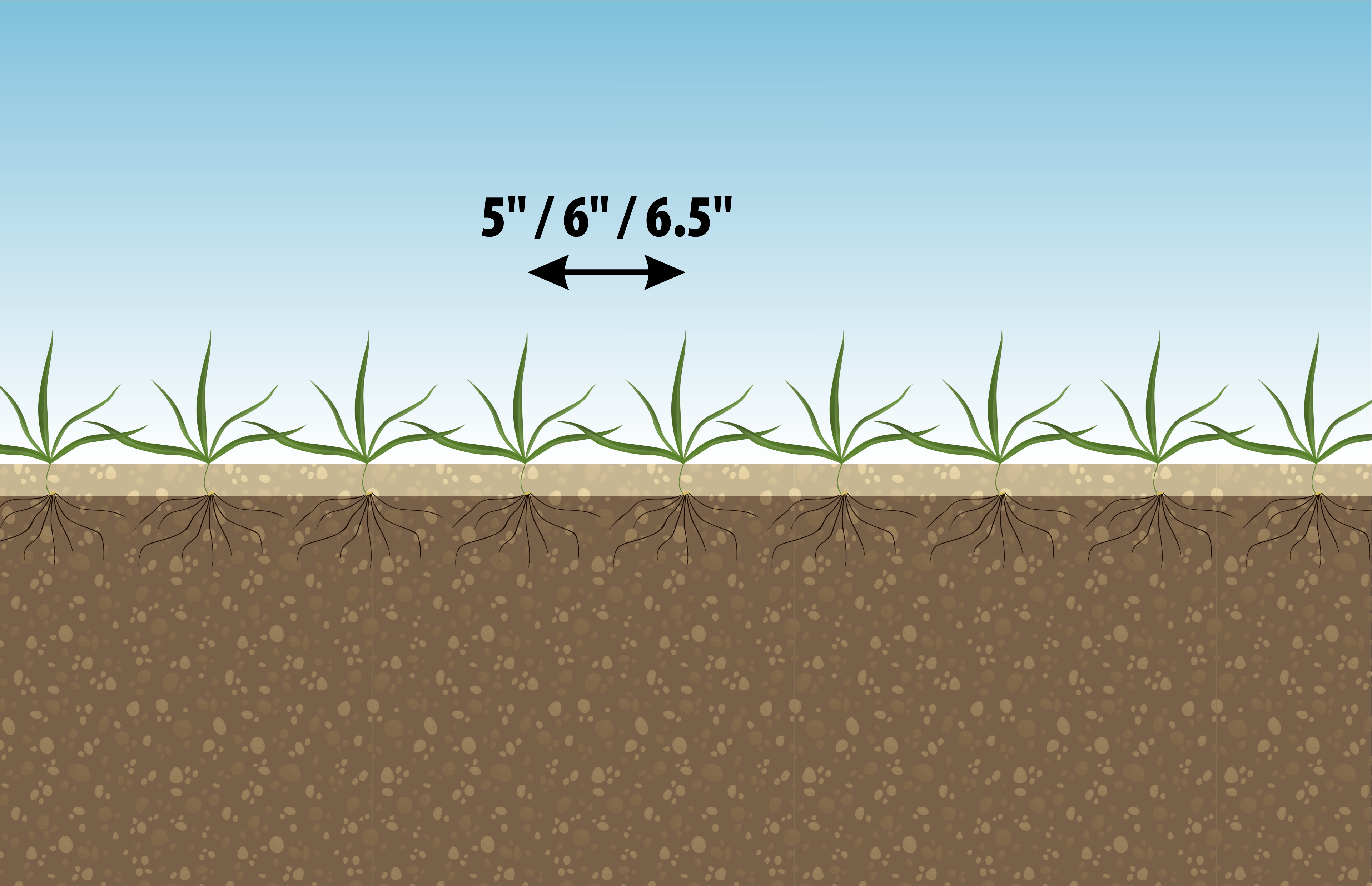

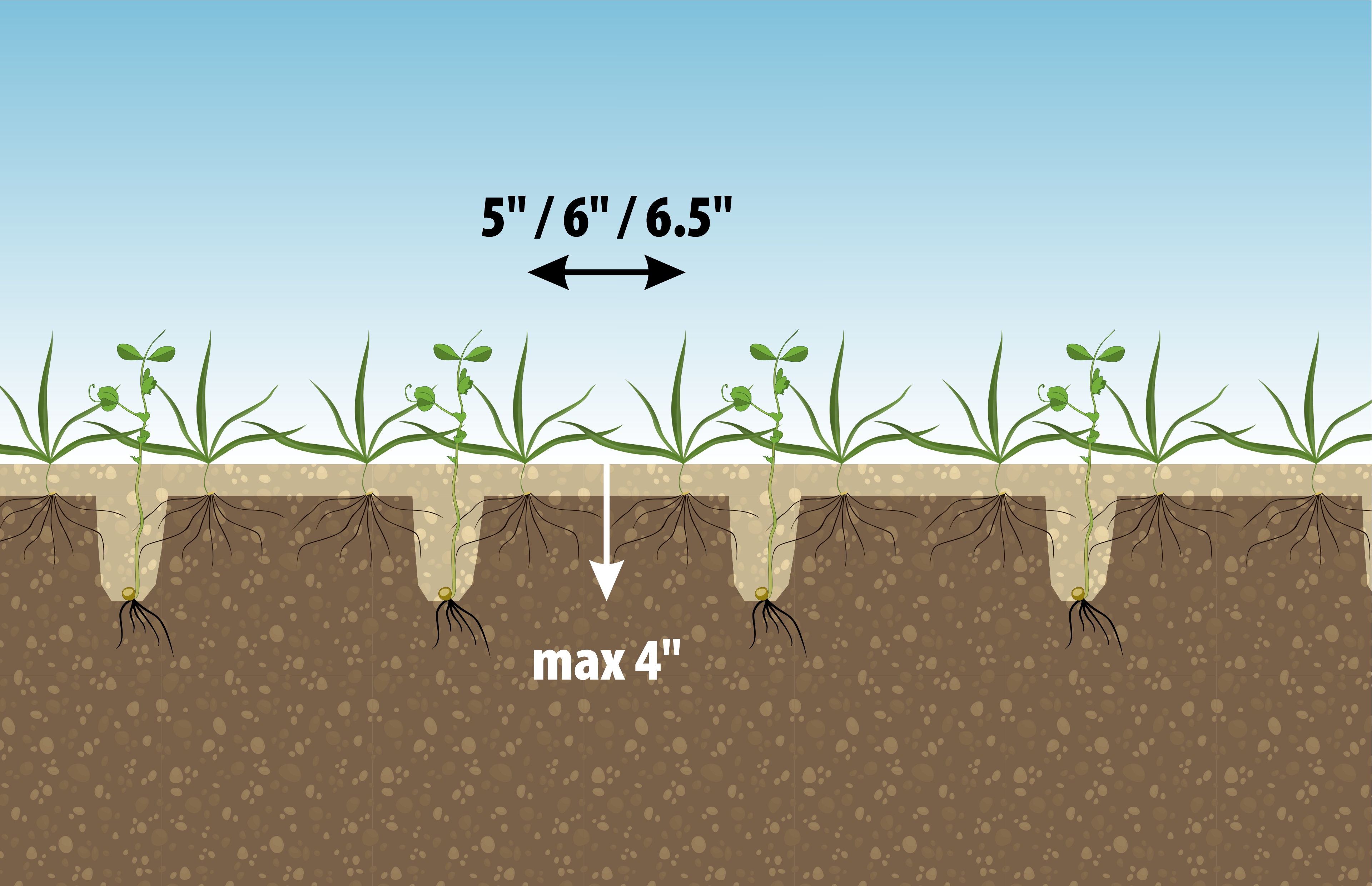

Wide possibilities of applying fertilizers and sowing crops in one operation

Varianta Fert+

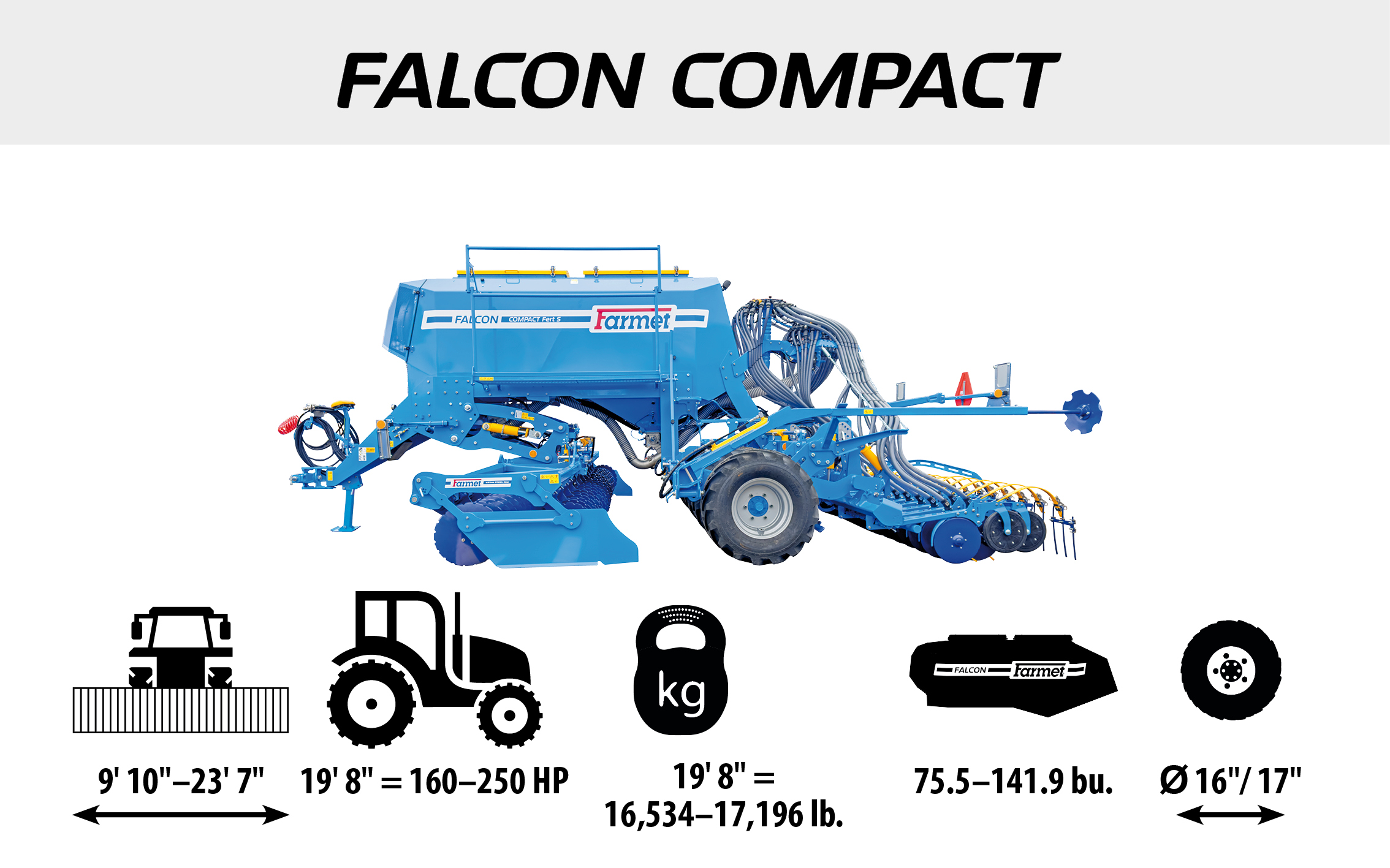

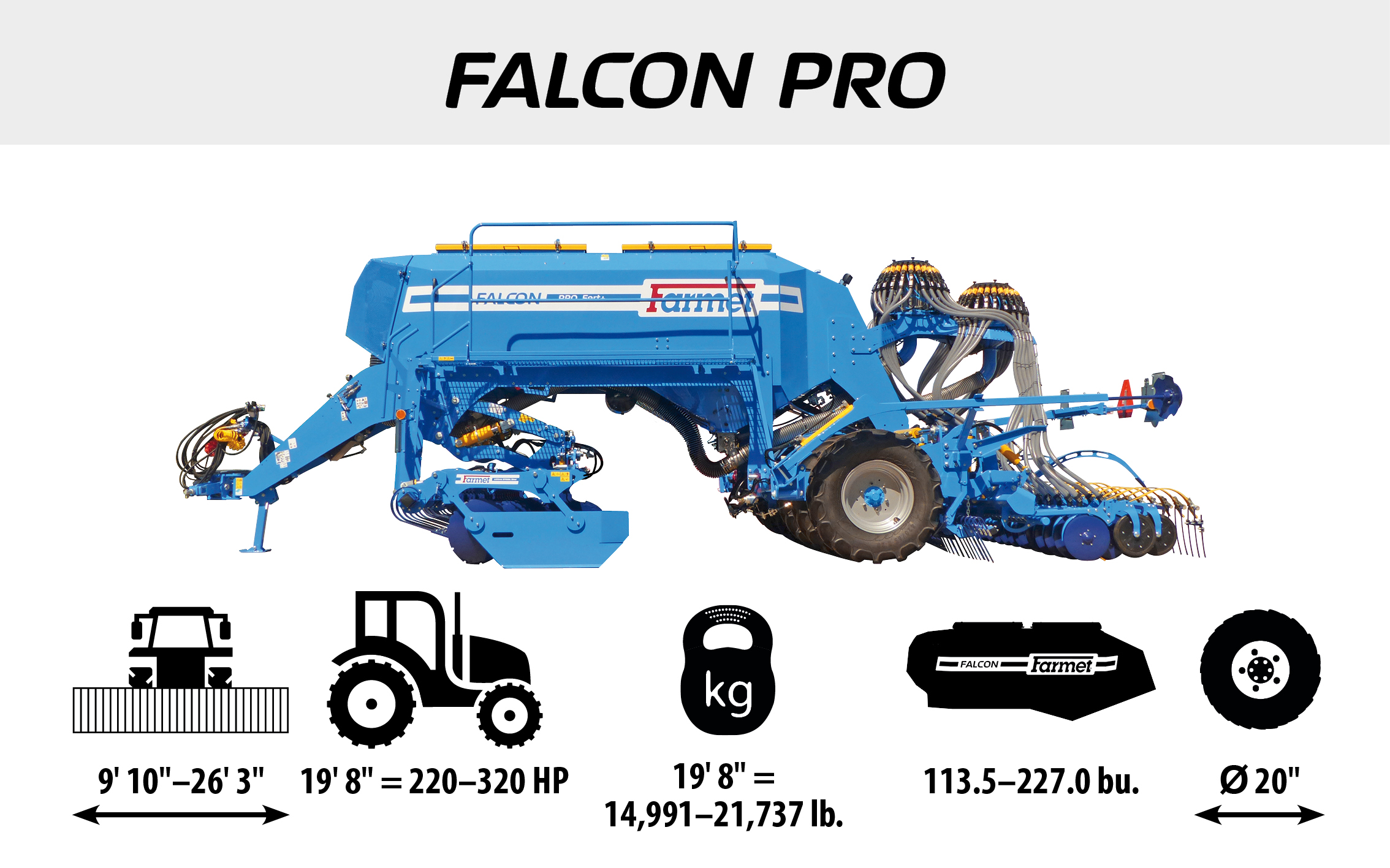

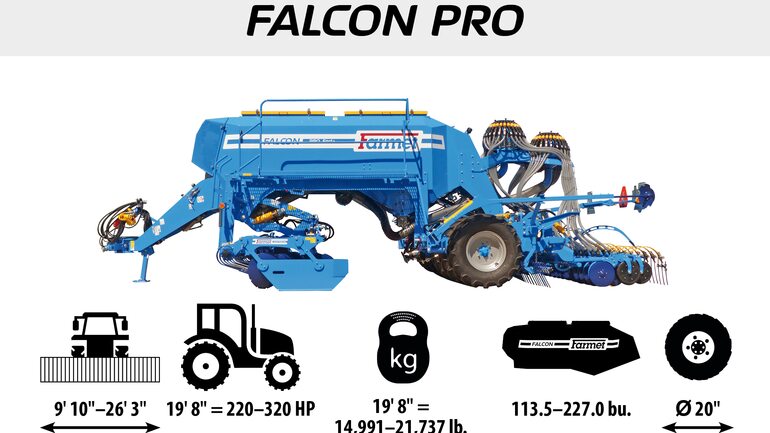

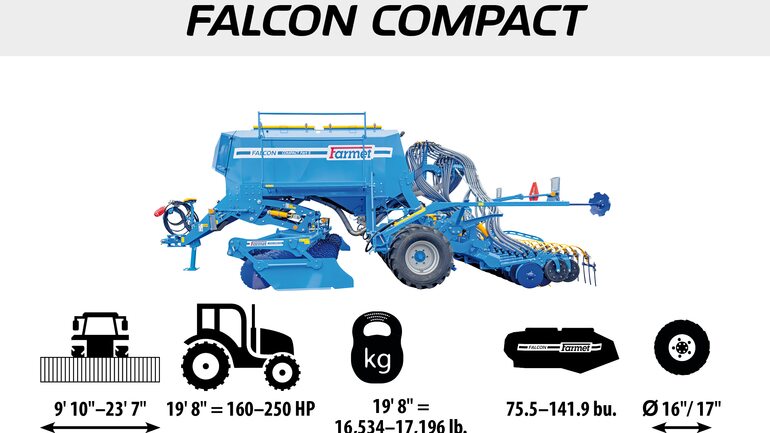

Comparison of Falcon PRO and Falcon Compact seed drills

Technology

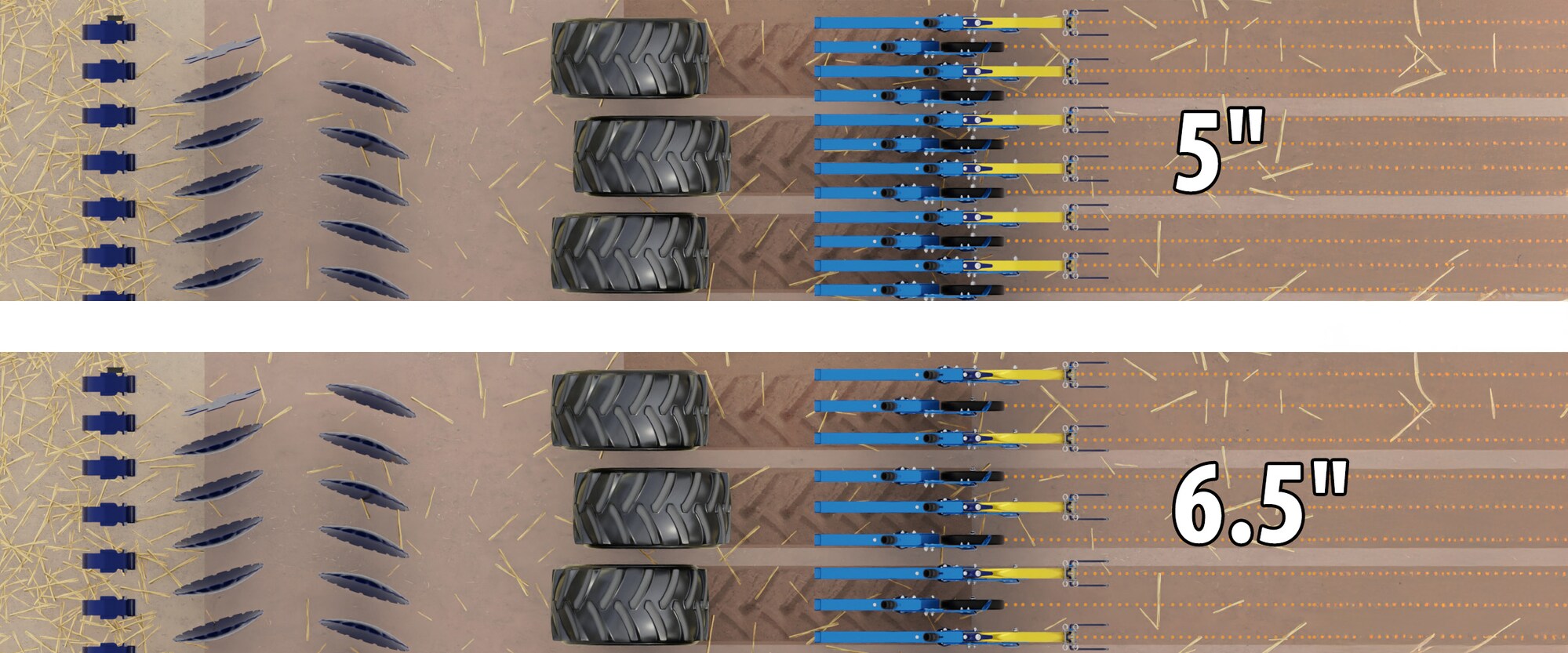

Falcon Compact: Wide tires for spacing of 5" / 6.5"

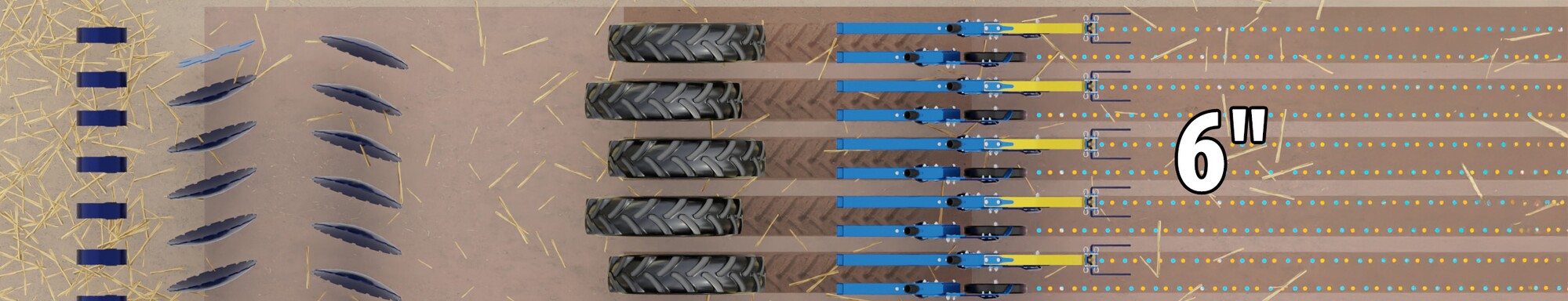

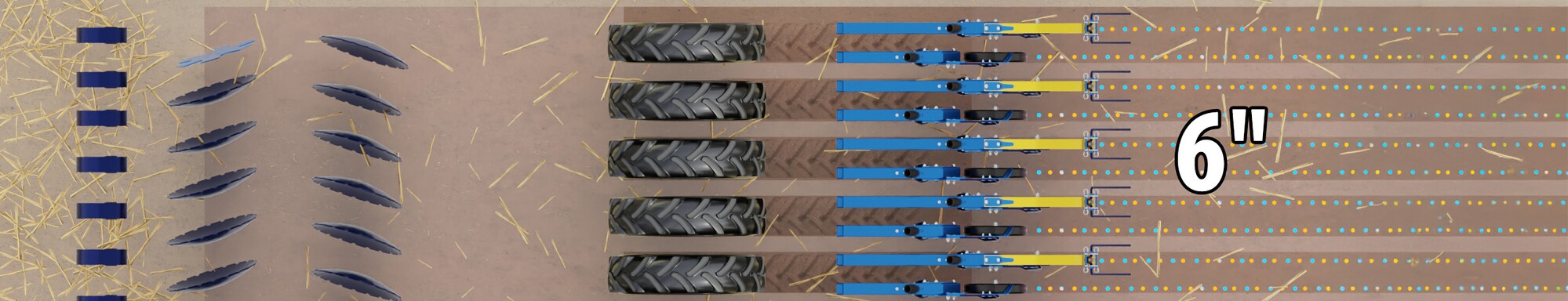

Falcon Compact: Narrow tires for spacing of 6"

1 Basic soil leveling zone. Accuracy levelled soil surface allows uniform subsequent compaction and cultivation the seedbed.
2 Soil pre-processing zone. The pre-processing of the soil can be made with various working tools, either over the entire sowing depth or in zones up to 4". Soil pre-processing ensures aeration, leveling and optimum cultivation. There is also optimal uniformly dispersing of crop residue.

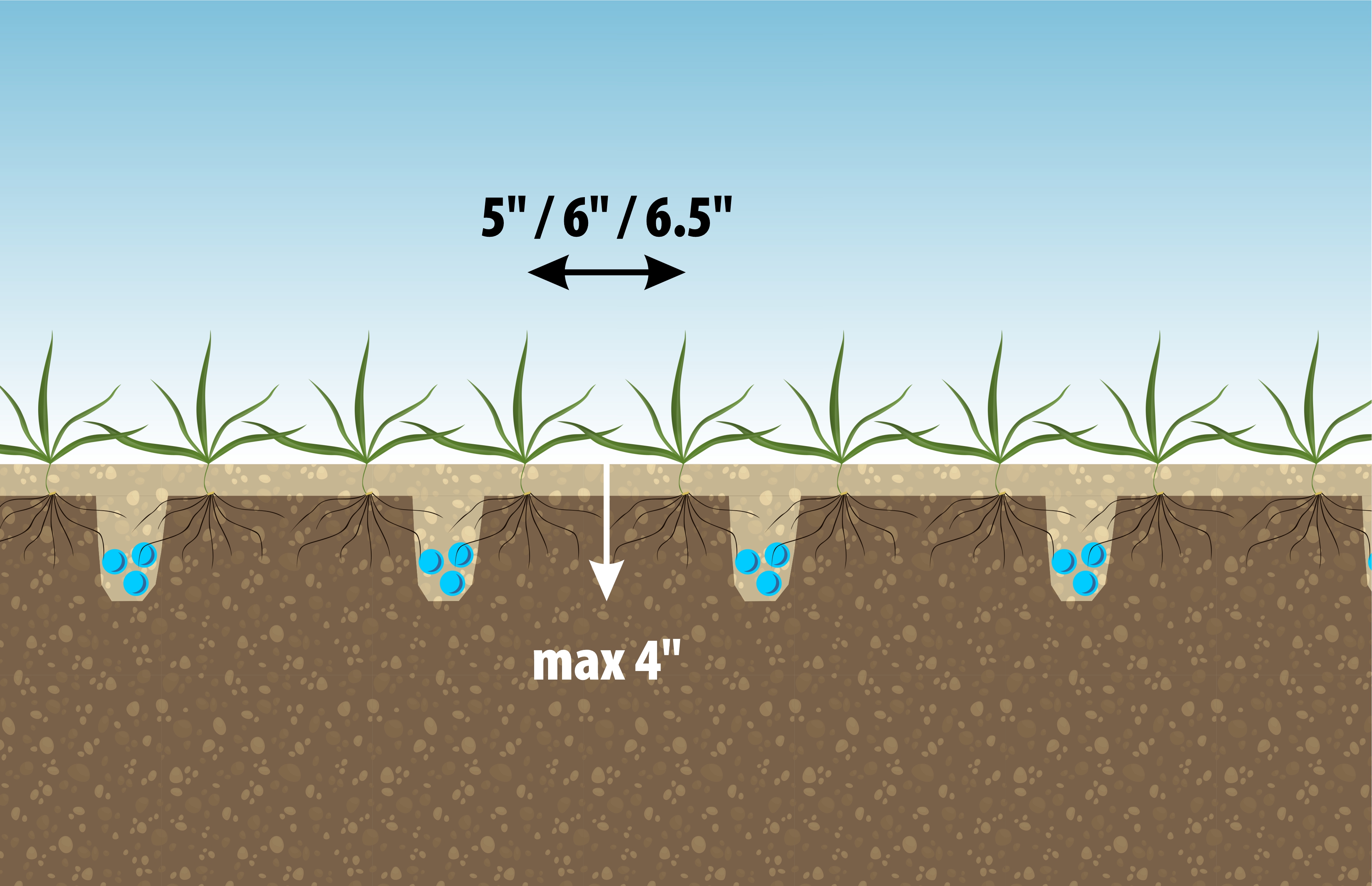

3 Fertilizer placement zone. Granular fertilizers are placed in the root zone of future plants, either directly below each row or between two rows.
4 Zone of soil reconsolidation and restoration of deep capillarity. Deep compaction ensures effective soil water rise to the soil surface even in dry conditions.
5 Seedbed formation and seed placement zone. The double disk seeding coulters effectively create a compacted seedbed (V-groove) and accuracy placed the seed to the required depth. Thanks to the high down-pressure, up to 70% of the weight of the machine can be transferred to the seeding coulters. The compacted seedbed and V-groove ensure excellent seed contact with soil and soil water.
6 The side seed press zone. The copy wheel compresses the V- groove with the seed, causing the seed to squeeze sideways to the soil. There is loosened space above the seed for easy emergence of plants.
7 Seed cover and soil leveling zone. The integrated harrow ensures excellent seed coverage and accuracy soil surface leveling.

Fully electronic control and monitoring of seed drill functions

ISO-BUS electronic system with iPad terminal.
Electrically driven metering device with fully automatic seeding control based on the current working speed.
Optoelectronic monitoring of seed flow to each individual seed coulter.

Section Control – controlled shutdown of sections

  • Optimal seeding of wedges and headlands without overlaps or gaps.
  • Freely adjustable sizes of shutdown sections.
  • Minimum section = 1 seed coulter.
  • Headland seeding after field seeding for uniform and high-quality crop establishment.
  • Seed savings.
  • ISO-BUS compatible electronics.
Clear visualization of the seeded surface on the tractor terminal
Crop established with the Falcon seed drill, controlled by individual coulters.
Reliable and accuracy seed flow control using pneumatically operated flaps.
Fully equipped distributor head for individual control of seed flow to each coulter.

Variable dosing of fertilizer and seed

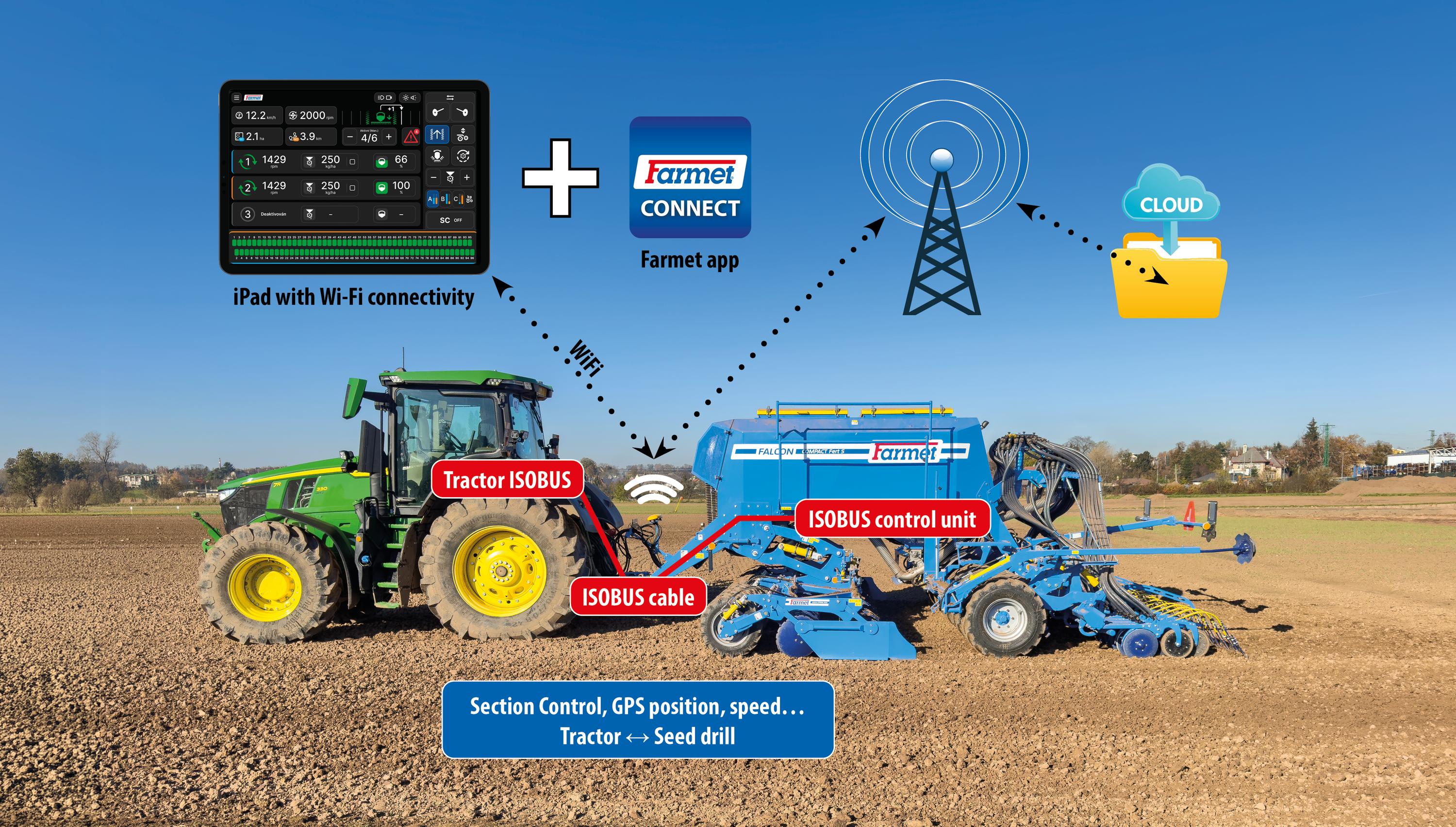

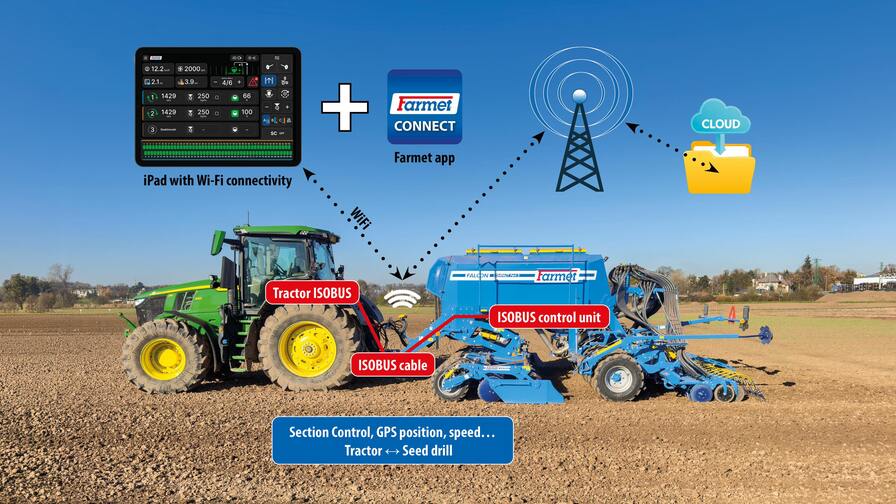

The seed drill’s electronic system communicates with the tractor via the ISO-BUS protocol

Control of the seed drill via an iPad with Wi-Fi electronics – Farmet CONNECT
Control via the tractor terminal or an additional display unit with Müller Electronics

Technics

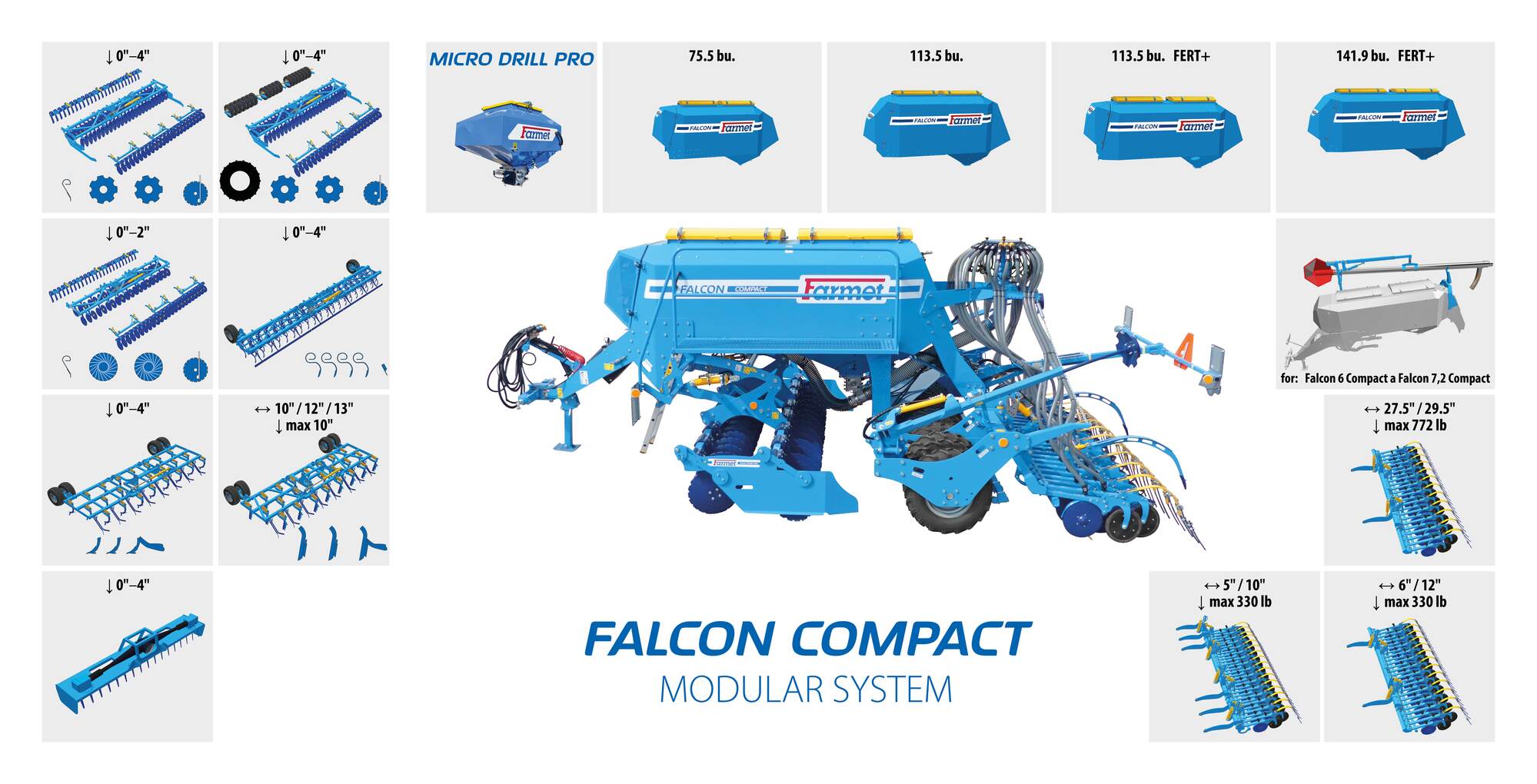

Compact seed drill Falcon Compact

  1. Double-row pre-processing disk section
  2. Rubber-tyre roller for optimal soil compaction
  3. Double-disk  seed coulters with a fixed spacing of 5" / 6" / 6.5"

Compact seed drill Falcon Compact

  1. Pneumatic packer and two-row pre-processing disk section
  2. Rubber-tyre roller for optimal soil compaction
  3. Double-disk  seed coulters with a fixed spacing of 5" / 6" / 6.5"

Falcon Compact is designed for sowing all common crops with spacing of 5" / 6" / 6.5" including most cereals, legumes, green fertilizers as well as some clover crops and oilseeds in unprepared soil.

Falcon Compact provides pre-sowing preparation of soil, seedbed preparation, soil compaction and reliable sowing with a large seeding range of 0.5 to 321 lb/ac in a single pass.

Falcon Compact is designed for sowing all common crops with spacing of 5" / 6" / 6.5" including most cereals, legumes, green fertilizers as well as some clover crops and oilseeds in unprepared soil.

Falcon Compact provides pre-sowing preparation of soil, seedbed preparation, soil compaction and reliable sowing with a large seeding range of 0.5 to 321 lb/ac in a single pass.

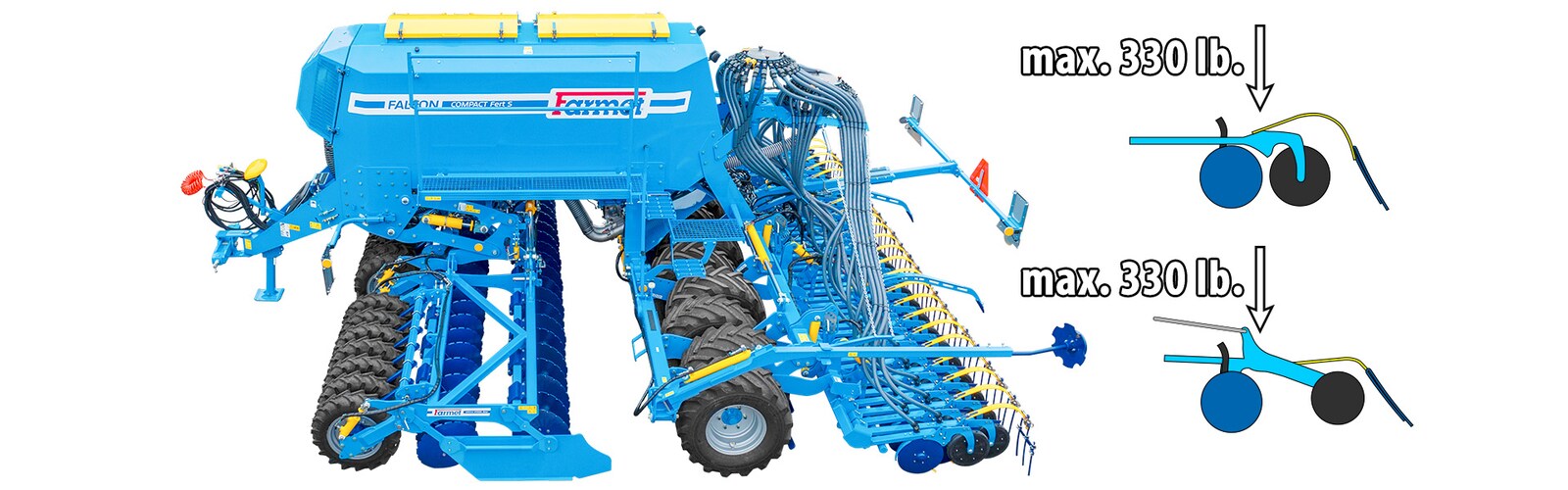

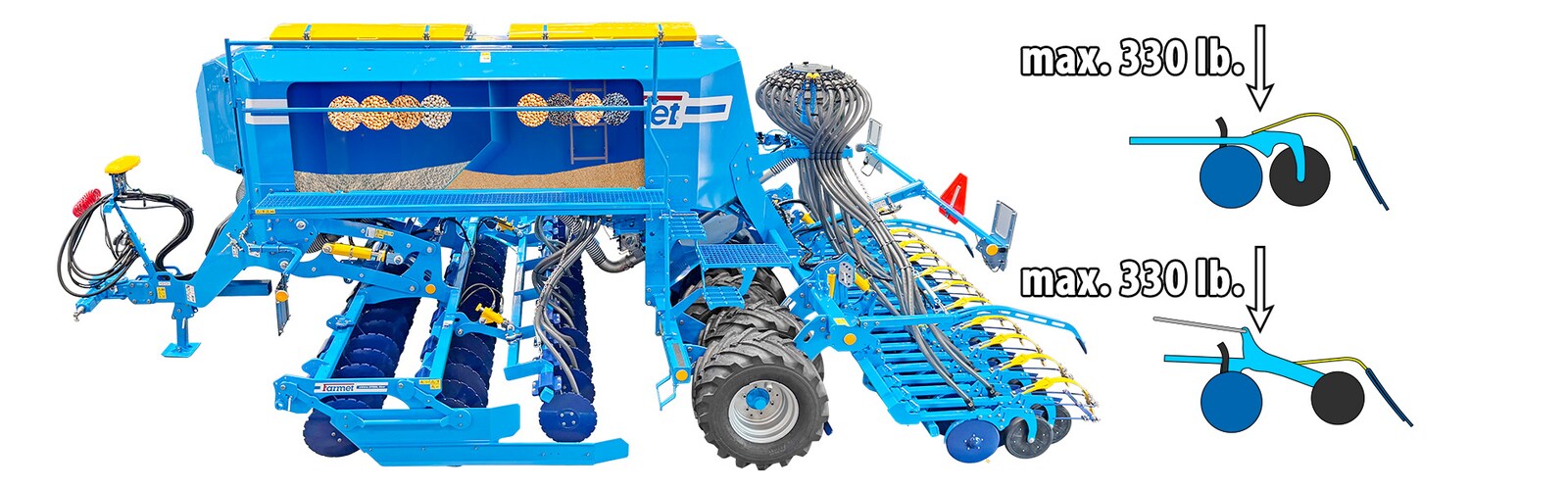

High coulter pressure: up to 331 lb.

  • Low pulling resistance thanks to the low weight
  • Shorter downtime for filling up hoppers thanks to the large capacity
  • Fast turns at headland thanks to the short compact construction
  • Accuracy depth guidance with even soil compaction
  • Leveling and compacting surface in front of each seed coulter

High Output and Labour Quality

High Output and Labour Quality

  • Low pulling resistance thanks to the low weight
  • Shorter downtime for filling up hoppers thanks to the large capacity
  • Fast turns at headland thanks to the short compact construction
  • Accuracy depth guidance with even soil compaction
  • Leveling and compacting surface in front of each seed coulter

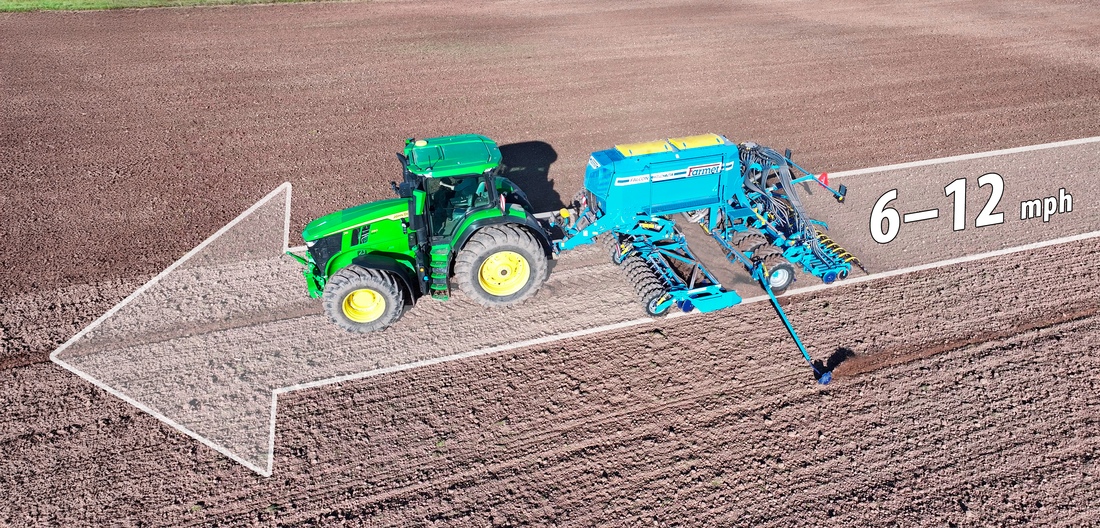

High working speed: 6─12 mph

Light, but rugged Frame

The frame from the high-strength eXtra STEEL line guarantees a long service life of the machines, even under the most demanding conditions thanks to the high flexibility of the frame and the low weight of the machine.

Massive compact structure
Shortened, very compact and rugged design.
Large Hopper
Single or double chamber seed hopper with a capacity of 75.5─141,9 bu., easily accessible with a large opening.
Maintenance-free Placement of disks
The maintenance-free placement of all disks with the diameter of 14" provides operation that does not require lubrication, with rubber protection against overload.
Maintenance-free Placement of Coulters
The resistant and maintenance-free rubber mounting of the drill coulters helps adapt to the terrain and provides protection against overload.

Easy Operation

The minimum number of adjustment and lubrication points makes the operation, control as well as subsequent maintenance a very simple task that anyone can manage.

  • Easy setting of the sowing depth, coulter pressure and seeding amount.
  • Simple electronic system with intuitive control.
  • Minimum adjustment points.
  • Minimum lubrication points.
Easy hopper filling with seeds
Wide and long service platform for safe and comfortable filling of the hopper with seeds.
Adjustable side deflectors
Height and lengthwise adjustable side deflectors for regulation of the processed soil and for continuous connection of the individual passes.
Setting the working depth of the pre-processing section
Easy setting of the working depth according to a well-arranged chart using distance washers on piston-rods.
Farmet dispenser
A modern roller dispenser with interchangeable rollers.
Adjustment of sowing depth
Very simple and fast adjustment of the required sowing depth.
Simple adjustment of harrows
Adjustment of harrow pressure by changing the pin position, with the option to lift the harrows and not use them during seeding.

Smart Machine Design

Compact construction
The design of the machine is more compact and lighter while maintaining the high strength and durability requirements of the machine even in the most extreme conditions.
Front Flexi-Board
The flexi-board scraper levels the field surface very well and is hydraulically controlled. This is an optional machine eqiupment.
Front pneumatic packer
Pneumatic packer with reinforced tyres for additional soil compaction. This is an optional machine equipment.
Seedbed preparation
The double pre-sowing disk section perfectly levels the topsoil crosswise and loosens soil to the depth of the seedbed.
Tines with two disks
The disks of the pre-sowing section are installed in pairs on the tines. The ruggedand wide rubber bearing reliably protects the working parts from damage.
Optimal soil compaction
In front of each coulter there is a tired roller made from reinforced tires. The tires have a special design resistant to wet clay sticking.
Adjustment of sowing depth
Possibility of adjustment of various sowing depths on even and odd coulters.
Double-disk seed coulters
Thanks to the tested design, they also penetrate soil very well when there is a large content of crop residue, and together with the press-wheel, they place seeds at the set depth.

Roller dispensers of fertilizer

Screw dispenser Fert+
Modern screw dispenser. Fertilizer guiding to the fertilization units.
Válečkový dávkovač FertS
Moderní válečkový dávkovač s výměnnými válečky. Vedení hnojiva přímo k osivu.

Roller metering units for all seed types

Parameters

Technical Parameters Units Falcon 3 Compact Falcon 4 Compact Falcon 4 FIX Compact Falcon 6 Compact Falcon 7,2 Compact
Working width ft. 9' 10" 13' 1" 13' 1" 19' 8" 23' 7"
Transport width ft. 9' 10"  9' 10" 13' 1"  9' 10" 9' 10"
Transport height ft. 9' 2" 9' 2"  9' 2" 9' 2"  9' 2"
Total machine length ft. 22' 11" 22' 11"  22' 11" 22' 11"  22' 11"
Working depth in. 0"─4" 0"─4"  0"─4" 0"─4"  0"─4"
Hopper volume without additional fertilization bu. 75.5 75.5 75.5 113.5 113.5
Hopper volume with additional fertilization
(division 40:60)
bu. 113.5 113.5 113.5 141.9 141.9
Hopper filling height ft. 8' 6"  8' 6" 8' 6" 8' 6"  8' 6"
Dimensions of the filling opening ft. 1' 8" x 6' 4"  1' 8" x 6' 4" 1' 8" x 6' 4" 1' 8" x 6' 4"   1' 8" x 6' 4"
Number of coulters pcs 24 / 20 / 18 32 / 26 / 24 32 / 26 / 24 48 / 40 / 36 58 / 48 / 43
Row spacing 2 in. 5" / 6" / 6.5" 5" / 6" / 6.5" 5" / 6" / 6.5" 5" / 6" / 6.5" 5" / 6" / 6.5"
Coulter pressure – swaying
Coulter pressure – parallelogram
lb. 33–265
33–331
33–265
33–331
33–265
33–331
33–265
33–331
33–265
33–331
Fertilizer coulter pressure lb. up to 440 up to 440 up to 440 up to 440 up to 440
Number of disks pcs 23 31 31 46 55
Diameter of sowing disks in. 14"  14" 14" 14"  14"
Working output ac/h 7.4─11.1 9.9─14.8  9.9─14.8 14.8─22.2   17.8─27.9
Towing vehicle 1 kW
HP
80─110
110─150
95─130
130─180
95─130
130─180
120─185
160─250
145─205
200─280
Working speed mph 6─12  6─12 6─12 6─12  6─12
Maximum slope availability ° 6 6 6 6 6
Dimension of tire - transport   7,5 * 16
420/55 R 17
7,5 * 16
420/55 R 17
7,5 * 16
420/55 R 17
7,5 * 16
420/55 R 17
7,5 * 16
420/55 R 17
Number of hydraulic circuits / pressure bar  2 / 210  2 / 210 2 / 210   2 / 210  2 / 210
Number of hydraulic couplers / type    4 / ISO 12,5  4 / ISO 12,5 4 / ISO 12,5   4 / ISO 12,5  4 / ISO 12,5
Non-pressure return line (max. 5 bar)    1 / ISO 20  1 / ISO 20 1 / ISO 20   1 / ISO 20  1 / ISO 20
Oil flow of hydraulic fan gal/min 7.9─10.6  7.9─10.6 7.9─10.6 7.9─10.6   7.9─10.6
Oil flow for machine control gal/min 7.9 7.9  7.9 7.9  7.9
Electric system requirement 3   12 V DC / 25─55 A 12 V DC / 25─55 A 12 V DC / 25─55 A 12 V DC / 25─55 A 12 V DC / 25─55 A
Tractor hitch requirement   TPH cat. 2 and 3 TPH cat. 2 and 3 TPH cat. 2 and 3 TPH cat. 2 and 3 TPH cat. 2 and 3
Machine weight without fertilization from 4 lb. 9,039 12,346 10,141 16,534 18,739
Machine weight with fertilization from 4 lb. 9,480 12,787 11,684 17,196 19,621


1 Recommended towing vehicle, the actual pulling force may significantly change according to the tilling depth, soil conditions, inclination of land, wear of working units and their adjustment.
2 Row spacing 150 mm is intended only for the version of machines with narrow tires. Row spacing 125/167 mm is intended only for the version of machines with wide tires.
3 The seed drill's equipment determines the requirements for the tractor’s electronic system.
4 Machine weight according to its equipment.
Transport / brake system: Follow national provisions valid for transport of machines on public roads. Verify legal provisions valid in the country, regulations on maximum allowable total weights and axle loads and also on necessary possible use of the brake system. If you have any questions, please contact our sales representative.

Optional

Accessories

Display Units

iPad wifi connect

Seed counting and sowing control for each individual coulter.

Equipment
Display Dimensions 11"
Seed Passing Sensor Control OK
Hopper Level Reading OK
Fan Speed Reading OK
Dispenser Speed Reading OK
Motor Speed Reading OK
Number of Motors (Dispensing)
Tramline Flap Control OK
Seed Drill Position Display OK
Work Lighting Control OK
Hopper Lighting Control OK
Marker Control OK
Pre-emergent Marking Control OK
Adding Seed Batch during Work OK
Micro Seeding OK
Simultaneously Running Screens
Camera Input OK
GSM Modem OK



Topcon XD+
Equipment
Display Dimensions 12,1"
Seed Passing Sensor Control OK
Hopper Level Reading OK
Fan Speed Reading OK
Dispenser Speed Reading OK
Motor Speed Reading OK
Number of Motors (Dispensing) 3
Tramline Flap Control OK
Seed Drill Position Display OK
Work Lighting Control OK
Hopper Lighting Control OK
Marker Control OK
Pre-emergent Marking Control OK
Adding Seed Batch during Work OK
Micro Seeding OK
Simultaneously Running Screens 5
Camera Input OK
GSM Modem for a fee

Müller Elektronik: ISOBUS DRILL-Controller

ME TOUCH800®
Equipment
Display Dimensions 8"
Seed Passing Sensor Control OK
Hopper Level Reading OK
Fan Speed Reading OK
Dispenser Speed Reading OK
Motor Speed Reading OK
Number of Motors (Dispensing) 3
Tramline Flap Control OK
Seed Drill Position Display OK
Work Lighting Control OK
Hopper Lighting Control OK
Marker Control OK
Pre-emergent Marking Control OK
Adding Seed Batch during Work OK
Micro Seeding OK
Simultaneously Running Screens 2
Camera Input OK
GSM Modem x

Müller Elektronik: ISOBUS DRILL-Controller

ME BASIC-Terminal
Equipment
Display Dimensions 5,7"
Seed Passing Sensor Control OK
Hopper Level Reading OK
Fan Speed Reading OK
Dispenser Speed Reading OK
Motor Speed Reading OK
Number of Motors (Dispensing) 3
Tramline Flap Control OK
Seed Drill Position Display OK
Work Lighting Control OK
Hopper Lighting Control OK
Marker Control OK
Pre-emergent Marking Control OK
Adding Seed Batch during Work OK
Micro Seeding OK
Simultaneously Running Screens 1
Camera Input x
GSM Modem x

Müller Elektronik: ISOBUS DRILL-Controller

ME SMART570®
Equipment
Display Dimensions 5,7"
Seed Passing Sensor Control OK
Hopper Level Reading OK
Fan Speed Reading OK
Dispenser Speed Reading OK
Motor Speed Reading OK
Number of Motors (Dispensing) 3
Tramline Flap Control OK
Seed Drill Position Display OK
Work Lighting Control OK
Hopper Lighting Control OK
Marker Control OK
Pre-emergent Marking Control OK
Adding Seed Batch during Work OK
Micro Seeding OK
Simultaneously Running Screens 1
Camera Input x
GSM Modem x

Müller Elektronik: ISOBUS DRILL-Controller

x Not available
OK Included

Working tools


Formation of tramlines

Tramline valves

For seed and fertilizer savings.

Section Control

Optional equipment

Fan with cooler
“Y” adapters for merging seeding tubes ½ coulter seeding
Marking of track rows

Hydraulically controlled markers for accurate orientation of application equipment before crop emergence.

Hydraulically folding markers

Markers controlled hydraulically and automatically through control system.

Filling auger

Easy filling of the seed and fertilizer tank from the ground Falcon 6 Compact and Falcon 7.2 Compact.

Machine work lighting

High-intensity LED lights for comfortable operation in low-visibility conditions.

Stainless steel sifter

Stainless steel sifter prevents foreign objects from entering the hopper.

Set of pins for TPH hitch category 2
Hydraulic motor for fan drive via tractor PTO

Řešení pro tažné prostředky s nedostatečnými parametry hydraulického systému.

Photo gallery

Video

Files
