HURRICANE Cultivator

Cultivator Hurricane

Technology

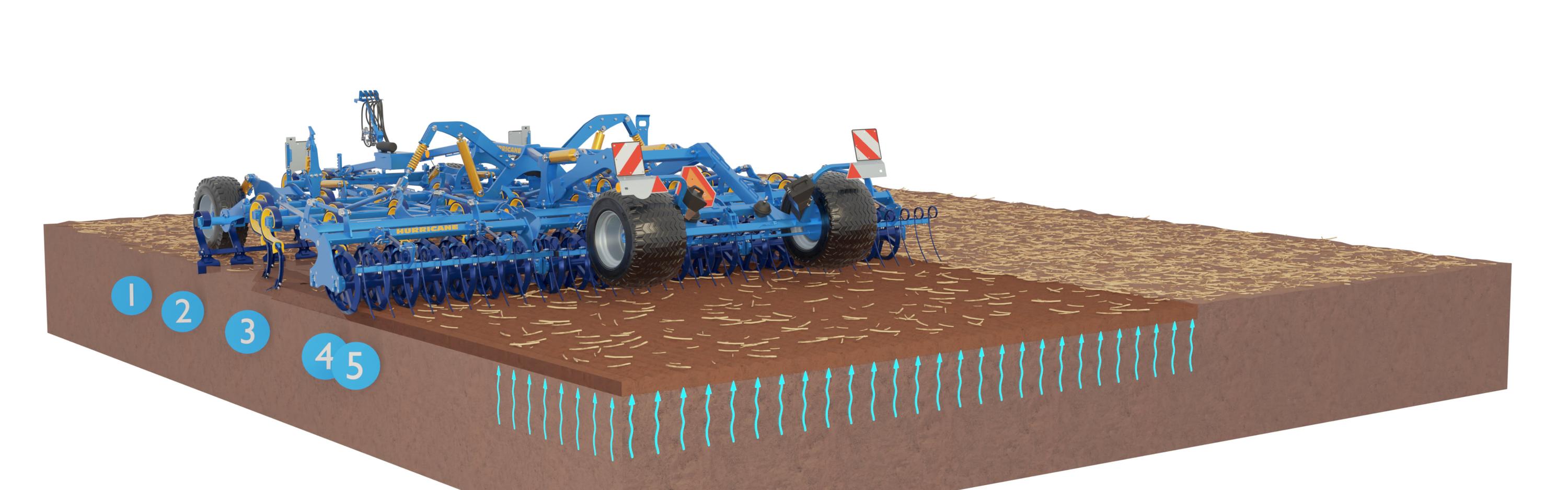

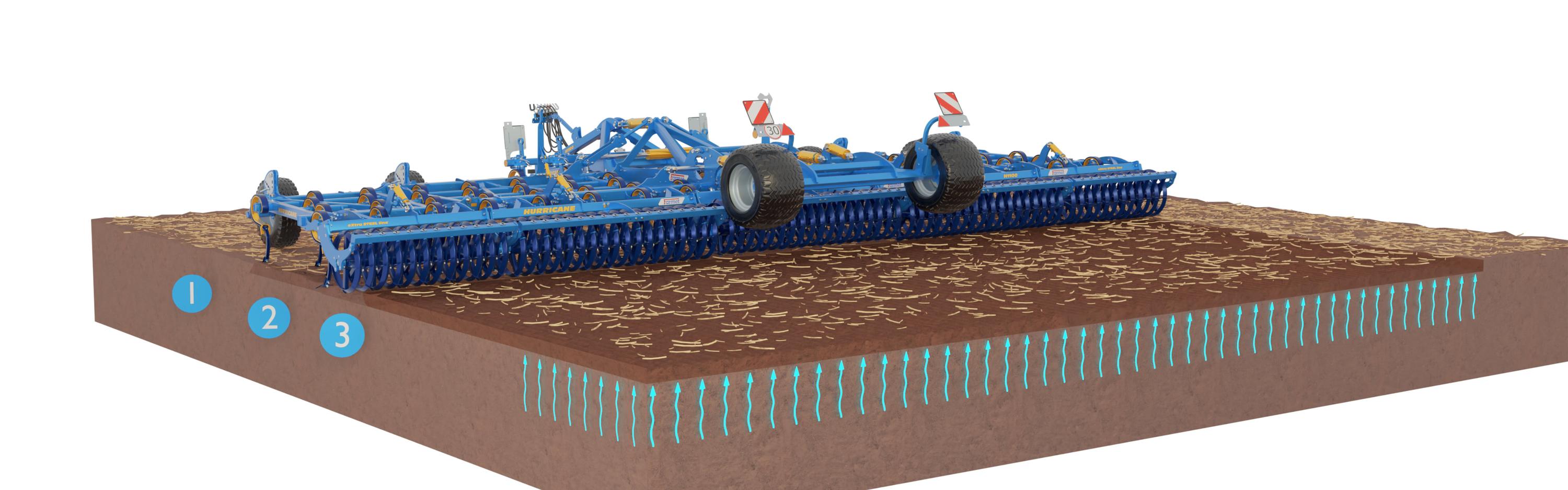

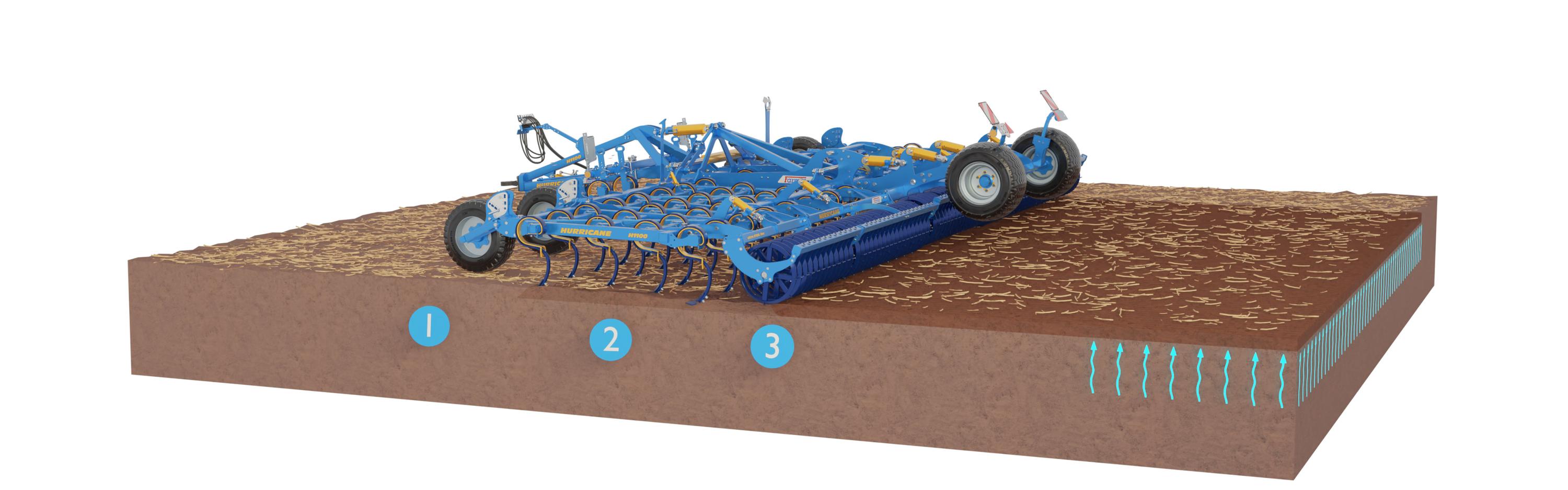

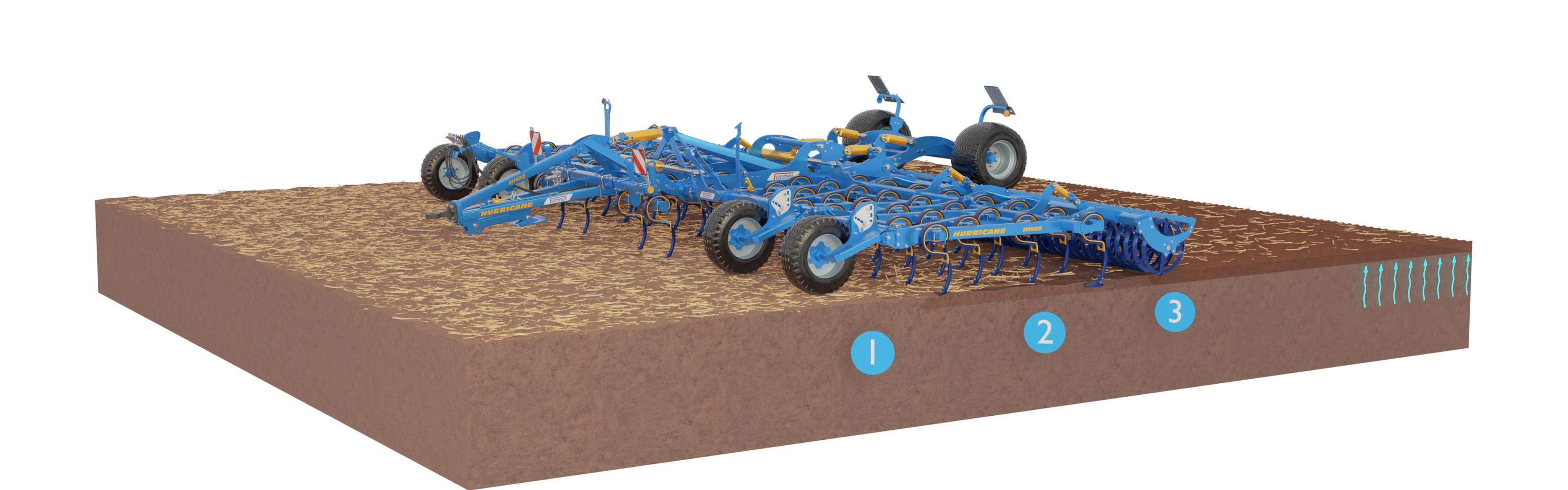

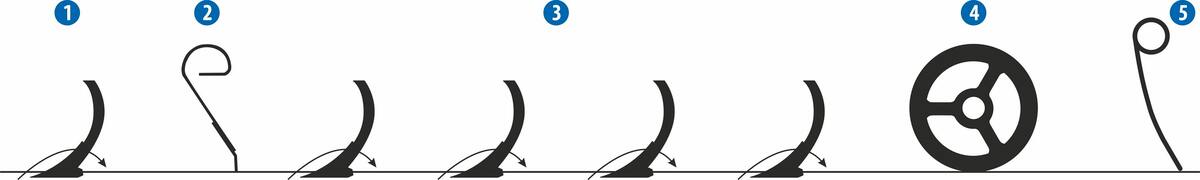

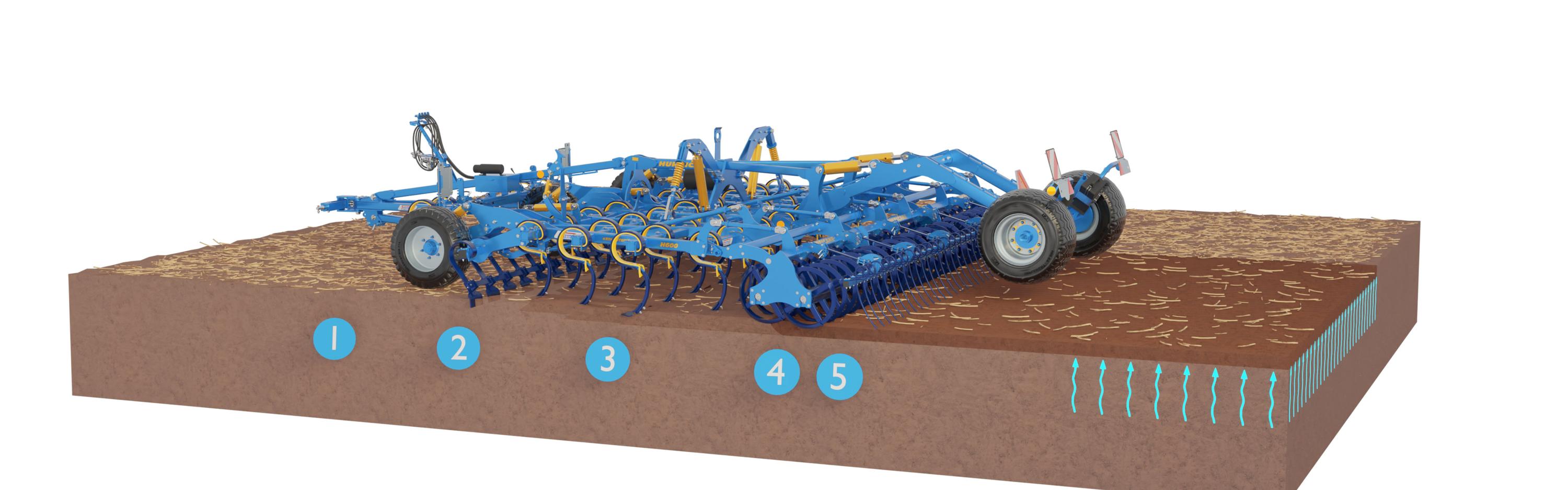

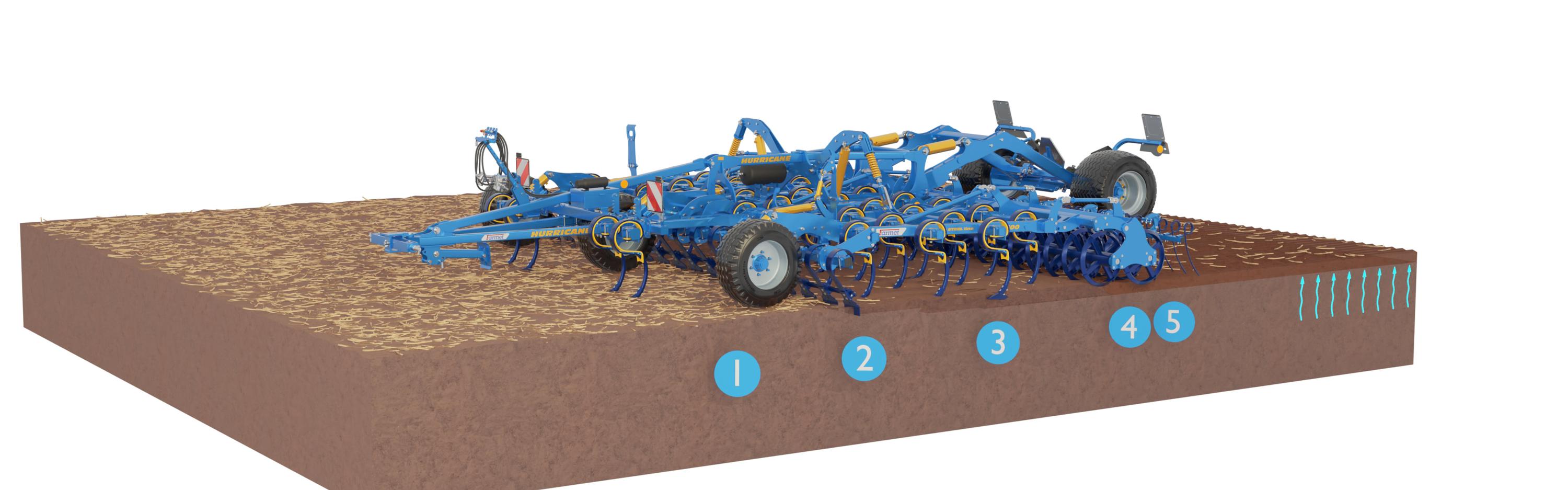

1	Cultivation zone. Cultivation depth up to 10 cm. Cultivation blades with optimized geometry in four rows ensure shallow loosening to a preset depth.

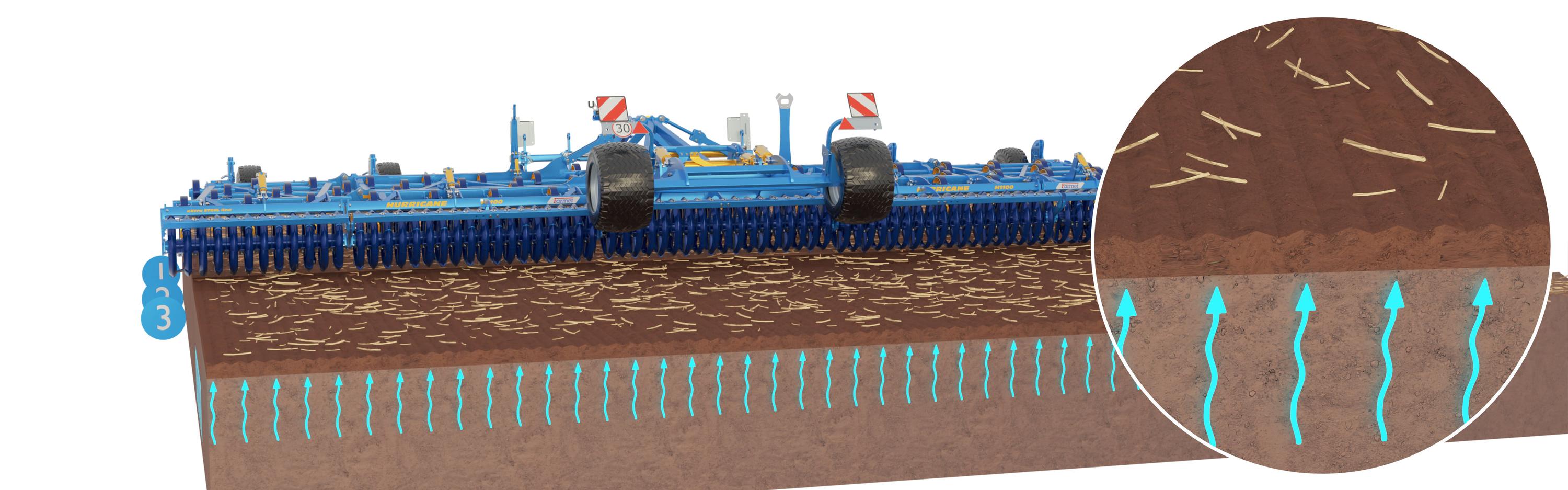

2	Clump breaking and reconsolidation zone. Optimal reconsolidation of the soil ensures good infiltration of precipitation and the capillary action of soil moisture to the surface.
3	Final soil leveling and weed removal zone.

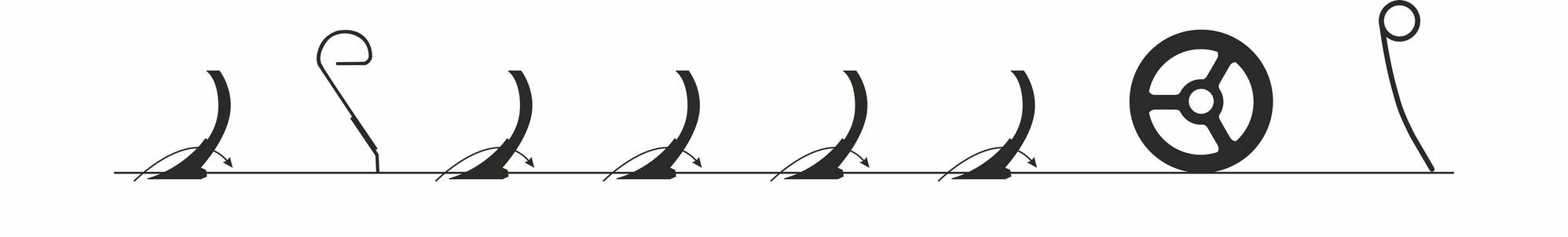

Four-row Hurricane cultivator for shallow tillage to a preset depth

Thanks to the large spacing of the shares, the cultivator has good throughput and quality of work.
The tillage depth is up to 10 cm depending on soil conditions.
When processing heavily compacted soil, the optimal processing depth is 3–5 cm on the first pass.

Technics

Hurricane cultivator

Massive shares located in four rows with double springs.
The rear roller levels the soil well and optimally compacts it back.
Rear harrows for leveling the soil and pulling out weeds.

Excellent throughput and quality of work thanks to the large spacing of the individual rows of shares.

Rugged design

High-strength refined materials in connection with eXtra STEEL line technology guarantee long service life of our machines even in the most extreme conditions.

High-strength materials

High-strength refined materials used for crucial nodes to ensure long service life. Strongly dimensioned frame of high-strength steel.

Optimal release force

The working elements are secured by double springs.

Robust transport axle

For safe and fast transport of the machine on roads.

Ideal for pre-sowing soil preparation in no-till minimization technologies

Easy operation

Due to minimum adjusting and lubricating points the operation and subsequent maintenance are very easy steps that everybody can perform.

Minimum adjustment points.
Minimum lubrication points.

Hydraulic working depth adjustment

The working depth is adjusted only on the front tracking wheels by adjusting the number of washers on the piston rods.

Adjustment of harrows

Adjustment of leveling harrows using a pin.

Maintenance-free disk bearings SKF

Maintenance-free roller bearings ensuring machine operation without additional lubrication.

Full-surface undercutting of the soil thanks to overlapping arrow shares

Smartly performed designed machine

The advantage of this machine is its multipurposeness and adjustability bringing high work variability.

Maneuverable when working in the field due to short and compact design.
Stable due to short design and light axle.

Incorporation of plant residues

Full-area post-harvest harrowing with intensive mixing effect. Excellent incorporation of plant residues into the soil.

Optimal tine arrangement

Optimal tine arrangement with high spacing ensures excellent throughput.

Soil leveling and weeding

Rear harrows ensure final soil leveling and weeding.

Micro Drill Seeding Unit

The sophisticated machine design allows an installation of Micro Drill Seeding Unit for sowing catch crop or planting grass directly.

More information about Micro Drill >

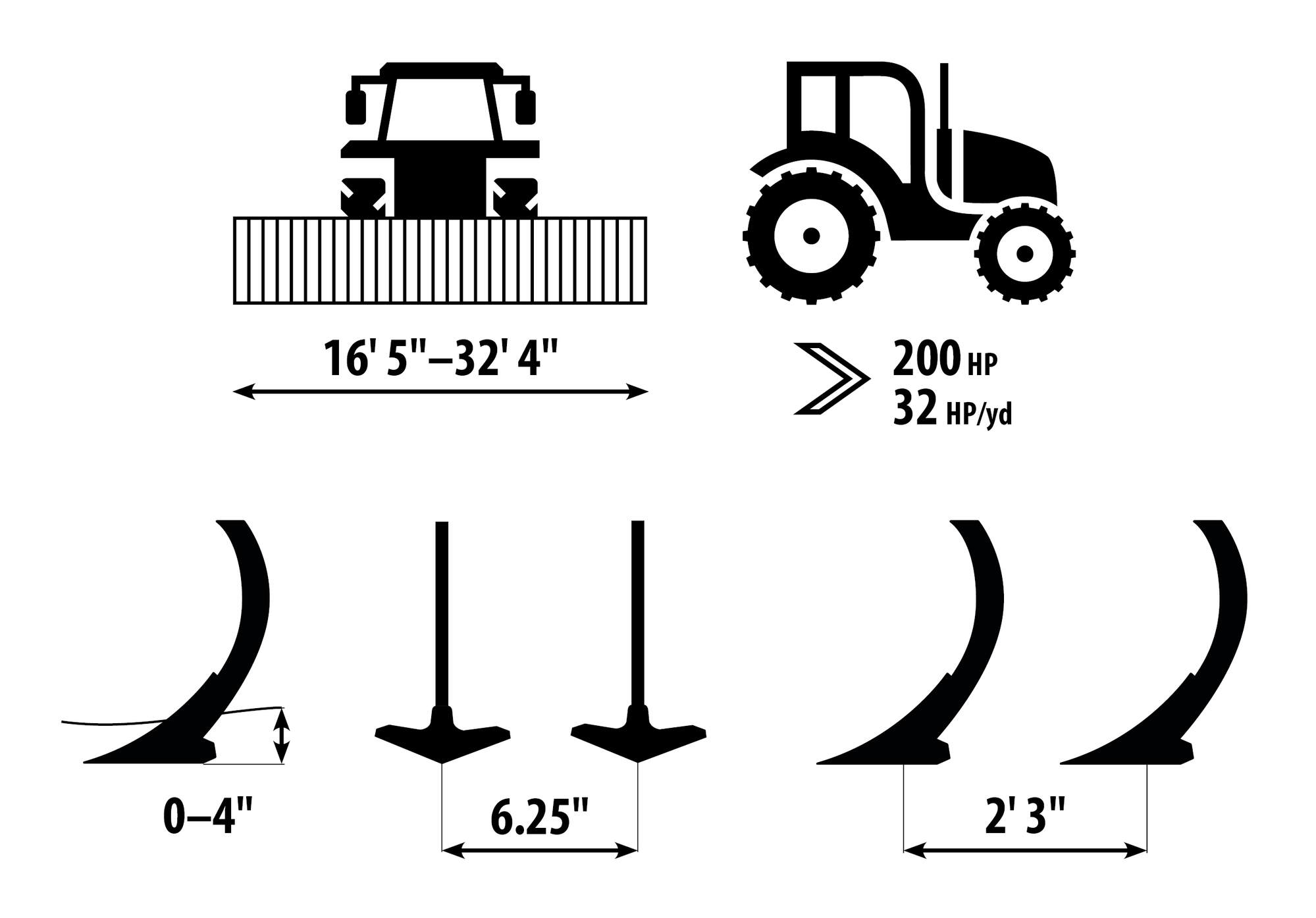

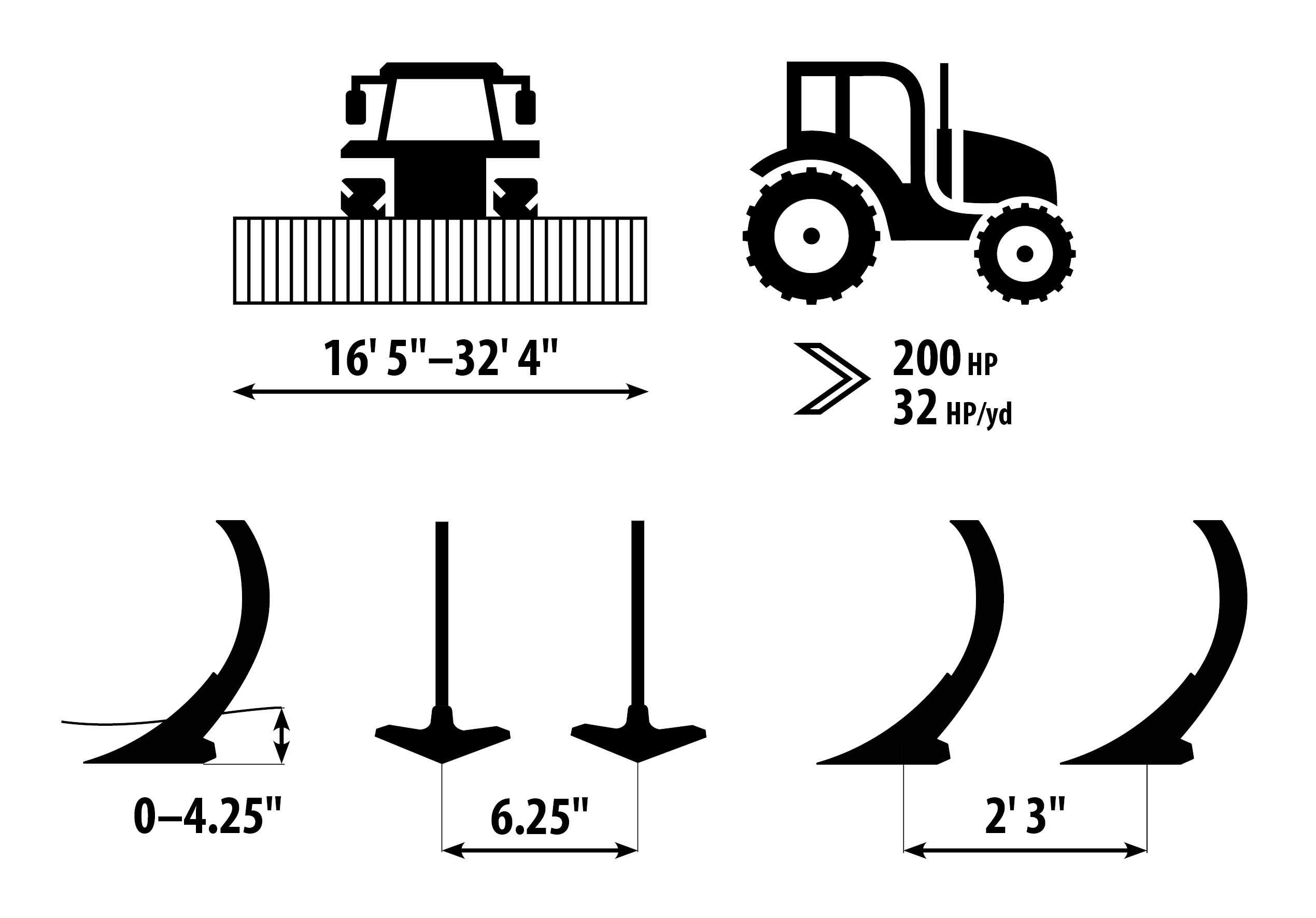

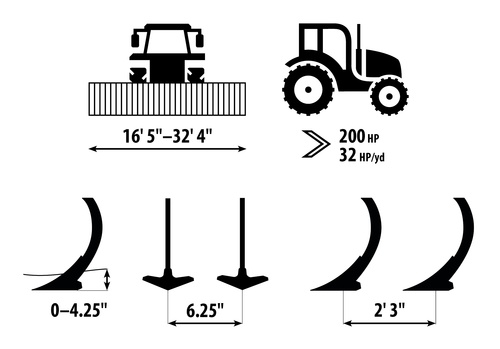

Parameters

Technical parameters	Units	Hurricane 500 PS	Hurricane 600 PS	Hurricane 700 PS	Hurricane 800 PS	Hurricane 1000 PS
Working width	ft.	16' 5"	19' 8"	22' 11"	26' 3"	32' 4"
Transport width	ft.	9' 10"	9' 10"	9' 10"	9' 10"	9' 10"
Transport height	ft.	9' 2"	10' 7"	12' 7"	13' 1"	13' 1"
Total machine length	ft.	22' 4"	22' 4"	22' 4"	22' 4"	24' 2"
Working depth	in.	max 4"	max 4"	max 4"	max 4"	max 4"
Number of tines	pcs	31	37	43	49	61
Tine spacing	in.	6.25"	6.25"	6.25"	6.25"	6.25"
Number of tine rows	pcs	4	4	4	4	4
Row spacing	ft.	2' 3"	2' 3"	2' 3"	2' 3"	2' 3"
Frame clearance²	ft.	1' 11"	1' 11"	1' 11"	1' 11"	1' 11"
Working performance	ac/h	7.4–12.4	8.6–14.8	11.1–17.3	13.6–19.8	21.0–24.7
Towing vehicle ¹	kW HP	150 200	160 215	180 245	195 265	220 300
Working speed	mph	8–9	8–9	8–9	8–9	8–9
Maximum slope availability	°	6	6	6	6	6
Dimension of tyre - transport		19,0/45-17	19,0/45-17	19,0/45-17	19,0/45-17	19,0/45-17
Brake type / distribution		-	-	air / two-line	air / two-line	air / two-line
Required pressure	kPa	-	-	8,5	8,5	8,5
Dimensions of brakes		-	-	300/60	300/60	300/60
Number of hydraulic circuits / pressure	bar	2–4 / 200	2–4 / 200	2–4 / 200	2–4 / 200	2–4 / 200
Number of quick-coupling devices / type		4–8 / ISO 12,5	4–8 / ISO 12,5	4–8 / ISO 12,5	4–8 / ISO 12,5	4–8 / ISO 12,5
Tractor hitch requirement		TPH cat. 3 and 4; lower hitch K80; eye Ø 2", 2.75"
Machine weight	lb.	8,873	9,612	10,935	11,784	15,256

¹ Recommended towing vehicle, the actual pulling force may significantly change according to the tilling depth, soil conditions, inclination of land, wear of working units and their adjustment.
² Frame clearance in the non-recessed state, during work the clearance is reduced by the current working depth.
³ Machine weight with ring roller.
Transport / brake system: Follow national provisions valid for transport of machines on public roads. Verify legal provisions valid in the country, regulations on maximum allowable total weights and axle loads and also on necessary possible use of the brake system. If you have any questions, please contact our sales representative.

PS - semi-mounted foldable machine

Optional

Accessories

Rollers

Ring roller RR

Diameter	20"
Weight	386 lbs./yd

Double ring roller DRR

Diameter	21"/21"
Weight	470 lbs./yd

Double FLAT roller DFR

Diameter	20"/20"
Weight	398 lbs./yd

Crosskill roller CR

Diameter	16"
Weight	321 lbs./yd

Double crosskill roller DCR

Diameter	400 mm
Weight	185 kg/m
Roller row spacing	274 mm

Double V-ring DVR

Diameter	22"/22"
Weight	434 lbs./yd

Proper selection of the type of the roller contributing significantly to the final quality of the tillage is very important. The selection of the type of the roller depends on the soil type and on the manner of use of the machine.

Rollers	Ring RR	Double ring DRR	Double DFR	Crosskill CR	Double crosskill DCR	Double V-ring DVR
Crumbling	●●○○	●●●○	●●●○	●●●●	●●●●	●●●○
Stamping	●●●●	●●●●	●●●●	●●●●	●●●●	●●●●
Depth guiding	●●●●	●●●●	●●●●	●○○○	●●○○	●●●●
Resistance against clogging	●●●●	●●●●	●●●●	●●●○	●●●●	●●●●
Suitability for stony soils	●●●○	●●●○	●●●○	●●○○	●●○○	●●●○
Suitability for wet soils	●●●●	●●●●	●●●●	●●○○	●●●○	●●●●
Heavy soils	●●●○	●●●●	●●●●	●●●○	●●●●	●●●●
Medium soils	●●●○	●●●●	●●●●	●●●●	●●●●	●●●●
Light soils	●●●○	●●●●	●●●●	●●●●	●●●●	●●●●
