SINGLECUT Cutting rollers

Tipping and cutting catch crops

Request from dealer Spare Parts

Introduction

SingleCut cutting rollers

Technology

Rolling and cutting of inter crop stands

Cutting crop residues after harvesting crops such as sunflowers, rapeseed or corn.
When the machine is working in the field, the soil surface is also partially loosened and conditions are created for weed seeds to germinate and the harvested crop to sprout.
The cutting rollers are suitable for both classic and regenerative farming technologies.
The advantage of SingleCut cutting rollers is the symmetrical diagonal arrangement of the knives in a V shape, which significantly reduces vibrations during work and extends the service life of the machine.
High working speed ensures high dynamics and efficiency of disruption of plant residues, resulting in significantly better subsequent microbial decomposition.

Technics

SingleCut cutting rollers

Rolling and cutting of inter crop stands.

Cutting of crop residues after harvesting crops such as sunflower, rapeseed or corn

Rugged design

High-strength refined materials in connection with eXtra STEEL line technology guarantee long service life of our machines even in the most extreme conditions.

Extended blade life

The blades are made of high-strength, wear-resistant hardened steel with an extended life

When the machine is working in the field, the soil surface is also partially loosened and conditions are created for weed seeds to germinate and the harvested crop to sprout

Easy operation

Possibility of filling with water

The cutting rollers can be filled with water, which optimizes the weight needed for effective cutting of catch crops.

The cutting rollers are suitable for both classic and regenerative farming technologies

Smartly performed designed machine

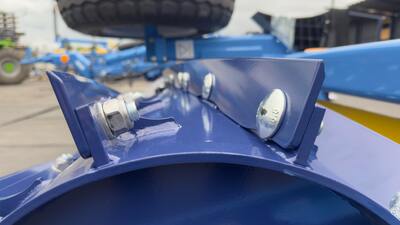

Easy blade replacement

The blades can be dismantled and replaced.

Possibility of fitting into Cambridge rollers

Cutting rollers can also be fitted into older Cambridge roller machines, thus expanding their range of applications.

Reduced vibrations during operation

The advantage of SingleCut cutting rollers is the symmetrical diagonal V-shaped arrangement of knives, which significantly reduces vibrations during operation and extends the life of the machine.

Easy transport

Due to small transport dimensions the rollers are easily transportable.

Optional

Accessories

Variants of hitches

Bottom-level suspension of the tractor

Upper-level suspension of the tractor

Parameters

Technical parameters	Units	SingleCut 6	SingleCut 9

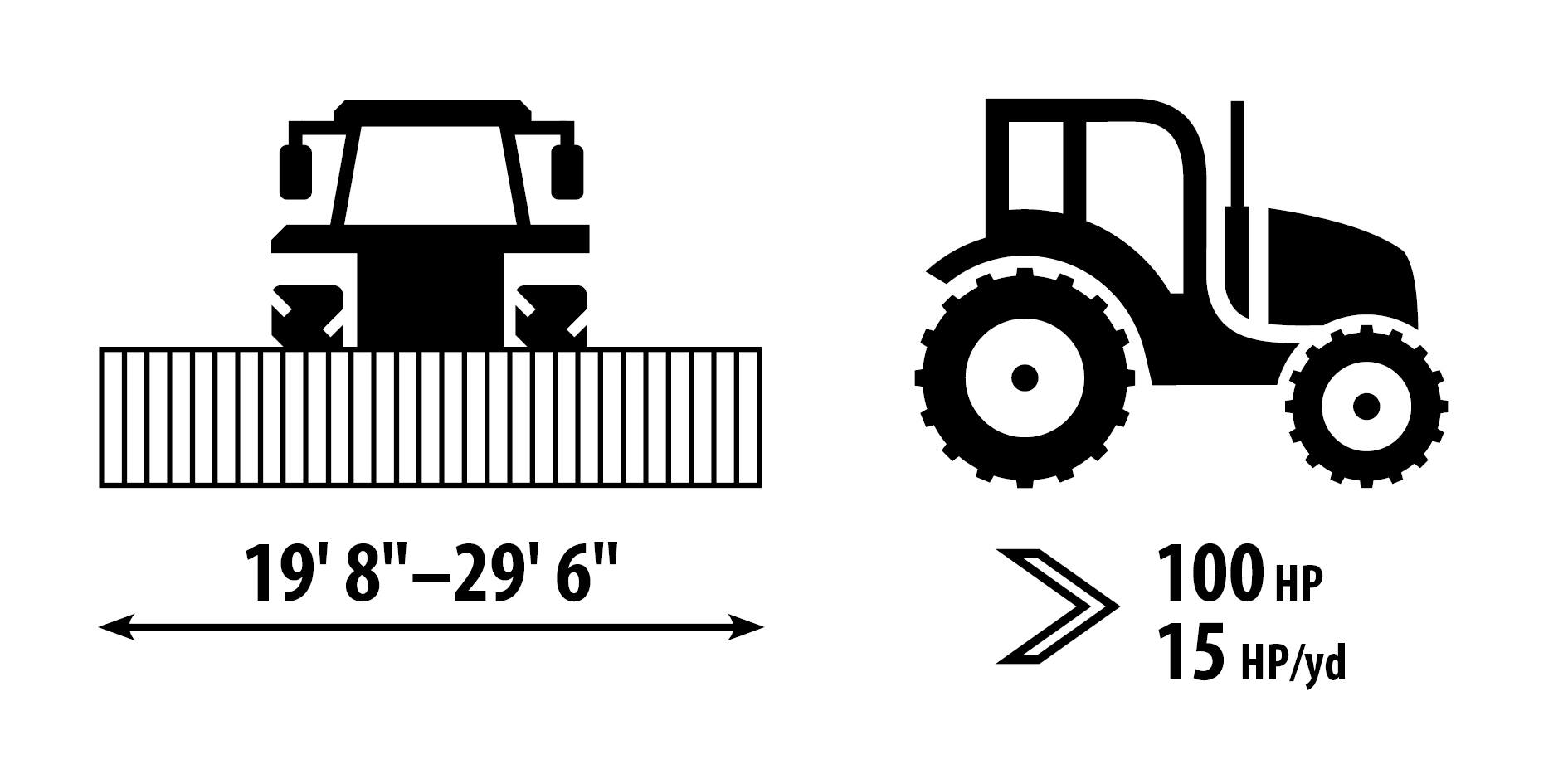

Working width	ft.	19' 8"	29' 6"
Transport width	ft.	7' 10"	7' 10"
Transport height	ft.	5' 3"	5' 3"
Total machine length	ft.	13' 5"	22' 4"
Working performance	ac/h	14.8–29.7	22.2–44.5
Towing vehicle ¹	kW HP	75 100	90 125
Working speed	mph	6─12	6─12
Maximum slope availability	°	11	11
Dimension of tire - transport		10,0 / 75 - 15,3	10,0 / 75 - 15,3
Number of hydraulic circuits / pressure	bar	1 / 200	1 / 200
Number of quick-coupling devices / type		2 / ISO 12,5	2 / ISO 12,5
Tractor hitch requirement		upper-level suspension of the tractor; bottom-level suspension of the tractor
Machine weight	lb.	3,527	5,511

¹ Recommended towing vehicle, the actual pulling force may significantly change according to the tilling depth, soil conditions, inclination of land, wear of working units and their adjustment.
Transport / brake system: Follow national provisions valid for transport of machines on public roads. Verify legal provisions valid in the country, regulations on maximum allowable total weights and axle loads and also on necessary possible use of the brake system. If you have any questions, please contact our sales representative.

We constantly improve and innovate our products to provide the best possible solutions for current technological trends and to meet customer requirements. For this reason, some of the offered products may be manufactured differently than shown on the website. Binding specifications and machine parameters will be confirmed upon order.
