Seedbed combinator Kompaktomat PS

Seedbed combinator Kompaktomat PS



Seedbed combinator Kompaktomat PS

Technology

 Široké možnosti konfigurovatelnosti

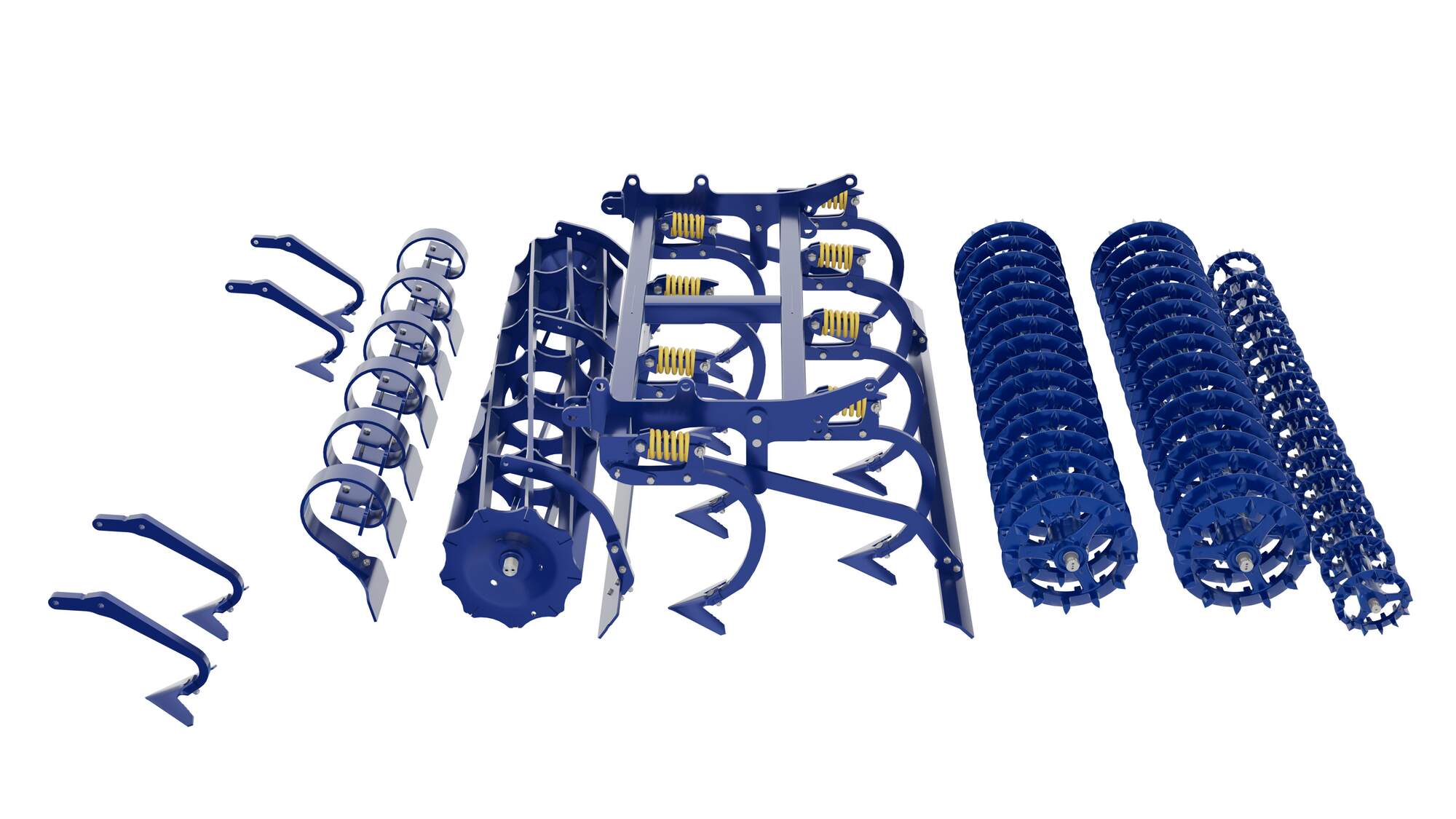

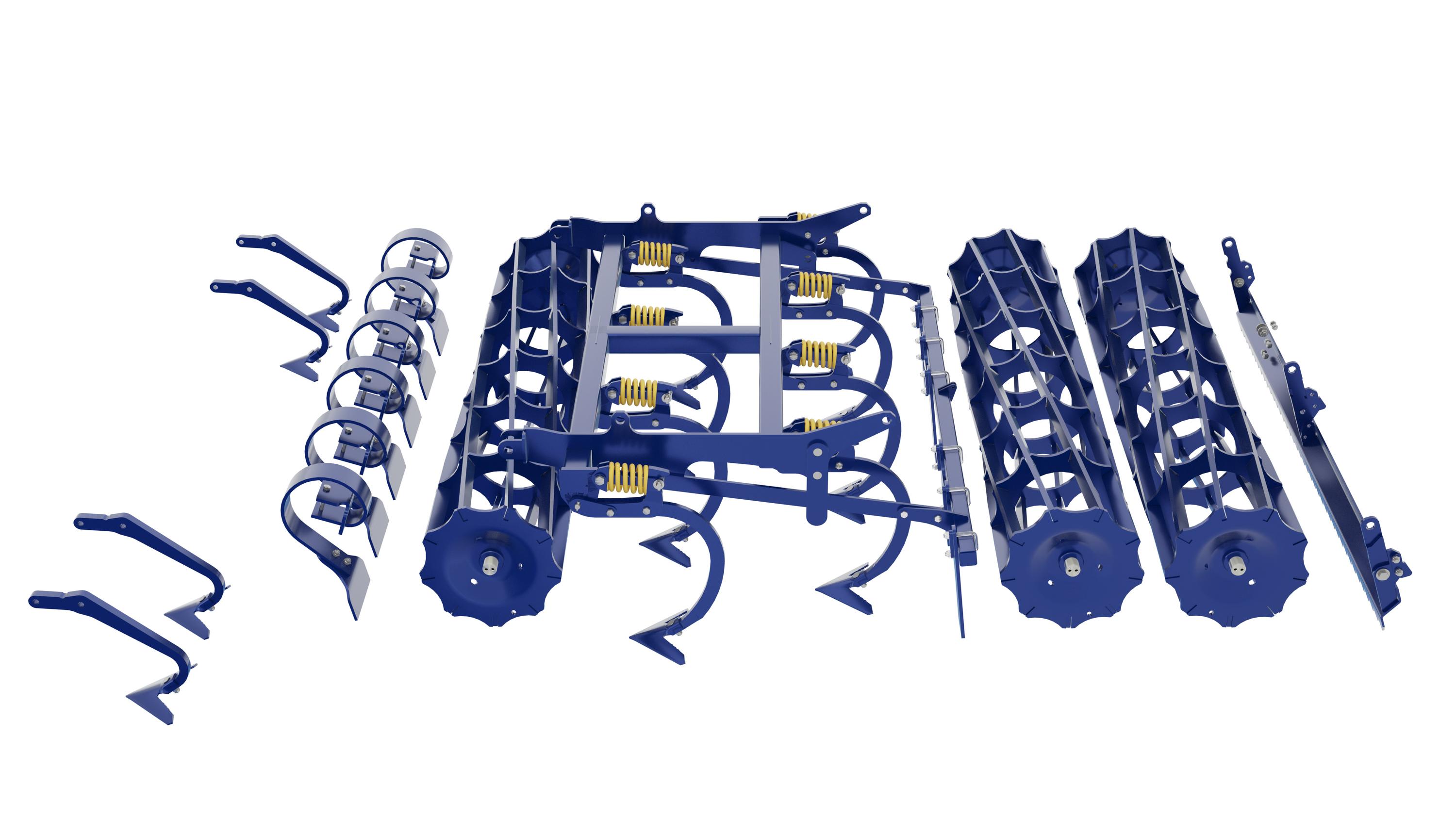

Configurations for work after plowing

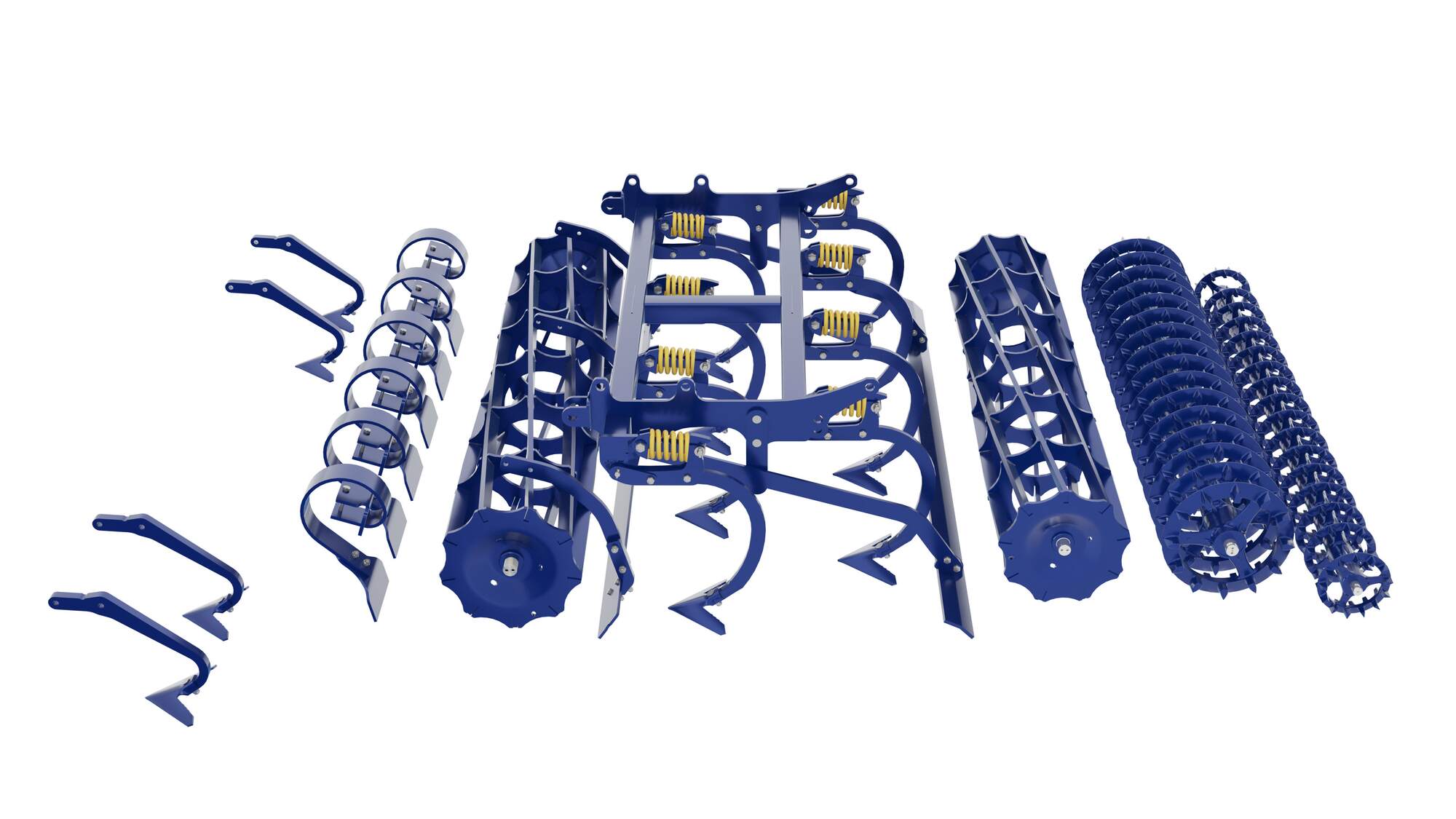

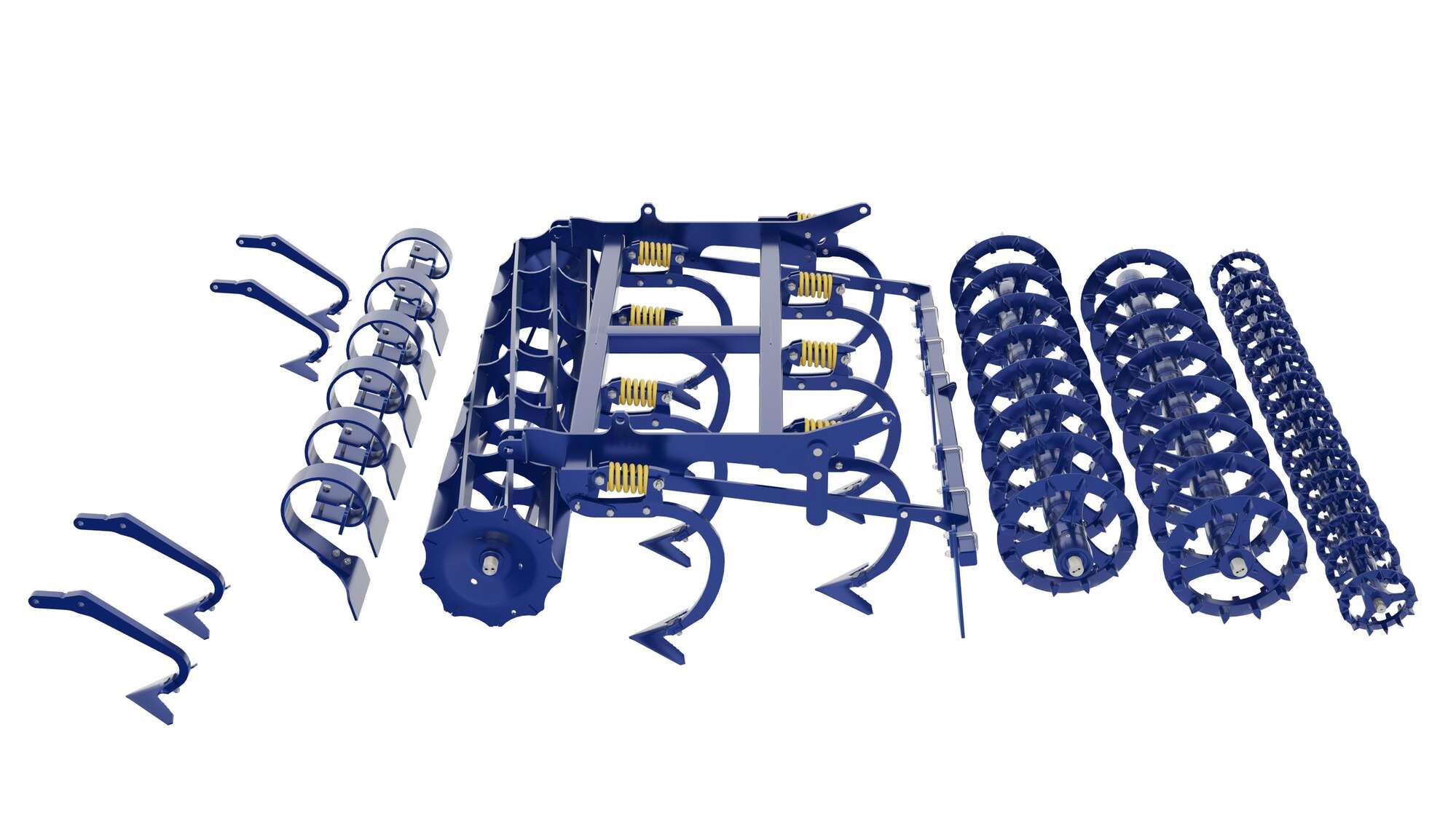

Configurations suitable for work after loosening

Up to 9 operations in a single pass

Higher clearance of residues

  • Leveling bar behind the front rollers
  • Option for double crosskill rollers + finishing crosskill roller
  • Front leveling scraper flexi-board type
  • Greater spacing between rows of share section
  • Two-row crosskill rollers with increased clearance

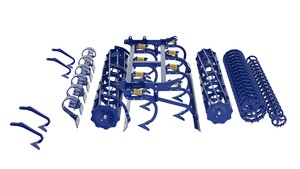

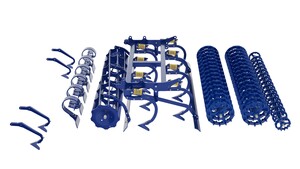

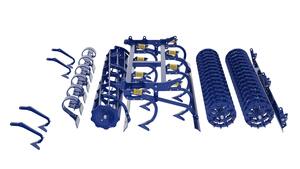

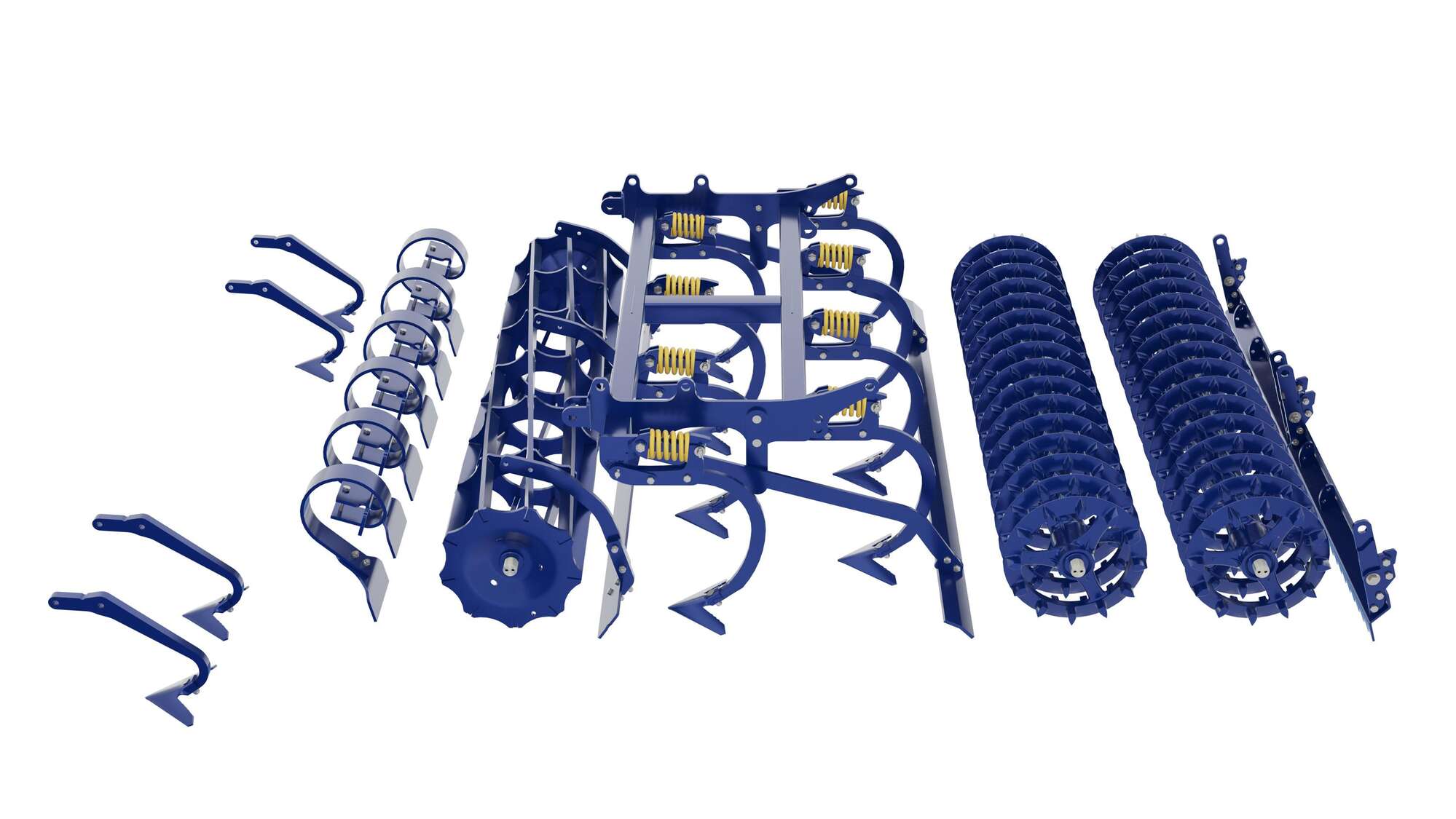

Most common configurations: Most common configurations:

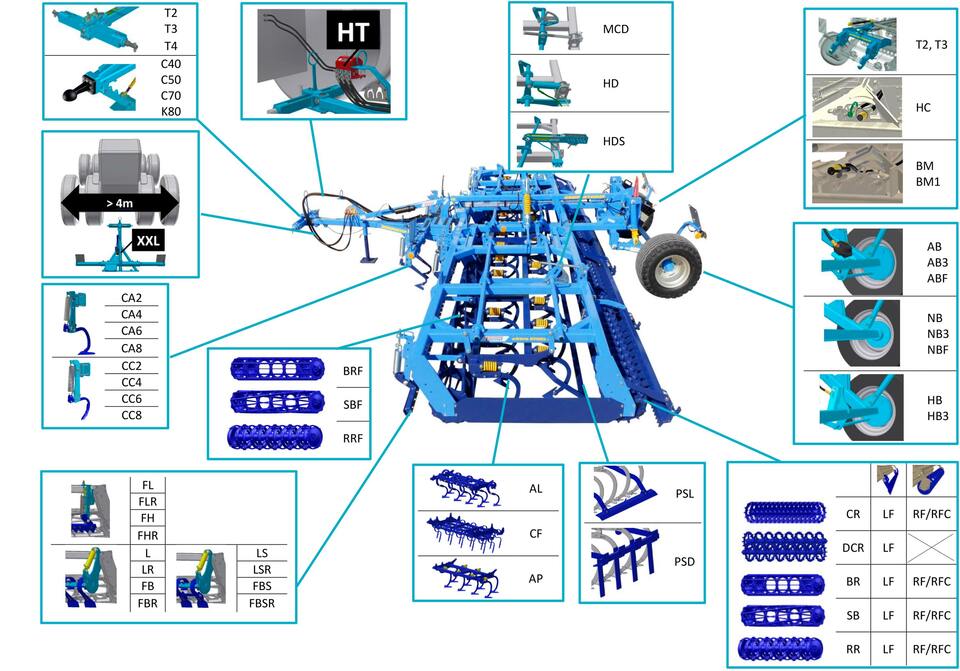

Select other configurations HERE Select other configurations HERE

Kompaktomat PS

Kompaktomat PS LONG

1 Tractor track cultivation zone. Perfect cultivation of the tracks eliminates uneven emergence of plants after sowing.
2 Basic soil leveling zone. Precisely leveled soil surface allows uniform subsequent consolidation and cultivation the seedbed.
3 Soil pre-consolidation zone by the front roller. The front roller crumbles clods on the surface, but at the same time it consolidates the soil and restores the soil capillarity.
4 Seedbed zone. The soil is cultivated by the share section to the set depth. The depth should be the same as the future sowing depth. Arrow shares allow full-surface undercut and weed control.
5 Wave-leveling zone behind a share cultivating section.
6 Rear roller soil consolidation zone. The roller finely crumbles clods and ensures the final consolidation of the seedbed so that the soil capillarity is fully restored. Intensive soil moisture rise ensures good emergence of plants even in the dry season.
7 Final soil leveling zone. The rear rod or final rollers ensure a perfect leveled surface with minimum clods for subsequent sowing.

Seedbed combinators Kompaktomat are time-tested machines designed for seedbed preparation of the soil after plowing.

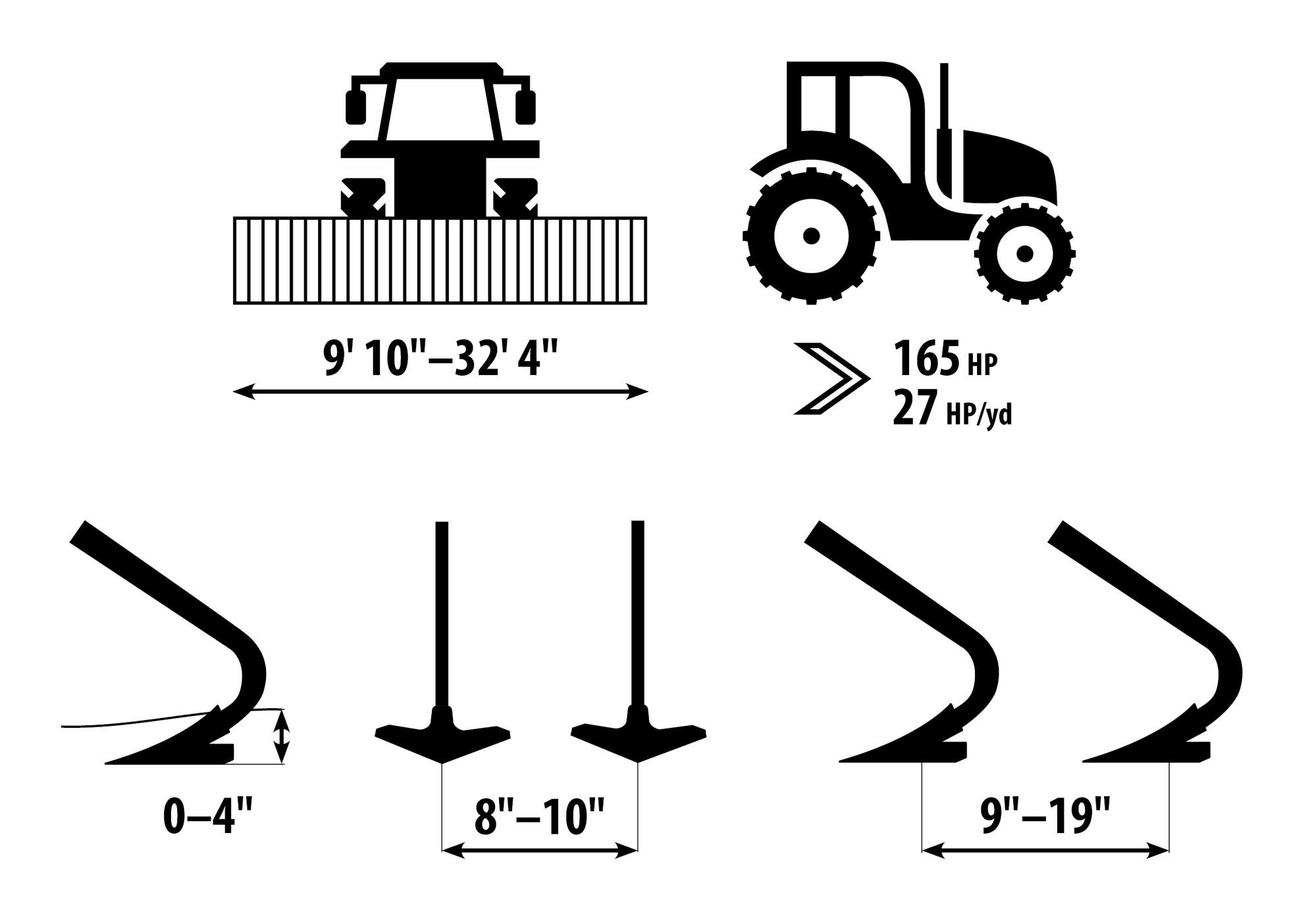

Wide range of working spans

Semi-mounted machines are offered with the working span from 9' 10" to 32' 4".

Excellent leveling of the surface, fine crumbling of clods

During one run the soil is perfectly tilled to the state required for sowing of crops. The advantage of the machine is excellent leveling of the surface, fine crumbling of clods and formation of well-consolidated seedbed.

Seedbed combinators Kompaktomat are time-tested machines designed for seedbed preparation of the soil after plowing.

Wide range of working spans

Semi-mounted machines are offered with the working span from 9' 10" to 32' 4".

Excellent leveling of the surface, fine crumbling of clods

During one run the soil is perfectly tilled to the state required for sowing of crops. The advantage of the machine is excellent leveling of the surface, fine crumbling of clods and formation of well-consolidated seedbed.

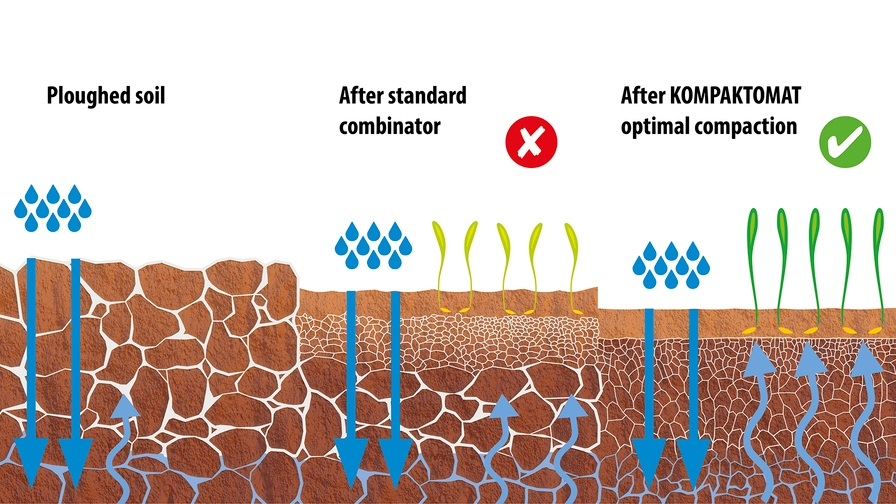

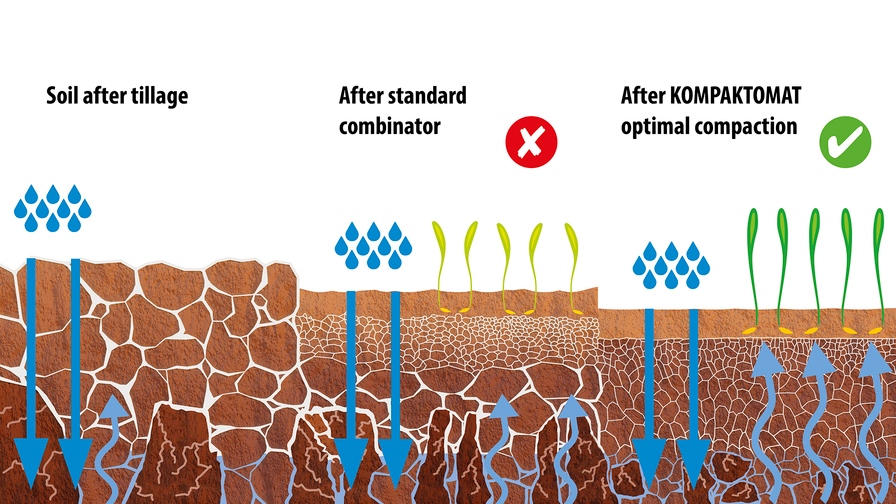

WRONG
During unequal cultivation of the soil there is a danger of wrong and unequal emergence of plants.
CORRECT
Uniform cultivation of the soil using seedbed combinator Kompaktomat determines equal emergence of plants.

Excellent consolidation → ensures water absorption and moisture rise

Technics

Seedbed combinator Kompaktomat PS

  1. Tractor track cultivators for lifting of the consolidated soil.
  2. Front leveling bar for coarse leveling of the surface.
  3. Front roller for rough crumbling of clods.
  4. Share working section undercuts and cultivates the soil.
  5. Central leveling bar levels the cultivated soil and the soil is directed below the rear roller.
  6. The rear roller for fine soil cultivation.
  7. The rear leveling bar levels the surface.

Seedbed combinator Kompaktomat PS LONG

  1. Tractor track cultivators for lifting of the consolidated soil.
  2. Front leveling bar for coarse leveling of the surface.
  3. Front roller for rough crumbling of clods.
  4. The extended double-row share working section with increased trash flow undercuts and cultivates soil.
  5. Central leveling bar levels the cultivated soil and the soil is directed below the rear roller.
  6. The rear roller for fine soil cultivation.
  7. The rear finishing section levels the soil surface.

High performance and quality of work

  • 7 operations performed during one run.
  • High working speed up to 9 mph.
  • Excellent re-consolidation and restoration of soil capillarity ensuring equal emergence.
  • Precise adjustment of the depth of the shares ensures precise preparation of the seedbed for each crop.
  • Automatic protection of shares ensures trouble-free operation.
  • Excellent leveling effect of field unevenness.

High performance and quality of work

  • 7 operations performed during one run.
  • High working speed up to 9 mph.
  • Excellent re-consolidation and restoration of soil capillarity ensuring equal emergence.
  • Precise adjustment of the depth of the shares ensures precise preparation of the seedbed for each crop.
  • Automatic protection of shares ensures trouble-free operation.
  • Excellent leveling effect of field unevenness.

Robust design

High-strength refined materials in connection with eXtra STEEL line technology guarantee long service life of our machines even in the most difficult conditions.

High-strength materials
High-strength refined materials used for key places to ensure long service life. Strongly dimensioned frame.
Robust leveling bar
The robust front leveling bar ensuring tear off upper layers of topsoil.
Protection of shares
Automatically protected shares.

Easy operation

Due to minimum of adjusting and lubricating points the operation and subsequent maintenance are very easy steps that anybody can perform.

  • Minimum of adjustment points.
  • Minimum of lubrication points.
Front leveling bar
Adjustment of the height of the front leveling bar.
Hydraulic control of the front leveling bar
The position of the front scraper can be continuously changed during work according to current conditions. Can be retrofitted to older machines.
Deflector behind the cultivating section
Rugged deflector for improved residue clearance. This is an optional machine equipment.
Leveling bar behind the cultivating section
Adjusting the height of the leveling bar behind the cultivating section.
Working depth
Adjustment of working depth of the shares.
Hydraulic adjustment of working depth
The working depth of the cultivation section can be conveniently adjusted hydraulically directly from the tractor cab. Can be retrofitted to older machines.

Smartly designed machine

The advantage of this machine is its multi-purspose and adjustability bringing high variability of work.

Presowing combinator Kompaktomat

Presowing combinator Kompaktomat

Folding for the transport is designed so that:

  • the machine does not exceed the maximum transport width of 9' 10" and maximum transport height of 13' 1"
  • folding is hydraulic and fully automatic

Folding for the transport is designed so that:

  • the machine does not exceed the maximum transport width of 9' 10" and maximum transport height of 13' 1"
  • folding is hydraulic and fully automatic

Choice of multiple types of cultivating sections

Differences between individual sections are described in more detail in the tab Accessory

Section AL
Section CF
Section AP
Section AL4

Possibility of aggregation with other machines

Semi-mounted seedbed combinators Kompaktomat K 300 P – K 1000 PS enable aggregation with other devices or machines. For this purpose they must be additionally equipped with the rear three-point hitch of category 2; it is equipment over standard.

Aggregation of seedbed combinators Kompaktomat with additional rollers

For aggregation with e.g. crumbling rollers it is sufficient to additionally equip the combinator with the rear three-point hitch only.

Aggregation of seedbed combinators Kompaktomat with the seeding-machine

For aggregation with a pneumatic seeding-machine, the combinator can be extended by the hydraulic drive of fan and hydraulic circuit for control of the seeding-machine markers.

Parameters

Technical parameters – unbraked variant

Technical parameters Units Kompaktomat
K 300 P
Kompaktomat
K 400 PS
Kompaktomat
K 450 PS
Kompaktomat
K 500 PS
Kompaktomat
K 600 PS
Working width ft. 9' 10" 13' 1" 14' 9" 16' 5" 19' 8"
Transport width ft. 9' 10" 9' 10" 9' 10" 9' 10" 9' 10"
Transport height ft. 5' 5" 8' 9" 9' 11" 9' 2" 10' 7"
Total machine length ft. 19' 7" 19' 7" 19' 7" 20' 20'
Working depth in. 0–4" 0–4" 0–4" 0–4" 0–4"
Number of shares – arrow AL
Number of shares – chisel CF
Number of shares – arrow AP
pcs 13
30
12
18
39
16
20
47
20
23
49
23
27
59
24
Working performance ac/h 5.4–7.9 7.4–9.9 8.6–11.1 7.4–12.4 8.6–14.8
Towing vehicle 1 kW
HP
70
95
90
125
110
150
120
165
130
180
Working speed mph 6–9 6–9 6–9 6–9 6–9
Maximum slope availability ° 11 6 6 6 6
Dimension of tire - transport   400/60-15.5 400/60-15.5 400/60-15.5 19.0/45-17 19.0/45-17
Number of hydraulic circuits / pressure bar  2–4 / 200 2–4 / 200  2–4 / 200 2–4 / 200 2–4 / 200
Number of quick-coupling devices / type    4–8 / ISO 12.5 4–8 / ISO 12.5  4–8 / ISO 12.5 4–8 / ISO 12.5 4–8 / ISO 12.5

Tractor hitch requirement
Axial spacing of lower suspension joints
(alternative spacing)

ft. 3' 4"
(3')
3' 4"
(3')
3' 4"
(3')
3' 4"
(3')
3' 4"
(3')
Tractor hitch requirement
Hole diameter of lower suspension joints for machine suspension pins
(alternative Ø)
in. 1.5"
(1.25")
1.5"
(1.25")
1.5"
(1.25")
1.5"
(1.25")
1.5"
(1.25")
Tractor hitch requirement   TPH cat. 2 and 3; lower hitch K80; eye Ø 1.5", 2", 2.75"
Axle load lb. 4,321 4,586 4,938 6,091 6,504
Machine weight 2 lb. 5,203 6,636 7,363 8,873 9,612

Technical parameters – braked variant

Technical parameters Units Kompaktomat
K 500 PS
Kompaktomat
K 600 PS
Kompaktomat
K 700 PS
Kompaktomat
K 800 PS
Kompaktomat
K 1000 PS
Working width ft. 16' 5" 19' 8" 22' 11" 26' 3" 32' 4"
Transport width ft. 9' 10" 9' 10" 9' 10" 9' 10" 9' 10"
Transport height ft. 9' 2" 10' 7" 12' 7" 13' 1" 13' 1"
Total machine length ft. 20' 20' 20' 20' 21' 10"
Working depth in. 0–4" 0–4" 0–4" 0–4" 0–4"
Number of shares – arrow AL
Number of shares – chisel CF
Number of shares – arrow AP
pcs 23
49
23
27
59
24
31
69
31
35
77
32
43
91
38
Working performance ac/h 7.4–12.4 8.6–14.8 11.1–17.3 13.6–19.8 21–24.7
Towing vehicle 1 kW
HP
120
165
130
180
150
205
160
220
180
245
Working speed mph 6–9 6–9 6–9 6–9 6–9
Maximum slope availability ° 6 6 6 6 6
Dimension of tyre - transport   19.0/45-17 19.0/45-17 19.0/45-17 19.0/45-17 19.0/45-17
Brake type / distribution 3   air / two-line air / two-line air / two-line air / two-line air / two-line
Required pressure 3 kPa 8.5 8.5 8.5 8.5 8.5
Dimensions of brakes   300/60 300/60 300/60 300/60 300/90
Number of hydraulic circuits / pressure bar  2–4 / 200 2–4 / 200  2–4 / 200 2–4 / 200 2–4 / 200
Number of quick-coupling devices / type    4–8 / ISO 12.5 4–8 / ISO 12.5 4–8 / ISO 12.5 4–8 / ISO 12.5 4–8 / ISO 12.5

Tractor hitch requirement
Axial spacing of lower suspension joints
(alternative spacing)

ft. 3' 4"
(3')
3' 4"
(3')
3' 4"
(3' 5")
3' 4"
(3' 5")
3' 4"
(3' 5")
Tractor hitch requirement
Hole diameter of lower suspension joints for machine suspension pins
(alternative Ø)
in. 1.5"
(1.25")
1.5"
(1.25")
1.5"
(2")
1.5"
(2")
1.5"
(2")
Tractor hitch requirement   TPH cat. 2 and 3; lower hitch K80; eye Ø 1.25", 2", 2.75"
Axle load lb. 6,019 6,504 7,407 7,981 9,965
Machine weight 2 lb. 8,873 9,612 10,935 11,784 15,256

Seedbed combinator Kompaktomat PS LONG

Technical parameters Units Kompaktomat
K 500 PS LONG
Kompaktomat
K 600 PS LONG
Kompaktomat
K 700 PS LONG
Kompaktomat
K 800 PS LONG
Kompaktomat
K 1000 PS LONG
Working width ft. 16' 5" 19' 8" 22' 11" 26' 3" 32' 9"
Transport width ft. 9' 10" 9' 10" 9' 10" 9' 10"  9' 10"
Transport height ft. 9' 2" 10' 7" 12' 7" 13' 1"  13' 1"
Total machine length ft. 20' 10" 20' 10" 20' 10" 20' 10"  22' 7"
Working depth ft. 0–4" 0–4" 0–4" 0–4" 0–4"
Number of shares – arrow AL
Number of shares – arrow AL4
Number of shares – chisel CF
Number of shares – arrow AP
pcs 23
41
49
23
27
47
59
24
31
55
69
31
35
61
77
32
43
91
38
76
Working performance ac/h 7.4–12.4 8.6–14.8 11.1–17.3 13.6–19.8 21–24.7
Towing vehicle 1 kW
HP
120
165
130
180
150
205
160
220
180
245
Working speed mph 6–9 6–9 6–9 6–9 6–9
Maximum slope availability ° 6 6 6 6  6
Dimension of tyre - transport   19.0/45-17 19.0/45-17 19.0/45-17 19.0/45-17 19,0/45-17
Brake type / distribution 3   air / two-line air / two-line air / two-line air / two-line air / two-line
Required pressure 3 kPa 8.5 8.5 8.5 8.5 8,5
Braked / unbraked variant   yes / yes yes / yes yes / yes yes / no yes / no
Dimensions of brakes   300/60 300/60 300/60 300/60 300/60
Number of hydraulic circuits / pressure bar  2–4 / 200 2–4 / 200  2–4 / 200 2–4 / 200 2–4 / 200
Number of quick-coupling devices / type    4–8 / ISO 12.5 4–8 / ISO 12.5  4–8 / ISO 12.5 4–8 / ISO 12.5 4–8 / ISO 12,5

Tractor hitch requirement
Axial spacing of lower suspension joints
(alternative spacing)

ft. 3' 4"
(3')
3' 4"
(3')
3' 4"
(3' 5")
3' 4"
(3' 5")
3' 4"
(3' 5")
Tractor hitch requirement
Hole diameter of lower suspension joints for machine suspension pins
(alternative Ø)
ft. 1.5"
(1.25")
1.5"
(1.25")
1.5"
(2")
1.5"
(2")
1.5"
(2")
Tractor hitch requirement   TPH cat. 2 and 3; lower hitch K80; eye Ø 1.25", 2", 2.75"
Axle load lb. 6,195 6,680 7,628 8,201 10,692
Machine weight 2 lb. 9,094 9,832 11,265 12,114 16,360


1 Recommended towing vehicle, the actual pulling force may significantly change according to the tilling depth, soil conditions, inclination of land, wear of working units and their adjustment.
2 Machine variant weight: front bar roller, section AP, rear crosskill roller with leveler.
3 Alternative of the brake type: hydraulic, pressure 130 ± 5 bar (designed for the French market).
Transport / brake system: Follow national provisions valid for transport of machines on public roads. Verify legal provisions valid in the country, regulations on maximum allowable total weights and axle loads and also on necessary possible use of the brake system. If you have any questions, please contact our sales representative.

P - semi-mounted machine
PS - semi-mounted foldable machine

Modulability

Kompaktomat STANDARD

suitable for more intensive soil processing after plowing with a minimum of crop residues

Kompaktomat LONG

suitable for processing soil after loosening with a large amount of crushed crop residues on the surface

Optional

Accessories

Rollers

Ring roller RR
Diameter 16"
Weight 217 lbs./yd



May be applied as the front and rear roller.

Quality work in all types of soil, good depth guiding, suitable even for more humid soils.

Crosskill roller CR
Diameter 16"
Weight 321 lbs./yd



May be applied as the rear roller only.

Excellent work in light, medium and heavy soils, quality compaction and clod crumbling.

Double crosskill roller DCR
Diameter 16"
Weight 446 lbs./yd
Roller row spacing 11"



May be applied as the rear roller only.

Excellent work in light, medium and heavy soils, quality compaction and clod crumbling. When compared to crosskill roller, more intense clod crumbling.

Strip spiral roller SB
Diameter 16"
Weight 169 lbs./yd



May be applied as the front and rear roller.

Quality clod crumbling. Suitable for wet conditions.

Strip roller BR
Diameter 16"
Weight 152 lbs./yd



May be applied as the front and rear roller.

Quality clod crumbling. Not very suitable for wet conditions.

Two crosskill rollers CR + CR
Diameter 16"
Weight 639 lbs./yd
Roller row spacing 20"



May be applied as the rear roller only.

Excellent work in light, medium and heavy soils, quality compaction and clod crumbling.

Double crosskill roller DCRL
Diameter 16"
Weight 446 lbs./yd
Roller row spacing 20"



May be applied as the rear roller only.

Excellent work in light, medium and heavy soils, quality compaction and clod crumbling. When compared to crosskill roller, more intense clod crumbling.

Strip spiral roller SB + Crosskill roller CR
Diameter 16"
Weight 489 lbs./yd
Roller row spacing 20"



May be applied as the front and rear roller.

Quality clod crumbling. Suitable for wet conditions.

Proper selection of the type of the roller contributing significantly to the final quality of the tillage is very important. The selection of the type of the roller depends on the soil type and on the manner of use of the machine.

Rollers Crosskill
CR
Bar
BR
Spiral bar
SB
Ring
RR
Crumbling  ●●●● ●●●○ ●●●○ ●●○○
Stamping  ●●●● ●●●○ ●●●○ ●●●●
Depth guiding  ●○○○ ●●●○ ●●●○ ●●●●
Resistance against clogging  ●●●○ ●●○○ ●●●○ ●●●●
Suitability for stony soils  ●●○○ ●●●○ ●●●○ ●●●○
Suitability for wet soils  ●●○○ ●○○○ ●●●○ ●●●●
Heavy soils  ●●●○ ●●○○ ●●○○ ●●●○
Medium soils  ●●●● ●●●○ ●●●○ ●●●○
Light soils  ●●●● ●●●● ●●●● ●●●○
Rollers Double crosskill
DCR
Double crosskill
DCRL
 Two crosskill rolles
CR + CR
Strip spiral roller + Crosskill roller
SB + CR
Crumbling ●●●● ●●○○ ●●●● ●●●●
Stamping ●●●● ●●●● ●●●● ●●●●
Depth guiding ●●○○ ●●○○ ●●○○ ●●●○
Resistance against clogging ●●●●  ●●●○  ●●●○ ●●○○
Suitability for stony soils ●●○○ ●●●● ●●○○ ●●○○
Suitability for wet soils ●●●○ ●●○○ ●●○○ ●○○○
Heavy soils ●●●● ●●●●  ●●●○ ●●○○
Medium soils ●●●● ●●●● ●●●● ●●●○
Light soils ●●●● ●●●● ●●●● ●●●●

Working tools

Kompaktomat arrow share DURA+

For AL / AP sections and ruts looseners CA.

Kompaktomat share DURA+

For the AL4 section.

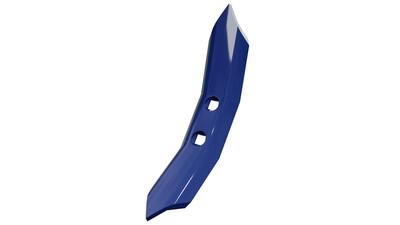

Chisel CARBIDE

For the CF section.

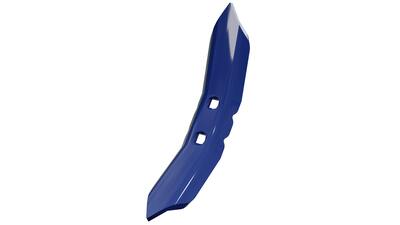

Double-sided chisel

For the CF section.

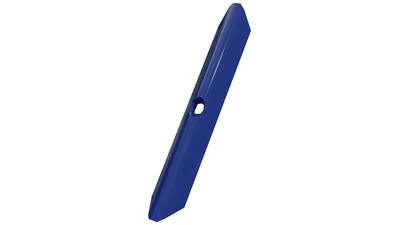

Double-sided chisel

For ruts looseners CC.


Cultivating section

Section AP

Universal cultivating section with 10.5" arrow shares in two rows. The shares are mounted on tines with a geometry that improves the passage of residues. Therefore, this share section is suitable for lands with a higher incidence of crushed residues and for heavy soils. Standardly equipped with a height-adjustable leveling bar behind the shares.

Section AL

Section is equipped with 10,5" arrow shares in two rows. This section is suitable for light soil conditions without residues. Standardly equipped with a height-adjustable leveling bar behind the shares.

Section AL4

Version for Kompaktomat LONG.

Section is equipped with 6" arrow shares in four rows. Suitable for light, medium, and heavy soils. Standardly equipped with a height-adjustable leveling bar behind the shares.

Section CF

Section is equipped with narrow chisels of 1.5" in four rows. Ideal for spring soil preparation or heavy soils where lifting wet soil to the surface is undesirable. Standardly equipped with a leveling bar behind the shares.

Section AL AL-L 1 CF CF-L 1 AP AP-L 1 AL4 1

Number of rows of shares (pcs) /
Row spacing (mm)

2 / 400  2 / 510 4 / 240  4 / 265 2 / 490  2 / 600 4 / 270
Leveler behind shares ●●●● ●●●● ●●●● ●●●● ●●●● ●●●● ●●●●
Full-area tillage ●●●● ●●●● ●●○○ ●●○○ ●●●● ●●●● ●●●●
Suitability for light soils ●●●● ●●●● ●●●● ●●●● ●●●● ●●●● ●●●●
Suitability for medium soils ●●●○ ●●●○ ●●●○ ●●●○ ●●●● ●●●● ●●●●
Suitability for heavy soils ●●●○ ●●●○ ●●●○ ●●●○ ●●●● ●●●● ●●●●
Suitability for stony soils ●●●○ ●●●○ ●●●○ ●●●○ ●●●● ●●●● ●●●○
Suitability for wet soils ●●○○ ●●○○ ●●●● ●●●● ●●○○ ●●○○ ●●●○
Resistance against clogging ●●○○ ●●○○ ●●●○ ●●●○ ●●●○ ●●●○ ●●●○

1 The section is designed for Kompaktomat LONG. It provides better throughput due to the extended spacing.


Plow stop

Ruts cultivators with arrow share CA

Automatically released tractor ruts cultivators with a arrow share. Suitable for light soils where there is no risk of pulling wet clods to the surface.

Ruts cultivators with double-sided chisel CC

Automatically released tractor ruts cultivators with a double-sided chisel. Suitable for heavy soils where there is a risk of pulling wet clods to the surface.


Levelers

Fixed leveler

Automatically released leveling bar with a toothed profile. Rugged construction for accuracy leveling of large furrows.
FL = fixed mechanical skid, FH = fixed hydraulic skid.

Flexi-board

Automatically unprotected leveler from separate flexible segments. Better clod crumbling.
L = Flexi-board, FB = hydraulic Flexi-board.

The leveling bar segments operate as a single unit, providing better stability.

An additional leveler mounted behind the front roller FRL

Designed for Kompaktomat LONG.

Automatically released leveller with the option to set the bottom position. The leveller provides more intense mixing = finer soil structure.


Finish section

Rear leveler

Passive soil leveling behind the rear roller. Adjustment of leveling bar aggressiveness using rotary stops. Can be applied behind all types of rear rollers.

Crosskill finishing roller RFC

Active crumbling of remaining clods behind the rear roller.

Can be used for all types of rollers in Kompaktomat LONG.
Cannot be used after the rear double-row rollers in Kompaktomat PS.

Bar finishing roller RF

Active crumbling of remaining clods behind the rear roller.


Rear linkage – aggregation with other machines

Rear hitch TPH category 2 + 3

In the rear part of the semi-mounted Kompaktomat machines, the rear hitch for aggregation with other machine can be installed. Part of the rear suspension is a two-hose circuit for folding the additional equipment.

Hydraulic circuit for control of the sowing machine markers

Possibility of additionally mounting a single-hose or two-hose circuit for controlling the sowing machine markers to the Kompaktomat machine with the rear TPS.

Hydraulic circuit for drive of the sowing machine fan

Circuit for drive of pneumatic sowing machine fan can be optionally mounted on Kompaktomat with rear TPH.


Variants of hitches

Hitch TPH

T2, T3, T4 – aggregation into arms of the rear hitch.

T2 – drawing pins Ø 1"
T3 – drawing pins Ø 1.5"
T4 – drawing pins Ø 2"

Loop for the lower hitch

C40, C50, C70 – aggregation into the solid agro-linkage. Maximum vertical load of the towing eye 6,614 lbs.

C40 – drawing pin Ø 1.5"
C50 – drawing pin Ø 2"
C70 – drawing pin Ø 2.75"

Hitch K80 Ø 3.25"

K80 – aggregation into the solid agro-linkage. Maximum vertical load of the towing eye 6,614 lbs.
K80 – towing ball 3.25"


Optional equipment

Electro-Hydraulic Circuit distributor

Divides 1 tractor circuit into 3 circuits.

Two-line single-circuit air brakes
Hydraulic brakes

Photo gallery

Video

Kompaktomat PS LONG

Kompaktomat K 1000 PS & DV 1000 NS

Files
