DUOLENT PS Tine cultivator

Tillage up to 11.75" with excellent crop residues incorporation

Request from dealer Spare Parts

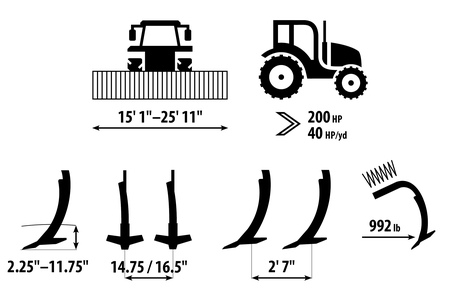

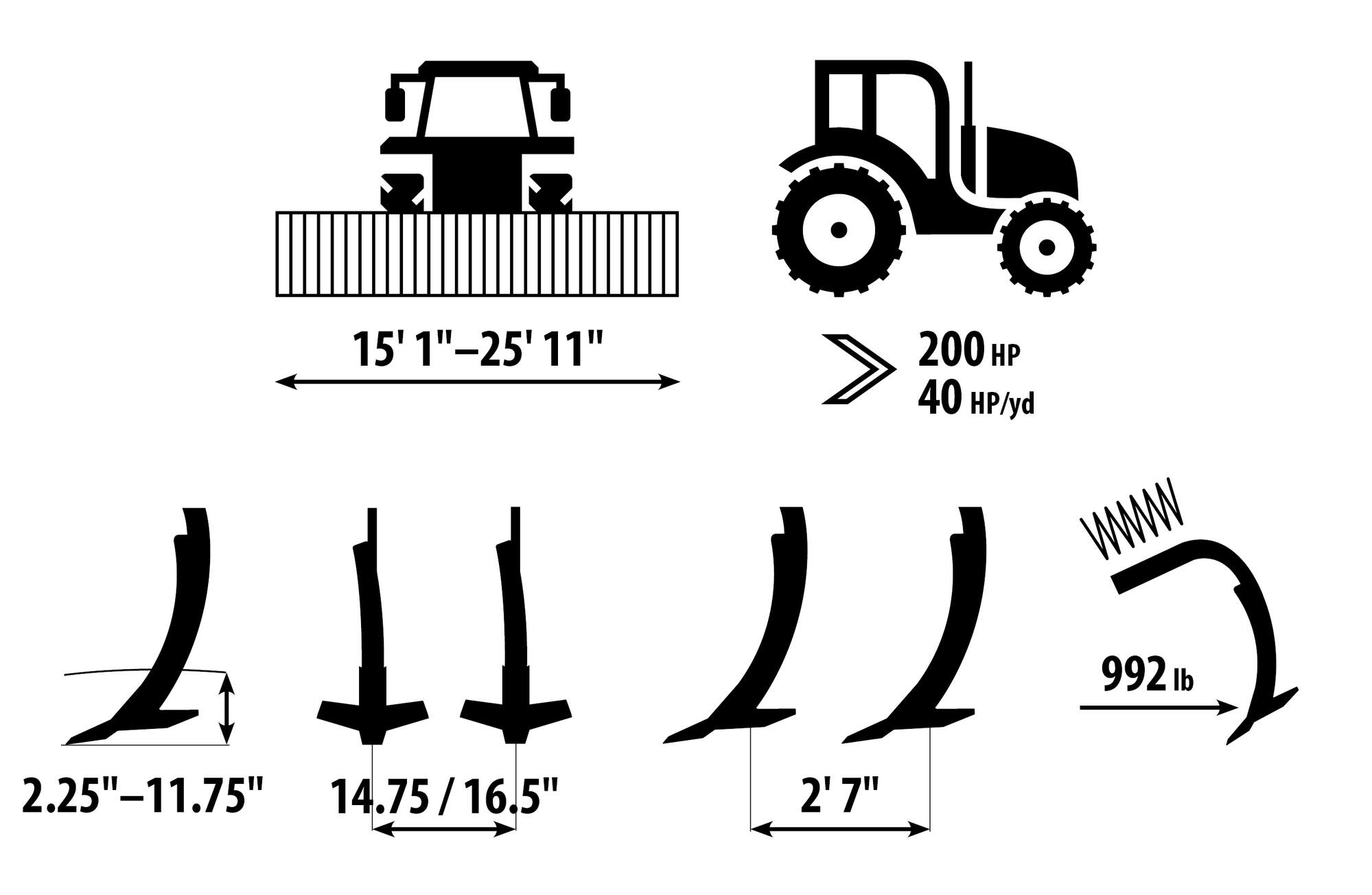

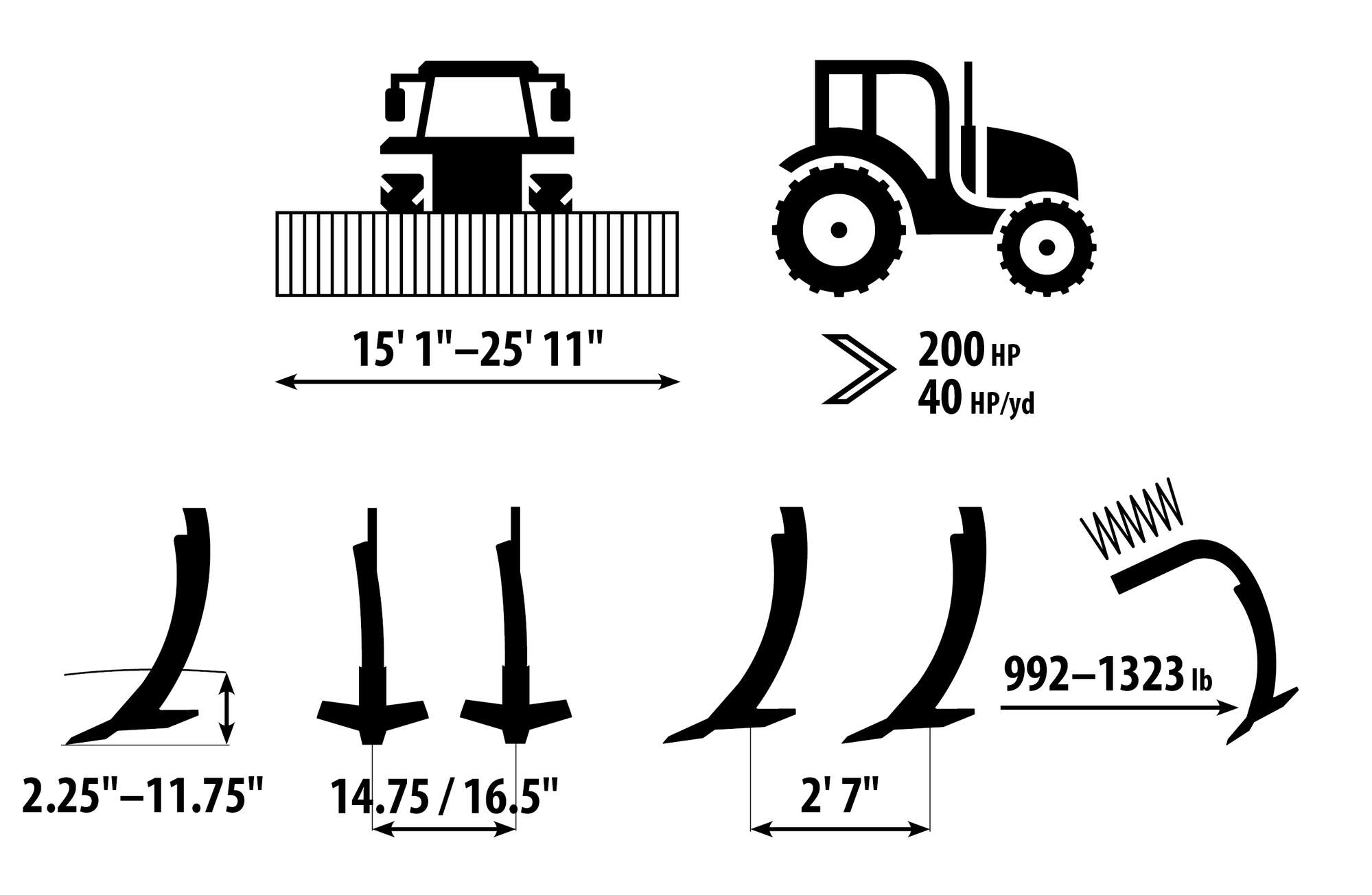

Tine cultivator Duolent

Technology

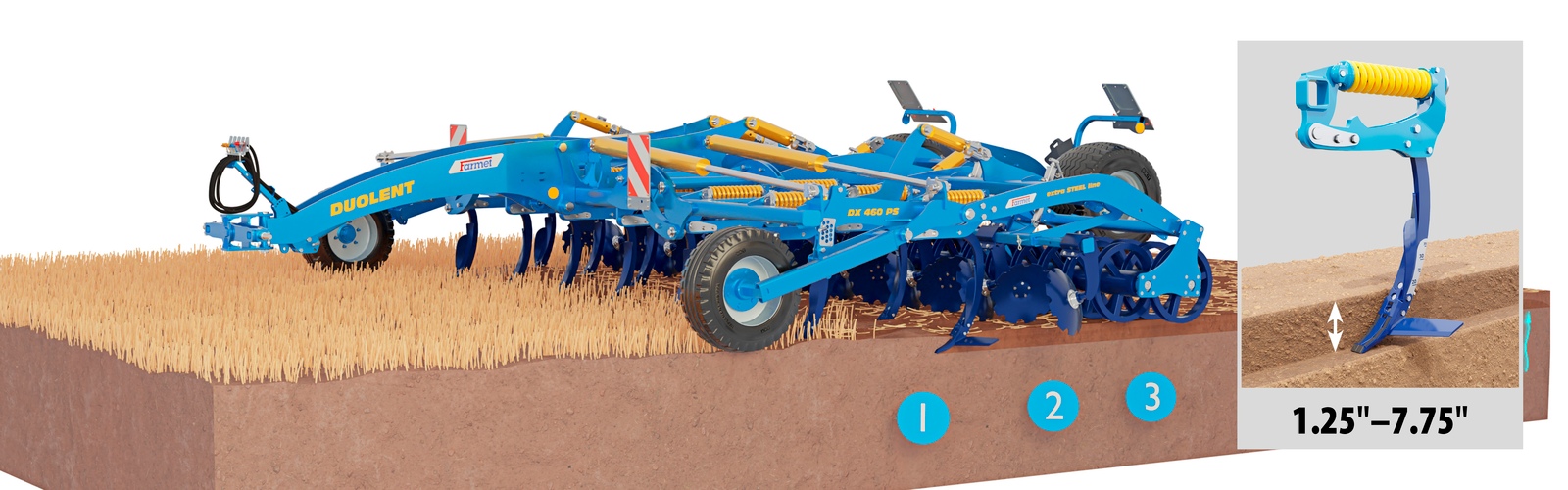

Shallow stubble cultivation with wings up to 2.25" to 7.75" depth

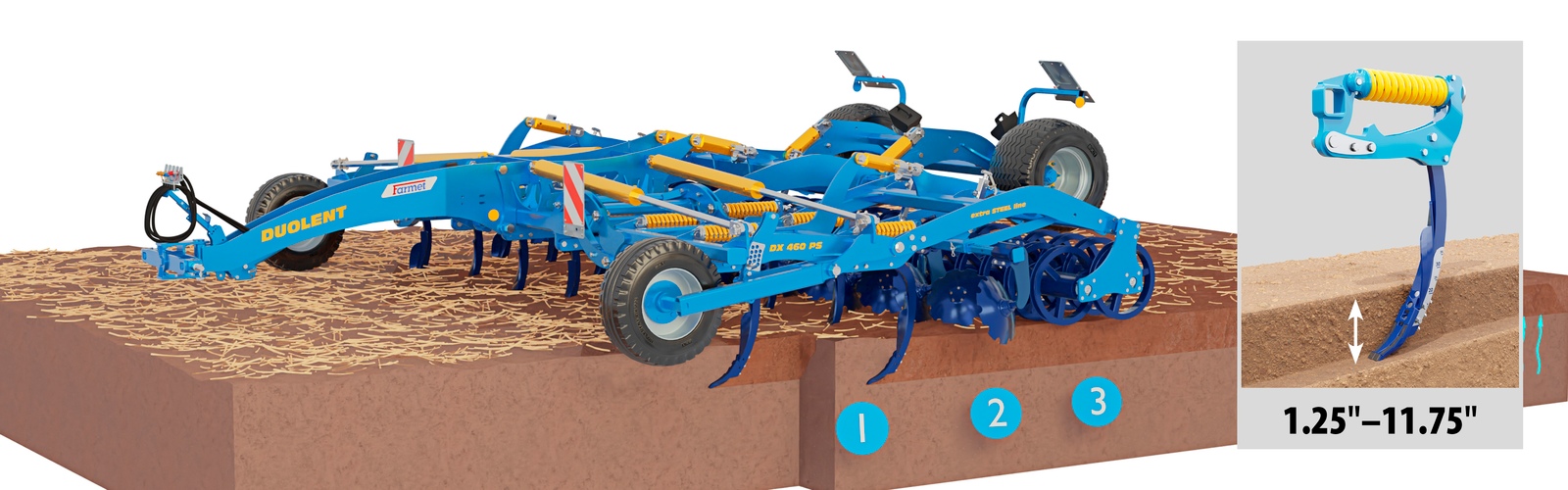

Deep tillage without wings up to 11.75" depth

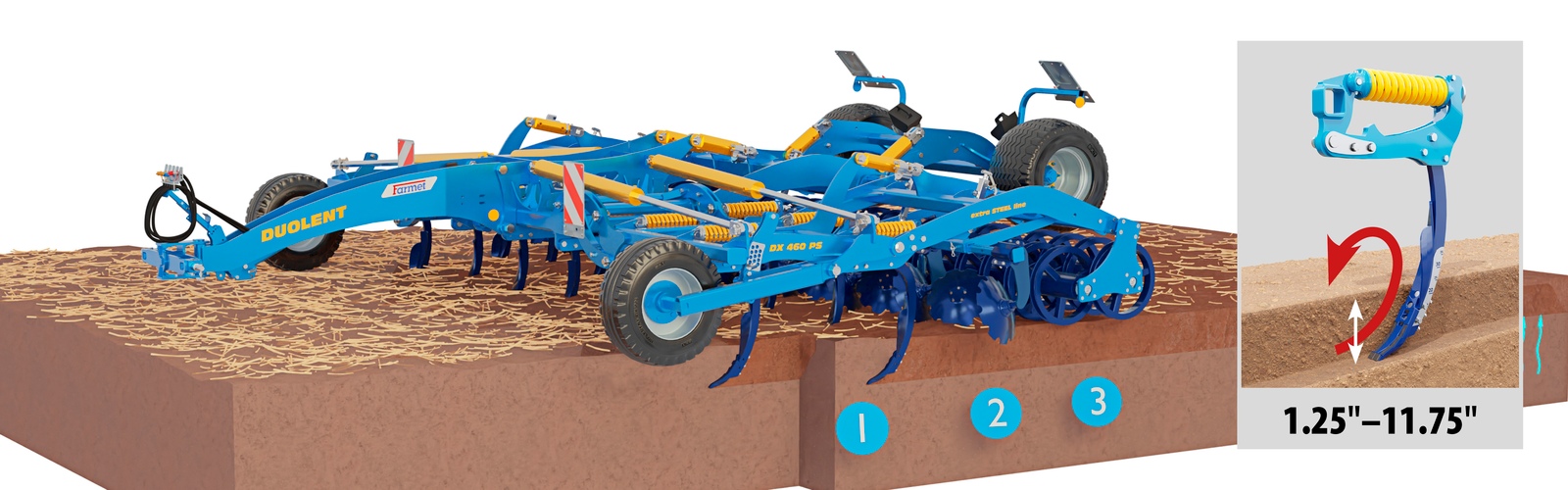

1	Tillage zone. The tillage depth has a wide range of 2.25"–11.75". For tillage from 2.25" to 7.75"can be used wings to full-surface undercut. The shanks arranged in two rows with optimized geometry ensure excellent tillage and intensive soil mixing with crop residues.
2	Furrow-leveling zone. Leveling disks also increase the effect of incorporating crop residues.
3	Clods crushing and soil compaction zone. Optimum soil re-compaction ensures good water infiltration and soil water capillarity to the surface.

Variants of fertilizer placement

The fertilizer is placed under the surface, put in lower part of processed soil profile

One part of the fertilizer is place under the surface in lower part of processed soil profile and the second part just under the surface + areal to the sides

The fertilizer is placed just under the surface + areal to the sides

High performance and quality of work

High working speed up to 8 mph.
Low pulling requirement and excellent soil mixing due to shank optimized design.
Excellent flow through of crop residues due to 16.5" shank spacing.
The spiral shape of shanks upper part for controlled soil flow.
Maintenance-free working units fitted with carbide plates for minimal wear.

Two types of soil cultivation

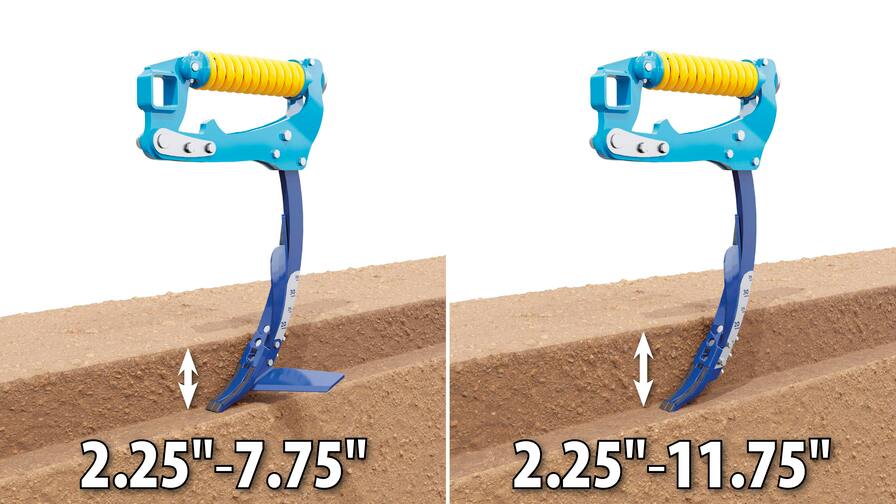

Deep zone loosening with partial mixing

Loosening chisel with optimized geometry in two rows ensure deep zone loosening to increase water infiltration.

Breaking of the plow pan without soil mixing

The non-mixing chisel is ideal for breaking compacted layers and restoring soil infiltration on waterlogged fields without active mixing of soil layers.

Technics

Tine cultivator Duolent PS & Micro Drill Unit

Large shanks arranged in 2 rows ensure quality tillage and incorporation of crop residues.
Leveling disks for perfect leveling surface.
The rear roller provides optimal soil re-compaction, crushing clods and leveling surface..
The additional Micro Drill machine for planting crops, that can be seeded onto the soil surface. This includes, for example, mustard, phacelia, clover and grass.

Tine cultivator Duolent PS

Large shanks arranged in 2 rows ensure quality tillage and incorporation of crop residues.
The leveling disks for perfect leveling surface.
The rear roller provides optimal soil re-compaction, crushing clods and leveling surface.

Rugged design

High-strength refined materials in connection with eXtra STEEL line technology guarantee long service life of our machines even in the most extreme conditions.

High-strength materials

High-strength refined materials used for crucial nodes to ensure long service life.

Extreme durability of working parts

To further increase service life, the top part of the share can be supplemented with additional plates made of sintered carbides or hardfacing.

Strongly dimensioned frame

Heavy-duty dimensioned frame of high-strength steels.

Very high release force

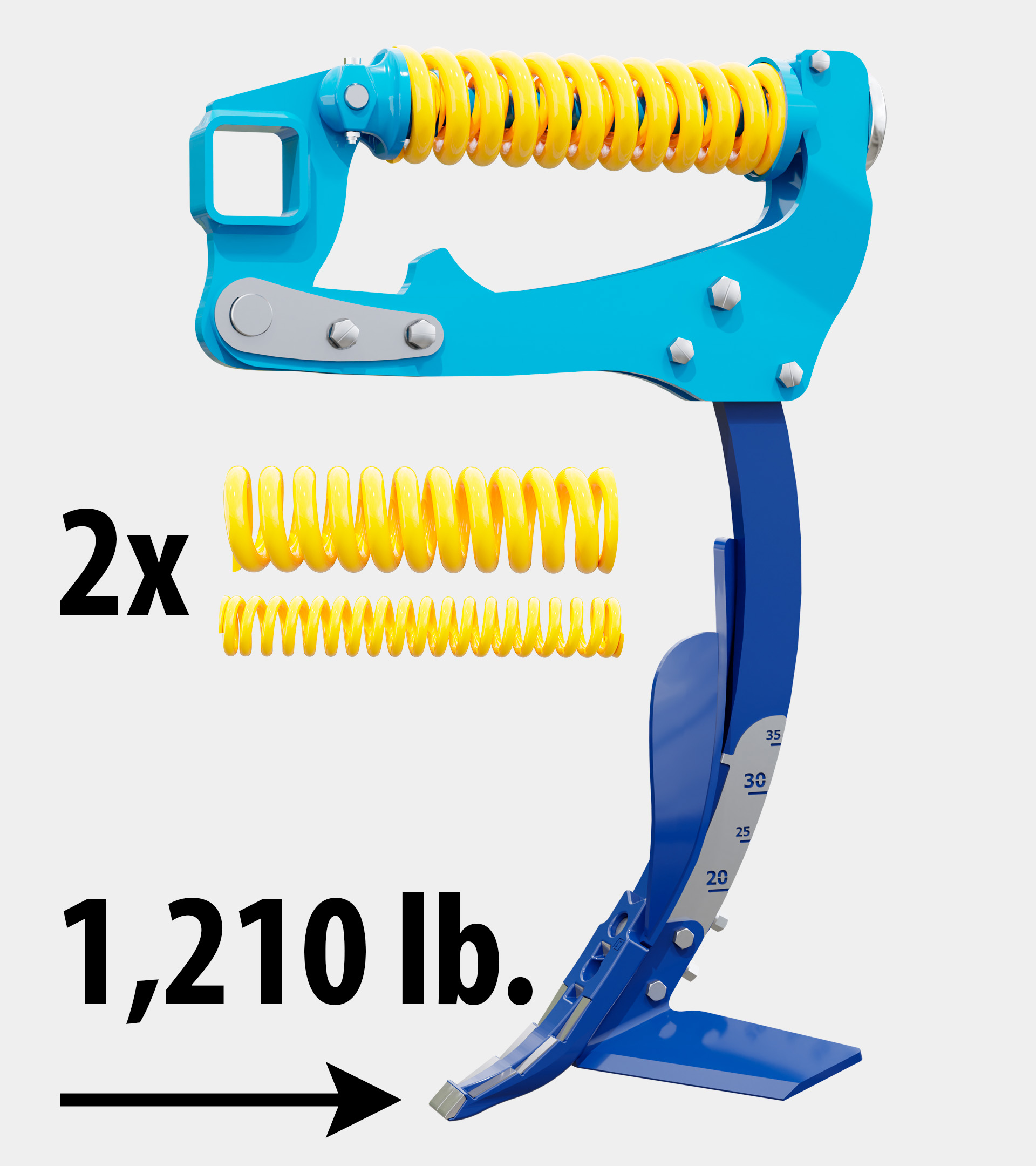

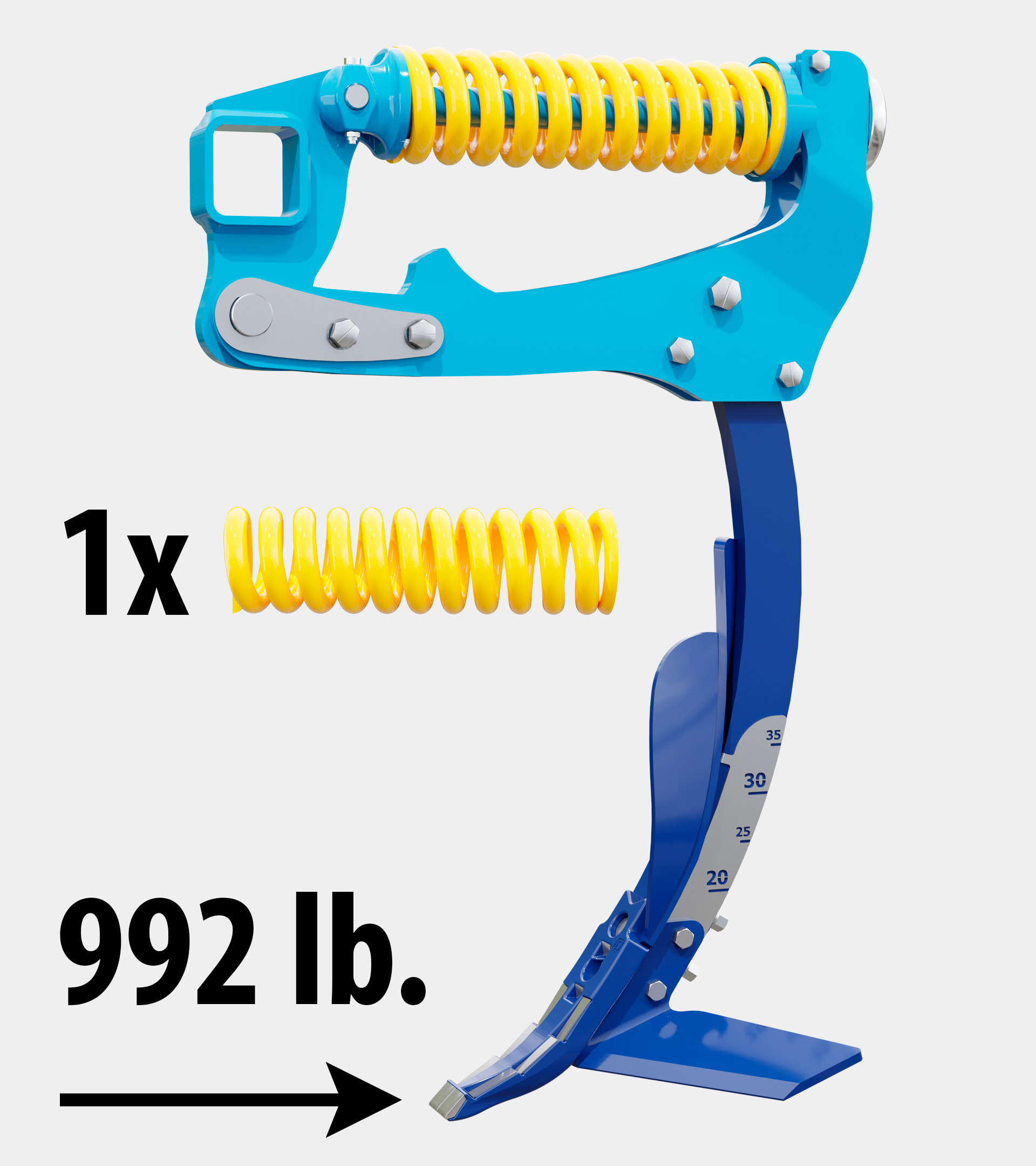

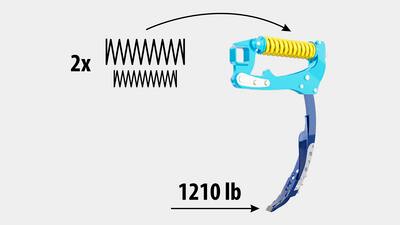

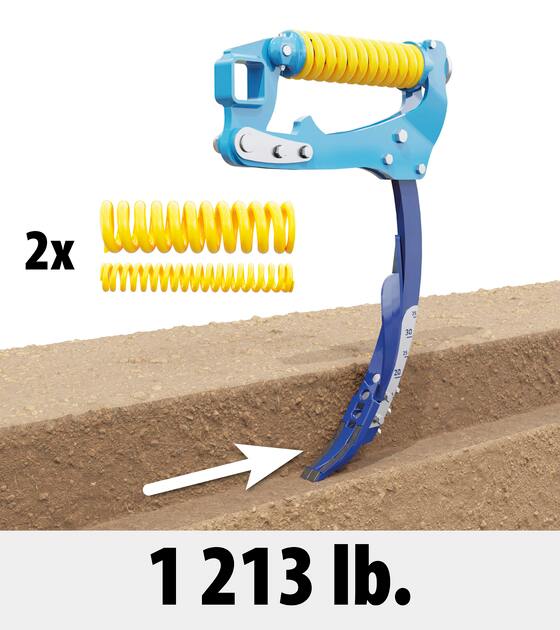

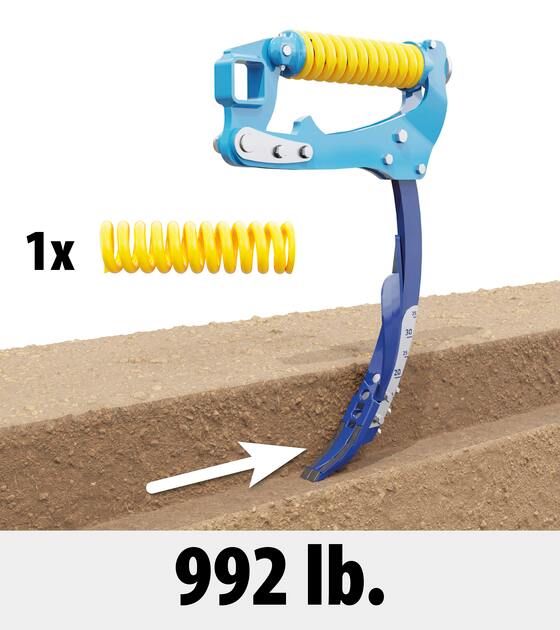

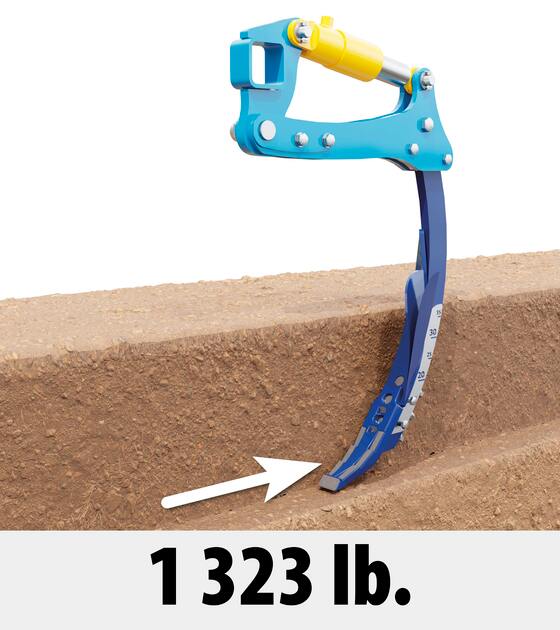

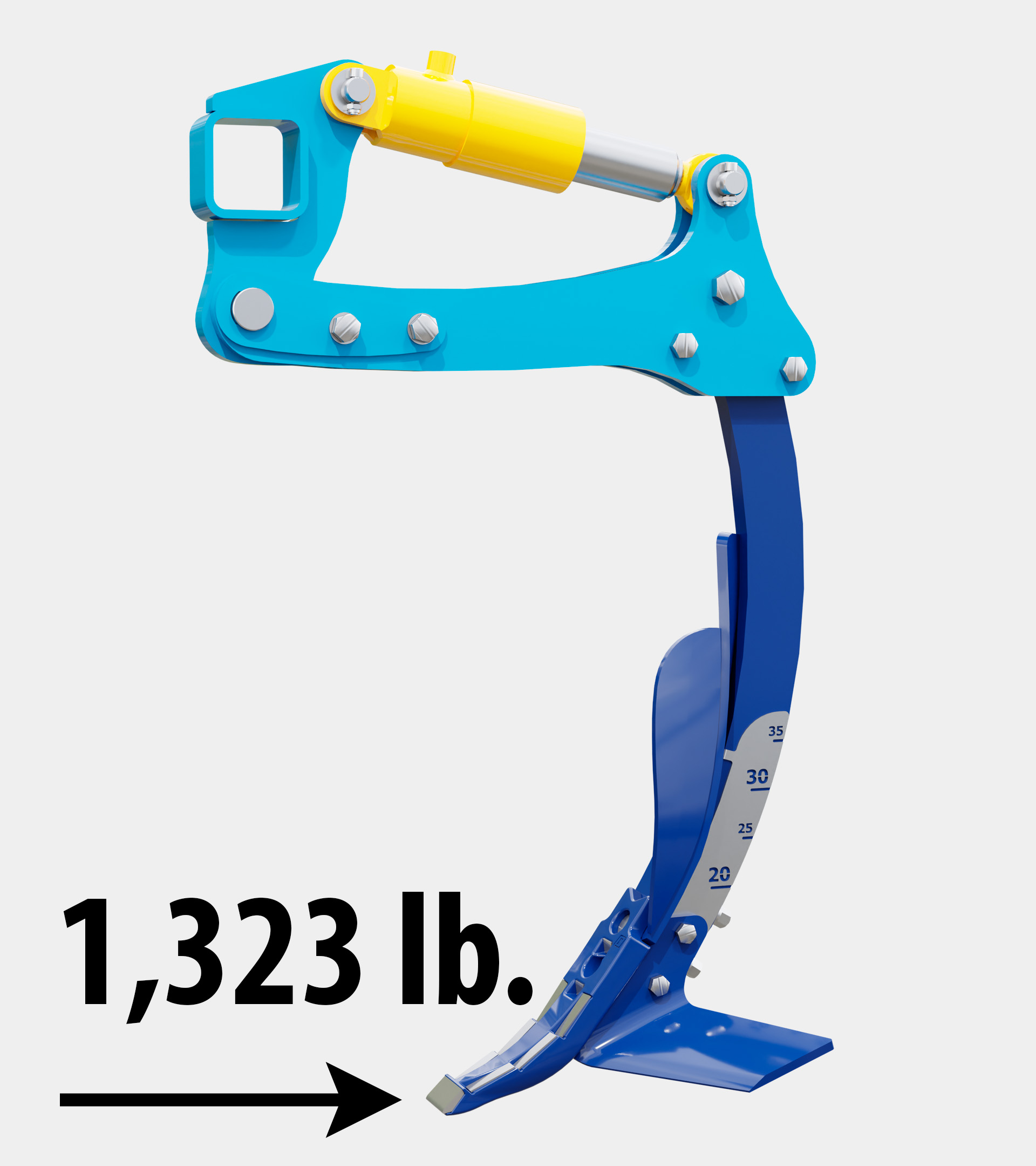

Durable and maintenance-free spring protection of cultivating chisels with a high release force of 1210 lb.

Easy operation

Due to minimum adjusting and lubricating points the operation and subsequent maintenance are very easy steps that everybody can perform.

Minimum adjustment points.
Minimum lubrication points.

Depth setting

Easy working depth setting of the tines by the settings washers on the rollers.

Demarcation washers

Unused demarcation washers can be placed on the prepared storage place near piston rods and this way they are always at hand.

Adjustable leveling disks

Height-adjustable leveling disks with easy adjustment, suspended with rubber elements.

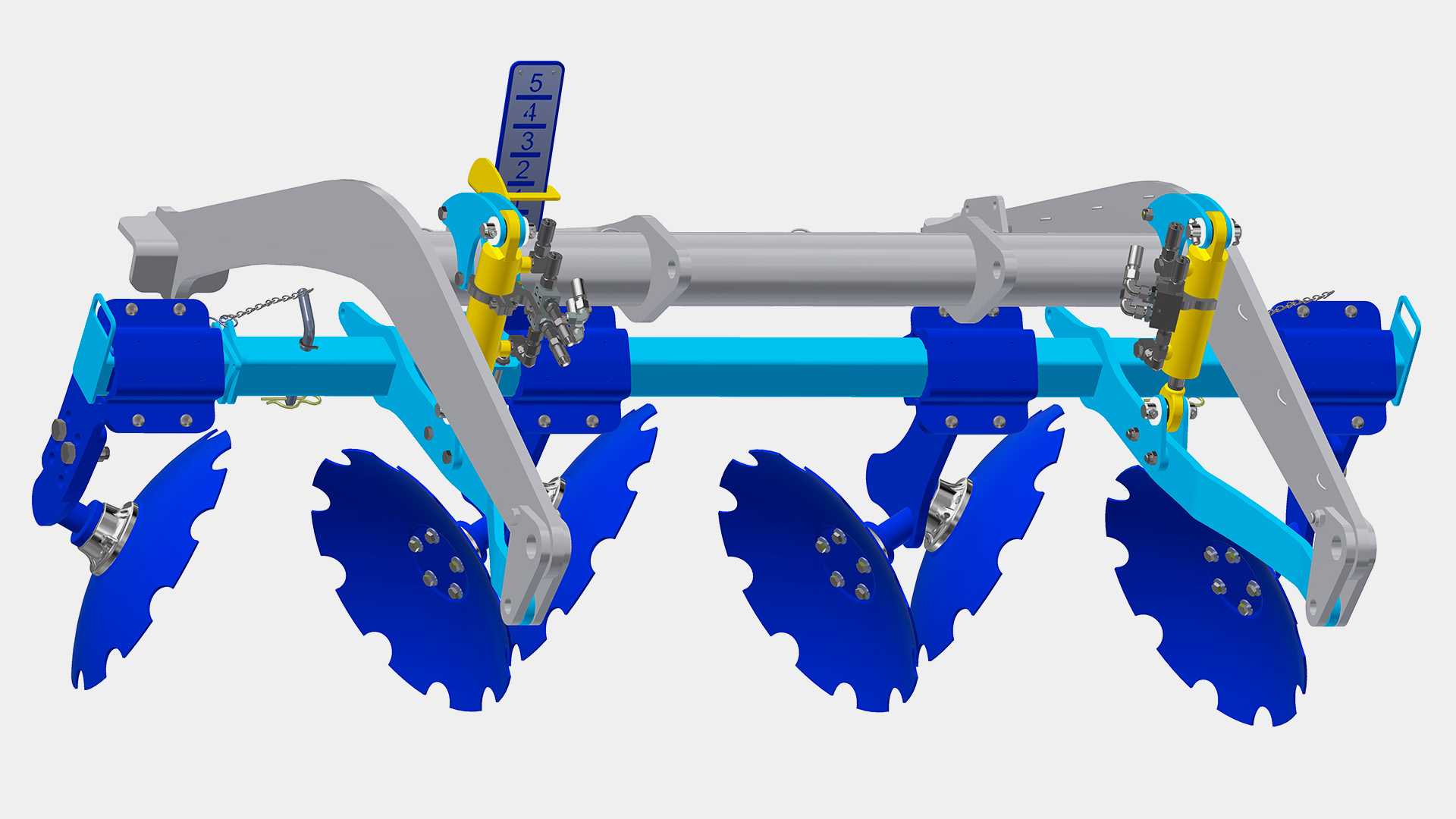

Hydraulic setting of leveling disks

Optional equipment. Easy, quick and convenient disk setting from the tractor cabin, also available while working in the field.

Easy adjustment of the outer leveling disks

Side leveling disks are easily adjustable by a pin – for accuracy connection between each passes.

Smartly performed designed machine

The advantage of this machine is its multipurposeness and adjustability bringing high work variability.

Maneuverable when working in the field due to short and compact design.
Stable due to short design and light axle.

Turning on rollers

Higher stability and quick turning at headlands due to possibility turning on all rollers.

Suspended leveling disks

Suspended leveling disks for quality leveling soil surface.

Folding system

Patented folding system enabling the machine with 25' 11" working width to be folded to 9' 10" transport width and 13' 1" height and thus complies with the regulations for vehicles operation on the public roads.

Full-surface stubble cultivation

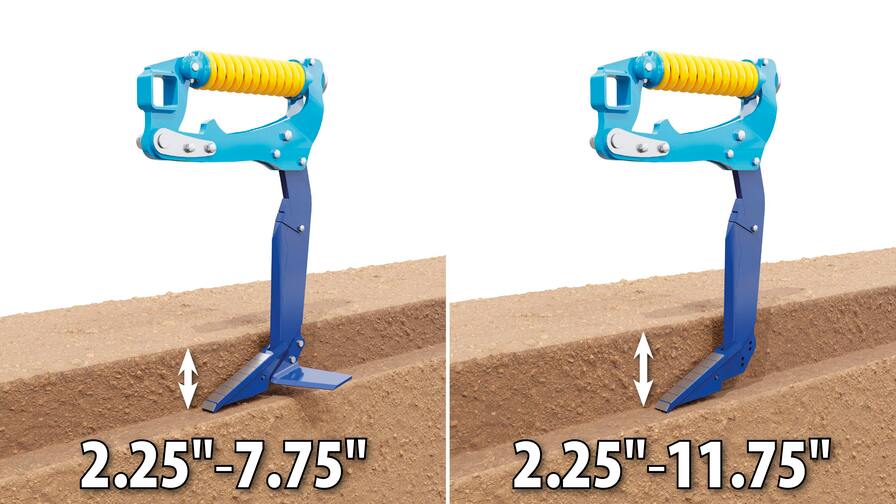

Chisels with wings for full-surface undercut up to 7.75" depth.

Micro Drill Seeding Unit

The sophisticated machine design allows an installation of Micro Drill Seeding Unit for sowing catch crop or planting grass directly.

More information about Micro Drill >

Parameters

Technical parameters	Units	Duolent DX 420 PSM	Duolent DX 460 PS	Duolent DX 570 PSM
Working width	ft.	13' 9"	15' 1"	18' 8"
Transport width	ft.	9' 10"	9' 10"	9' 10"
Transport height	ft.	8' 10"	8' 10"	10'
Total machine length	ft.	22' 2"	22' 2"	22' 2"
Working depth	in.	2.25"─11.75"	2.25"─11.75"	2.25"─11.75"
Number of shares	pcs	11	11	15
Share spacing	ft.	1' 3"	1' 5"	1' 3"
Number of share rows	pcs	2	2	2
Row spacing	ft.	2' 7"	2' 7"	2' 7"
Release force of shares	lb.	992 / 1,210	992 / 1,210	992 / 1,210
Frame clearance	ft.	2' 11"	2' 11"	2' 11"
Diameter of leveling disks	ft.	1' 6"	1' 6"	1' 6"
Working performance	ac/h	8.4─12.4	9.1─13.6	11.4─16.8
Towing vehicle ¹	kW HP	150─225 200─300	150─225 200─300	220─330 300─450
Working speed	mph	5─8	5─8	5─8
Maximum slope availability	°	6	6	6
Dimension of tire - transport		19.0/45-17	19.0/45-17	19.0/45-17
Brake type / distribution ³		air / two-line	air / two-line	air / two-line
Required pressure ³	kPa	8,5	8,5	8,5
Number of hydraulic circuits / pressure	bar	3 / 200	3 / 200	3 / 200
Number of hydro-couples/ type		6 / ISO 12,5	6 / ISO 12,5	6 / ISO 12,5
Tractor hitch requirement		TPH cat. 3 and 4; lower hitch K80; eye Ø 1.5", 2", 2.75"
Machine weight ²	lb.	9,369	9,810	12,676

Technical parameters	Units	Duolent DX 600 PS	Duolent DX 720 PSM	Duolent DX 800 PS
Working width	ft.	20' 4"	23' 7"	25' 11"
Transport width	ft.	9' 10"	9' 10"	9' 10"
Transport height	ft.	10' 10"	12' 4"	13' 1"
Total machine length	ft.	22' 2"	22' 2"	22' 2"
Working depth	in.	2.25"─11.75"	2.25"─11.75"	2.25"─11.75"
Number of shares	pcs	15	19	19
Share spacing	ft.	1' 5"	1' 3"	1' 5"
Number of share rows	pcs	2	2	2
Row spacing	ft.	2' 7"	2' 7"	2' 7"
Release force of shares	lb.	992 / 1,210	992 / 1,210	992 / 1,210
Frame clearance	ft.	2' 11"	2' 11"	2' 11"
Diameter of leveling disks	ft.	1' 6"	1' 6"	1' 6"
Working performance	ac/h	11.9─17.8	14.3─21.3	15.8─23.7
Towing vehicle ¹	kW HP	220─330 300─450	265─400 360─540	265─400 360─540
Working speed	mph	5─8	5─8	5─8
Maximum slope availability	°	6	6	6
Dimension of tire - transport		19.0/45-17	19.0/45-17	19.0/45-17
Brake type / distribution ³		air / two-line	air / two-line	air / two-line
Required pressure ³	kPa	8,5	8,5	8,5
Number of hydraulic circuits / pressure	bar	3 / 200	3 / 200	3 / 200
Number of hydro-couples/ type		6 / ISO 12,5	6 / ISO 12,5	6 / ISO 12,5
Tractor hitch requirement		TPH cat. 3 and 4; lower hitch K80; eye Ø 1.5", 2", 2.75"
Machine weight ²	lb.	13,338	14,220	14,980

¹ Recommended towing vehicle, the actual pulling force may significantly change according to the tilling depth, soil conditions, inclination of land, wear of working units and their adjustment.
² Machine weight with LTX roller.
³ Alternative of the hydraulic brake / operating pressure 130 ± 5 bar.
Transport / brake system: Follow national provisions valid for transport of machines on public roads. Verify legal provisions valid in the country, regulations on maximum allowable total weights and axle loads and also on necessary possible use of the brake system. If you have any questions, please contact our sales representative.

PS - semi-mounted foldable machine

We constantly improve and innovate our products to provide the best possible solutions for current technological trends and to meet customer requirements. For this reason, some of the offered products may be manufactured differently than shown on the website. Binding specifications and machine parameters will be confirmed upon order.

Optional

Accessories

Rollers

Double roller DR

Diameter	16"/14"
Weight	397 lbs./yd

Ring roller RR

Diameter	20"
Weight	386 lbs./yd

Double ring roller DRR

Diameter	21"/21"
Weight	470 lbs./yd

LTX roller

Diameter	23"
Weight	482 lbs./yd

Disk roller SDR

Diameter	23"
Weight	530 lbs./yd

V roller VR

Diameter	24"
Weight	422 lbs./yd

Double V-ring DVR

Diameter	22"/22"
Weight	434 lbs./yd

Proper selection of the type of the rear roller contributing significantly to the final quality of the tillage is very important. The soil is reconsolidated by the roller and then it is the same way crumbled and leveled.The selection of the type of the roller depends on the soil type and on the manner of use of the machine.

Roller	Double DR	Ring RR	Double ring DRR	LTX
Crumbling	●●●○	●●●○	●●●○	●●○○
Stamping	●●●○	●●●●	●●●●	●●●●
Depth guiding	●●●●	●●●●	●●●●	●●●●
Resistance against clogging	●●●○	●●●●	●●●●	●●●○
Suitability for stony soils	●●●○	●●●○	●●●○	●●●○
Suitability for wet soils	●●○○	●●●●	●●●●	●●●●
Heavy soils	●●●●	●●●●	●●●●	●●●●
Medium soils	●●●●	●●●●	●●●●	●●●●
Light soils	●●●●	●●●●	●●●●	●●●○

Roller	Disk SDR	VR	Double V-ring DVR
Crumbling	●●●○	●●●○	●●●○
Stamping	●●●●	●●●●	●●●●
Depth guiding	●●●●	●●●●	●●●●
Resistance against clogging	●●●○	●●●●	●●●●
Suitability for stony soils	●●●○	●●●○	●●●○
Suitability for wet soils	●●●●	●●●●	●●●●
Heavy soils	●●●●	●●●●	●●●●
Medium soils	●●●●	●●●●	●●●●
Light soils	●●●○	●●●●	●●●●

Working tools

Chisel 75 MULTICARBIDE PRO

Share width	3"
Share body hardness	up to 55 HRC
Widia plate hardness	up to 92 HRA
Share service life	+ 200-500 %

Chisel 75 MULTICARBIDE

Share width	3"
Share body hardness	up to 55 HRC
Widia plate hardness	up to 92 HRA
Share service life	+ 150-400 %

Chisel 75 CARBIDE

Chisel width	3"
Chisel thickness	0.5"
Chisel body hardness	up to 55 HRC
Widia plate hardness	up to 92 HRA
Chisel service life	+ 100-200 %

Chisel 40 CARBIDE

Chisel width	1.5"
Chisel thickness	1"
Chisel body hardness	up to 55 HRC
Widia plate hardness	up to 92 HRA
Chisel service life	+ 100-200 %
Diesel fuel consumption	- 10 %

Left wing CARBIDE

Right wing CARBIDE

Chisel 55 CARBIDE

Chisel for deep loosening without mixing

Chisel width	2.25"
Chisel thickness	0.75"
Chisel body hardness	up to 55 HRC
Widia plate hardness	up to 92 HRA
Chisel service life	+ 100-200 %
Diesel fuel consumption	- 10 %
