TRIOLENT NS Tine cultivator

Tillage up to 13.75" with intensive mixing

Request from dealer Spare Parts

Tine cultivator Triolent

Technology

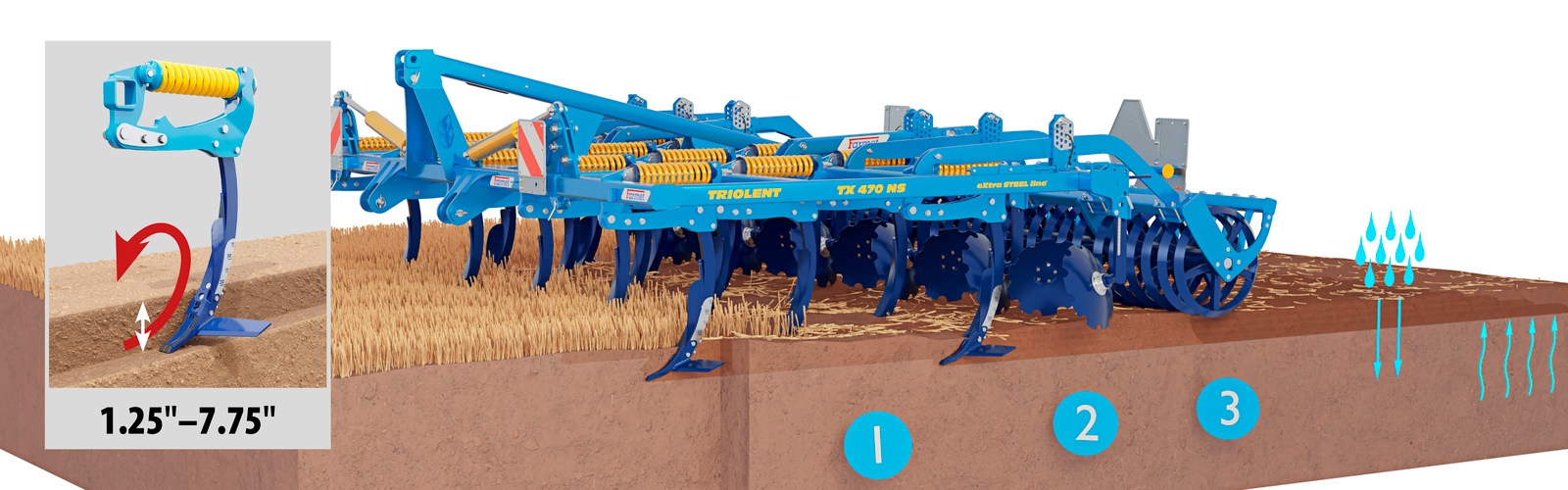

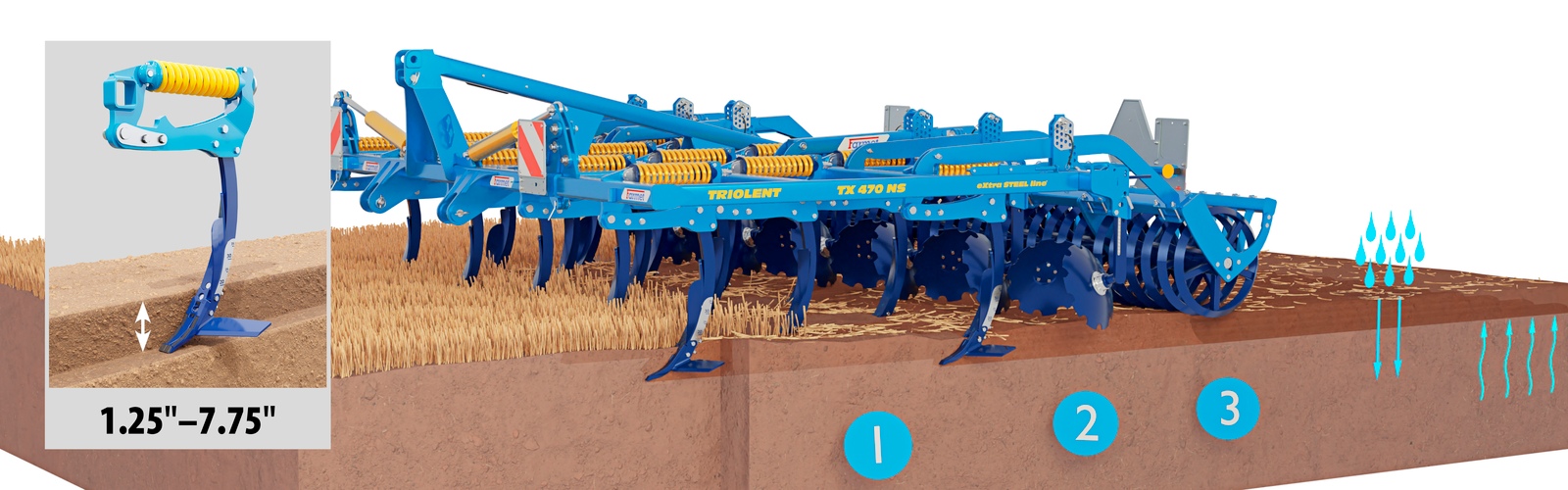

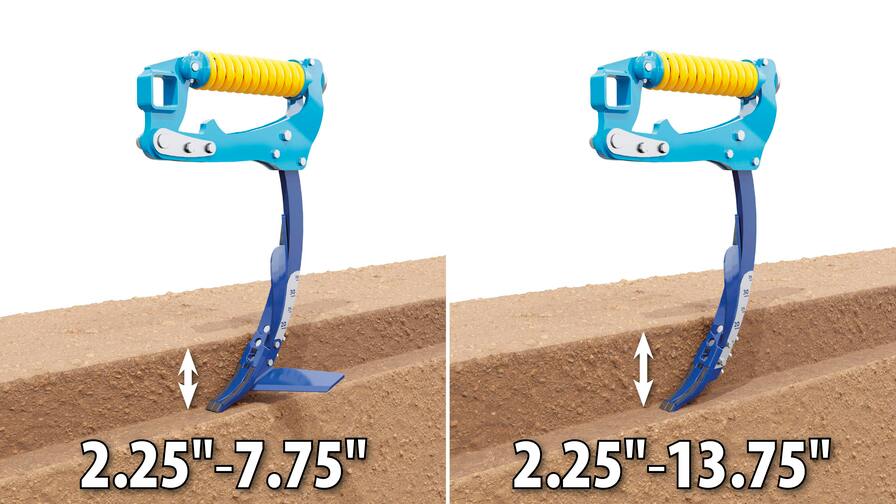

Shallow stubble cultivation with wings up to 2.25" to 7.75" depth

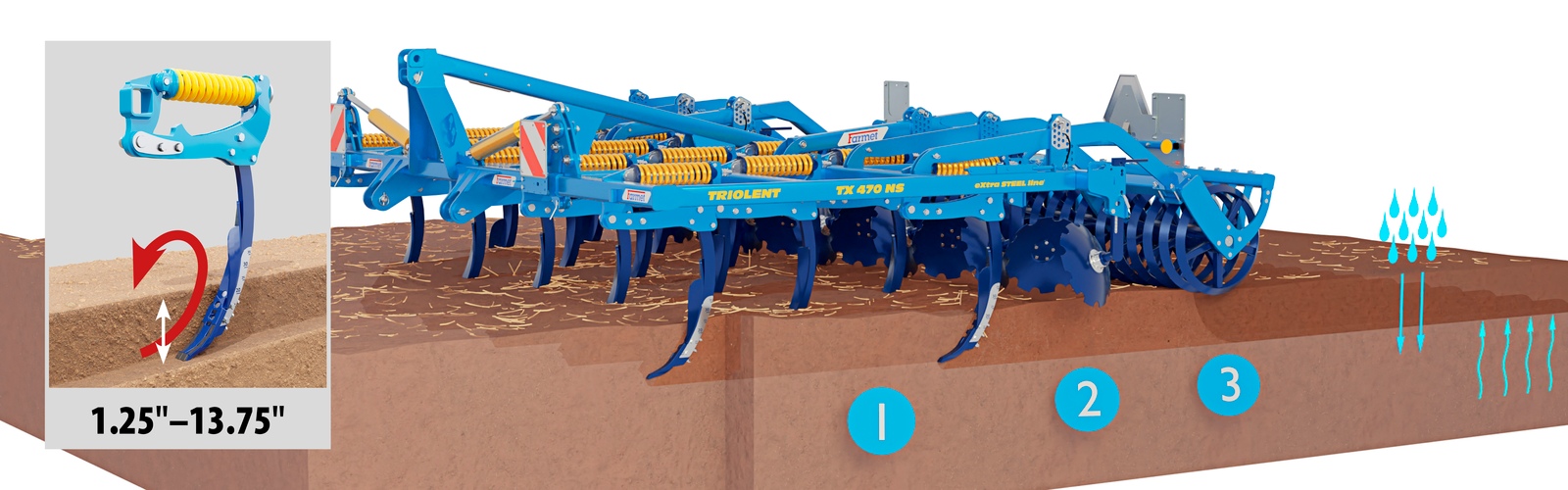

Deep tillage without wings up to 13.75" depth

1	Tillage zone. The tillage depth has a wide range of 2.25"–13.75". For tillage from 2.25" to 7.75"can be used wings to full-surface undercut. The shanks arranged in three rows with optimized geometry ensure excellent tillage and intensive soil mixing with crop residues.
2	Furrow-leveling zone. Leveling disks also increase the effect of incorporating crop residues.
3	Clods crushing and soil compaction zone. Optimum soil re-compaction ensures good water infiltration and soil water capillarity to the surface.

Variants of fertilizer placement

The fertilizer is placed under the surface, put in lower part of processed soil profile

One part of the fertilizer is place under the surface in lower part of processed soil profile and the second part just under the surface + areal to the sides

The fertilizer is placed just under the surface + areal to the sides

High working speed up to 8 mph.
Low pulling requirement and excellent soil mixing due to shanks optimized design.
Excellent flow through of crop residues.
The spiral shape of shanks upper part for controlled soil flow.
Maintenance-free working units fitted with carbide plates for minimal wear.

High performance and quality of work

High working speed up to 8 mph.
Low pulling requirement and excellent soil mixing due to shanks optimized design.
Excellent flow through of crop residues.
The spiral shape of shanks upper part for controlled soil flow.
Maintenance-free working units fitted with carbide plates for minimal wear.

Two types of soil cultivation

Deep zone loosening with partial mixing

Loosening chisel with optimized geometry in two rows ensure deep zone loosening to increase water infiltration.

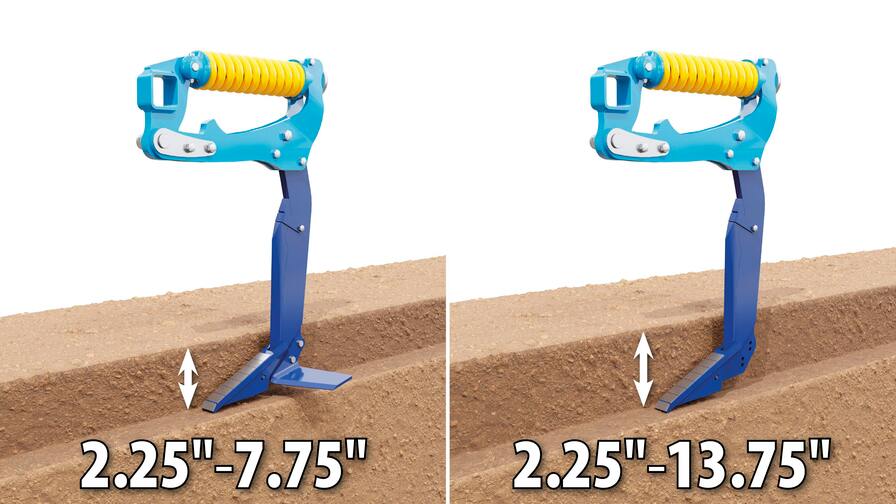

Breaking of the plow pan without soil mixing

The non-mixing chisel is ideal for breaking compacted layers and restoring soil infiltration on waterlogged fields without active mixing of soil layers.

Technics

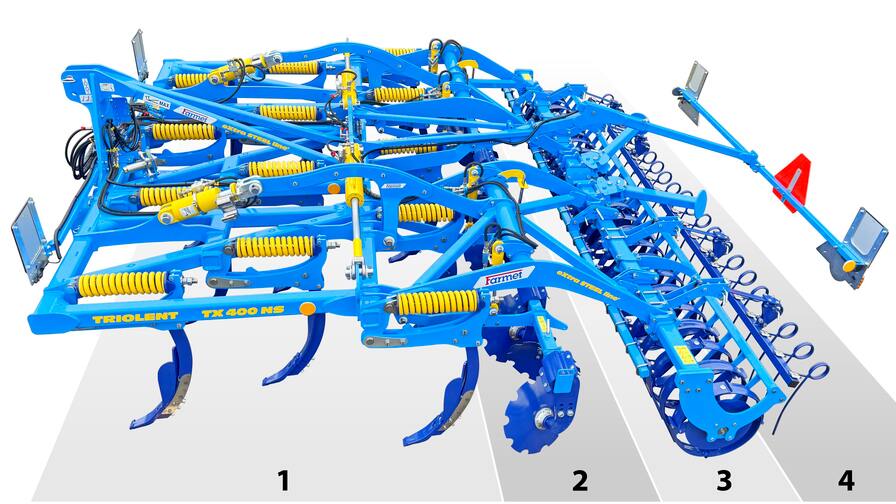

Tine cultivator Triolent N/NS

Large shanks arranged in 3 rows ensure quality tillage and incorporation of crop residues.
Leveling disks for perfect leveling of surface.
Rear roller provides optimal soil re-compaction, crushing clods, firm soil and smooth field finish.

Tine cultivator Triolent N/NS

Large shanks arranged in 3 rows ensure quality tillage and incorporation of crop residues.
Leveling disks for perfect leveling of surface.
Rear roller provides optimal soil re-compaction, crushing clods, firm soil and smooth field finish.

Rugged design

High-strength refined materials in connection with eXtra STEEL line technology guarantee long service life of our machines even in the most extreme conditions.

High-strength materials

High-strength refined materials used for crucial nodes to ensure long service life. Strongly dimensioned frame of high-strength steel.

Extreme durability of working parts

To further increase service life, the top part of the share can be supplemented with additional plates made of sintered carbides or hardfacing.

Incorporation of crop residues

Chisels with wings for full-surface undercut up to 7.75" depth. Ideal for incorporation of a large quantity of crop residues.

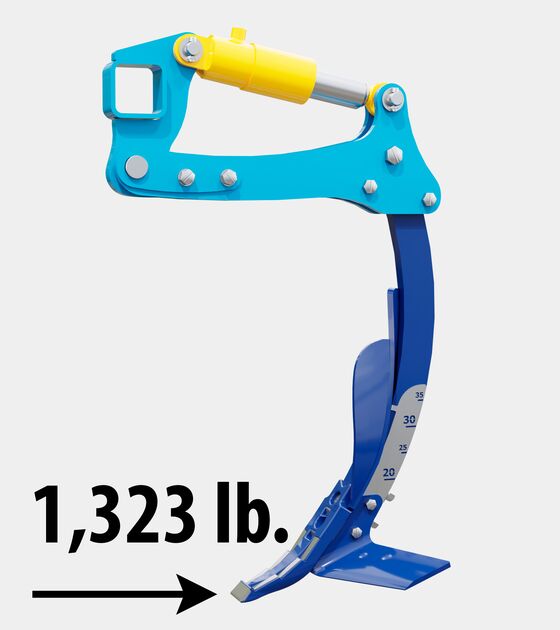

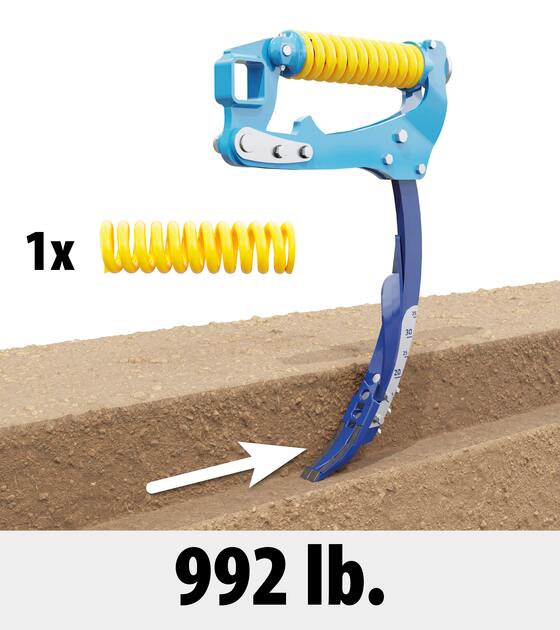

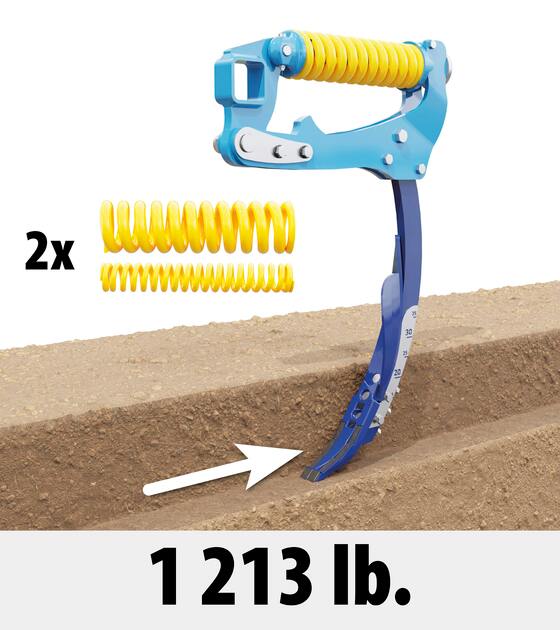

Very high release force

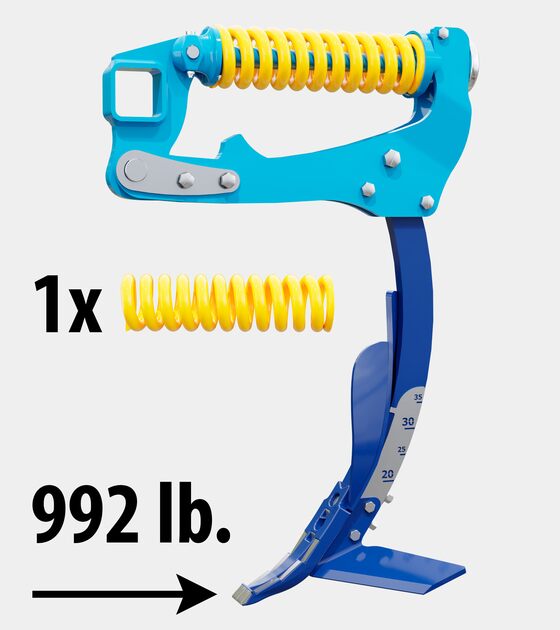

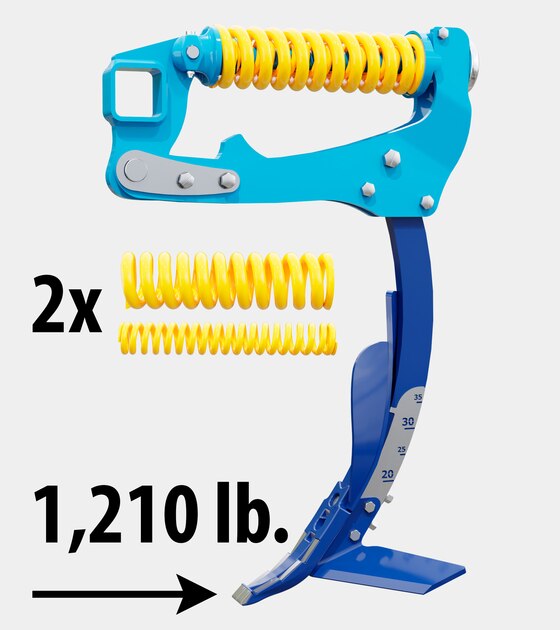

Durable and maintenance-free spring protection of cultivating chisels with a high release force of 1210 lb.

Easy operation

Due to minimum adjusting and lubricating points the operation and subsequent maintenance are very easy steps that everybody can perform.

Minimum adjustment points.
Minimum lubrication points.

Depth setting

Easy working depth setting by the pin on the rollers.

Adjustable leveling disks

Height-adjustable leveling disks with practical handle for better adjusting ergonomics.

Easy adjustment of the outer leveling disks

Side leveling disks are easily adjustable by a pin – for accuracy connection between each passes.

Smartly performed designed machine

The advantage of this machine is its multipurposeness and adjustability bringing high work variability.

Micro Drill Seeding Unit

The sophisticated machine design allows an installation of Micro Drill Seeding Unit for sowing catch crop or planting grass directly.

More information about Micro Drill >

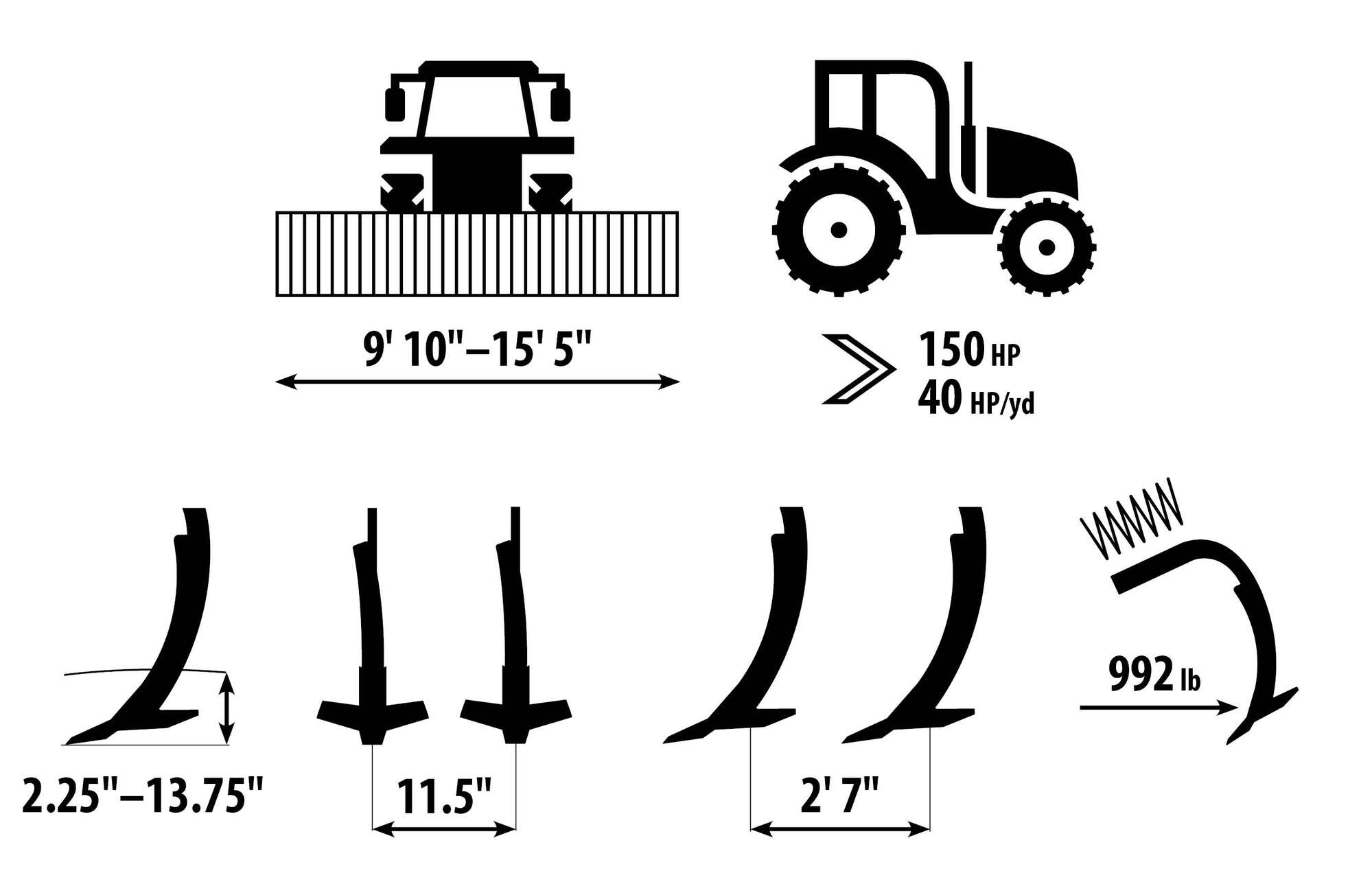

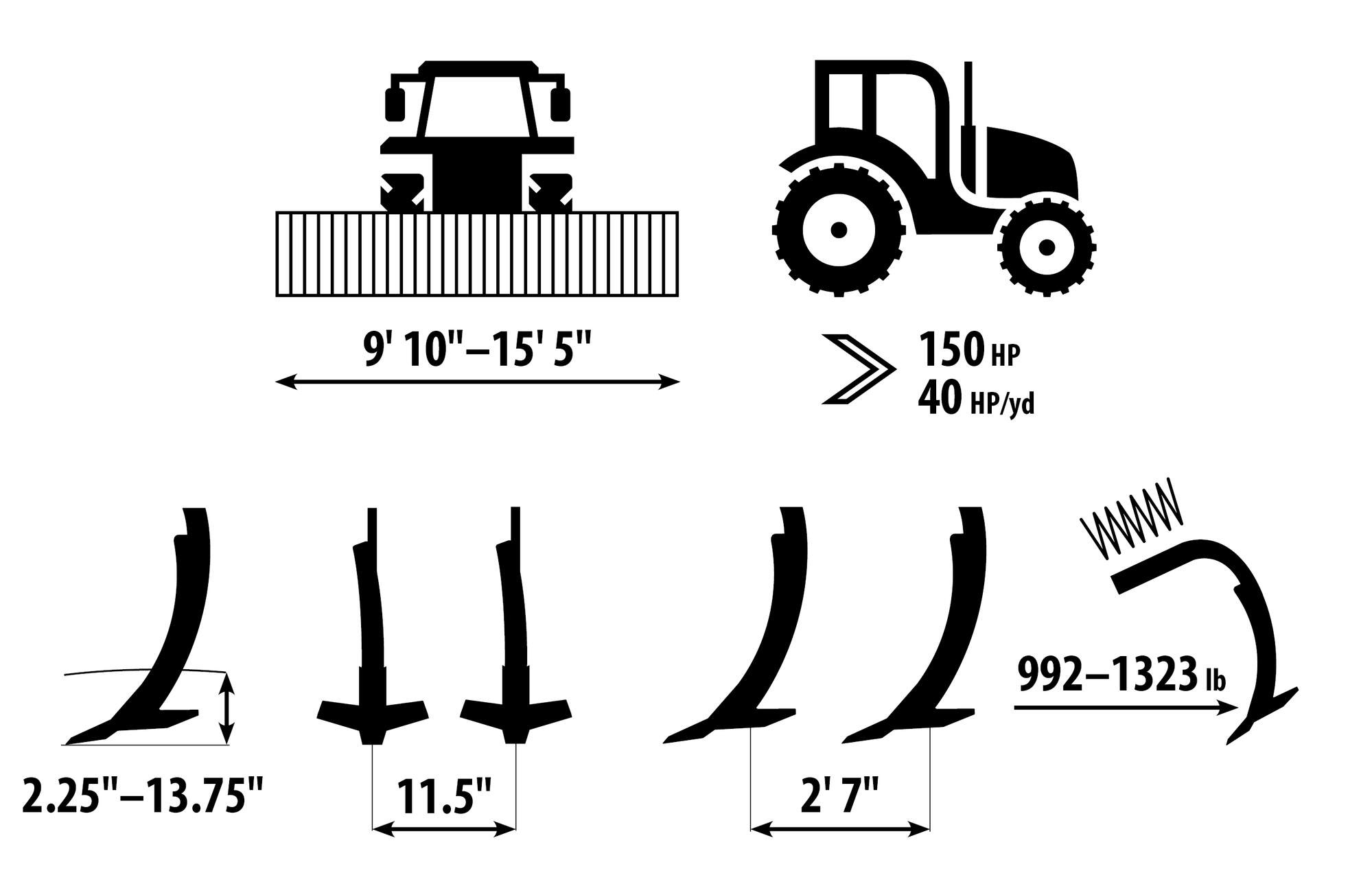

Parameters

Technical parameters	Units	Triolent TX 300 N	Triolent TX 350 N FIX	Triolent TX 380 NS	Triolent TX 400 N FIX	Triolent TX 470 NS
Working width	ft.	9' 10"	11' 6"	12' 6"	13' 1"	15' 5"
Transport width	ft.	9' 10"	11' 6"	7' 6"	13' 1"	9' 10"
Transport height	ft.	4' 7"	4' 7"	8' 2"	4' 7"	8' 2"
Total machine length	ft.	13' 4"	13' 4"	13' 4"	13' 4"	13' 4"
Working depth	in.	2.25"–13.75"	2.25"–13.75"	2.25"–13.75"	2.25"–13.75"	2.25"–13.75"
Number of shares	pcs	10	13	13	13	16
Share spacing	in.	11.5"	11.5"	11.5"	11.5"	11.5"
Number of share rows	pcs	3	3	3	3	3
Row spacing	ft.	2' 7"	2' 7"	2' 7"	2' 7"	2' 7"

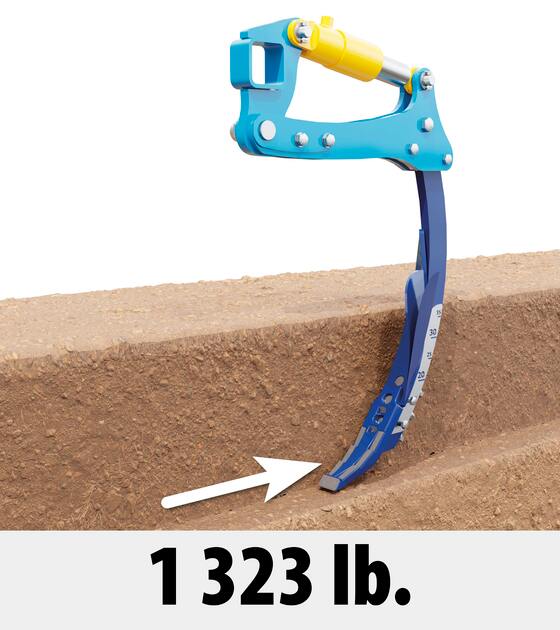

Release force of tines	lb.	992 / 1.210	992 / 1.210	992 / 1.210	992 / 1.210	992 / 1.210
Frame clearance	ft.	2' 11"	2' 11"	2' 11"	2' 11"	2' 11"
Diameter of leveling disks	ft.	1' 6"	1' 6"	1' 6"	1' 6"	1' 6"
Working performance	ac/h	5.9–8.9	6.9–10.4	7.7–11.1	7.9–11.9	9.1–13.8
Towing vehicle ¹	kW HP	100–165 140–225	120–175 160–240	125–190 170–255	130–195 175–260	150–220 200–300
Working speed	mph	5–8	5–8	5–8	5–8	5–8
Maximum slope availability	°	6	6	6	6	6
Number of hydraulic circuits / pressure	bar			1 / 200		1 / 200
Number of hydro-couples / type				2 / ISO 12,5		2 / ISO 12,5
Tractor hitch requirement		TBZ cat. 3	TBZ cat. 3	TBZ cat. 3	TBZ cat. 3	TBZ cat. 3
Machine weight ²	lb.	3,704	4,233	5,853	5,842	6,636

¹ Recommended towing vehicle, the actual pulling force may significantly change according to the tilling depth, soil conditions, inclination of land, wear of working units and their adjustment.
² Machine weight with double roller.
Transport / brake system: Follow national provisions valid for transport of machines on public roads. Verify legal provisions valid in the country, regulations on maximum allowable total weights and axle loads and also on necessary possible use of the brake system. If you have any questions, please contact our sales representative.

N - mounted machine
NS - mounted foldable machine

We constantly improve and innovate our products to provide the best possible solutions for current technological trends and to meet customer requirements. For this reason, some of the offered products may be manufactured differently than shown on the website. Binding specifications and machine parameters will be confirmed upon order.

Optional

Accessories

Rollers

Tube roller TRS

Diameter	24"
Weight	241 lbs./yd

Double roller DR

Diameter	16"/12"
Weight	298 lbs./yd

Ring roller RR

Diameter	20"
Weight	386 lbs./yd

LTX roller

Diameter	23"
Weight	482 lbs./yd

Disk roller SDR

Diameter	23"
Weight	530 lbs./yd

Crosskill roller CR

Diameter	16"
Weight	434 lbs./yd

V roller VR

Diameter	24"
Weight	422 lbs./yd

Proper selection of the type of the rear roller contributing significantly to the final quality of the tillage is very important. The soil is reconsolidated by the roller and then it is the same way crumbled and leveled.The selection of the type of the roller depends on the soil type and on the manner of use of the machine.

Roller	Tube-shaped TRS	Double DR	Ring RR	LTX
Crumbling	●●○○	●●●○	●●●○	●●○○
Stamping	●●●○	●●●○	●●●●	●●●●
Depth guiding	●●●○	●●●●	●●●●	●●●●
Resistance against clogging	●○○○	●●●○	●●●●	●●●○
Suitability for stony soils	●●●○	●●●○	●●●○	●●●○
Suitability for wet soils	●○○○	●●○○	●●●●	●●●●
Heavy soils	●●○○	●●●●	●●●●	●●●●
Medium soils	●●●○	●●●●	●●●●	●●●●
Light soils	●●●●	●●●●	●●●●	●●●○

Roller	Disk SDR	Crosskill CR	VR
Crumbling	●●●○	●●●●	●●●○
Stamping	●●●●	●●●●	●●●●
Depth guiding	●●●●	●○○○	●●●●
Resistance against clogging	●●●○	●●○○	●●●●
Suitability for stony soils	●●●○	●●○○	●●●○
Suitability for wet soils	●●●●	●●○○	●●●●
Heavy soils	●●●●	●●●●	●●●●
Medium soils	●●●●	●●●○	●●●●
Light soils	●●●○	●●○○	●●●●

Working tools

Chisel 75 MULTICARBIDE PRO

Share width	3"
Share body hardness	up to 55 HRC
Widia plate hardness	up to 92 HRA
Share service life	+ 200-500 %

Chisel 75 MULTICARBIDE

Share width	3"
Share body hardness	up to 55 HRC
Widia plate hardness	up to 92 HRA
Share service life	+ 150-400 %

Chisel 75 CARBIDE

Chisel width	3"
Chisel thickness	0.5"
Chisel body hardness	up to 55 HRC
Widia plate hardness	up to 92 HRA
Chisel service life	+ 100-200 %

Chisel 40 CARBIDE

Chisel width	1.5"
Chisel thickness	1"
Chisel body hardness	up to 55 HRC
Widia plate hardness	up to 92 HRA
Chisel service life	+ 100-200 %
Diesel fuel consumption	- 10 %

Left wing CARBIDE

Right wing CARBIDE

Chisel 55 CARBIDE

Chisel for deep loosening without mixing

Chisel width	2.25"
Chisel thickness	0.75"
Chisel body hardness	up to 55 HRC
Widia plate hardness	up to 92 HRA
Chisel service life	+ 100-200 %
Diesel fuel consumption	- 10 %
