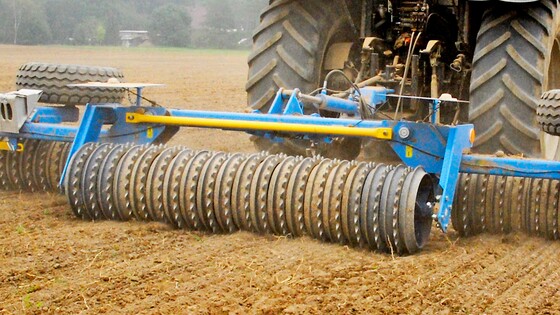

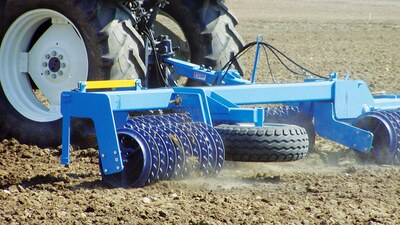

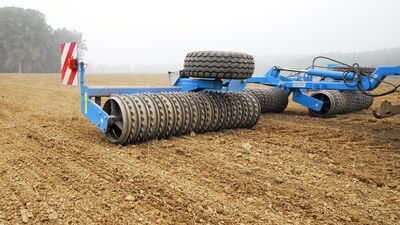

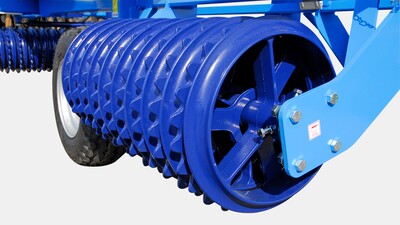

| 1 | Clods crumbling and soil reconsolidation zone. The roller gently crumbs clods and ensures final soil compaction to fully restore soil capillarity. The intensive rise of soil moisture to the surface ensures even emergence of plants even in the dry season. |

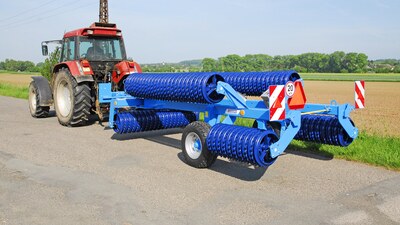

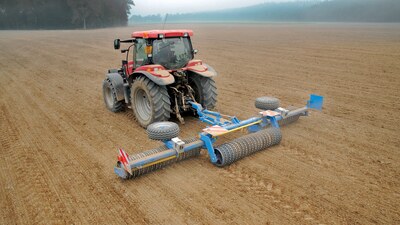

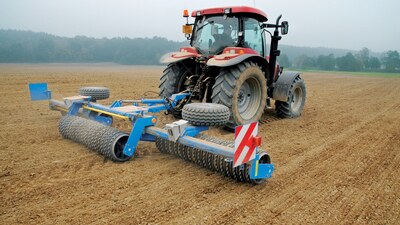

Cambridge rollers are designed for additional pre-sowing soil processing, especially in heavy dry conditions.

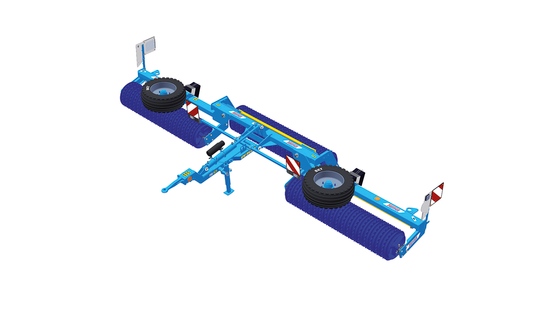

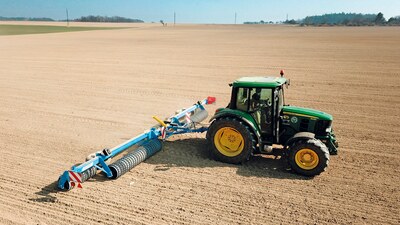

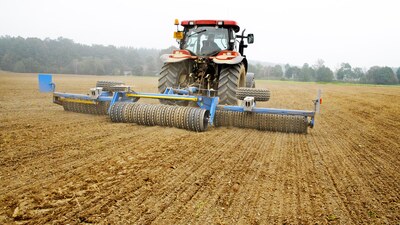

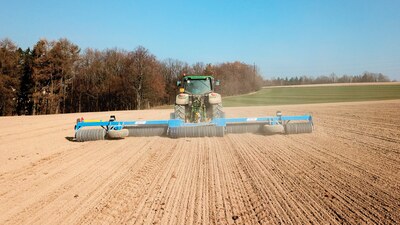

Cambridge rollers are used for levelling of the surface, crumbling of clods and restoration of soil capillarity. The machine can also be used after sowing. Working operation performed in this way increases uniformity of seed emergence and subsequently acceleration of vegetation.
Due to minimum of adjusting and lubricating points the operation and subsequent maintenance are very easy steps that anybody can perform.
| Technical parameters | Units | Cambridge CV 6 | Cambridge CV 9 |
|---|---|---|---|

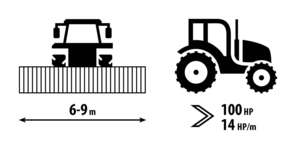

| Working width | mm | 6 000 | 9 000 |

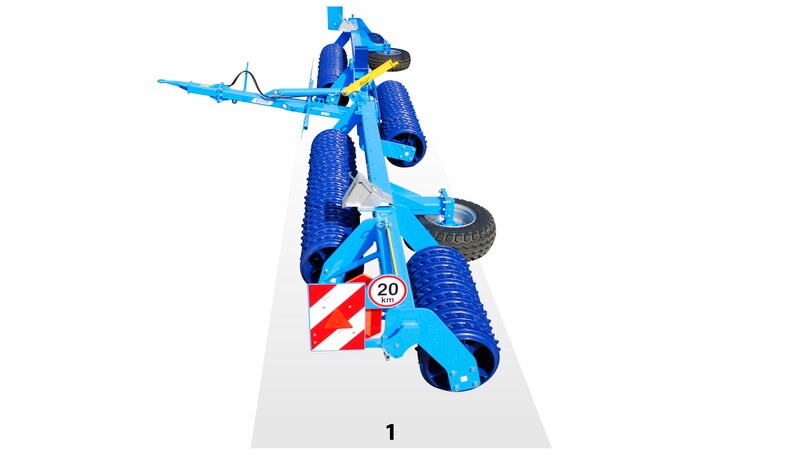

| Transport width | mm | 2 400 | 2 400 |
| Transport height | mm | 1 600 | 1 600 |
| Total machine length | mm | 4 100 | 6 800 |
| Number od segments – smooth Number od segments – geared |
pcs | 58 55 |
88 83 |
| Working performance | ha/h | 4,8─9 | 7,2─13,5 |
| Towing vehicle 1 | kW HP |
75 100 |
90 125 |
| Working speed | km/h | 8─15 | 8─15 |
| Maximum slope availability | ° | 11 | 11 |
| Dimension of tyre - transport | 10,0 / 75 - 15,3 | 10,0 / 75 - 15,3 | |
| Number of hydraulic circuits / pressure | bar | 1 / 200 | 1 / 200 |
| Number of quick-coupling devices / type | 2 / ISO 12,5 | 2 / ISO 12,5 | |

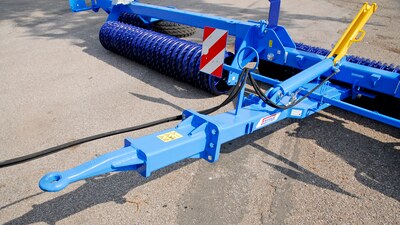

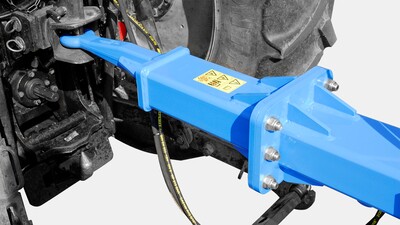

| Tractor hitch requirement | upper-level suspension of the tractor; bottom-level suspension of the tractor |
||
| Machine weight | kg | 2 700 | 3 600 |
1 Recommended towing vehicle, the actual pulling force may significantly change according to the processing depth, soil conditions, inclination of land, wear of working members and their adjustment.

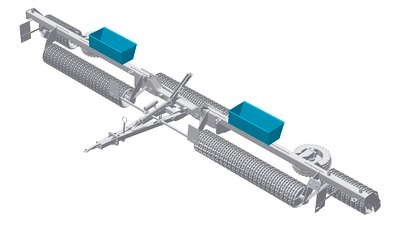

Naudojimo metu galima rinkti akmenis iš lauko į dėžes, o vėliau juos iškrauti lauko pakraštyje.
