High-strength refined materials in connection with eXtra STEEL line technology guarantee long service life of our machines even in the most difficult conditions.
| Technical parameters | Units | SingleCut 6 | SingleCut 9 |
|---|---|---|---|

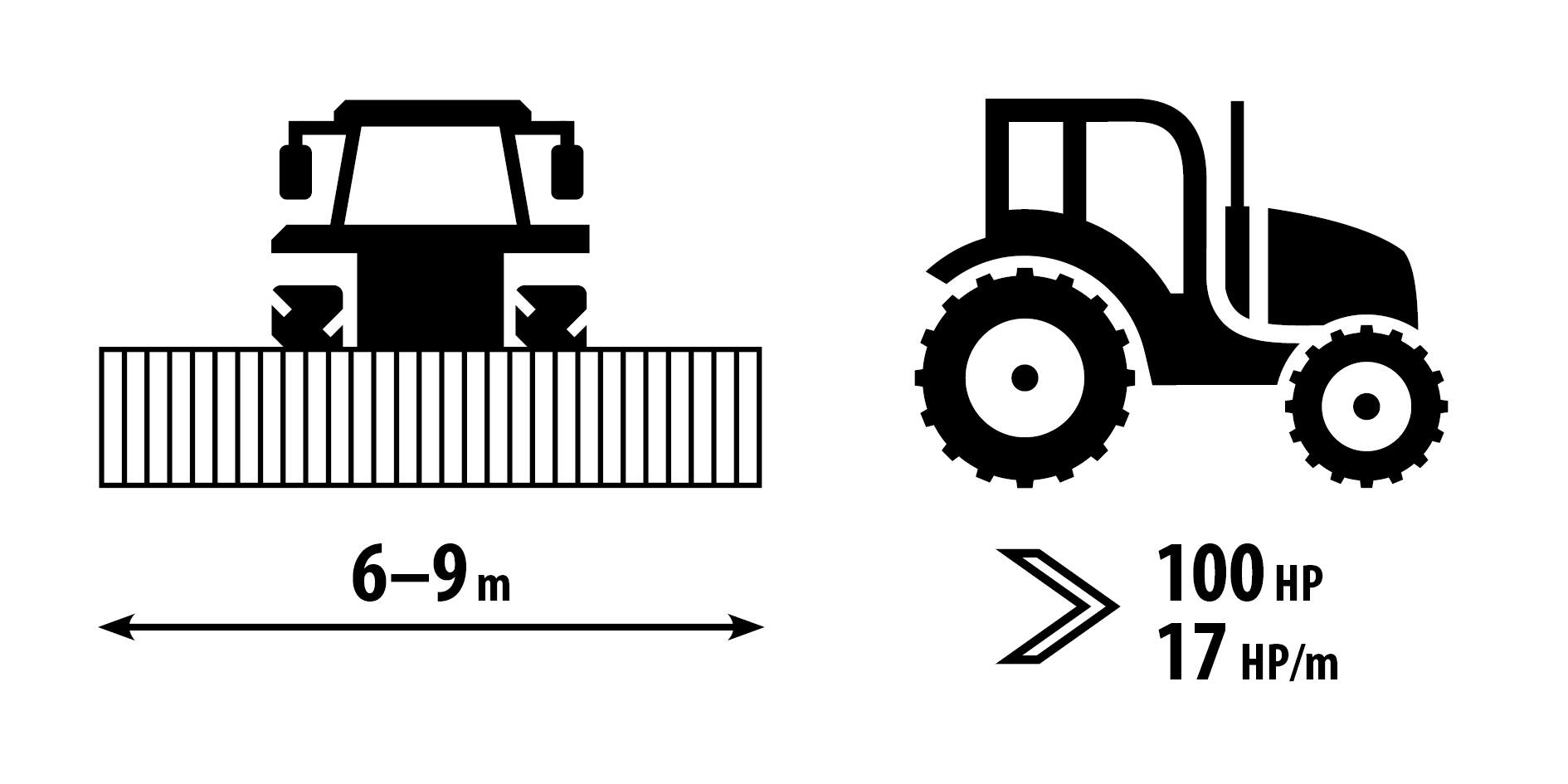

| Working width | mm | 6 000 | 9 000 |
| Transport width | mm | 2 400 | 2 400 |
| Transport height | mm | 1 600 | 1 600 |
| Total machine length | mm | 4 100 | 6 800 |
| Working performance | ha/h | 6─12 | 9─18 |
| Towing vehicle 1 | kW HP |
75 100 |
90 125 |
| Working speed | km/h | 10─20 | 10─20 |
| Maximum slope availability | ° | 11 | 11 |
| Dimension of tyre - transport | 10,0 / 75 - 15,3 | 10,0 / 75 - 15,3 | |
| Number of hydraulic circuits / pressure | bar | 1 / 200 | 1 / 200 |
| Number of quick-coupling devices / type | 2 / ISO 12,5 | 2 / ISO 12,5 | |

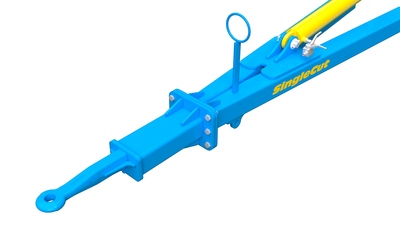

| Tractor hitch requirement | upper-level suspension of the tractor; bottom-level suspension of the tractor |
||
| Machine weight | kg | 1 600 | 2 500 |
1 Recommended towing vehicle, the actual pulling force may significantly change according to the processing depth, soil conditions, inclination of land, wear of working members and their adjustment.
Transport / brake system: Follow national provisions valid for transport of machines on public roads. Verify legal provisions valid in the country, regulations on maximum allowable total weights and axle loads and also on necessary possible use of the brake system. If you have any questions, please contact our sales representative.
