Technology

1 Tractor track loosening zone. Perfect loosening of the tracks eliminates uneven emergence of plants after sowing.
2 Basic soil levelling zone. Precisely leveled soil surface allows uniform subsequent consolidation and loosening the seedbed.
3 The soil pre-consolidation zone by the front roller. The front roller crumbs clods on the surface, but at the same time it consolidates the soil and restores the soil capillarity.
4 Seedbed zone. The soil is loosened by the share section to the set depth. The depth should be the same as the future sowing depth. Arrow shares allow full-area undercut and weed control.
5 Wave-levelling zone behind a share loosening section.
6 Rear roller soil consolidation zone. The roller finely crumbles clods and ensures the final consolidation of the seedbed so that the soil capillarity is fully restored. Intensive soil capillarity moisture rise ensures good emergence of plants even in the dry season.
7 Final soil levelling zone. The rear bar ensures a perfect surface level with minimum clods for subsequent sowing.

Presowing combinators Kompaktomat are time-tested machines designed for pre-sowing preparation of the soil after ploughing.

Working width of up to 15.7 m

The wide span variant of the Kompaktomat machine is manufactured in the working width of 12.5 m and 15.7 m. It is designed for large agricultural holdings equipped with tractors with power up to 600 HP.

Excellent levelling of the surface, fine crumbling of clods

During one run the soil is perfectly processed to the state required for sowing of crops. The advantage of the machine is excellent levelling of the surface, fine crumbling of clods and formation of well-compacted sowing bed. The land is perfectly levelled also due to smoothing harrows that can level and spread even high unevenness.

Presowing combinators Kompaktomat are time-tested machines designed for pre-sowing preparation of the soil after ploughing.

Working width of up to 15.7 m

The wide span variant of the Kompaktomat machine is manufactured in the working width of 12.5 m and 15.7 m. It is designed for large agricultural holdings equipped with tractors with power up to 600 HP.

Excellent levelling of the surface, fine crumbling of clods

During one run the soil is perfectly processed to the state required for sowing of crops. The advantage of the machine is excellent levelling of the surface, fine crumbling of clods and formation of well-compacted sowing bed. The land is perfectly levelled also due to smoothing harrows that can level and spread even high unevenness.

A single run perfectly prepares the soil for sowing of crops

Due to high working speed, high working performance can be achieved even with lower working span of the Kompaktomat machine. A key consideration here is that due to its well-considered design and favourable weight Kompaktomat can prepare the soil after ploughing during one run, whereas the soil is processed not only on the surface, but in the whole horizon.

During the run Kompaktomat performs several working operations, during which the surface of the soil is levelled and compacted to the depth. In the cultivated soil capillarity is restored and in the required depth the sowing bed is formed. The clods are finely crumbled.

Easy operation

Optionally the combinator can be equipped with hydraulic adjustment of depth of the share section and hydraulic adjustment of the front leveller.

Minimum maintenance requirements

The control elements of the presowing combinator are designed in order to achieve maximum safety of workers. Simple but quality construction with minimum maintenance requirements.

Road transport is not a problem

All variants are equipped with folding for transport so that the machine does not exceed the maximum transport width of 3 metres and maximum transport height of 4 metres. Folding is hydraulic and fully automatic.

WRONG
During unequal processing of the soil there is a danger of wrong and unequal introduction of plants.
CORRECT

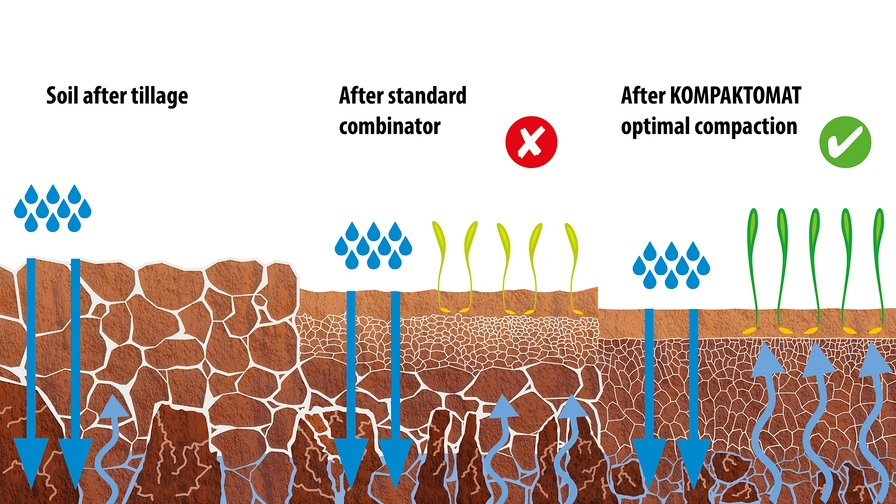

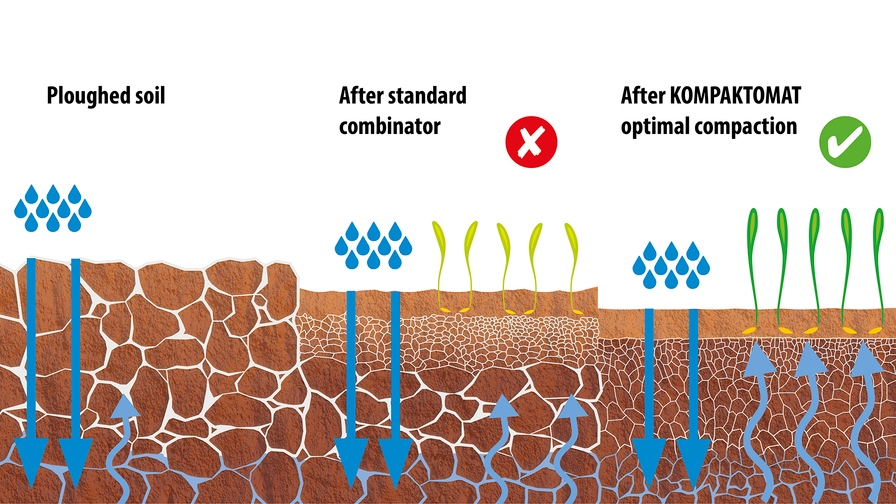

Uniform processing of the soil using presowing combinator Kompaktomat determines equal introduction of plants.

Excellent compaction → ensures water absorption and capillary rise

  • 7 operations performed during one run.
  • High working speed up to 14 km/h.
  • Excellent recompaction and restoration of soil capillarity ensuring equal introduction.
  • Precise adjustment of the depth of the ploughshare ensures precise preparation of the sowing bed for each crop.
  • Automatic protection of ploughshares ensures trouble-free operation.
  • Excellent levelling effect of field unevenness.

High performance and quality of work

High performance and quality of work

  • 7 operations performed during one run.
  • High working speed up to 14 km/h.
  • Excellent recompaction and restoration of soil capillarity ensuring equal introduction.
  • Precise adjustment of the depth of the ploughshare ensures precise preparation of the sowing bed for each crop.
  • Automatic protection of ploughshares ensures trouble-free operation.
  • Excellent levelling effect of field unevenness.

Technics

Seedbed combinator Kompaktomat MAX

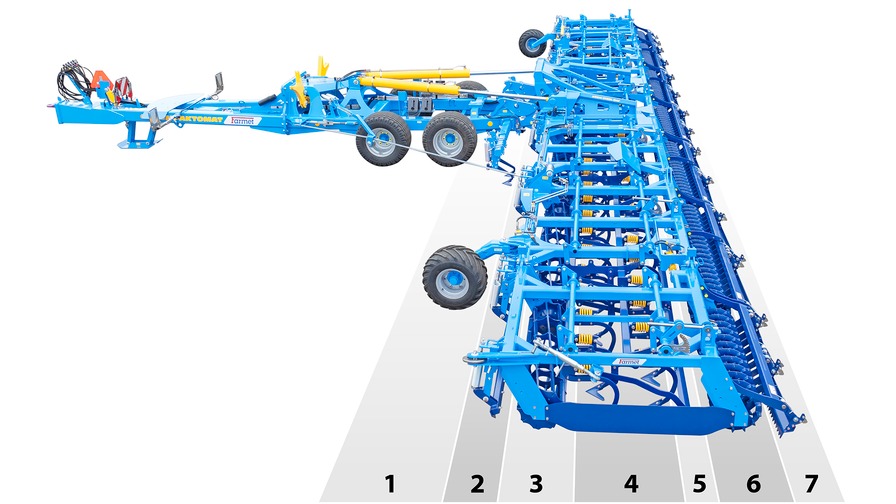

  1. Tractor trail cultivators for lifting of the compacted soil.
  2. Front smoothing harrow for coarse levelling of the surface.
  3. Front roller for rough crumbling of clods.
  4. Share working section undercuts and cultivates the soil.
  5. Central smoothing harrow levels the cultivated soil and the soil is directed below the rear roller.
  6. The rear roller for fine soil processing
  7. The rear smoothing harrow levels the surface.

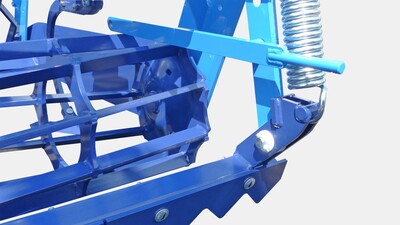

Robust design

High-strength refined materials in connection with eXtra STEEL line technology guarantee long service life of our machines even in the most difficult conditions.

High-strength materials
High-strength refined materials used for crucial nodes to ensure long service life. Heavily designed frame.
Robust smoothing harrow
The robust front smoothing harrow ensuring removal of upper layers of topsoil.
Protection of ploughshares
Automatically unprotected ploughshares.

Easy operation

Due to minimum of adjusting and lubricating points the operation and subsequent maintenance are very easy steps that anybody can perform.

  • Minimum of adjustment points.
  • Minimum of lubrication points.
Front smoothing harrow
Adjustment of the height of the front smoothing harrow.
Smoothing harrow behind ploughshares
Adjustment of the height behind the arrow ploughshares.
Working depth
Adjustment of working depth of the ploughshares.

The advantage of this machine is its multipurposeness and adjustability bringing high variability of work.

Folding for transport enables:

  • Folding to compact transport dimensions
  • This way excellent transportability and manoeuvring characteristics on normal roads are ensured

Smartly designed machine

Smartly designed machine

The advantage of this machine is its multipurposeness and adjustability bringing high variability of work.

Folding for transport enables:

  • Folding to compact transport dimensions
  • This way excellent transportability and manoeuvring characteristics on normal roads are ensured

Option of several types of share sections

Differences between individual sections are described in more detail in the tab Accessory

Section AL
Section CF
Section AP

Parameters

Technical parameters Units Kompaktomat
K 1250 MAX
Kompaktomat
K 1570 MAX
Working width mm 12 500 15 700
Transport width mm 3 000 3 000
Transport height 2 mm  3 500 3 500
Total machine length 2 mm 11 300 11 300
Working depth mm 0–100 0–100
Number of shares – arrow AL
Number of shares – chisel CF
Number of shares – arrow AP
pcs 53
119
53
67
149
67
Working performance ha/h 12–15 13–20
Towing vehicle 1 kW
HP
243
330
316
430
Working speed km/h 10–14 10–14
Maximum slope availability ° 6 6
Dimension of tyre - transport   19,0/45-17 19,0/45-17
Brake type / distribution 3   air / two-line air / two-line
Required pressure 3 kPa 8,5 8,5
Dimensions of brakes   300/60 300/60
Number of hydraulic circuits / pressure bar  4–6 / 200 5–7 / 200
Number of quick-coupling devices / type    8–12 / ISO 12,5 10–14 / ISO 12,5

Tractor hitch requirement
Height of lower hitch

mm 600–650 600–650
Tractor hitch requirement mm lower hitch K80; eye Ø 50, 70 mm
Axle load kg 4 350 / 4 350 5 000 / 5 000
Machine weight 2 kg 10 500 12 500

Seedbed combinator Kompaktomat MAX LONG

Technical parameters Units Kompaktomat
K 1250 MAX LONG
Kompaktomat
K 1570 MAX LONG
Working width mm 12 500 15 700
Transport width mm 3 000 3 000
Transport height 2 mm 3 750 3 750
Total machine length 2 mm 11 550 11 550
Working depth mm 0–100 0–100
Number of shares – arrow AL
Number of shares – chisel CF
Number of shares – arrow AP
Number of shares – arrow AL4
pcs 53
119
53
95
67
149
67
118
Working performance ha/h 12–15 13–20
Towing vehicle 1 kW
HP
243
330
316
430
Working speed km/h 10–14 10–14
Maximum slope availability ° 6 6
Dimension of tyre - transport   19,0/45-17 19,0/45-17
Brake type / distribution 3   air / two-line air / two-line
Required pressure 3 kPa 8,5 8,5
Dimensions of brakes   300/60 300/60
Number of hydraulic circuits / pressure bar  4–6 / 200 5–7 / 200
Number of quick-coupling devices / type    8–12 / ISO 12,5 10–14 / ISO 12,5

Tractor hitch requirement
Height of lower hitch

mm 600–650 600–650
Tractor hitch requirement mm lower hitch K80; eye Ø 50, 70 mm
Axle load kg 4 600 / 4 600 5 350 / 5 350
Machine weight 2 kg 11 200 13 500


1 Recommended towing vehicle, the actual pulling force may significantly change according to the processing depth, soil conditions, inclination of land, wear of working members and their adjustment.
2 Machine variant weight: front bar roller, section AP, rear crosskill roller with leveller.
3 Alternative of the brake type: hydraulic, pressure 130 ± 5 bar (designed for the French market).
Transport / brake system: Follow national provisions valid for transport of machines on public roads. Verify legal provisions valid in the country, regulations on maximum allowable total weights and axle loads and also on necessary possible use of the brake system. If you have any questions, please contact our sales representative.

Modulability

Kompaktomat STANDARD - suitable for more intensive soil processing after plowing with a minimum of crop residues

Kompaktomat LONG - suitable for processing soil after loosening with a large amount of crushed crop residues on the surface

Optional

Priedai

Rollers

Ring roller RR
Diameter 400 mm
Weight 115 kg/m



May be applied as the front and rear roller.

Quality work in all types of soil, good depth guiding, suitable even for more humid soils.

Crosskill roller CR
Diameter 400 mm
Weight 133 kg/m



May be applied as the rear roller only.

Excellent work in light, medium and heavy soils, quality compaction and clod crumbling.

Double crosskill roller DCR
Diameter 400 mm
Weight 185 kg/m
Volų eilių tarpai 274 mm



May be applied as the rear roller only.

Excellent work in light, medium and heavy soils, quality compaction and clod crumbling. When compared to crosskill roller, more intense clod crumbling.

Spiral bar roller SB
Diameter 400 mm
Weight 70 kg/m



May be applied as the front and rear roller.

Quality clod crumbling. Suitable for wet conditions.

Bar roller BR
Diameter 400 mm
Weight 63 kg/m



May be applied as the front and rear roller.

Quality clod crumbling. Not very suitable for wet conditions.

Proper selection of the type of the roller contributing significantly to the final quality of the processing is very important. The selection of the type of the roller depends on the soil type and on the manner of use of the machine.

Rollers Crosskill
CR
Double crosskill
DCR
Bar
BR
Spiral bar
SB
Ring
RR
Crumbling  ●●●● ●●●● ●●●○ ●●●○ ●●○○
Stamping  ●●●● ●●●● ●●●○ ●●●○ ●●●●
Depth guiding  ●○○○ ●●○○ ●●●○ ●●●○ ●●●●
Resistance against clogging  ●●●○ ●●●● ●●○○ ●●●○ ●●●●
Suitability for stony soils  ●●○○ ●●○○ ●●●○ ●●●○ ●●●○
Suitability for wet soils  ●●○○ ●●●○ ●○○○ ●●●○ ●●●●
Heavy soils  ●●●○ ●●●● ●●○○ ●●○○ ●●●○
Medium soils  ●●●● ●●●● ●●●○ ●●●○ ●●●○
Light soils  ●●●● ●●●● ●●●● ●●●● ●●●○

Working tools

Kompaktomat noragėlis DURA+

Skirta AL / AP sekcijoms ir traktoriaus vėžių purentuvams CA.

Chisel CARBIDE

For the CF section.

Dvipusis kaltas

For the CF section.

Dvipusis kaltas

Traktoriaus vėžių purenimui CC.


Dirbimo sekcija

Section AP

Universali dirbimo sekcija su 27 cm pločio noragėliais dviem eilėmis. Noragėliai sumontuoti ant kojų su specialia geometrija, gerinančia augalinių liekanų pravažumą.

Section AL

Sekcija aprūpinta 27 cm pločio noragėliais dviem eilėmis. Ši sekcija tinka lengvoms dirvos sąlygoms be augalinių likučių. Standartiškai aprūpinta aukščio reguliuojama išlyginimo juosta už noragėlių.

Section CF

Sekcija su 3,5 cm siaurais kaltais keturiomis eilėmis. Ideali pavasariniam dirvos paruošimui arba sunkioms dirvoms, kur nepageidautina kelti šlapią dirvą į paviršių. Standartiškai aprūpinta lyginimo juosta už noragėlių.

Section AL AL-L 1 CF CF-L 1 AP AP-L 1 AL4 1

Number of rows of shares (pcs) /
Row spacing (mm)

2 / 400  2 / 510 4 / 240  4 / 265 2 / 490  2 / 600 4 / 270
Leveller behind shares ●●●● ●●●● ●●●● ●●●● ●●●● ●●●● ●●●●
Full-area processing ●●●● ●●●● ●●○○ ●●○○ ●●●● ●●●● ●●●●
Suitability for light soils ●●●● ●●●● ●●●● ●●●● ●●●● ●●●● ●●●●
Suitability for medium soils ●●●○ ●●●○ ●●●○ ●●●○ ●●●● ●●●● ●●●●
Suitability for heavy soils ●●●○ ●●●○ ●●●○ ●●●○ ●●●● ●●●● ●●●●
Suitability for stony soils ●●●○ ●●●○ ●●●○ ●●●○ ●●●● ●●●● ●●●○
Suitability for wet soils ●●○○ ●●○○ ●●●● ●●●● ●●○○ ●●○○ ●●●○
Resistance against clogging ●●○○ ●●○○ ●●●○ ●●●○ ●●●○ ●●●○ ●●●○

1 The section is designed for Kompaktomat LONG. It provides better throughput thanks to the extended spacing.


Trail cultivators

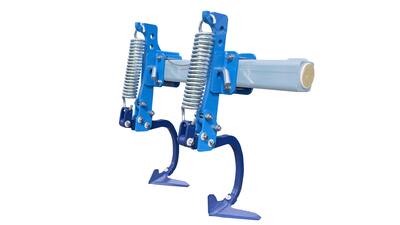

Traktoriaus vėžių purentuvai su noraginiu noragėliu CA

Automatiškai nusileidžiantys traktoriaus vėžių purentuvai su strėliniu noragėliu. Tinka lengvoms dirvoms, kur nėra pavojaus iškelti šlapius grumstus į paviršių.

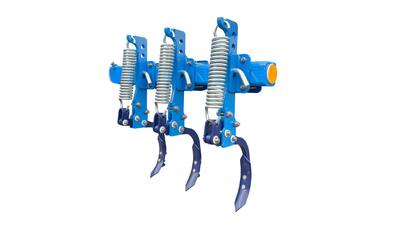

Traktoriaus vėžių purentuvai su dvipusiu kaltu CC

Automatiškai veikiantys traktoriaus vėžių purentuvai su dvipusiu kaltu. Tinka sunkioms dirvoms, kur yra tikimybė iškelti šlapius grumstus į paviršių.


Levellers

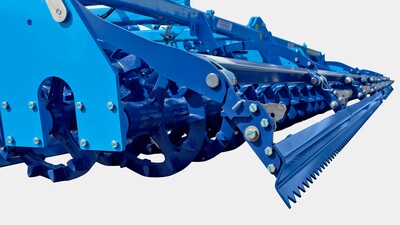

Fixed leveller

Automatiškai nusileidžianti išlyginimo juosta su dantytu profiliu. Tvirta konstrukcija, skirta tiksliam didelių grumstų išlyginimui.
FL = fixed mechanical skid, FH = fixed hydraulic skid.

Lyginimo juostos peiliai veikia kaip vientisas vienetas, užtikrinantis geresnį stabilumą.


Finish section

Smoothing harrow

Pasyvus dirvos išlyginimas už galinio volo. Lyginimo juostos agresyvumo reguliavimas naudojant sukamuosius fiksatorius. Gali būti pritaikoma prie visų tipų galinių volų.

Strypinis galinis volas RF

Active crumbling of remaining clods behind the rear roller.

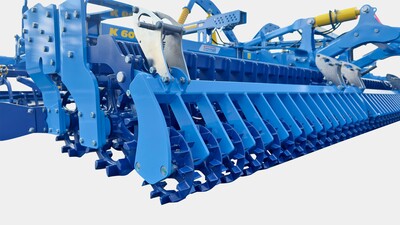

„Crosskill“ galinis volas RFC

Active crumbling of remaining clods behind the rear roller.

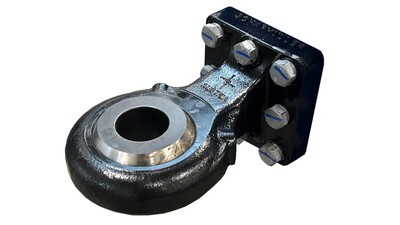

Loop for the lower hitch

Loop for the lower hitch ø 50 mm or ø 70 mm. Maximum vertical load of the towing eye 3,000 kg.

Hitch K80 Ø 80 mm

Loop for the lower hitch K80. Maximum vertical load of the towing eye 3,000 kg.


Hydrotronic – Electro-Hydraulic Circuit Divider

Divides 1 tractor circuit into 3 circuits.

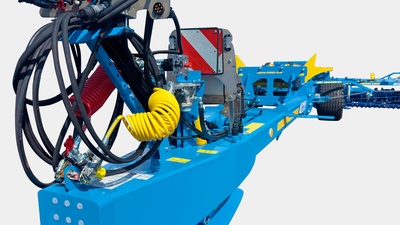

Two-line single-circuit air brakes
