Seedbed combinator KOMPAKTOMAT PS

Precise seedbed in one pass

Seedbed combinator Kompaktomat PS

Technology

Široké možnosti konfigurovatelnosti

Konfigūracijos darbui po arimo		Konfigūracijos darbui po purenimo

Iki 9 operacijų per vieną pravažiavimą		Didesnė prošvaisa augalų liekanoms
Išlyginimo juosta už priekinių volų Galimybė pasirinkti dvigubus „Crosskill“ volus + galinį „Crosskill“ volą		Priekinė išlyginimo juosta „Flexi-board“ tipo Didesnis atstumas tarp noragėlių sekcijos eilių Dviejų eilių „Crosskill“ volai su padidinta prošvaisa
Dažniausiai naudojamos konfigūracijos:		Dažniausiai naudojamos konfigūracijos:



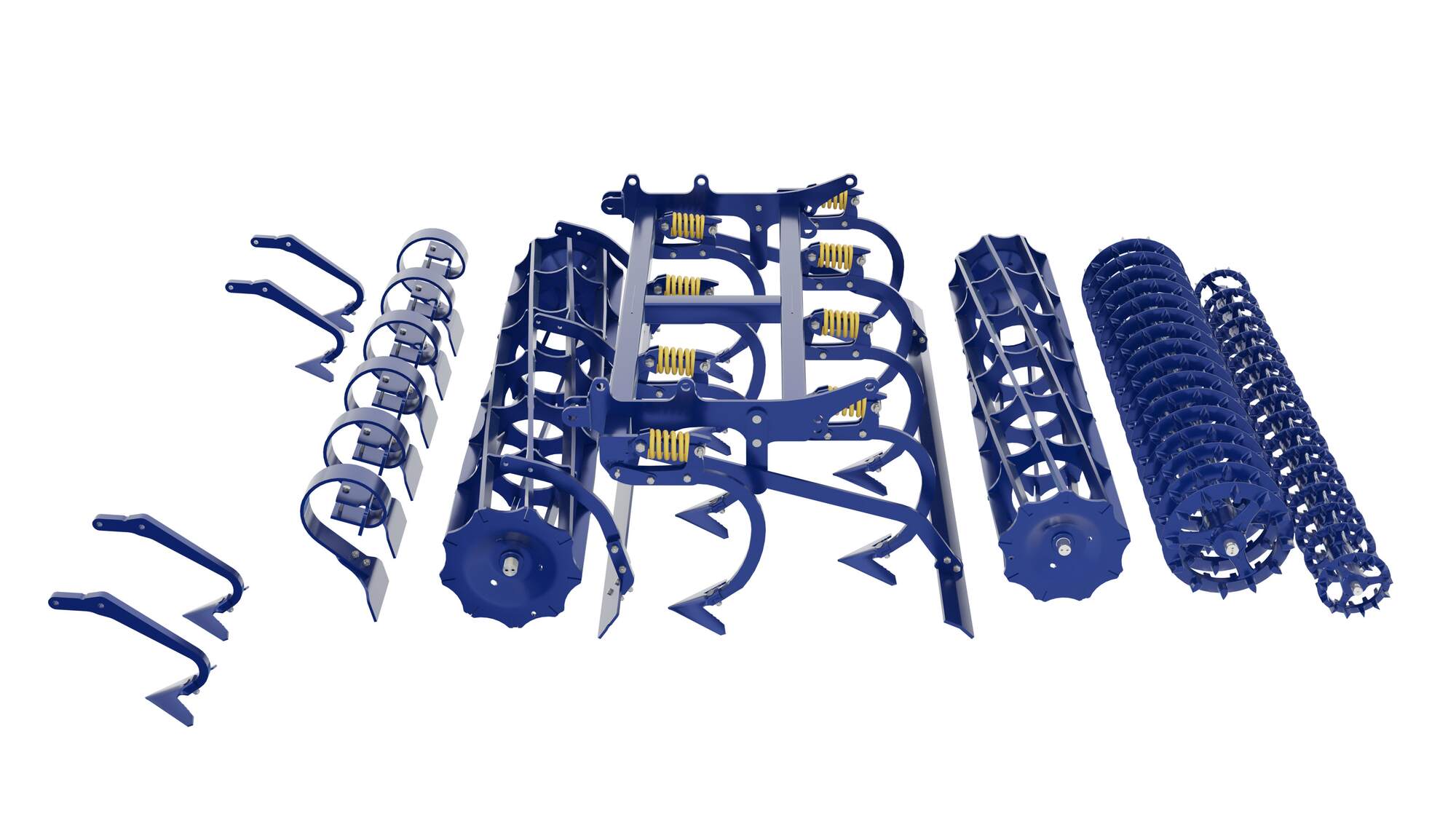

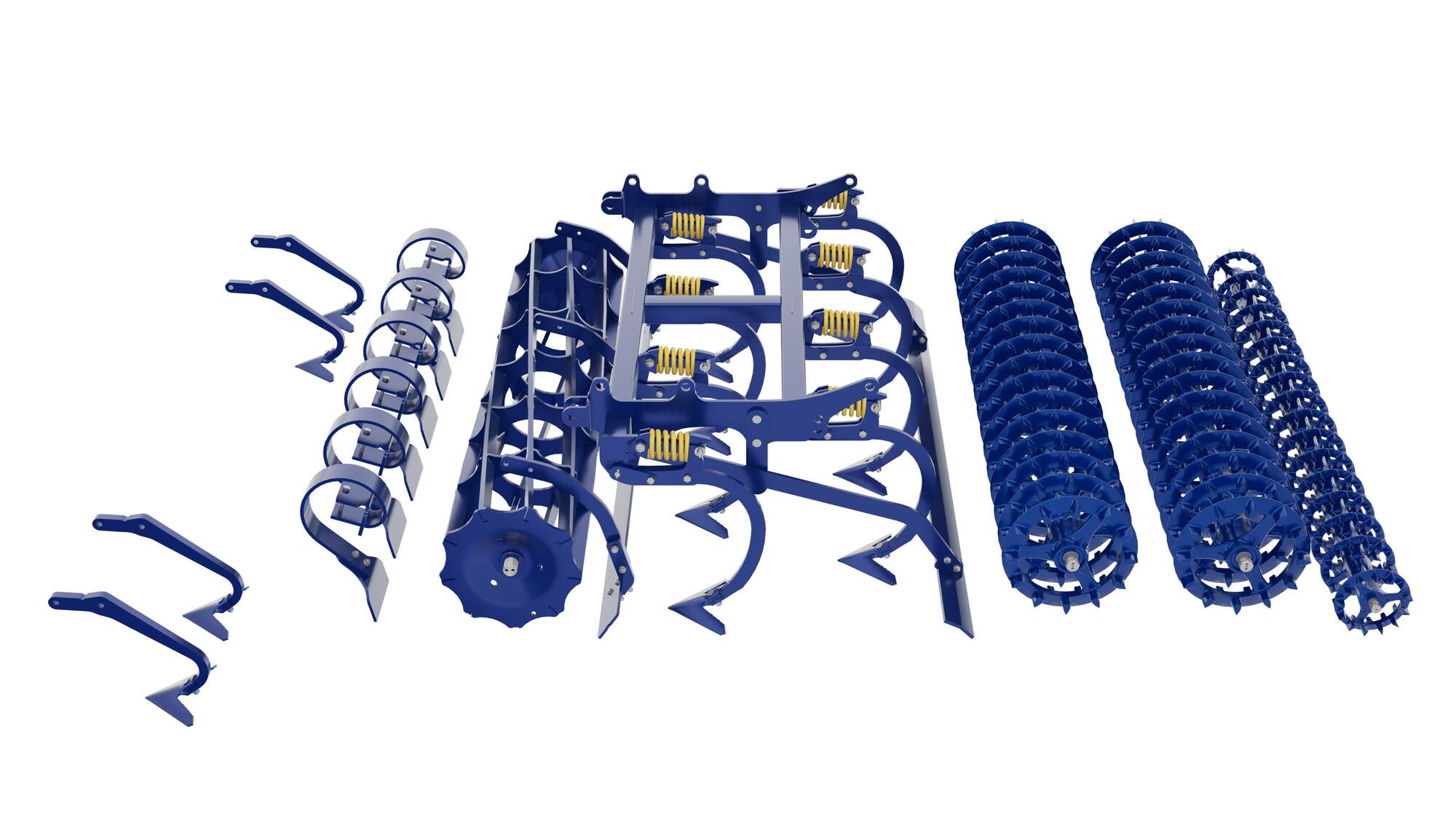

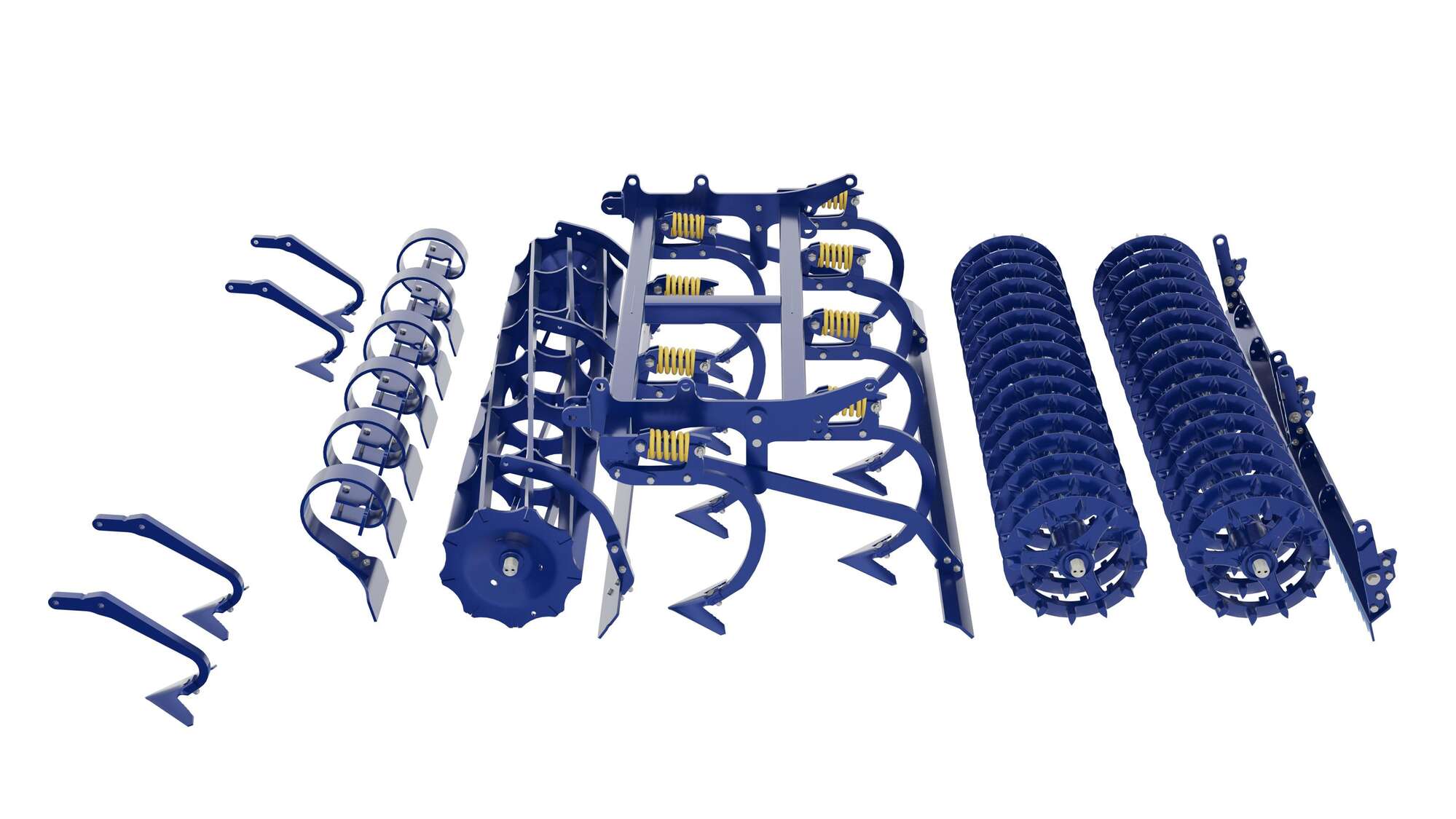

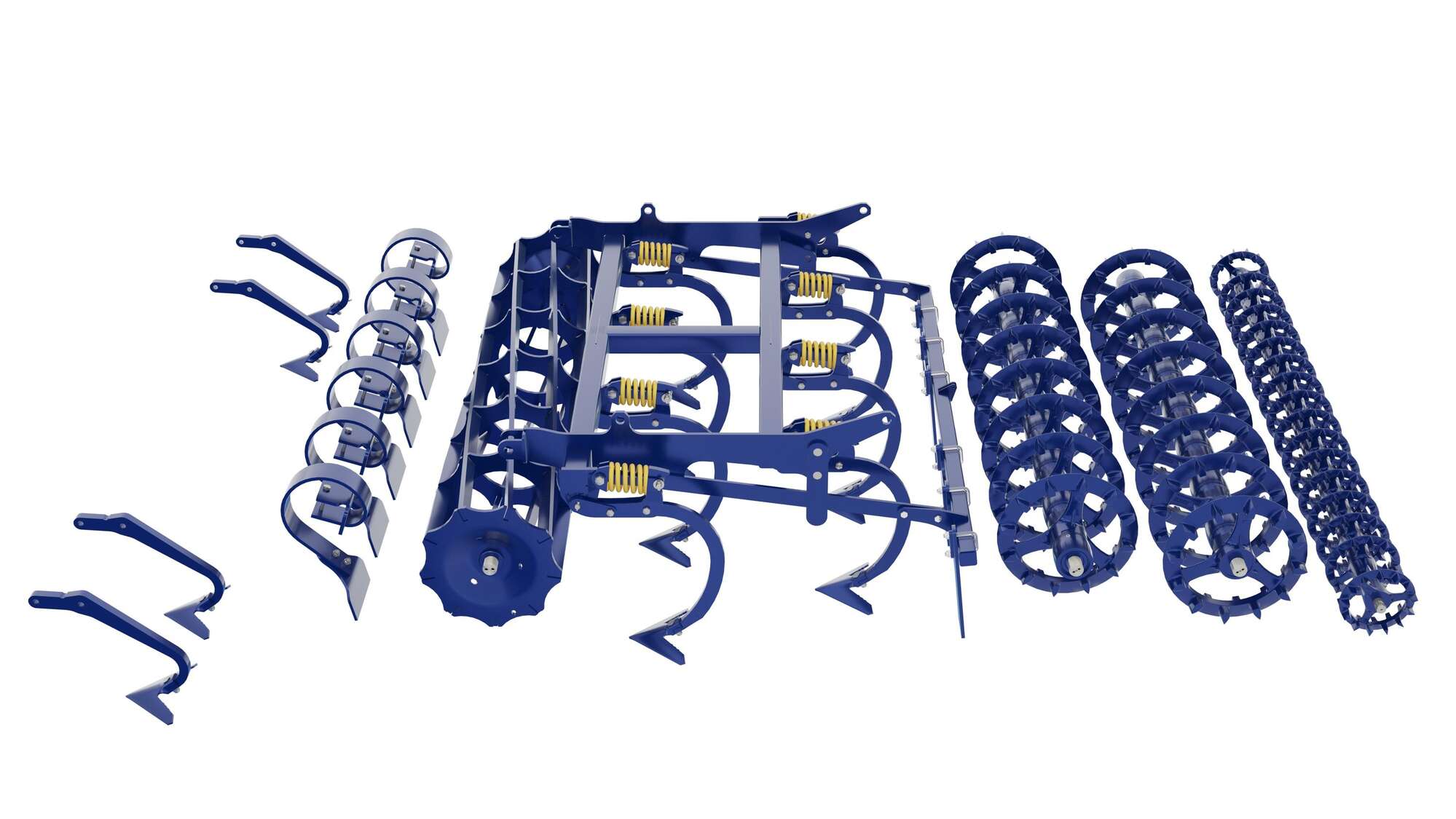

Pasirinkite kitas konfigūracijas ČIA		Pasirinkite kitas konfigūracijas ČIA

Kompaktomat PS

Kompaktomat PS LONG

1	Tractor track loosening zone. Perfect loosening of the tracks eliminates uneven emergence of plants after sowing.
2	Basic soil levelling zone. Precisely leveled soil surface allows uniform subsequent consolidation and loosening the seedbed.
3	Soil pre-consolidation zone by the front roller. The front roller crumbs clods on the surface, but at the same time it consolidates the soil and restores the soil capillarity.
4	Seedbed zone. The soil is loosened by the share section to the set depth. The depth should be the same as the future sowing depth. Arrow shares allow full-area undercut and weed control.
5	Wave-levelling zone behind a share loosening section.
6	Rear roller soil consolidation zone. The roller finely crumbles clods and ensures the final consolidation of the seedbed so that the soil capillarity is fully restored. Intensive soil capillarity moisture rise ensures good emergence of plants even in the dry season.
7	Final soil levelling zone. The rear bar or final rollers ensure a perfect leveled surface with minimum clods for subsequent sowing.

Presowing combinators Kompaktomat are time-tested machines designed for pre-sowing preparation of the soil after ploughing.

Wide range of working spans

Half-carried machines are offered with the working span from 3 m to 9.7 m.

Excellent levelling of the surface, fine crumbling of clods

During one run the soil is perfectly processed to the state required for sowing of crops. The advantage of the machine is excellent levelling of the surface, fine crumbling of clods and formation of well-compacted sowing bed.

Presowing combinators Kompaktomat are time-tested machines designed for pre-sowing preparation of the soil after ploughing.

Wide range of working spans

Half-carried machines are offered with the working span from 3 m to 9.7 m.

Excellent levelling of the surface, fine crumbling of clods

WRONG

During unequal processing of the soil there is a danger of wrong and unequal introduction of plants.

CORRECT

Uniform processing of the soil using presowing combinator Kompaktomat determines equal introduction of plants.

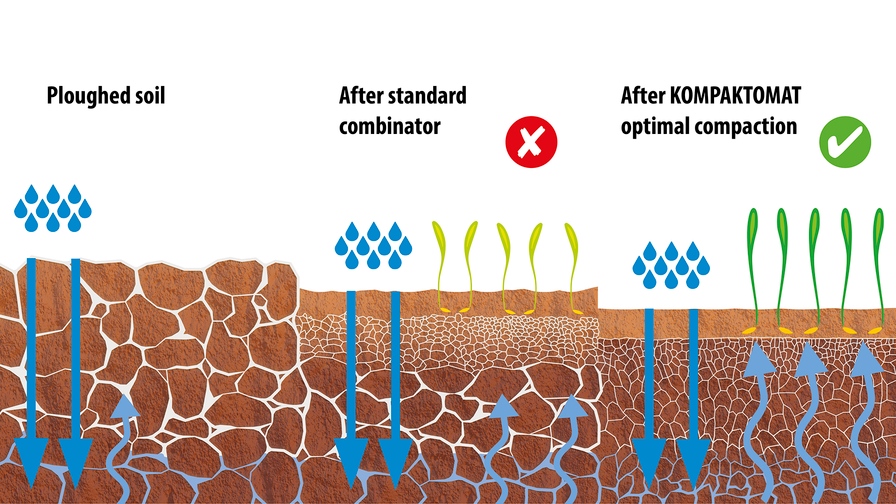

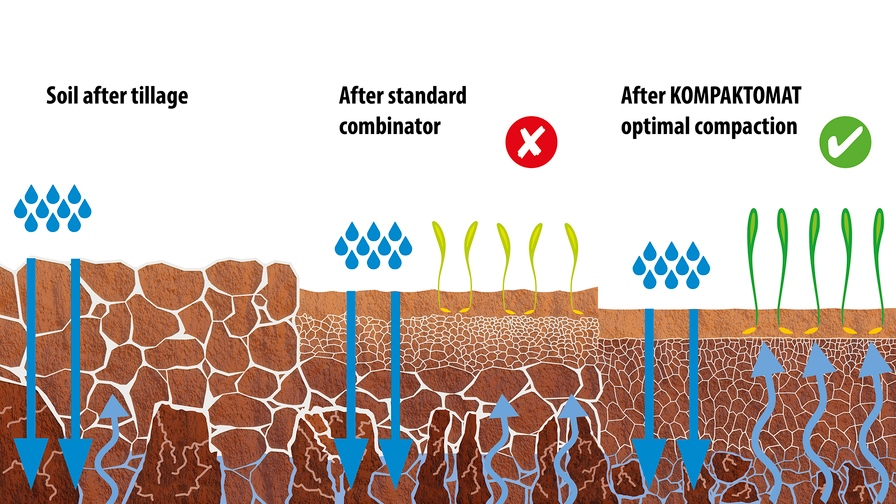

Excellent compaction → ensures water absorption and capillary rise

Technics

Seedbed combinator Kompaktomat PS

Tractor trail cultivators for lifting of the compacted soil.
Front smoothing harrow for coarse levelling of the surface.
Front roller for rough crumbling of clods.
Share working section undercuts and cultivates the soil.
Central smoothing harrow levels the cultivated soil and the soil is directed below the rear roller.
The rear roller for fine soil processing
The rear smoothing harrow levels the surface.

Seedbed combinator Kompaktomat PS LONG

Tractor trail cultivators for lifting of the compacted soil.
Front smoothing harrow for coarse levelling of the surface.
Front roller for rough crumbling of clods.
The extended four-row share working section with increased throughput undercuts and loosens soil.
Central smoothing harrow levels the cultivated soil and the soil is directed below the rear roller.
The rear roller for fine soil processing
Galine darbinė sekcija išlygina dirvos paviršių.

High performance and quality of work

7 operations performed during one run.
High working speed up to 14 km/h.
Excellent recompaction and restoration of soil capillarity ensuring equal introduction.
Precise adjustment of the depth of the ploughshare ensures precise preparation of the sowing bed for each crop.
Automatic protection of ploughshares ensures trouble-free operation.
Excellent levelling effect of field unevenness.

High performance and quality of work

7 operations performed during one run.
High working speed up to 14 km/h.
Excellent recompaction and restoration of soil capillarity ensuring equal introduction.
Precise adjustment of the depth of the ploughshare ensures precise preparation of the sowing bed for each crop.
Automatic protection of ploughshares ensures trouble-free operation.
Excellent levelling effect of field unevenness.

Robust design

High-strength refined materials in connection with eXtra STEEL line technology guarantee long service life of our machines even in the most difficult conditions.

High-strength materials

High-strength refined materials used for crucial nodes to ensure long service life. Heavily designed frame.

Robust smoothing harrow

The robust front smoothing harrow ensuring removal of upper layers of topsoil.

Protection of ploughshares

Automatically unprotected ploughshares.

Easy operation

Due to minimum of adjusting and lubricating points the operation and subsequent maintenance are very easy steps that anybody can perform.

Minimum of adjustment points.
Minimum of lubrication points.

Front smoothing harrow

Adjustment of the height of the front smoothing harrow.

Hidraulinis priekinės išlyginimo juostos valdymas

Priekinio slankiklio padėtis gali būti nuolat keičiama darbo metu pagal esamas sąlygas. Gali būti sumontuota ant senesnių mašinų.

Deflektorius už dirbimo sekcijos

Tvirtas deflektorius, skirtas geresniam augalinių liekanų pašalinimui. Tai papildoma įranga.

Išlyginimo juosta už dirbimo sekcijos

Išlyginimo juostos aukščio reguliavimas už dirbimo sekcijos.

Working depth

Adjustment of working depth of the ploughshares.

Hidraulinis darbinio gylio reguliavimas

Dirbimo sekcijos darbinis gylis gali būti patogiai reguliuojamas hidrauliniu būdu tiesiai iš traktoriaus kabinos. Gali būti sumontuota ant senesnių mašinų.

Smartly designed machine

The advantage of this machine is its multipurposeness and adjustability bringing high variability of work.

Presowing combinator Kompaktomat

Folding for the transport is designed so that:

the machine does not exceed the maximum transport width of 3 metres and maximum transport height of 4 metres
folding is hydraulic and fully automatic

Folding for the transport is designed so that:

the machine does not exceed the maximum transport width of 3 metres and maximum transport height of 4 metres
folding is hydraulic and fully automatic

Galimybė rinktis kelis dirbimo sekcijų tipus

Differences between individual sections are described in more detail in the tab Accessory

Section AL

Section CF

Section AP

Section AL4

Possibility of aggregation with other machines

Half-carried presowing combinators Kompaktomat K 300 P – K 1000 PS enable aggregation with other devices or machines. For this purpose they must be additionally equipped with the rear three-point linkage of category 2; it is equipment above standard.

Aggregation of presowing combinators Kompaktomat with additional rollers

For aggregation with e.g. crumbling rollers it is sufficient to additionally equip the combinator with the rear three-point linkage only.

Aggregation of presowing combinators Kompaktomat with the sowing machine

For aggregation with a pneumatic sowing machine, the combinator can be extended by the hydraulic fan drive and hydraulic circuit for control of the sowing machine markers.

Parameters

Technical parameters – unbraked variant

Technical parameters	Units	Kompaktomat K 300 P	Kompaktomat K 400 PS	Kompaktomat K 450 PS	Kompaktomat K 500 PS	Kompaktomat K 600 PS
Working width	mm	3 000	4 000	4 500	5 000	6 000
Transport width	mm	3 000	3 000	3 000	3 000	3 000
Transport height	mm	1 650	2 670	3 030	2 790	3 230
Total machine length	mm	5 965	5 965	5 965	6 105	6 105
Working depth	mm	0–100	0–100	0–100	0–100	0–100
Number of shares – arrow AL Number of shares – chisel CF Number of shares – arrow AP	pcs	13 30 12	18 39 16	20 47 20	23 49 23	27 59 24
Working performance	ha/h	2,2–3,2	3–4	3,5–4,5	3–5	3,5–6
Towing vehicle ¹	kW HP	70 95	90 125	110 150	120 165	130 180
Working speed	km/h	10–14	10–14	10–14	10–14	10–14
Maximum slope availability	°	11	6	6	6	6
Dimension of tyre - transport		400/60-15,5	400/60-15,5	400/60-15,5	19,0/45-17	19,0/45-17
Number of hydraulic circuits / pressure	bar	2–4 / 200	2–4 / 200	2–4 / 200	2–4 / 200	2–4 / 200
Number of quick-coupling devices / type		4–8 / ISO 12,5	4–8 / ISO 12,5	4–8 / ISO 12,5	4–8 / ISO 12,5	4–8 / ISO 12,5
Tractor hitch requirement Axial spacing of lower suspension joints (alternative spacing)	mm	1 010 (920)	1 010 (920)	1 010 (920)	1 010 (920)	1 010 (920)
Tractor hitch requirement Hole diameter of lower suspension joints for machine suspension pins (alternative Ø)	mm	37,5 (29)	37,5 (29)	37,5 (29)	37,5 (29)	37,5 (29)
Tractor hitch requirement		TPH cat. 2 and 3; lower hitch K80; eye Ø 40, 50, 70 mm
Axle load	kg	1 960	2 080	2 240	2 730	2 950
Machine weight ²	kg	2 360	3 010	3 340	4 025	4 360

Technical parameters – braked variant

Technical parameters	Units	Kompaktomat K 500 PS	Kompaktomat K 600 PS	Kompaktomat K 700 PS	Kompaktomat K 800 PS	Kompaktomat K 1000 PS
Working width	mm	5 000	6 000	7 000	8 000	9 850
Transport width	mm	3 000	3 000	3 000	3 000	3 000
Transport height	mm	2 790	3 230	3 830	4 000	4 000
Total machine length	mm	6 105	6 105	6 105	6 105	6 660
Working depth	mm	0–100	0–100	0–100	0–100	0–100
Number of shares – arrow AL Number of shares – chisel CF Number of shares – arrow AP	pcs	23 49 23	27 59 24	31 69 31	35 77 32	43 91 38
Working performance	ha/h	3–5	3,5–6	4,5–7	5,5–8	8,5–10
Towing vehicle ¹	kW HP	120 165	130 180	150 205	160 220	180 245
Working speed	km/h	10–14	10–14	10–14	10–14	10–14
Maximum slope availability	°	6	6	6	6	6
Dimension of tyre - transport		19,0/45-17	19,0/45-17	19,0/45-17	19,0/45-17	19,0/45-17
Brake type / distribution ³		air / two-line	air / two-line	air / two-line	air / two-line	air / two-line
Required pressure ³	kPa	8,5	8,5	8,5	8,5	8,5
Dimensions of brakes		300/60	300/60	300/60	300/60	300/90
Number of hydraulic circuits / pressure	bar	2–4 / 200	2–4 / 200	2–4 / 200	2–4 / 200	2–4 / 200
Number of quick-coupling devices / type		4–8 / ISO 12,5	4–8 / ISO 12,5	4–8 / ISO 12,5	4–8 / ISO 12,5	4–8 / ISO 12,5
Tractor hitch requirement Axial spacing of lower suspension joints (alternative spacing)	mm	1 010 (920)	1 010 (920)	1 010 (1 045)	1 010 (1 045)	1 010 (1 045)
Tractor hitch requirement Hole diameter of lower suspension joints for machine suspension pins (alternative Ø)	mm	37,5 (29)	37,5 (29)	37,5 (50)	37,5 (50)	37,5 (50)
Tractor hitch requirement		TPH cat. 2 and 3; lower hitch K80; eye Ø 40, 50, 70 mm
Axle load	kg	2 730	2 950	3 360	3 620	4 520
Machine weight ²	kg	4 025	4 360	4 960	5 345	6 920

Seedbed combinator Kompaktomat PS LONG

Technical parameters	Units	Kompaktomat K 500 PS LONG	Kompaktomat K 600 PS LONG	Kompaktomat K 700 PS LONG	Kompaktomat K 800 PS LONG	Kompaktomat K 1000 PS LONG
Working width	mm	5 000	6 000	7 000	8 000	10 000
Transport width	mm	3 000	3 000	3 000	3 000	3 000
Transport height	mm	2 790	3 230	3 830	4 000	4 000
Total machine length	mm	6 355	6 355	6 355	6 355	6 910
Working depth	mm	0–100	0–100	0–100	0–100	0–100
Number of shares – arrow AL Number of shares – arrow AL4 Number of shares – chisel CF Number of shares – arrow AP	pcs	23 41 49 23	27 47 59 24	31 55 69 31	35 61 77 32	43 91 38 76
Working performance	ha/h	3–5	3,5–6	4,5–7	5,5–8	8,5–10,0
Towing vehicle ¹	kW HP	120 165	130 180	150 205	160 220	180 245
Working speed	km/h	10–14	10–14	10–14	10–14	10–14
Maximum slope availability	°	6	6	6	6	6
Dimension of tyre - transport		19,0/45-17	19,0/45-17	19,0/45-17	19,0/45-17	19,0/45-17
Brake type / distribution ³		air / two-line	air / two-line	air / two-line	air / two-line	air / two-line
Required pressure ³	kPa	8,5	8,5	8,5	8,5	8,5
Braked / unbraked variant		yes / yes	yes / yes	yes / yes	yes / no	yes / no
Dimensions of brakes		300/60	300/60	300/60	300/60	300/60
Number of hydraulic circuits / pressure	bar	2–4 / 200	2–4 / 200	2–4 / 200	2–4 / 200	2–4 / 200
Number of quick-coupling devices / type		4–8 / ISO 12,5	4–8 / ISO 12,5	4–8 / ISO 12,5	4–8 / ISO 12,5	4–8 / ISO 12,5
Tractor hitch requirement Axial spacing of lower suspension joints (alternative spacing)	mm	1 010 (920)	1 010 (920)	1 010 (1 045)	1 010 (1 045)	1 010 (1 045)
Tractor hitch requirement Hole diameter of lower suspension joints for machine suspension pins (alternative Ø)	mm	37,5 (29)	37,5 (29)	37,5 (50)	37,5 (50)	37,5 (50)
Tractor hitch requirement		TPH cat. 2 and 3; lower hitch K80; eye Ø 40, 50, 70 mm
Axle load	kg	2 810	3 030	3 460	3 720	4 850
Machine weight ²	kg	4 125	4 460	5 110	5 495	7 420

¹ Recommended towing vehicle, the actual pulling force may significantly change according to the processing depth, soil conditions, inclination of land, wear of working members and their adjustment.
² Machine variant weight: front bar roller, section AP, rear crosskill roller with leveller.
³ Alternative of the brake type: hydraulic, pressure 130 ± 5 bar (designed for the French market).
Transport / brake system: Follow national provisions valid for transport of machines on public roads. Verify legal provisions valid in the country, regulations on maximum allowable total weights and axle loads and also on necessary possible use of the brake system. If you have any questions, please contact our sales representative.

P - half mounted machine
PS - half mounted foldable machine

Modulability

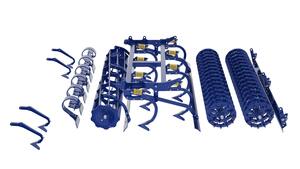

Kompaktomat STANDARD

suitable for more intensive soil processing after plowing with a minimum of crop residues

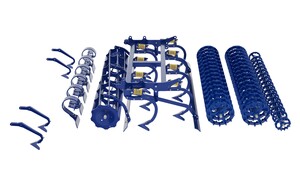

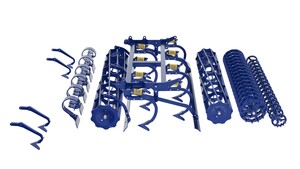

Kompaktomat LONG

suitable for processing soil after loosening with a large amount of crushed crop residues on the surface

Optional

Priedai

Rollers

Ring roller RR

Diameter	400 mm
Weight	115 kg/m

May be applied as the front and rear roller.

Quality work in all types of soil, good depth guiding, suitable even for more humid soils.

Crosskill roller CR

Diameter	400 mm
Weight	133 kg/m

May be applied as the rear roller only.

Excellent work in light, medium and heavy soils, quality compaction and clod crumbling.

Double crosskill roller DCR

Diameter	400 mm
Weight	185 kg/m
Volų eilių tarpai	274 mm

May be applied as the rear roller only.

Excellent work in light, medium and heavy soils, quality compaction and clod crumbling. When compared to crosskill roller, more intense clod crumbling.

Spiral bar roller SB

Diameter	400 mm
Weight	70 kg/m

May be applied as the front and rear roller.

Quality clod crumbling. Suitable for wet conditions.

Bar roller BR

Diameter	400 mm
Weight	63 kg/m

May be applied as the front and rear roller.

Quality clod crumbling. Not very suitable for wet conditions.

Du „Crosskill“ volai CR + CR

Diameter	400 mm
Weight	265 kg/m
Volų eilių tarpai	505 mm

May be applied as the rear roller only.

Excellent work in light, medium and heavy soils, quality compaction and clod crumbling.

Double crosskill roller DCRL

Diameter	400 mm
Weight	185 kg/m
Volų eilių tarpai	505 mm

May be applied as the rear roller only.

Excellent work in light, medium and heavy soils, quality compaction and clod crumbling. When compared to crosskill roller, more intense clod crumbling.

Spiral bar roller SB + Crosskill roller CR

Diameter	400 mm
Weight	203 kg/m
Volų eilių tarpai	505 mm

May be applied as the front and rear roller.

Quality clod crumbling. Suitable for wet conditions.

Proper selection of the type of the roller contributing significantly to the final quality of the processing is very important. The selection of the type of the roller depends on the soil type and on the manner of use of the machine.

Rollers	Crosskill CR	Bar BR	Spiral bar SB	Ring RR
Crumbling	●●●●	●●●○	●●●○	●●○○
Stamping	●●●●	●●●○	●●●○	●●●●
Depth guiding	●○○○	●●●○	●●●○	●●●●
Resistance against clogging	●●●○	●●○○	●●●○	●●●●
Suitability for stony soils	●●○○	●●●○	●●●○	●●●○
Suitability for wet soils	●●○○	●○○○	●●●○	●●●●
Heavy soils	●●●○	●●○○	●●○○	●●●○
Medium soils	●●●●	●●●○	●●●○	●●●○
Light soils	●●●●	●●●●	●●●●	●●●○

Rollers	Double crosskill DCR	Double crosskill DCRL	Two crosskill rolles CR + CR	Spiral bar roller + Crosskill roller SB + CR
Crumbling	●●●●	●●○○	●●●●	●●●●
Stamping	●●●●	●●●●	●●●●	●●●●
Depth guiding	●●○○	●●○○	●●○○	●●●○
Resistance against clogging	●●●●	●●●○	●●●○	●●○○
Suitability for stony soils	●●○○	●●●●	●●○○	●●○○
Suitability for wet soils	●●●○	●●○○	●●○○	●○○○
Heavy soils	●●●●	●●●●	●●●○	●●○○
Medium soils	●●●●	●●●●	●●●●	●●●○
Light soils	●●●●	●●●●	●●●●	●●●●

Working tools

Kompaktomat noragėlis DURA+

Skirta AL / AP sekcijoms ir traktoriaus vėžių purentuvams CA.

Kompaktomat ploughshare DURA+

For the AL4 section.

Chisel CARBIDE

For the CF section.

Dvipusis kaltas

For the CF section.

Dvipusis kaltas

Traktoriaus vėžių purenimui CC.

Dirbimo sekcija

Section AP

Universali dirbimo sekcija su 27 cm pločio noragėliais dviem eilėmis. Noragėliai sumontuoti ant kojų su specialia geometrija, gerinančia augalinių liekanų pravažumą.

Section AL

Sekcija aprūpinta 27 cm pločio noragėliais dviem eilėmis. Ši sekcija tinka lengvoms dirvos sąlygoms be augalinių likučių. Standartiškai aprūpinta aukščio reguliuojama išlyginimo juosta už noragėlių.

Section AL4

Skirta „Kompaktomat LONG“ versijai.

Sekcija aprūpinta 15 cm pločio noragėliais keturiomis eilėmis. Tinka lengvoms, vidutinėms ir sunkioms dirvoms. Standartiškai aprūpinta aukščio reguliuojama lyginimo juosta už noragėlių.

Section CF

Sekcija su 3,5 cm siaurais kaltais keturiomis eilėmis. Ideali pavasariniam dirvos paruošimui arba sunkioms dirvoms, kur nepageidautina kelti šlapią dirvą į paviršių. Standartiškai aprūpinta lyginimo juosta už noragėlių.

Section	AL	AL-L¹	CF	CF-L¹	AP	AP-L¹	AL4¹
Number of rows of shares (pcs) / Row spacing (mm)	2 / 400	2 / 510	4 / 240	4 / 265	2 / 490	2 / 600	4 / 270
Leveller behind shares	●●●●	●●●●	●●●●	●●●●	●●●●	●●●●	●●●●
Full-area processing	●●●●	●●●●	●●○○	●●○○	●●●●	●●●●	●●●●
Suitability for light soils	●●●●	●●●●	●●●●	●●●●	●●●●	●●●●	●●●●
Suitability for medium soils	●●●○	●●●○	●●●○	●●●○	●●●●	●●●●	●●●●
Suitability for heavy soils	●●●○	●●●○	●●●○	●●●○	●●●●	●●●●	●●●●
Suitability for stony soils	●●●○	●●●○	●●●○	●●●○	●●●●	●●●●	●●●○
Suitability for wet soils	●●○○	●●○○	●●●●	●●●●	●●○○	●●○○	●●●○
Resistance against clogging	●●○○	●●○○	●●●○	●●●○	●●●○	●●●○	●●●○

¹ The section is designed for Kompaktomat LONG. It provides better throughput thanks to the extended spacing.

Trail cultivators

Traktoriaus vėžių purentuvai su noraginiu noragėliu CA

Automatiškai nusileidžiantys traktoriaus vėžių purentuvai su strėliniu noragėliu. Tinka lengvoms dirvoms, kur nėra pavojaus iškelti šlapius grumstus į paviršių.

Traktoriaus vėžių purentuvai su dvipusiu kaltu CC

Automatiškai veikiantys traktoriaus vėžių purentuvai su dvipusiu kaltu. Tinka sunkioms dirvoms, kur yra tikimybė iškelti šlapius grumstus į paviršių.

Levellers

Fixed leveller

Automatiškai nusileidžianti išlyginimo juosta su dantytu profiliu. Tvirta konstrukcija, skirta tiksliam didelių grumstų išlyginimui.
FL = fixed mechanical skid, FH = fixed hydraulic skid.

Flexi-board

Automatically unprotected leveller from separate flexible segments. Better clod crumbling.
L = Flexi-board, FB = hydraulic Flexi-board.

Lyginimo juostos peiliai veikia kaip vientisas vienetas, užtikrinantis geresnį stabilumą.

An additional leveller mounted behind the front roller FRL

Designed for Kompaktomat LONG.

Automatically released leveller with the option to set the bottom position. The leveller provides more intense mixing = finer soil structure.

Finish section

Smoothing harrow

Pasyvus dirvos išlyginimas už galinio volo. Lyginimo juostos agresyvumo reguliavimas naudojant sukamuosius fiksatorius. Gali būti pritaikoma prie visų tipų galinių volų.

„Crosskill“ galinis volas RFC

Active crumbling of remaining clods behind the rear roller.

Can be used for all types of rollers in Kompaktomat LONG.
Cannot be used after the rear double-row rollers in Kompaktomat PS.

Strypinis galinis volas RF

Active crumbling of remaining clods behind the rear roller.

Rear hitch TPH category 2 + 3

In the rear part of the half-carried Kompaktomat machines, the rear hitch for aggregation with other machine can be installed. Part of the rear suspension is a two-hose circuit for folding the additional equipment.

Hydraulic circuit for control of the sowing machine markers

Possibility of additionally mounting a single-hose or two-hose circuit for controlling the sowing machine markers to the Kompaktomat machine with the rear TPS.
