IMPACT PS Planter

1	Fertilizer placement zone. Fertilizer is placed about 2" next to the seed in depth of 2.25"–4.75". While the fertilizer is being placed, the seedbed is also partially compacted.
2	Crop residue spreading zone. The clearing stars efficiently remove crop residue from the surface for seeding.
3	Seedbed formation and seed placement zone. The double disc coulters efficiently create a compacted seedbed (V-groove) and place the seeds precisely at the required depth. Due to the high down-pressure, the seeding coulters can carry up to 70% of the machine weight. The compacted seedbed and V-groove provide excellent contact of the seed with soil and soil water.
4	Zone for pressing the seed into the V-groove and its stabilization in the precise place.
5	Side seed compression zone. The press roller presses the V-groove with the seed, due to which the seed is pressed into the soil on the side. A loose area for easy crop emergence stays above the seed.

Electronic seed monitoring system

Variable dosing of fertilizer and seed

Examples of possible configurations

Planter Impact 8 PS

High-strength refined materials in connection with eXtra STEEL line technology guarantee long service life of our machines even in the most extreme conditions.

---



Impact is designed for precision sowing of wide-row crops (corn, sunflower, canola) with the option of applying granular fertilizers.

High stability of the seed coulters and precise seed placement.

Precise fertilizer placement below the seed, even in difficult conditions

High performance and work quality

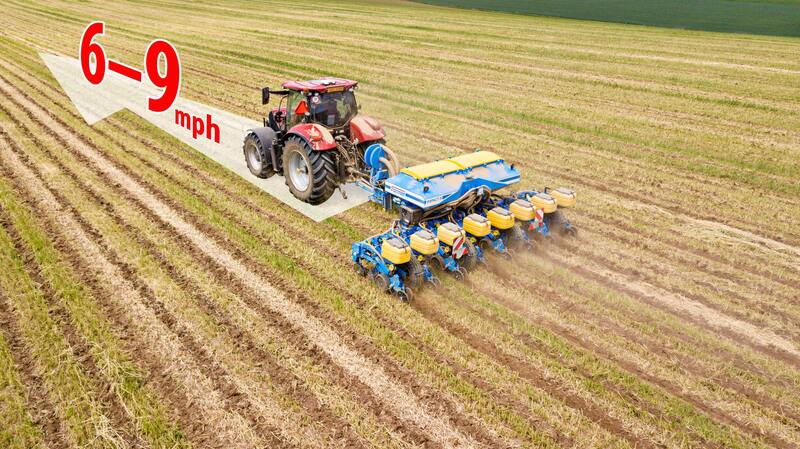

• High working speed of 6–9 mph, high seeding reliability.
• Highly advanced electronic control system for monitoring each seed individually.
• Electronic control of all machine functions during operation – ISOBUS system.
• Fertilization with disc units.
• Strip tillage and seedbed preparation.

Seeding into prepared soil after plowing (conventional technology)

Seeding into prepared soil after tillage

Strip-till technology – seeding into loosened strips

Rugged design

Support wheels

Driving on its own wheels does not put additional load on the tractor.

Double-disc seed units

Proven seed units with hydraulic downforce of up to 772 lb. per unit.

Spring-mounted parallelogram

Prevents any potential vibrations from being transferred to the seed unit.

Hydraulic block

Tractor connection with two hydraulic circuits.

Folding system

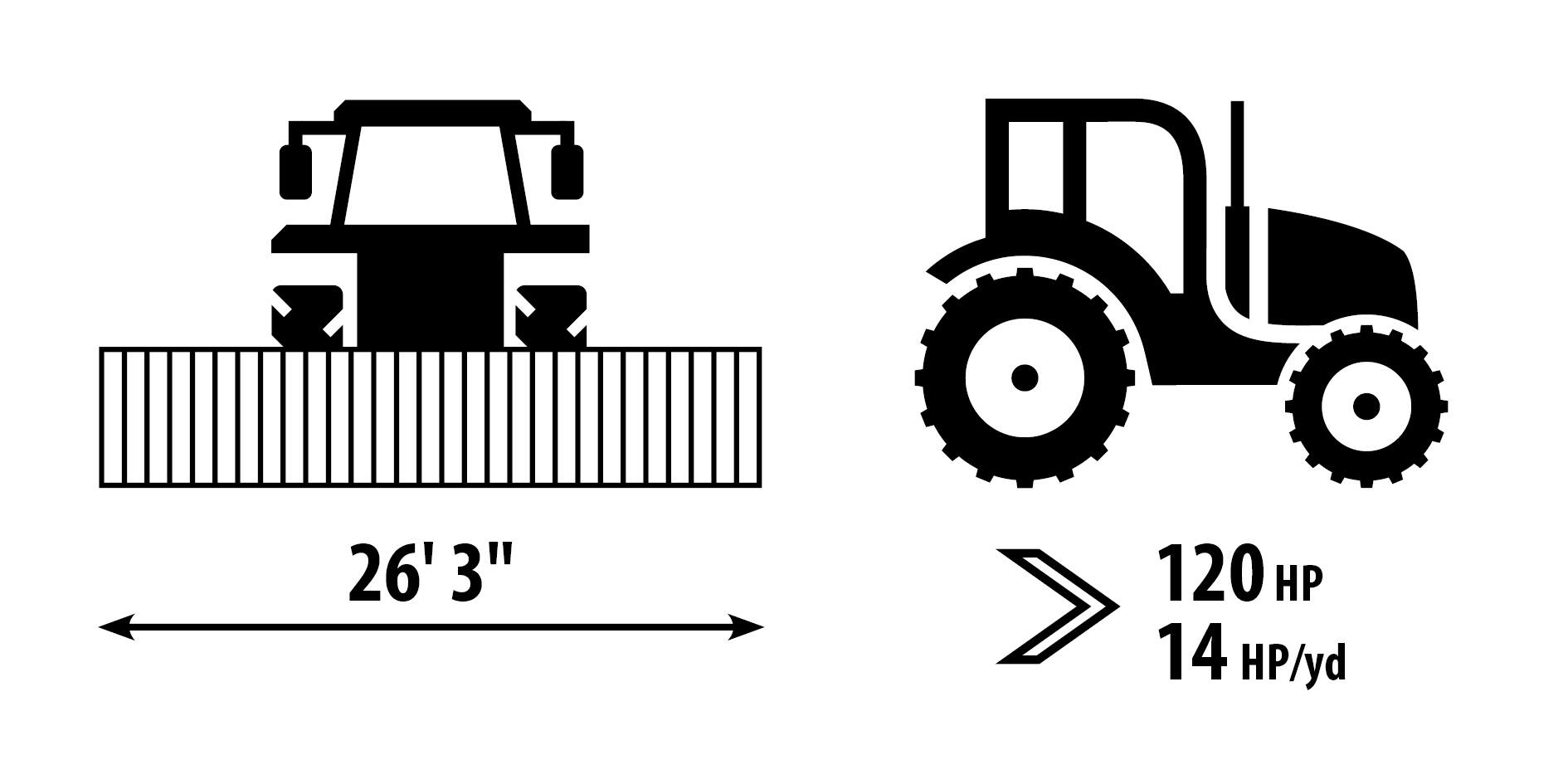

Folding from 6.6 yd to 3.3 yd. Complies with the road transport width.

Precision seeding of wide-row crops

Precision seeding of wide-row crops with a row spacing of 2' 4" / 2' 6".

Precise seed metering

Precise seed metering ensured by a proven metering unit.

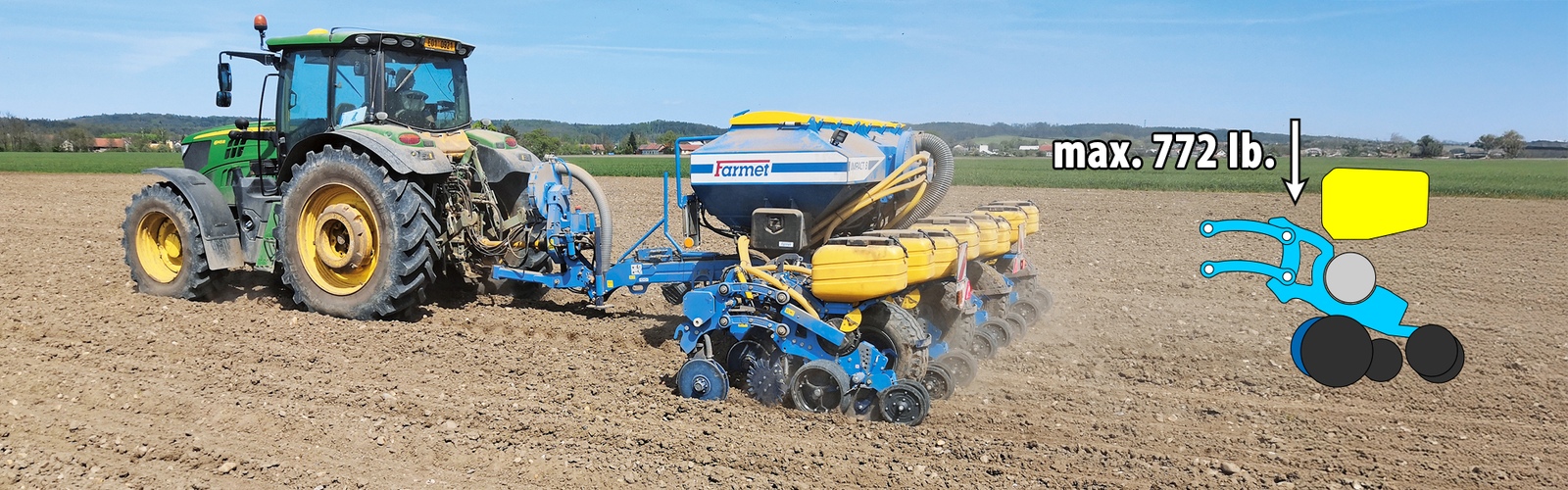

High coulter pressure: up to 772 lb.

Easy operation

Fertilizer placement depth adjustment

Adjustment using clips on the support wheels.

Seeding depth adjustment

Adjustment using a pin on the seed unit.

Folding platform

Easy access to the fertilizer hoppers during filling.

Hydraulically operated markers

Hydraulically operated markers with mechanical overload protection (shear bolt).

Quick-release fertilizer coulter system

Possibility of seeding with or without fertilizer.

Fertilizer pressurised metering system

Fertilizer application rate of 36–223 lb/ac, easily adjustable using interchangeable rollers. Electronically controlled metering.

Combined fertilizer and seed delivery system

Pressurised fertilizer metering system, vacuum seed metering system.
