Technology

1 Tractor track cultivating zone. Perfect cultivation of the tracks eliminates uneven emergence of plants after sowing.
2 Basic soil leveling zone. Precisely leveled soil surface allows uniform subsequent consolidation and cultivation the seedbed.
3 The soil pre-consolidation zone by the front roller. The front roller crumbles clods on the surface, but at the same time it consolidates the soil and restores the soil capillarity.
4 Seedbed zone. The soil is cultivated by the share section to the set depth. The depth should be the same as the future sowing depth. Arrow shares allow full-surface undercut and weed control.
5 Wave-leveling zone behind a share cultivating section.
6 Rear roller soil consolidation zone. The roller finely crumbles clods and ensures the final consolidation of the seedbed so that the soil capillarity is fully restored. Intensive soil moisture rise ensures good emergence of plants even in the dry season.
7 Final soil leveling zone. The rear rod ensures a perfect surface level with minimum clods for subsequent sowing.

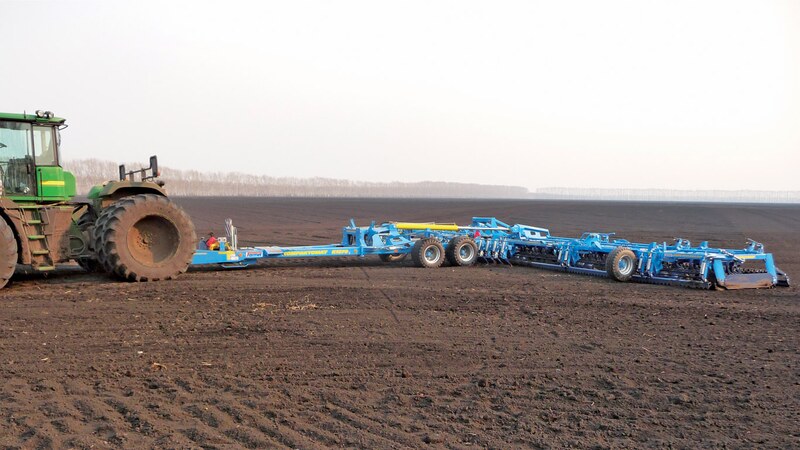

Seedbed combinators Kompaktomat are time-tested machines designed for seedbed preparation of the soil after plowing.

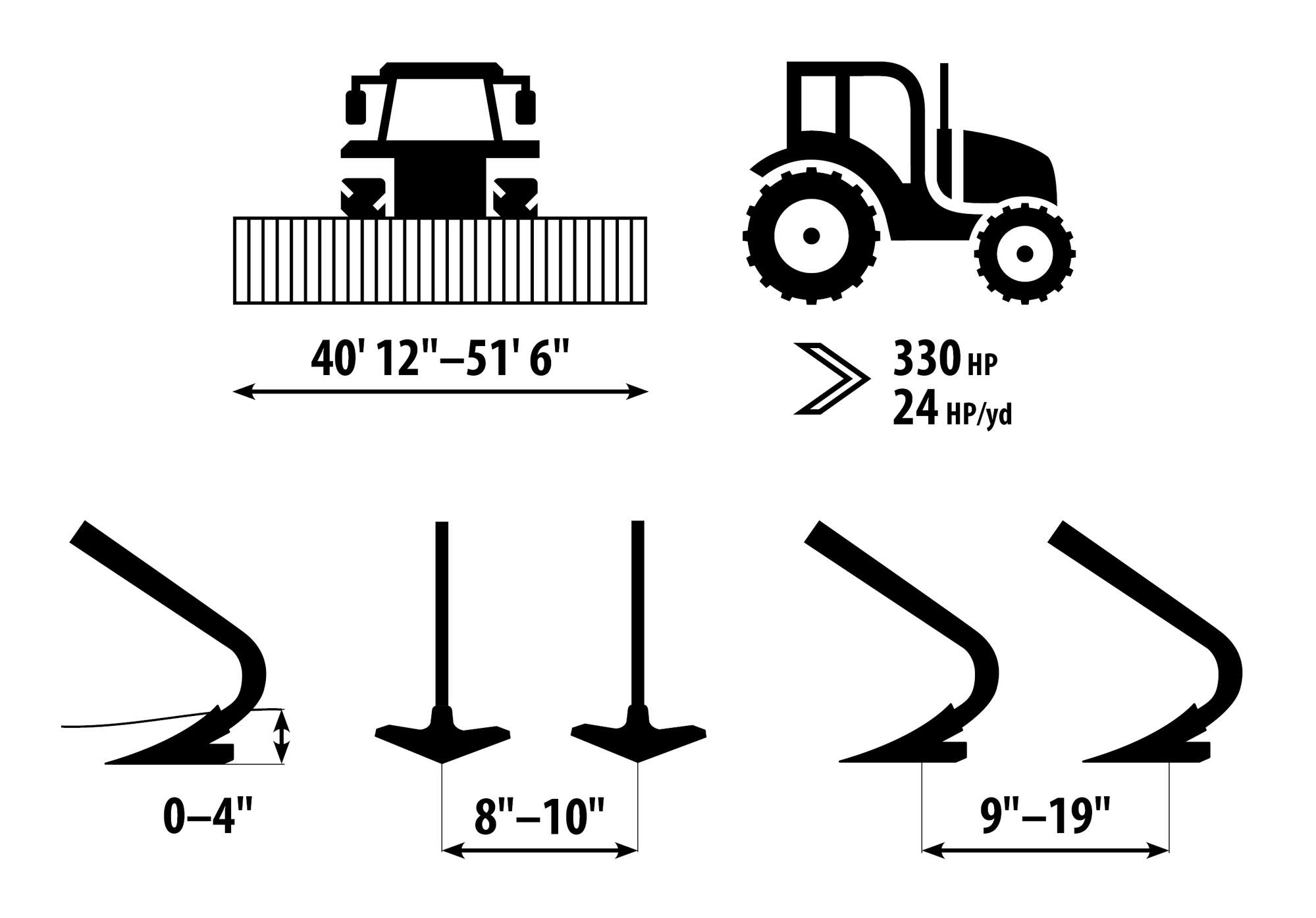

Working width up to 51' 6"

The wide span variant of the Kompaktomat machine is manufactured in the working width of 41' and 51' 6". It is designed for large agricultural holdings equipped with tractors with power requirement up to 600 HP.

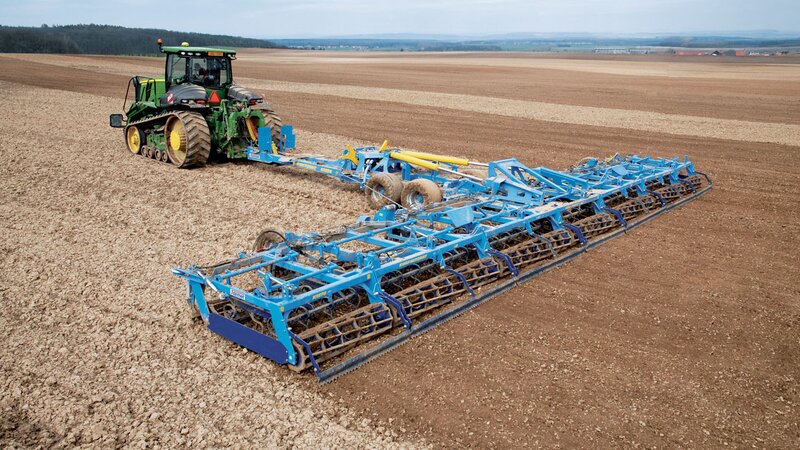

Excellent leveling of the surface, fine crumbling of clods

During one run the soil is perfectly tilled to the state required for sowing of crops. The advantage of the machine is excellent leveling of the surface, fine crumbling of clods and formation of well-consolidated seedbed. The land is perfectly leveled also due to leveling bars that can level and spread even high unevenness.

Seedbed combinators Kompaktomat are time-tested machines designed for seedbed preparation of the soil after plowing.

Working width up to 51' 6"

The wide span variant of the Kompaktomat machine is manufactured in the working width of 41' and 51' 6". It is designed for large agricultural holdings equipped with tractors with power requirement up to 600 HP.

Excellent leveling of the surface, fine crumbling of clods

During one run the soil is perfectly tilled to the state required for sowing of crops. The advantage of the machine is excellent leveling of the surface, fine crumbling of clods and formation of well-consolidated seedbed. The land is perfectly leveled also due to leveling bars that can level and spread even high unevenness.

A single run perfectly prepares the soil for sowing of crops

Due to high working speed, high working performance can be achieved even with lower working span of the Kompaktomat machine. A key consideration here is that due to its well-considered design and favorable weight Kompaktomat can prepare the soil after plowing during one run, whereas the soil is tilled not only on the surface, but in the whole horizon.

During the run Kompaktomat performs several working operations, during which the surface of the soil is leveled and consolidated to the depth. In the cultivated soil capillarity is restored and in the required depth the seedbed is formed. The clods are finely crumbled.

Easy operation

Optionally the combinator can be equipped with hydraulic adjustment of depth of the share section and hydraulic adjustment of the front leveler.

Minimum maintenance requirements

The control elements of the seedbed combinator are designed in order to achieve maximum safety of workers. Simple but quality construction with minimum maintenance requirements.

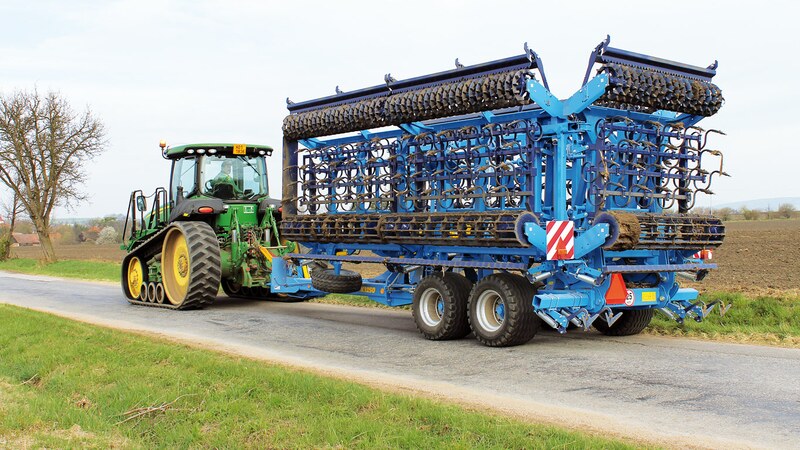

Road transport is not a problem

All variants are equipped with folding for transport so that the machine does not exceed the maximum transport width of 9' 10" and maximum transport height of 11' 6". Folding is hydraulic and fully automatic.

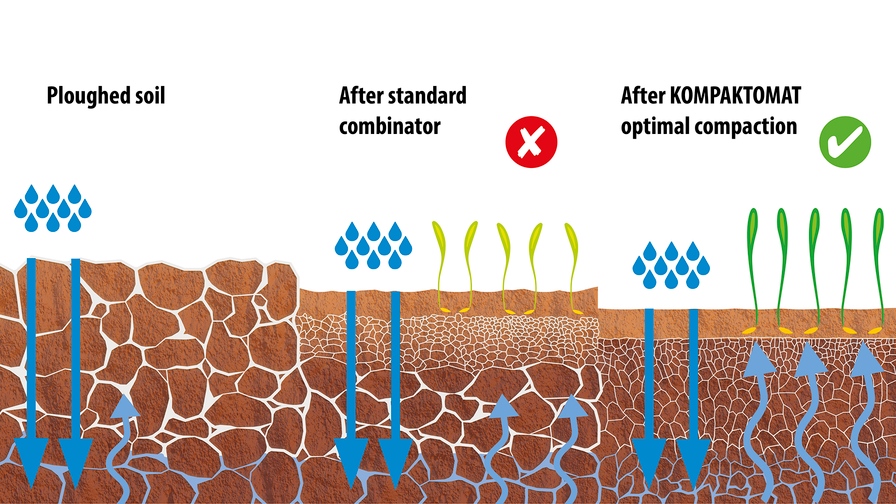

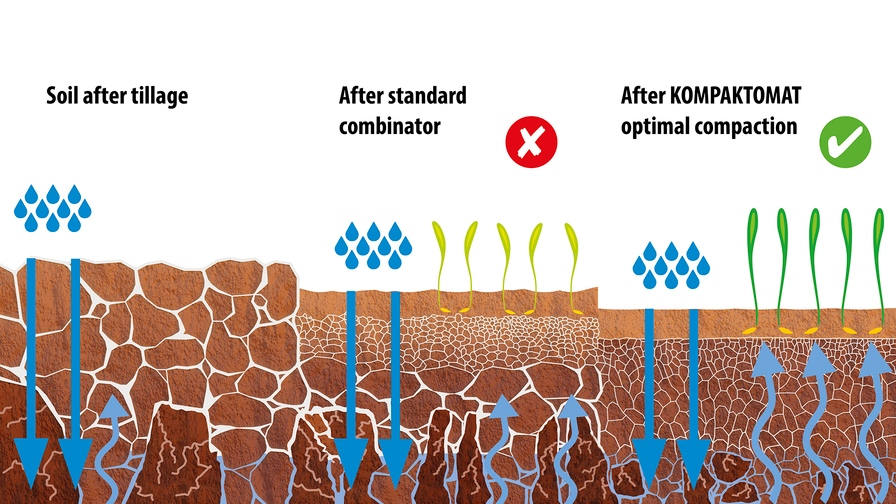

WRONG
During unequal cultivation of the soil there is a danger of wrong and unequal emergence of plants.
CORRECT
Uniform cultivation of the soil using seedbed combinator Kompaktomat determines equal emergence of plants.

Excellent consolidation → ensures water absorption and soil moisture rise

  • 7 operations performed during one run.
  • High working speed up to 9 mph.
  • Excellent re-consolidation and restoration of soil capillarity ensuring equal emergence.
  • Precise adjustment of the depth of the shares ensures precise preparation of the seedbed for each crop.
  • Automatic protection of shares ensures trouble-free operation.
  • Excellent leveling effect of field unevenness.

High performance and quality of work

High performance and quality of work

  • 7 operations performed during one run.
  • High working speed up to 9 mph.
  • Excellent re-consolidation and restoration of soil capillarity ensuring equal emergence.
  • Precise adjustment of the depth of the shares ensures precise preparation of the seedbed for each crop.
  • Automatic protection of shares ensures trouble-free operation.
  • Excellent leveling effect of field unevenness.

Technics

Seedbed combinator Kompaktomat MAX

  1. Tractor track cultivators for lifting of the consolidated soil.
  2. Front leveling bar for coarse leveling of the surface.
  3. Front roller for rough crumbling of clods.
  4. Share working section undercuts and cultivates the soil.
  5. Central leveling bar levels the cultivated soil and the soil is directed below the rear roller.
  6. The rear roller for fine soil cultivation.
  7. The rear leveling bar levels the surface.

Robust design

High-strength refined materials in connection with eXtra STEEL line technology guarantee long service life of our machines even in the most difficult conditions.

High-strength materials
High-strength refined materials used for key places to ensure long service life. Strongly dimensioned frame.

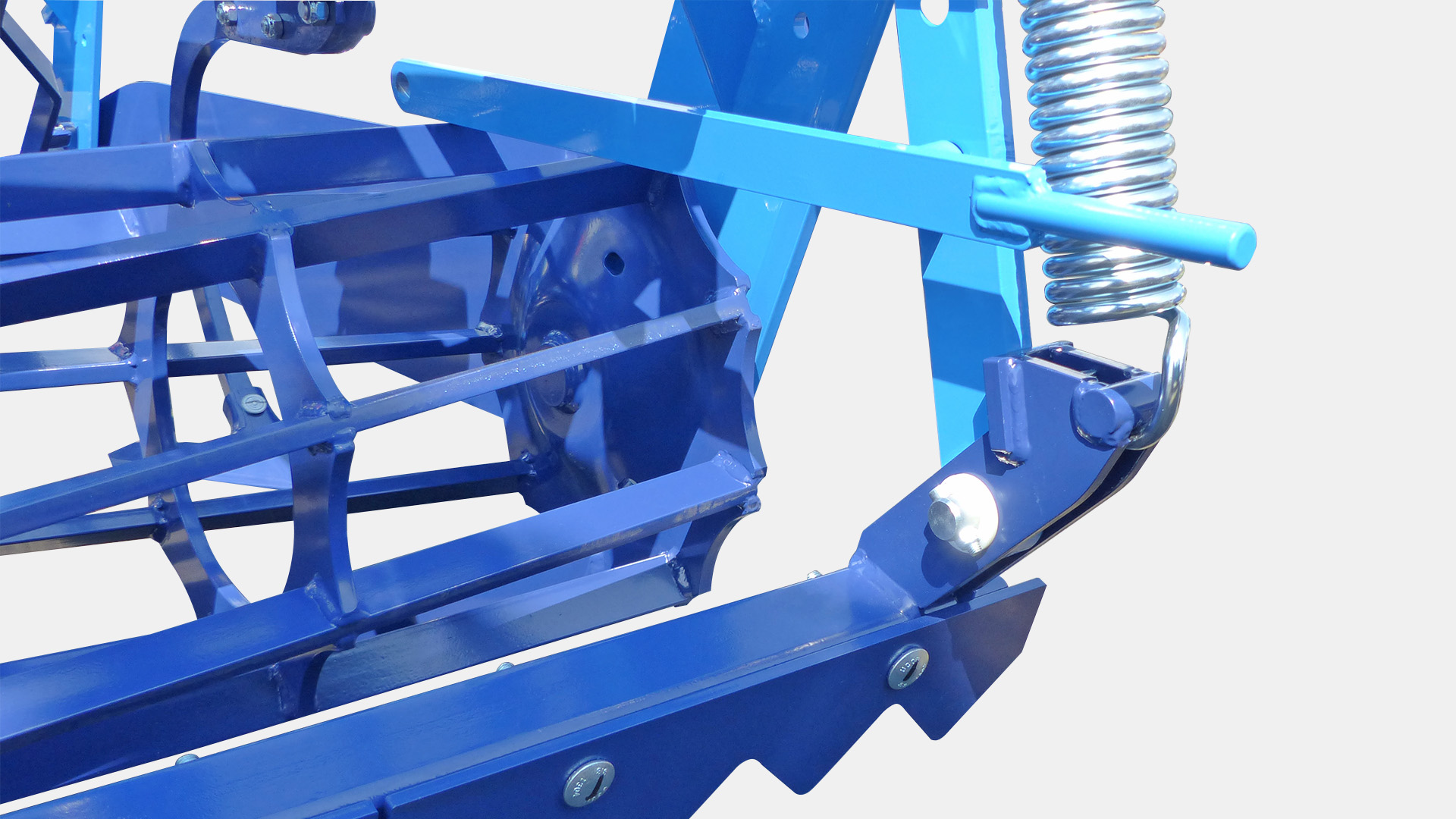

Robust leveling bar
The robust front leveling bar ensuring tear off upper layers of topsoil.
Protection of shares
Automatically protected shares.

Easy operation

Due to minimum of adjusting and lubricating points the operation and subsequent maintenance are very easy steps that anybody can perform.

  • Minimum of adjustment points.
  • Minimum of lubrication points.
Front leveling bar
Adjustment of the height of the front leveling bar.
Leveling bar behind shares
Adjustment of the height of leveling bar behind the arrow shares.
Working depth
Adjustment of working depth of the shares.

The advantage of this machine is its multi-purpose and adjustability bringing high variability of work.

Folding for transport enables:

  • Folding to compact transport dimensions
  • This ensures problem-free transportability and manipulation on common roads

Smartly designed machine construction

Smartly designed machine construction

The advantage of this machine is its multi-purpose and adjustability bringing high variability of work.

Folding for transport enables:

  • Folding to compact transport dimensions
  • This ensures problem-free transportability and manipulation on common roads

Option of several types of share sections

Differences between individual sections are described in more detail in the tab Accessory

Section AL
Section CF
Section AP

Parameters

Technical parameters Units Kompaktomat
K 1250 MAX
Kompaktomat
K 1570 MAX
Working width ft. 41' 51' 6"
Transport width ft. 9' 10" 9' 10"
Transport height 2 ft. 11' 6" 11' 6"
Total machine length 2 ft. 37' 1" 37' 1"
Working depth in. 0–4" 0–4"
Number of shares – arrow AL
Number of shares – chisel CF
Number of shares – arrow AP
pcs 53
119
53
67
149
67
Working performance ac/h 30–37 32–49
Towing vehicle 1 kW
HP
243
330
316
430
Working speed mph 6–9 6–9
Maximum slope availability ° 6 6
Dimension of tyre - transport   19.0/45-17 19.0/45-17
Brake type / distribution 3   air / two-line air / two-line
Required pressure 3 kPa 8,5 8,5
Dimensions of brakes   300/60 300/60
Number of hydraulic circuits / pressure bar  4–6 / 200 5–7 / 200
Number of quick-coupling devices / type    8–12 / ISO 12.5 10–14 / ISO 12.5

Tractor hitch requirement
Height of lower hitch

in. 24"–26" 24"–26"
Tractor hitch requirement   lower hitch K80; eye Ø 2", 2.75"
Axle load lb. 9,590 / 9,590 11,023 / 11,023
Machine weight 2 lb. 23,148 27,557

Seedbed combinator Kompaktomat MAX LONG

Technical parameters Units Kompaktomat
K 1250 MAX LONG
Kompaktomat
K 1570 MAX LONG
Working width ft. 41' 51' 6"
Transport width ft. 9' 10" 9' 10"
Transport height 2 ft. 12' 4" 12' 4"
Total machine length 2 ft. 37' 10" 37' 10"
Working depth in. 0–4" 0–4"
Number of shares – arrow AL
Number of shares – chisel CF
Number of shares – arrow AP
Number of shares – arrow AL4
pcs 53
119
53
95
67
149
67
118
Working performance ac/h 30–37 32–49
Towing vehicle 1 kW
HP
243
330
316
430
Working speed mph 6–9 6–9
Maximum slope availability ° 6 6
Dimension of tyre - transport   19.0/45-17 19.0/45-17
Brake type / distribution 3   air / two-line air / two-line
Required pressure 3 kPa 8,5 8,5
Dimensions of brakes   300/60 300/60
Number of hydraulic circuits / pressure bar  4–6 / 200 5–7 / 200
Number of quick-coupling devices / type    8–12 / ISO 12.5 10–14 / ISO 12.5

Tractor hitch requirement
Height of lower hitch

in. 24"–26" 24"–26"
Tractor hitch requirement   lower hitch K80; eye Ø 2", 2.75"
Axle load lb. 10,141 / 10,141 11,684 / 11,684
Machine weight 2 lb. 24,691 29,762


1 Recommended towing vehicle, the actual pulling force may significantly change according to the tilling depth, soil conditions, inclination of land, wear of working units and their adjustment.
2 Machine variant weight: front bar roller, section AP, rear crosskill roller with leveler.
3 Alternative of the brake type: hydraulic, pressure 130 ± 5 bar (designed for the French market).
Transport / brake system: Follow national provisions valid for transport of machines on public roads. Verify legal provisions valid in the country, regulations on maximum allowable total weights and axle loads and also on necessary possible use of the brake system. If you have any questions, please contact our sales representative.

Modulability

Kompaktomat STANDARD - suitable for more intensive soil processing after plowing with a minimum of crop residues

Kompaktomat LONG - suitable for processing soil after loosening with a large amount of crushed crop residues on the surface

Optional

Accessories

Rollers

Ring roller RR
Diameter 16"
Weight 277 lbs./yd



May be applied as the front and rear roller.

Quality work in all types of soil, good depth guiding, suitable even for more humid soils.

Crosskill roller CR
Diameter 16"
Weight 321 lbs./yd



May be applied as the rear roller only.

Excellent work in light, medium and heavy soils, quality compaction and clod crumbling.

Double crosskill roller DCR
Diameter 16"
Weight 446 lbs./yd
Roller row spacing 11"



May be applied as the rear roller only.

Excellent work in light, medium and heavy soils, quality compaction and clod crumbling. When compared to crosskill roller, more intense clod crumbling.

Strip spiral roller SB
Diameter 16"
Weight 169 lbs./yd



May be applied as the front and rear roller.

Quality clod crumbling. Suitable for wet conditions.

Strip roller BR
Diameter 16"
Weight 152 lbs./yd



May be applied as the front and rear roller.

Quality clod crumbling. Not very suitable for wet conditions.

Proper selection of the type of the roller contributing significantly to the final quality of the tillage is very important. The selection of the type of the roller depends on the soil type and on the manner of use of the machine.

Rollers Crosskill
CR
Double crosskill
DCR
Bar
BR
Spiral bar
SB
Ring
RR
Crumbling  ●●●● ●●●● ●●●○ ●●●○ ●●○○
Stamping  ●●●● ●●●● ●●●○ ●●●○ ●●●●
Depth guiding  ●○○○ ●●○○ ●●●○ ●●●○ ●●●●
Resistance against clogging  ●●●○ ●●●● ●●○○ ●●●○ ●●●●
Suitability for stony soils  ●●○○ ●●○○ ●●●○ ●●●○ ●●●○
Suitability for wet soils  ●●○○ ●●●○ ●○○○ ●●●○ ●●●●
Heavy soils  ●●●○ ●●●● ●●○○ ●●○○ ●●●○
Medium soils  ●●●● ●●●● ●●●○ ●●●○ ●●●○
Light soils  ●●●● ●●●● ●●●● ●●●● ●●●○

Working tools

Kompaktomat arrow share DURA+

For AL / AP sections and ruts looseners CA.

Chisel CARBIDE

For the CF section.

Double-sided chisel

For the CF section.

Double-sided chisel

For ruts looseners CC.


Cultivating section

Section AP

Universal cultivating section with 10.5" arrow shares in two rows. The shares are mounted on tines with a geometry that improves the passage of residues. Therefore, this share section is suitable for lands with a higher incidence of crushed residues and for heavy soils. Standardly equipped with a height-adjustable leveling bar behind the shares.

Section AL

Section is equipped with 10,5" arrow shares in two rows. This section is suitable for light soil conditions without residues. Standardly equipped with a height-adjustable leveling bar behind the shares.

Section CF

Section is equipped with narrow chisels of 1.5" in four rows. Ideal for spring soil preparation or heavy soils where lifting wet soil to the surface is undesirable. Standardly equipped with a leveling bar behind the shares.

Section AL AL-L 1 CF CF-L 1 AP AP-L 1 AL4 1

Number of rows of shares (pcs) /
Row spacing (mm)

2 / 400  2 / 510 4 / 240  4 / 265 2 / 490  2 / 600 4 / 270
Leveler behind shares ●●●● ●●●● ●●●● ●●●● ●●●● ●●●● ●●●●
Full-area tillage ●●●● ●●●● ●●○○ ●●○○ ●●●● ●●●● ●●●●
Suitability for light soils ●●●● ●●●● ●●●● ●●●● ●●●● ●●●● ●●●●
Suitability for medium soils ●●●○ ●●●○ ●●●○ ●●●○ ●●●● ●●●● ●●●●
Suitability for heavy soils ●●●○ ●●●○ ●●●○ ●●●○ ●●●● ●●●● ●●●●
Suitability for stony soils ●●●○ ●●●○ ●●●○ ●●●○ ●●●● ●●●● ●●●○
Suitability for wet soils ●●○○ ●●○○ ●●●● ●●●● ●●○○ ●●○○ ●●●○
Resistance against clogging ●●○○ ●●○○ ●●●○ ●●●○ ●●●○ ●●●○ ●●●○

1 The section is designed for Kompaktomat LONG. It provides better throughput due to the extended spacing.


Plow stop

Ruts cultivators with arrow share CA

Automatically released tractor ruts cultivators with a arrow share. Suitable for light soils where there is no risk of pulling wet clods to the surface.

Ruts cultivators with double-sided chisel CC

Automatically released tractor ruts cultivators with a double-sided chisel. Suitable for heavy soils where there is a risk of pulling wet clods to the surface.


Levelers

Fixed leveler

Automatically released leveling bar with a toothed profile. Rugged construction for accuracy leveling of large furrows.
FL = fixed mechanical skid, FH = fixed hydraulic skid.

The leveling bar segments operate as a single unit, providing better stability.


Finish section

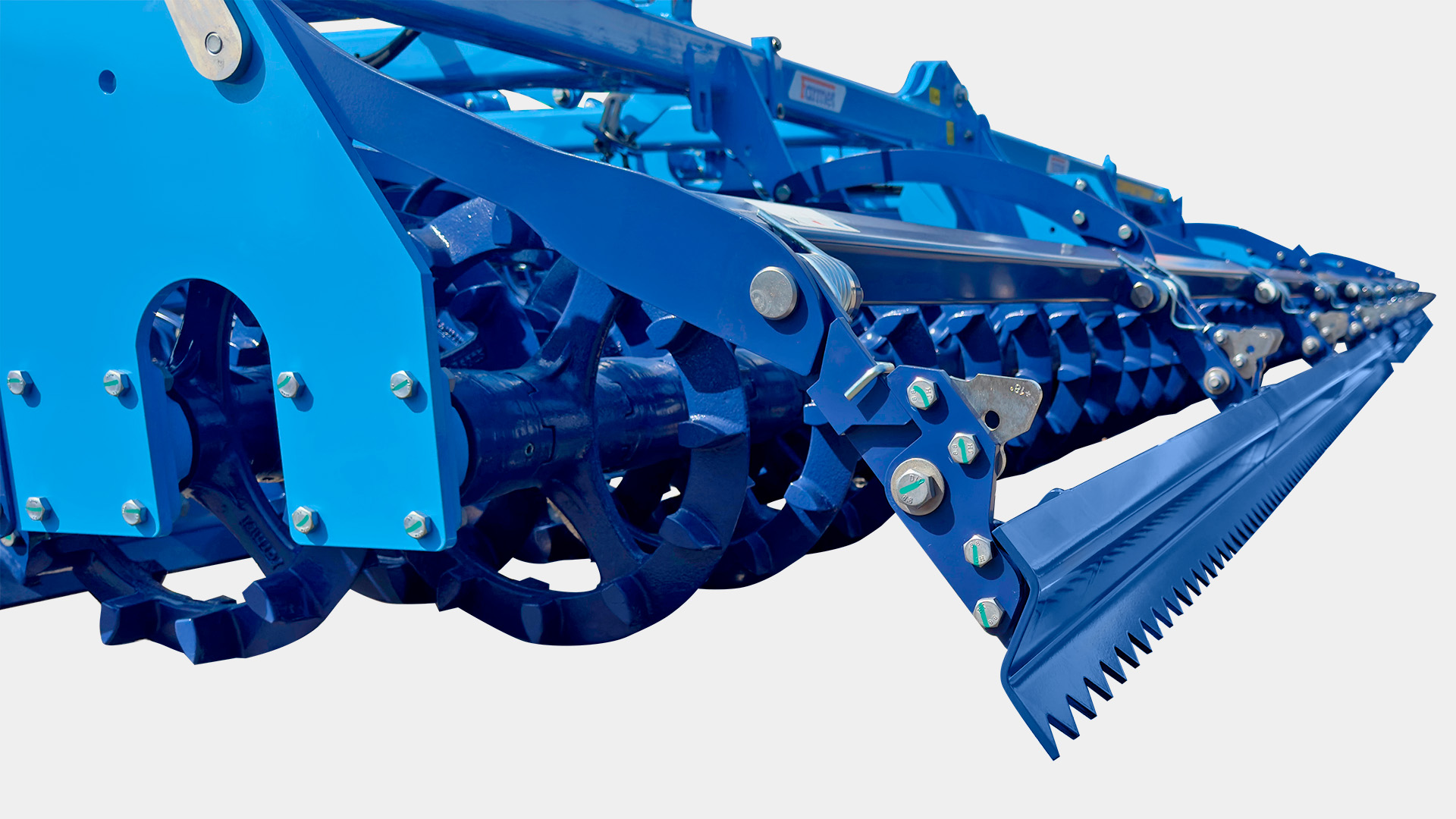

Rear leveler

Passive soil leveling behind the rear roller. Adjustment of leveling bar aggressiveness using rotary stops. Can be applied behind all types of rear rollers.

Bar finishing roller RF

Active crumbling of remaining clods behind the rear roller.

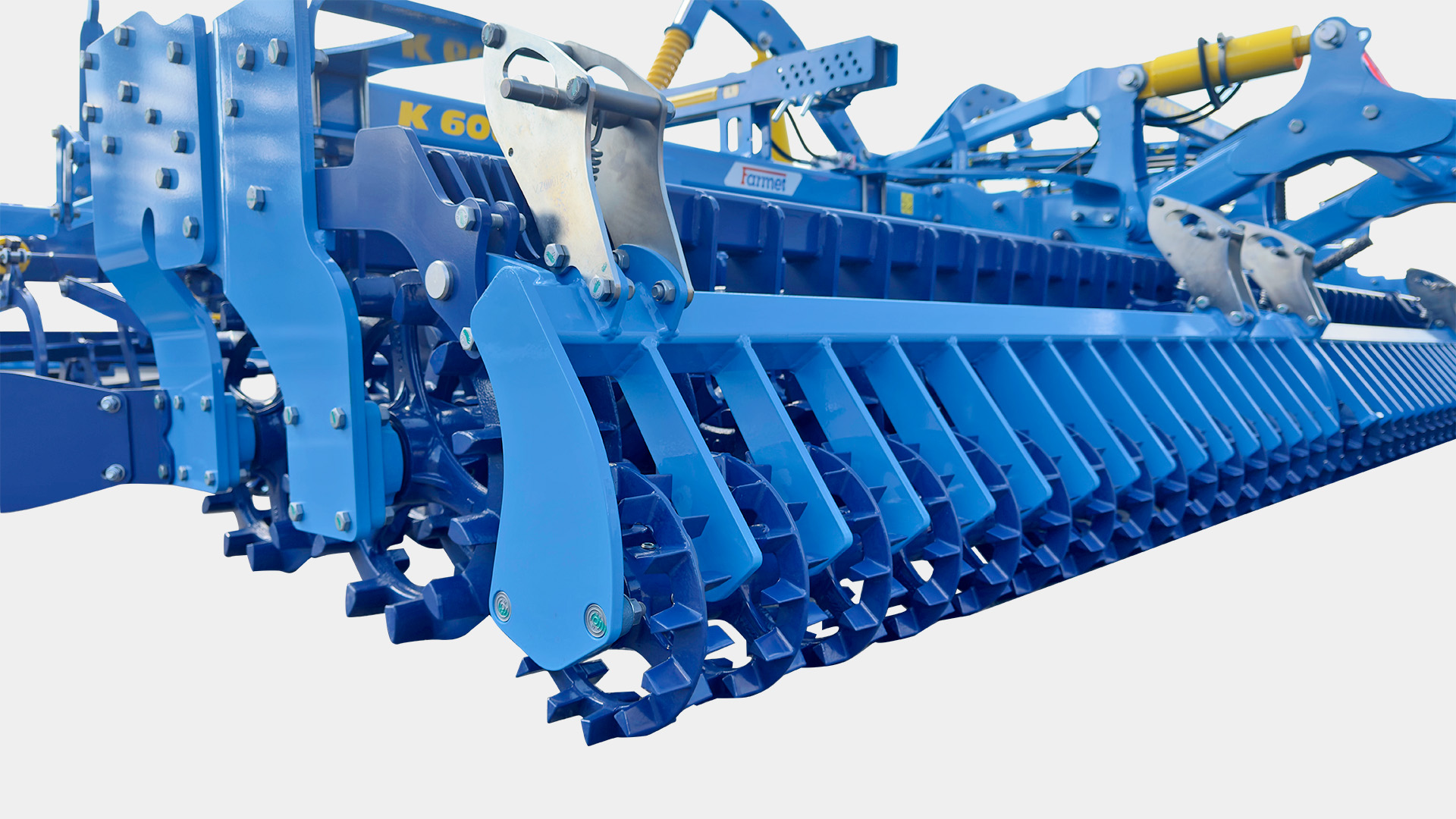

Crosskill finishing roller RFC

Active crumbling of remaining clods behind the rear roller.


Variants of hitches

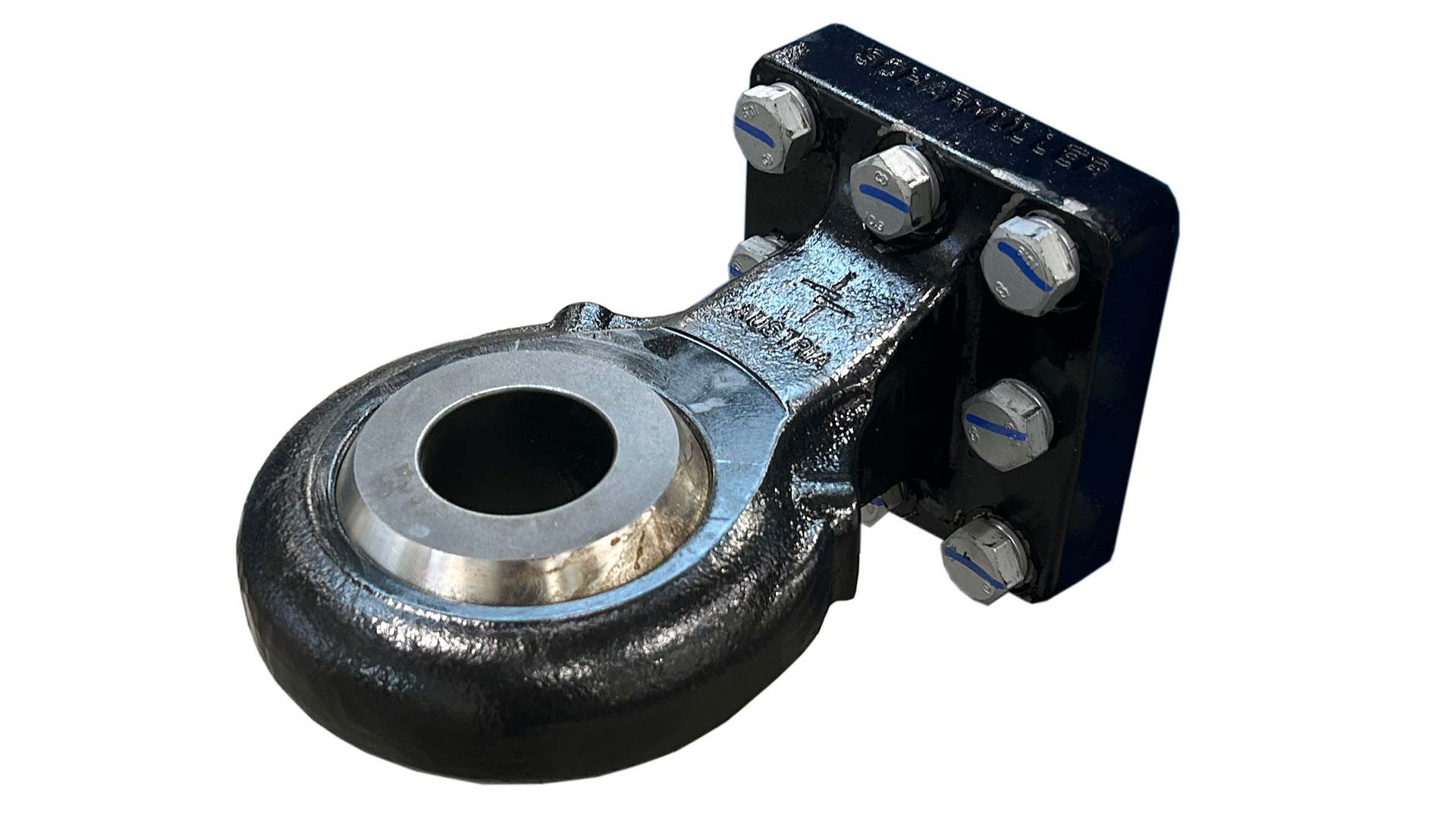

Loop for the lower hitch

Loop for the lower hitch Ø 2" or Ø 2.75". Maximum vertical load of the towing eye 6,614 lb.

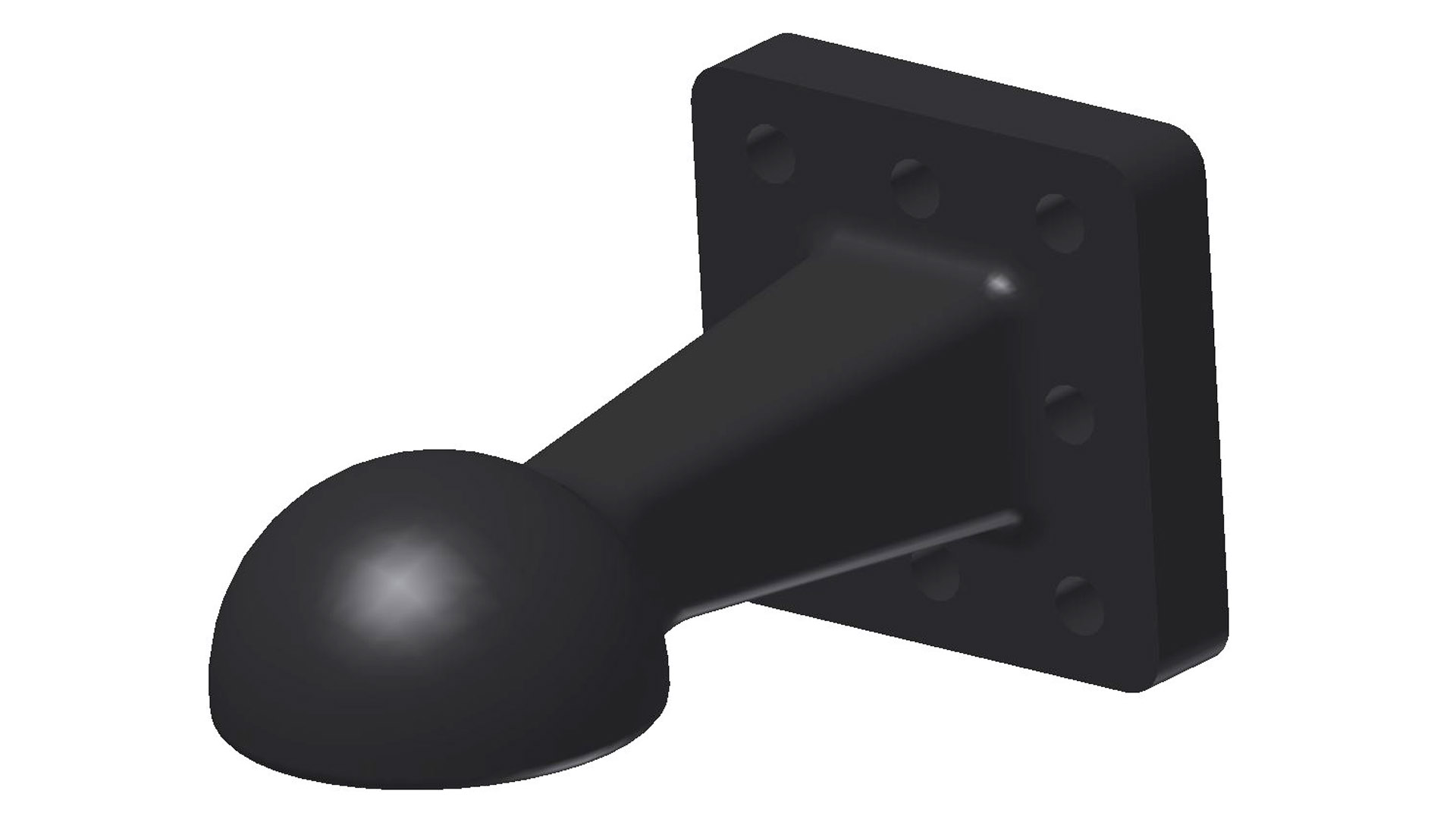

Hitch K80 Ø 3.25"

Loop for the lower hitch K80. Maximum vertical load of the towing eye 6,614 lb.


Optional equipment

Electro-Hydraulic Circuit distributor

Divides 1 tractor circuit into 3 circuits.

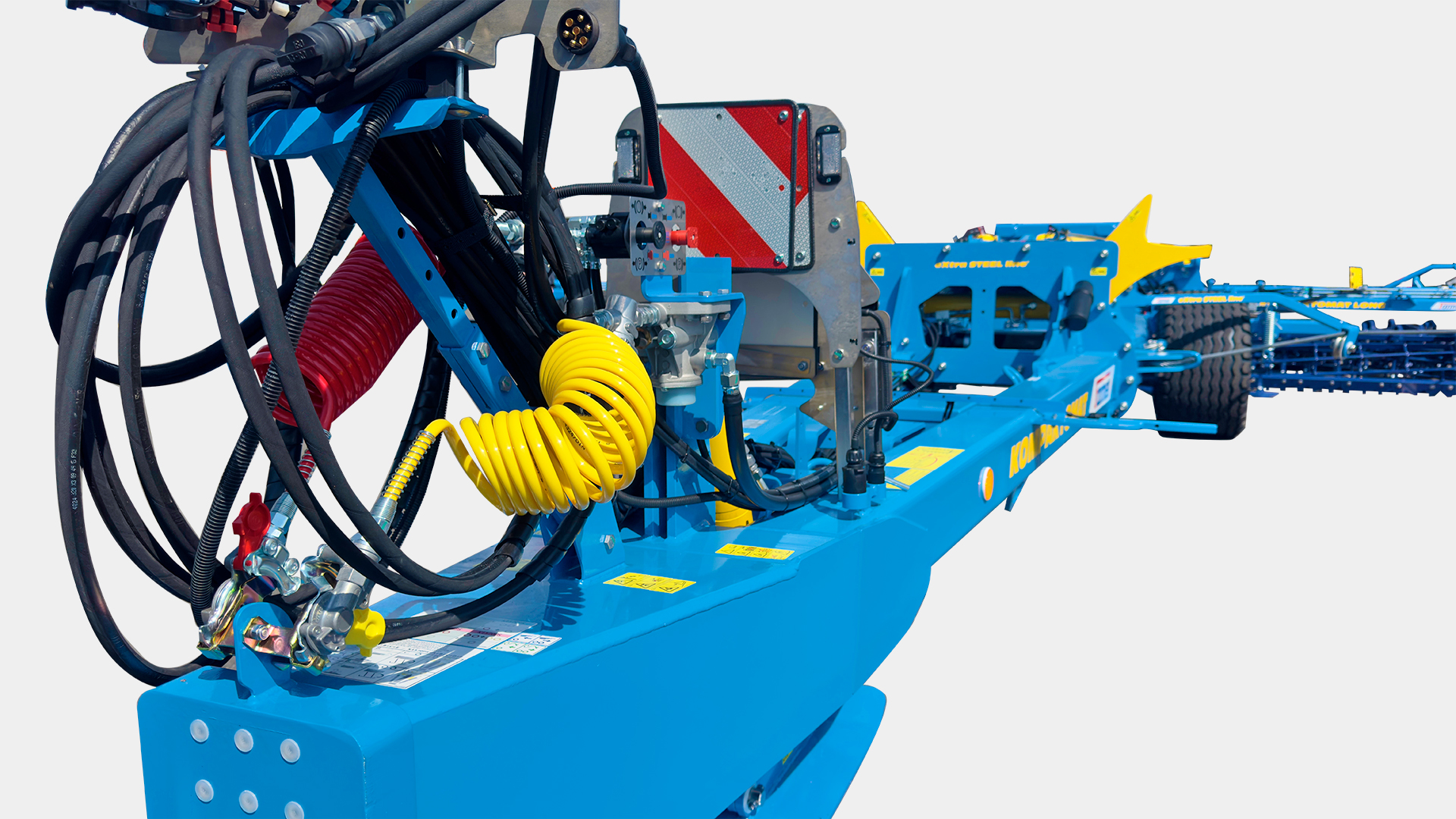

Two-line single-circuit air brakes
