Tillage up to 13.75" with excellent crop residues incorporation

Tine cultivator Duolent



Technology

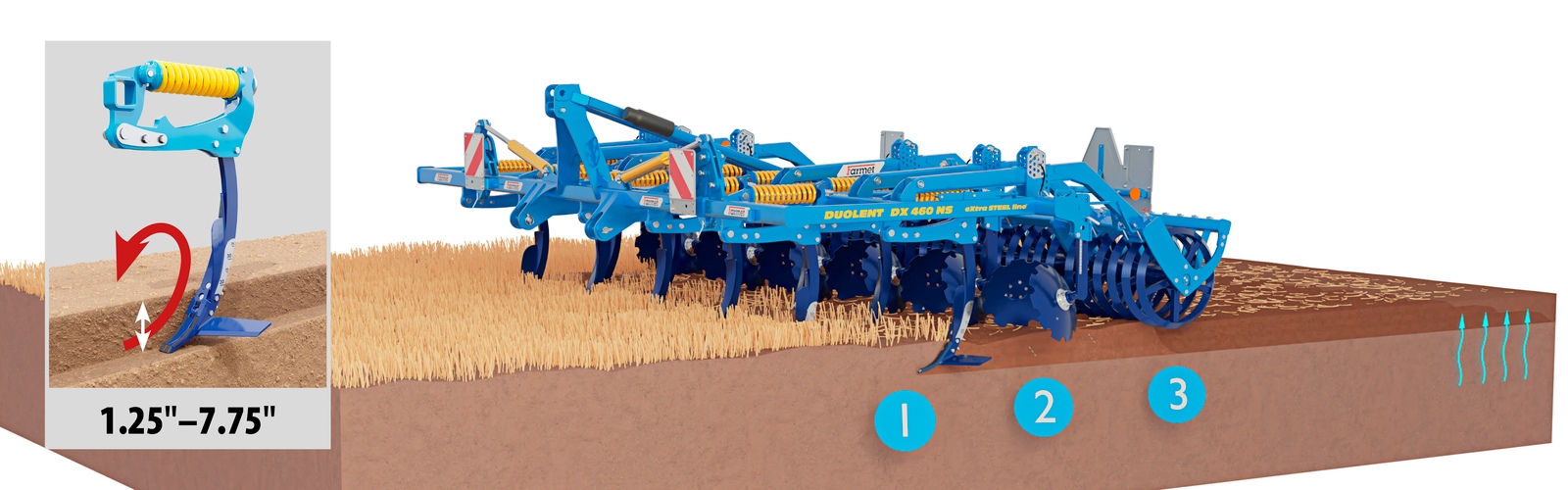

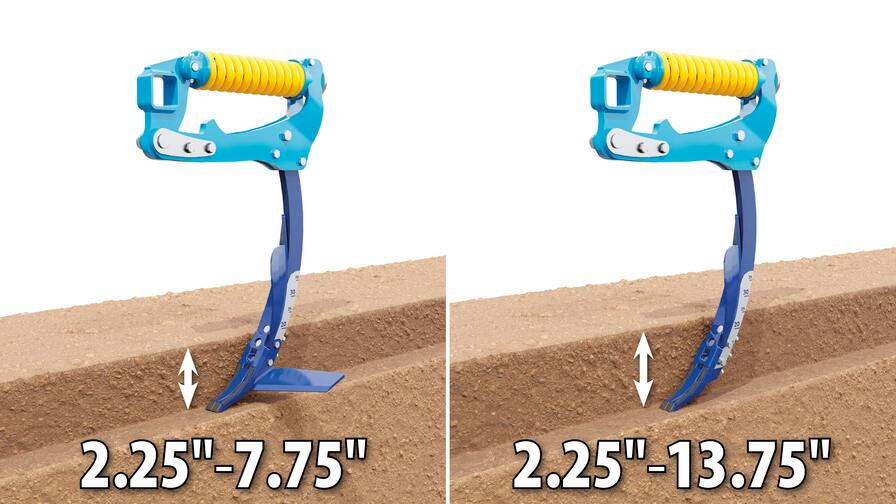

Shallow stubble cultivation with wings up to 2.25" to 7.75" depth

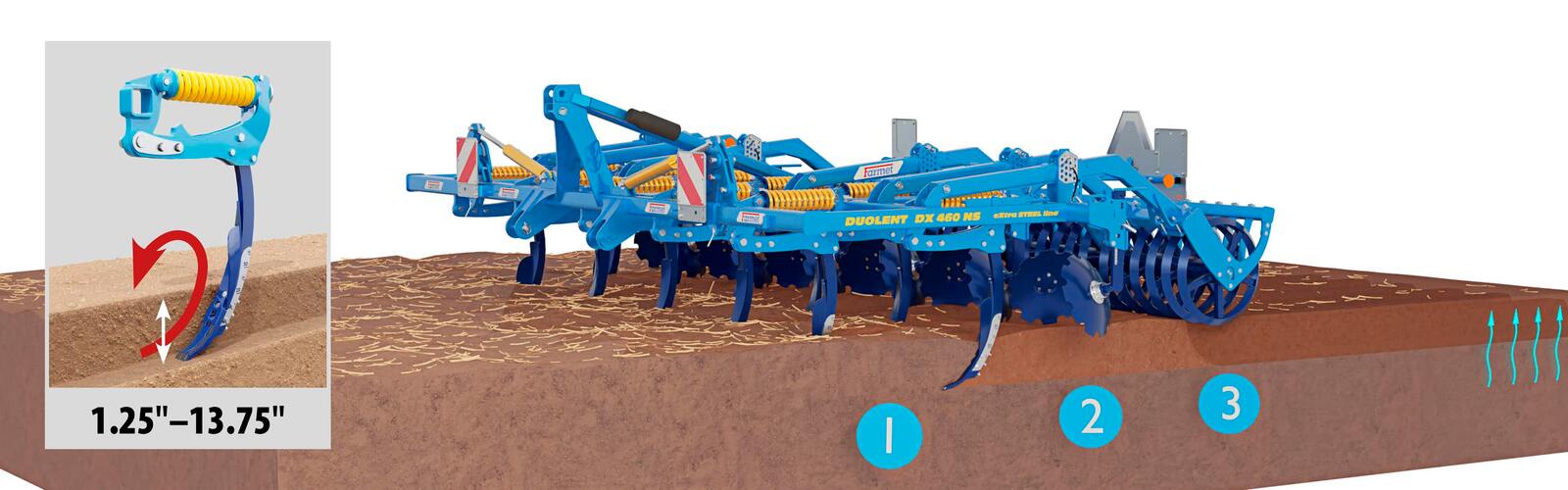

Deep tillage without wings up to 13.75" depth

Tine cultivator Duolent

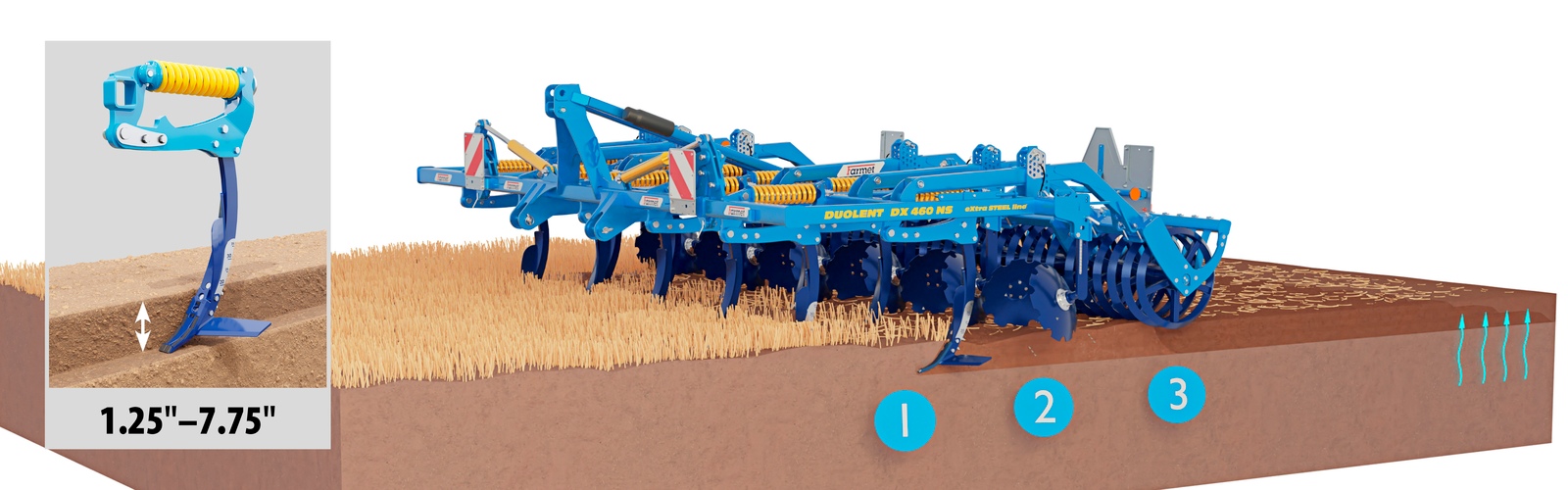

1 Tillage zone. The tillage depth has a wide range of 2.25"–13.75". For tillage from 2.25" to 7.75" can be used wings to full-surface undercut. The shanks arranged in two rows with optimized geometry ensure excellent tillage and intensive soil mixing with crop residues.
2 Furrow-leveling zone. Leveling disks also increase the effect of incorporating crop residues.
3 Clods crushing and soil compaction zone. Optimum soil re-compaction ensures good water infiltration and soil water capillarity to the surface.

Variants of fertilizer placement

The fertilizer is placed under the surface, put in lower part of processed soil profile
One part of the fertilizer is place under the surface in lower part of processed soil profile and the second part just under the surface + areal to the sides
The fertilizer is placed just under the surface + areal to the sides

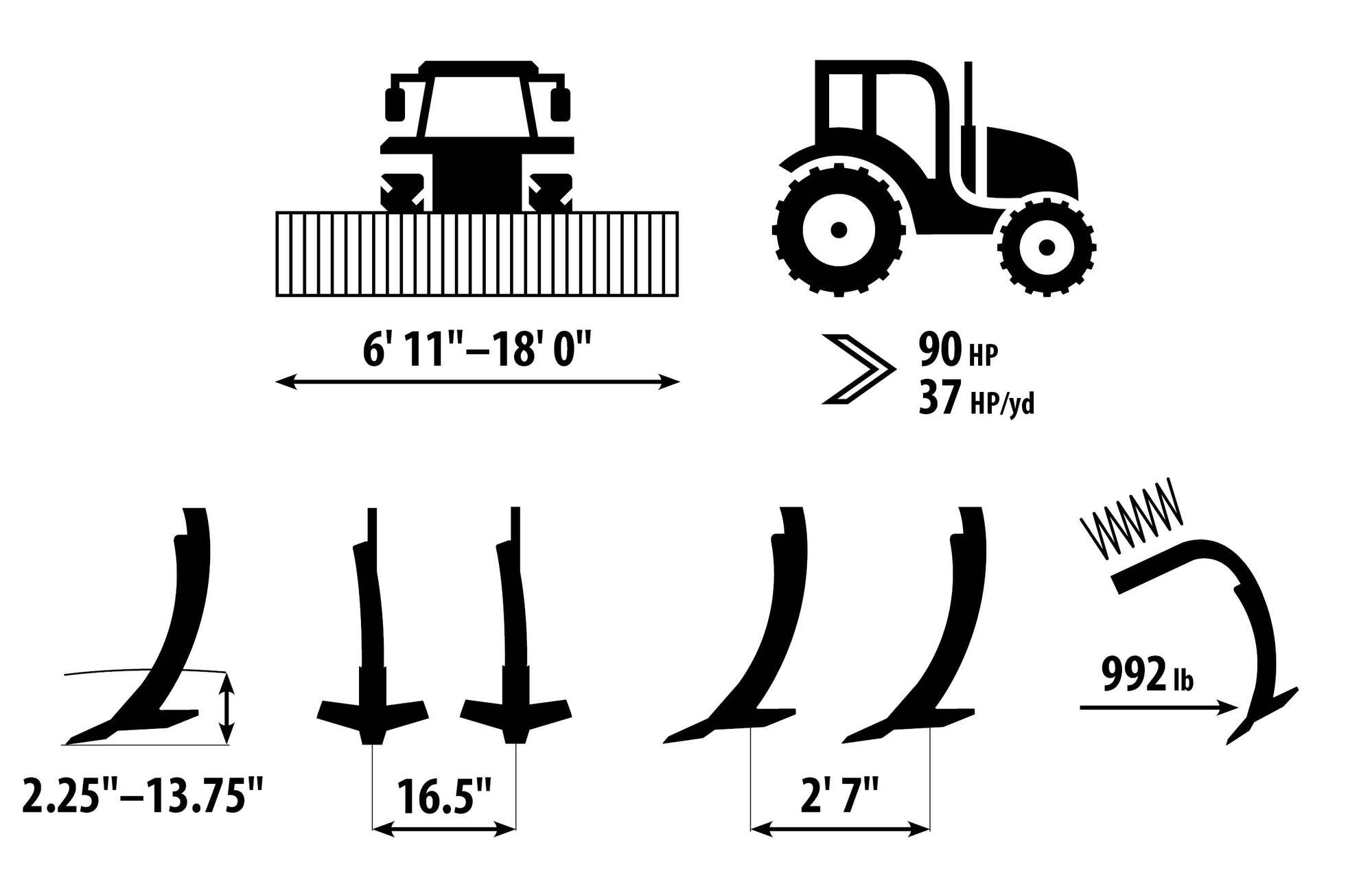

  • High working speed up to 8 mph.
  • Low pulling requirement and excellent soil mixing due to shank optimized design.
  • Excellent flow through of crop residues due to 16.5" shank spacing.
  • The spiral shape of shanks upper part for controlled soil flow.
  • Maintenance-free working units fitted with carbide plates for minimal wear.

High performance and quality of work

High performance and quality of work

  • High working speed up to 8 mph.
  • Low pulling requirement and excellent soil mixing due to shank optimized design.
  • Excellent flow through of crop residues due to 16.5" shank spacing.
  • The spiral shape of shanks upper part for controlled soil flow.
  • Maintenance-free working units fitted with carbide plates for minimal wear.

Two types of soil cultivation

Deep zone loosening with partial mixing
Loosening chisel with optimized geometry in two rows ensure deep zone loosening to increase water infiltration.
Breaking of the plow pan without soil mixing

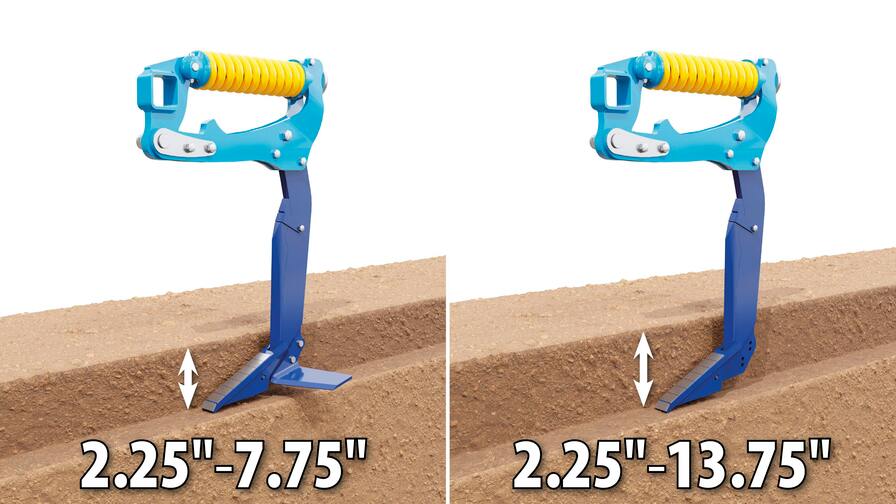

The non-mixing chisel is ideal for breaking compacted layers and restoring soil infiltration on waterlogged fields without active mixing of soil layers.

Technics

Tine cultivator Duolent N/NS

  1. Large shanks arranged in 2 rows ensure quality tillage and incorporation of crop residues.
  2. Leveling disks for perfect leveling surface.
  3. The rear roller provides optimal soil re-compaction, crushing clods and leveling surface.

Tine cultivator Duolent N/NS

  1. Large shanks arranged in 2 rows ensure quality tillage and incorporation of crop residues.
  2. Leveling disks for perfect leveling surface.
  3. The rear roller provides optimal soil re-compaction, crushing clods and leveling surface.

Rugged design

High-strength refined materials in connection with eXtra STEEL line technology guarantee long service life of our machines even in the most extreme conditions.

High-strength materials
High-strength refined materials used for crucial nodes to ensure long service life. Strongly dimensioned frame of high-strength steel.
Extreme durability of working parts
To further increase service life, the top part of the share can be supplemented with additional plates made of sintered carbides or hardfacing.

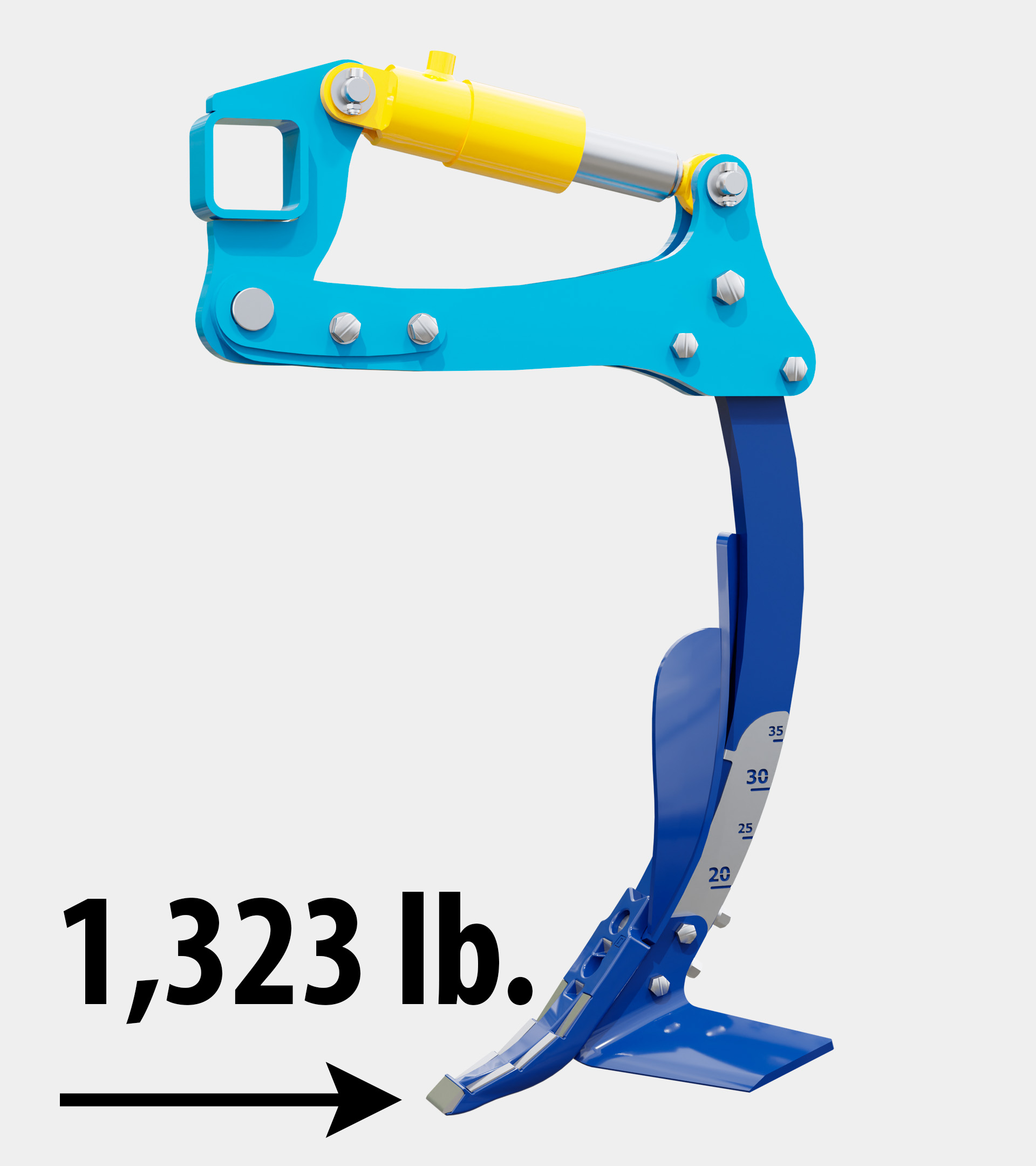

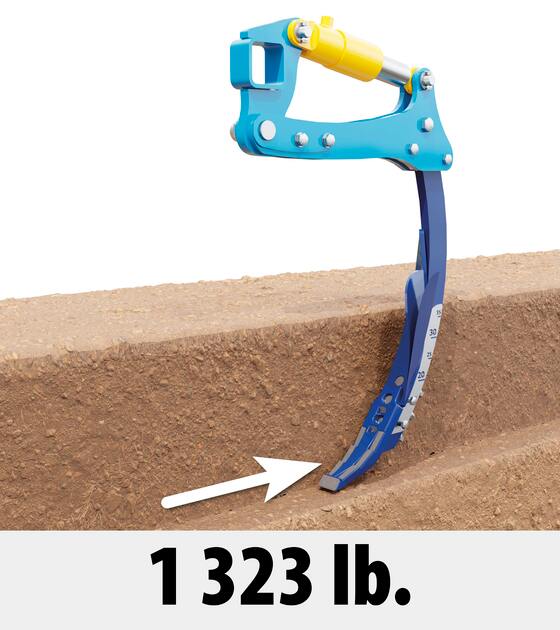

Very high release force

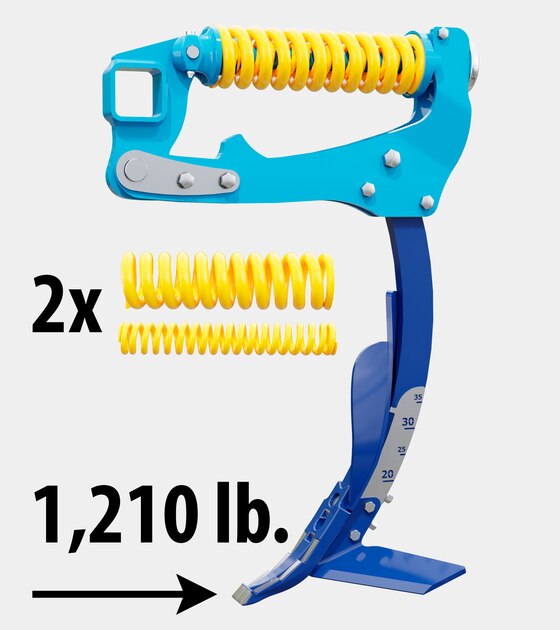

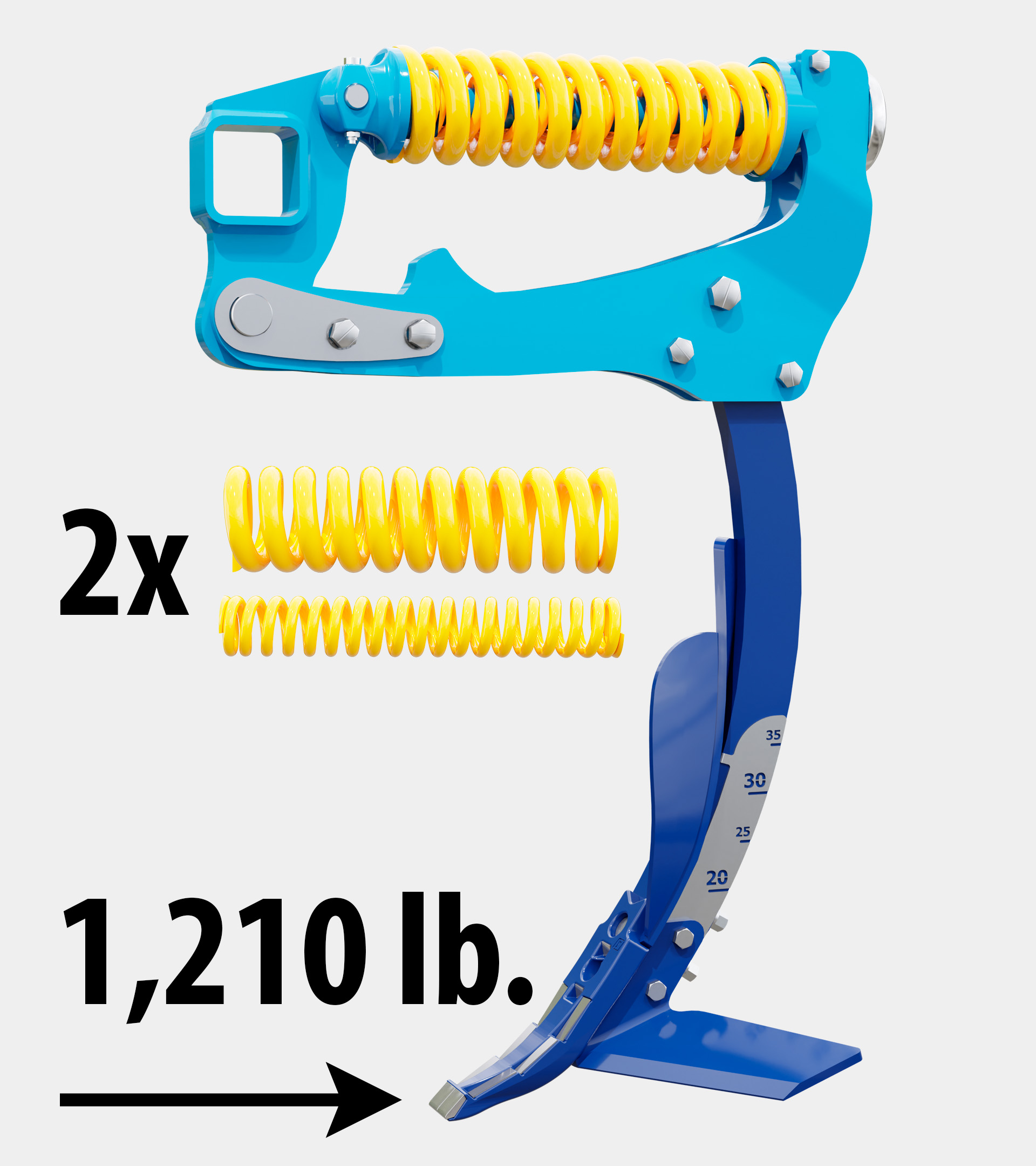

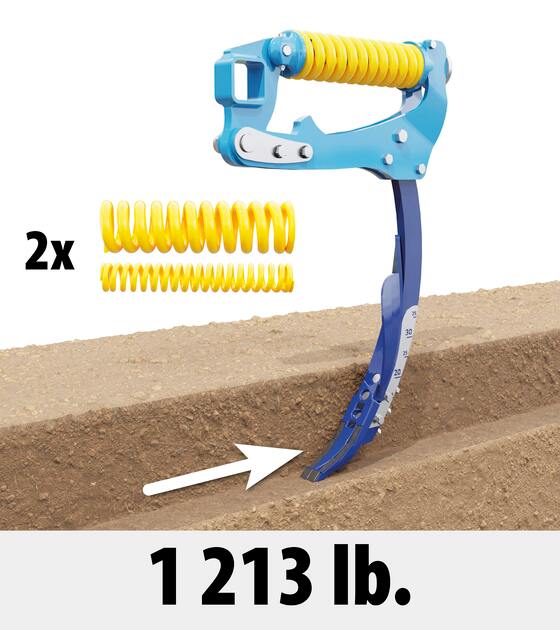

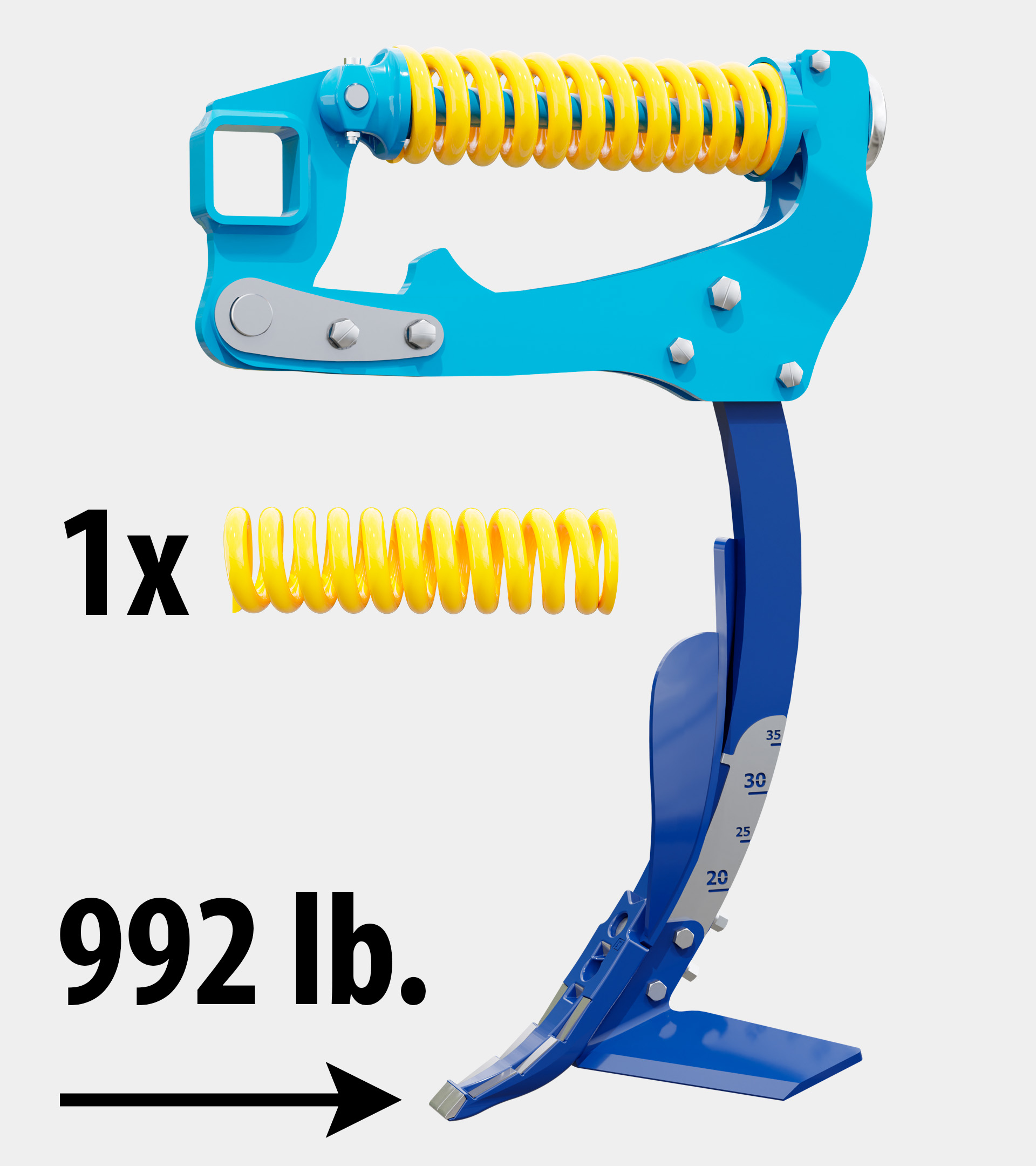

Durable and maintenance-free spring protection of cultivating chisels with a high release force of 1210 lb.

Easy operation

Due to minimum adjusting and lubricating points the operation and subsequent maintenance are very easy steps that everybody can perform.

  • Minimum adjustment points.
  • Minimum lubrication points.
Depth setting
Easy working depth setting by the pins on the rollers.
Adjustable leveling disks
Height-adjustable leveling disks with practical handle for better adjusting ergonomics.
Hydraulic setting of levelling discs
Optional equipment. Easy, quick and convenient disc setting from the tractor cabin, also available while working in the field.
Easy adjustment of the outer leveling disks
Side leveling disks are easily adjustable by a pin – for accuracy connection between each passes.

Smartly performed designed machine

The advantage of this machine is its multipurposeness and adjustability bringing high work variability.

Full working width
Working width is 12' 5".
Possibility to work with folded machine
When tillage the soil in greater working depths, the tine cultivator can be folded and a pulling equipment with lower performance can be used. Working width is 9' 10".
Full-surface stubble cultivation
Chisels with wings for full-surface undercut up to 7.75" depth.

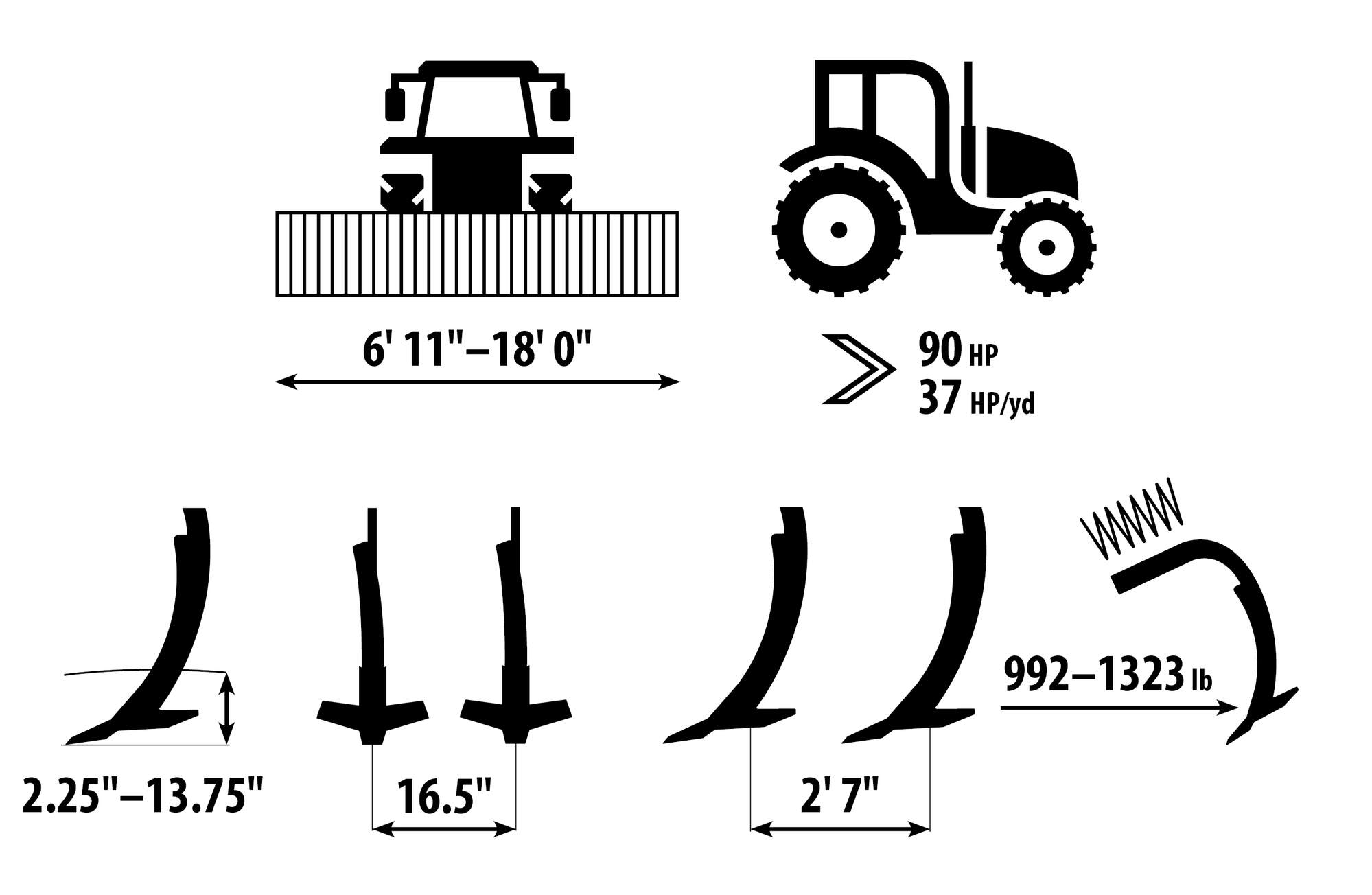

Parameters

Technical parameters Units Duolent
DX 210 N
Duolent
DX 300 N
Duolent
DX 350 N FIX
Working width ft. 6' 11" 9' 10" 11' 6"
Transport width ft. 7' 4" 9' 10" 11' 6"
Transport height ft. 4' 7" 4' 7" 4' 7"
Total machine length ft. 10' 12" 10' 12" 10' 12"
Working depth in. 2.25"─13.75" 2.25"─13.75" 2.25"─13.75"
Number of shares pcs  5 7 9
Share spacing ft. 16.5" 16.5" 16.5"
Number of share rows pcs 2 2 2
Row spacing ft. 2' 7" 2' 7" 2' 7"

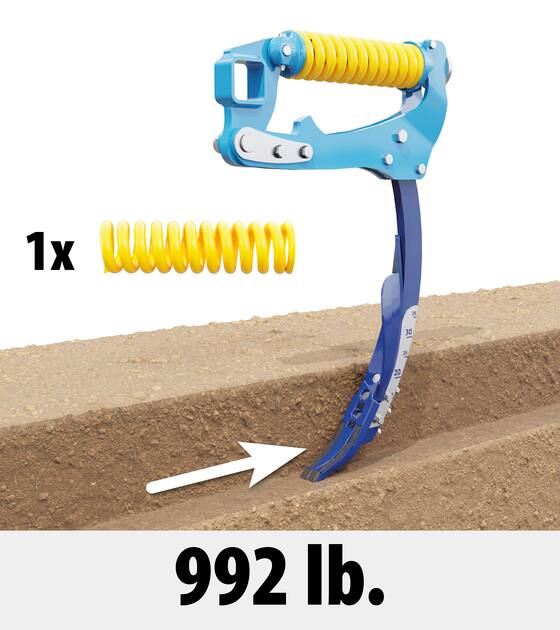

Release force of shares lb. 992 / 1,210 992 / 1,210 992 / 1,210
Frame clearance ft. 2' 11" 2' 11" 2' 11"
Diameter of leveling disks ft. 1' 6" 1' 6" 1' 6"
Working performance ac/h 4.2─6.2 5.9─8.9 6.9─10.4
Towing vehicle 1 kW
HP
65─110
90─135
90─135
120─180
105─160
140─210
Working speed mph 5─8 5─8 5─8
Maximum slope availability ° 6 6 6
Number of hydraulic circuits / pressure bar
Number of hydro-couples/ type
Tractor hitch requirement   TPH cat. 2 TPH cat. 2 and 3 TPH cat. 2 and 3
Machine weight lb. 2,337 3,031 3,494



Technical parameters Units Duolent
DX 380 NS
Duolent
DX 460 NS
Duolent
DX 550 NS
Working width ft. 12' 6" 15' 1" 18'
Transport width ft. 7' 3" 9' 10" 9' 10"
Transport height ft. 8' 2" 8' 2" 8' 2"
Total machine length ft. 10' 12" 10' 12" 10' 12"
Working depth in. 2.25"─13.75" 2.25"─13.75" 2.25"─13.75"
Number of shares pcs  9 11 13
Share spacing ft. 16.5" 16.5" 16.5"
Number of share rows pcs 2 2 2
Row spacing ft. 2' 7" 2' 7" 2' 7"
Release force of shares lb. 992 / 1,210 992 / 1,210 992 / 1,210
Frame clearance ft. 2' 11" 2' 11" 2' 11"
Diameter of leveling disks ft. 1' 6" 1' 6" 1' 6"
Working performance ac/h 7.7─11.1 9.1─13.6 10.9─16,3
Towing vehicle 1 kW
HP
120─180
160─240
150─225
200─300
180─270
240─360
Working speed mph 5─8 5─8 5─8
Maximum slope availability ° 6 6 6
Number of hydraulic circuits / pressure bar 1 / 200 1 / 200 1 / 200
Number of hydro-couples/ type   2 / ISO 12,5 2 / ISO 12,5 2 / ISO 12,5
Tractor hitch requirement   TPH cat. 2 TPH cat. 2 and 3 TPH cat. 2 and 3
Machine weight lb. 4,894 5,545 6,327

1 Recommended towing vehicle, the actual pulling force may significantly change according to the tilling depth, soil conditions, inclination of land, wear of working units and their adjustment.
Transport / brake system: Follow national provisions valid for transport of machines on public roads. Verify legal provisions valid in the country, regulations on maximum allowable total weights and axle loads and also on necessary possible use of the brake system. If you have any questions, please contact our sales representative.

N - mounted machine
NS - mounted foldable machine


We constantly improve and innovate our products to provide the best possible solutions for current technological trends and to meet customer requirements. For this reason, some of the offered products may be manufactured differently than shown on the website. Binding specifications and machine parameters will be confirmed upon order.

Optional

Accessories

Rollers

Tube roller TRS
Diameter 24"
Weight 241 lbs./yd
Double roller DR
Diameter 16"/12"
Weight 298 lbs./yd
Ring roller RR
Diameter 20"
Weight 386 lbs./yd
LTX roller
Diameter 23"
Weight 482 lbs./yd
Disk roller SDR
Diameter 23"
Weight 530 lbs./yd
Crosskill roller CR
Diameter 16"
Weight 434 lbs./yd
V roller VR
Diameter 24"
Weight 422 lbs./yd

Proper selection of the type of the rear roller contributing significantly to the final quality of the tillage is very important. The soil is reconsolidated by the roller and then it is the same way crumbled and leveled.The selection of the type of the roller depends on the soil type and on the manner of use of the machine.

Rollers Tube-shaped
TRS
Double
DR
Ring
RR
LTX
Crumbling ●●○○ ●●●○ ●●●○ ●●○○
Stamping ●●●○ ●●●○ ●●●● ●●●●
Depth guiding ●●●○ ●●●● ●●●● ●●●●
Resistance against clogging ●○○○ ●●●○ ●●●● ●●●○
Suitability for stony soils ●●●○ ●●●○ ●●●○ ●●●○
Suitability for wet soils ●○○○ ●●○○ ●●●● ●●●●
Heavy soils ●●○○ ●●●● ●●●● ●●●●
Medium soils ●●●○ ●●●● ●●●● ●●●●
Light soils ●●●● ●●●● ●●●● ●●●○



Rollers Disk
SDR
Crosskill
CR
VR
Crumbling  ●●●○ ●●●●  ●●●○
Stamping ●●●● ●●●●  ●●●●
Depth guiding ●●●● ●○○○ ●●●●
Resistance against clogging  ●●●○ ●●○○ ●●●●
Suitability for stony soils  ●●●○ ●●○○ ●●●○
Suitability for wet soils ●●●● ●●○○ ●●●●
Heavy soils ●●●● ●●●● ●●●●
Medium soils ●●●● ●●●○ ●●●●
Light soils  ●●●○ ●●○○ ●●●●

Working tools

Chisel 75 MULTICARBIDE PRO
Share width 3"
Share body hardness up to 55 HRC
Widia plate hardness up to 92 HRA
Share service life + 200-500 %
Chisel 75 MULTICARBIDE
Share width 3"
Share body hardness up to 55 HRC
Widia plate hardness up to 92 HRA
Share service life + 150-400 %
Chisel 75 CARBIDE
Chisel width 3"
Chisel thickness 0.5"
Chisel body hardness up to 55 HRC
Widia plate hardness up to 92 HRA
Chisel service life + 100-200 %
Chisel 55 CARBIDE

Chisel for deep loosening without mixing

Chisel width 2.25"
Chisel thickness 0.75"
Chisel body hardness up to 55 HRC
Widia plate hardness up to 92 HRA
Chisel service life + 100-200 %
Diesel fuel consumption - 10 %
Chisel 40 CARBIDE
Chisel width 1.5"
Chisel thickness 1"
Chisel body hardness up to 55 HRC
Widia plate hardness up to 92 HRA
Chisel service life + 100-200 %
Diesel fuel consumption - 10 %
Left wing CARBIDE
Right wing CARBIDE
Left wing
Right wing

Variants of hitches

Set of pins for Kirovec hitch

Valid for Duolent DX 460 NS and DX 550 NS.


Optional equipment

Hydraulic leveling disks
Hydraulic depth adjustment
Micro Drill

Sowing of fine seeds.

Protection by shear bolt

For soils without stones.

Working parts release with a double compression spring
Rear harrow rods

Photo gallery

Video

The tine cultivator Duolent completely aired and levelled the field, which was compacted after heavy spring rains. The machine perfectly loosened the soil profile with a set working depth of 10".
