Tine seed drill Falcon PRO Tandem

Wide possibilities of applying fertilizers and sowing crops in one operation

Tine seed drill Falcon PRO Tandem Tine seed drill Falcon PRO Tandem

Technology

1 Zone of pre-consolidation of soil and crumbling clods. The front tire roller effectively packs the soil and crumbs large clods.
2 Seed and fertilizer storage zone in one operation. Seed and fertilizer are stored by special seeding coulters. The coulters ensure that the seedbed is created and the seed is placed in strips with a spacing of approx. 4.5". At the same time the seeding coulters put the granulated fertilizer into the root zone of future plants always between two strips of seed.
3 Ridge leveling zone and seed cover behind the seeding coulters. Harrow with special double fingers effectively levels the soil surface behind the shares.
4 Zone of final soil compaction and pressing seed. Large flotation tires ensure a very gentle and even final soil compaction and induce seed creasing.
5 Zone of final leveling of soil surface and uniformly dispersing of crop residue. The double row harrow very effectively levels the soil surface and uniformly dispersing ng crop residue.

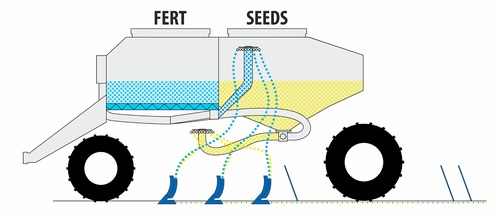

Seeding and fertilization variants

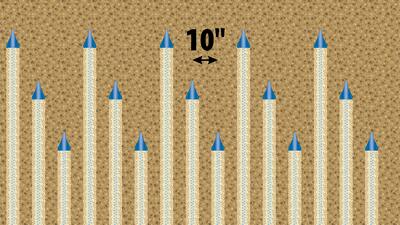

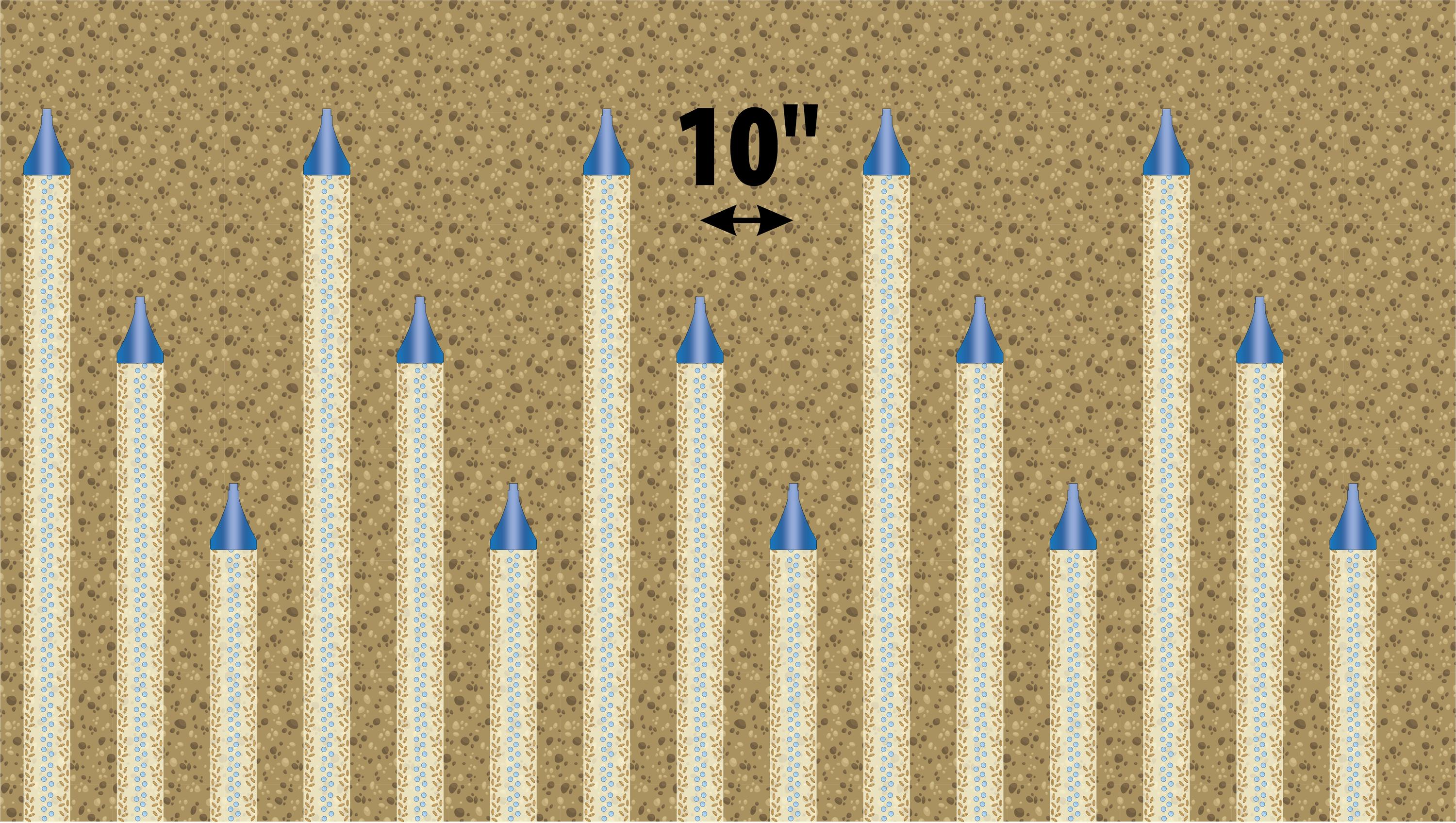

All-area seeding and additional seed fertilization

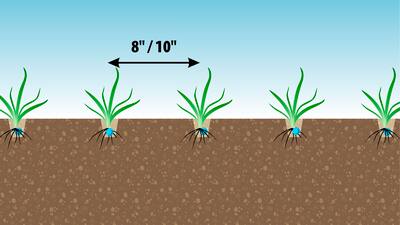

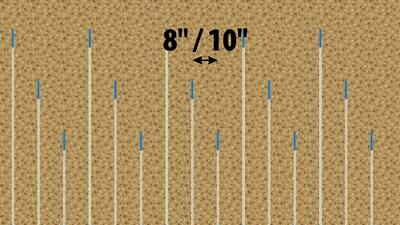

Strip seeding and starting fertilization

Technics

Tine seed drill Falcon PRO Tandem

  1. Front rubber-tyre roller.
  2. Seeding with additional fertilisation.
  3. Leveling bar for surface leveling.
  4. Rear rubber-tyre roller.
  5. Leveling bar for surface leveling.

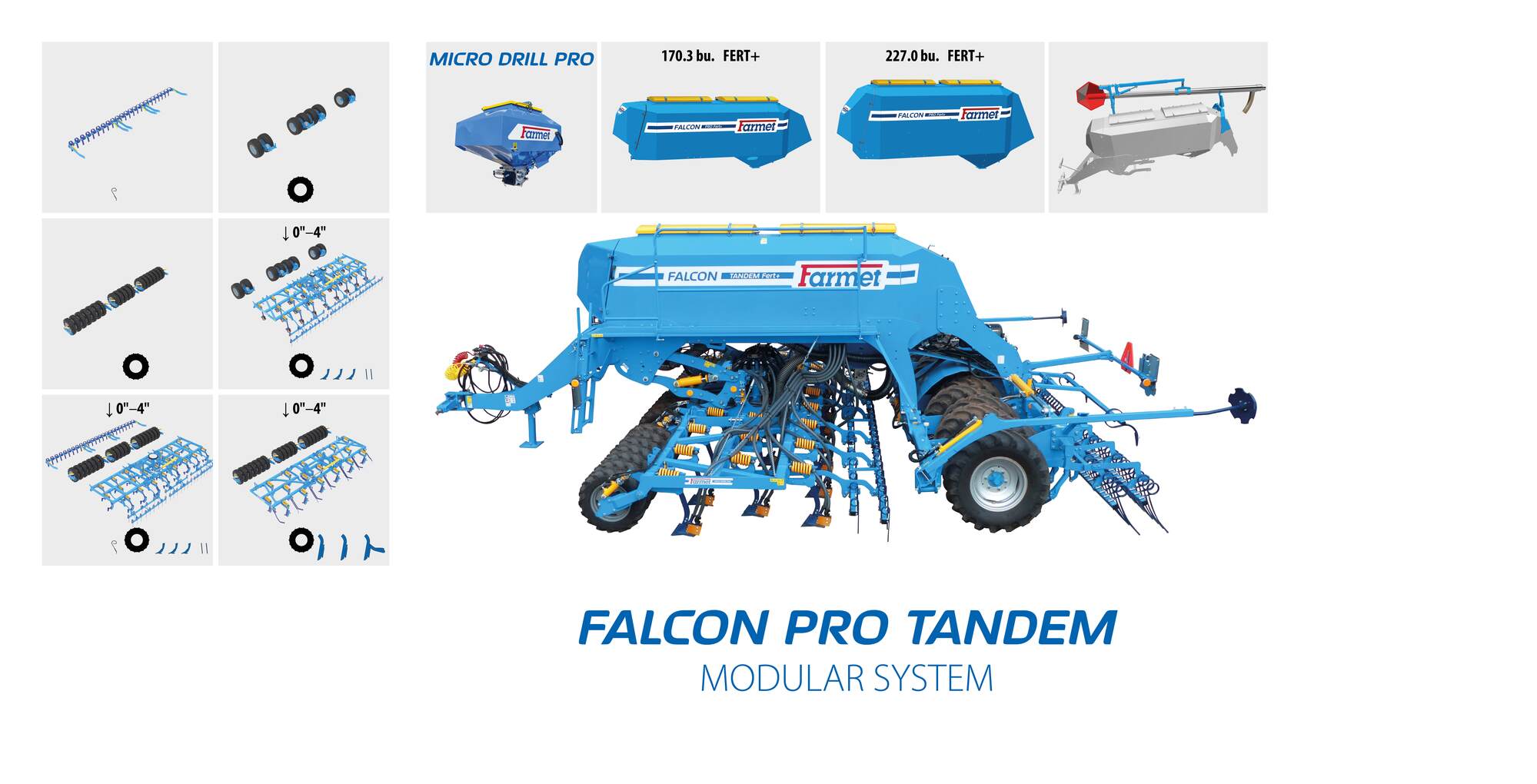

The Falcon PRO Tandem seed drill uses the modular foundation of Falcon PRO, equipped with the front seeding section with a tyre packer and three rows of special seeding shares. The seeding shares are followed by an effective leveling system, excellent for leveling out the soil surface and for even distribution of crop residue.

The rear roller equipped with large low-pressure tyres provides very low pressure on the soil, even when the seed and fertilizer hoppers are completely full. The rugged tyres are highly durable to penetration and they allow for transport of the machine on low quality roads at high speed, even for greater distances.

The special seeding shares with tandem-configured outputs for seeding and parallel placement of fertilizer into the root zone provide quality seeding, even under the conditions of a high quantity of crop residue in mulch seeding technologies. The accuracy depth guidance by tyre rollers helps achieve seeding depth accuracy comparable with disk seed drills.

The rugged frame of the machine makes it also suitable for rocky soils.

The Falcon PRO Tandem seed drill uses the modular foundation of Falcon PRO, equipped with the front seeding section with a tyre packer and three rows of special seeding shares. The seeding shares are followed by an effective leveling system, excellent for leveling out the soil surface and for even distribution of crop residue.

The rear roller equipped with large low-pressure tyres provides very low pressure on the soil, even when the seed and fertilizer hoppers are completely full. The rugged tyres are highly durable to penetration and they allow for transport of the machine on low quality roads at high speed, even for greater distances.

The special seeding shares with tandem-configured outputs for seeding and parallel placement of fertilizer into the root zone provide quality seeding, even under the conditions of a high quantity of crop residue in mulch seeding technologies. The accuracy depth guidance by tyre rollers helps achieve seeding depth accuracy comparable with disk seed drills.

The rugged frame of the machine makes it also suitable for rocky soils.

High performance and quality of work

  • Short downtime for filling hoppers thanks to the large capacity.
  • Fast turns at the headland thanks to the short compact frame.
  • Low pulling resistance thanks to the low weight and special shares.
  • System using the front and rear rollers for depth guidance and excellent tracing. Perfect leveling, compaction and soil cultivation in a single pass.
  • Short downtime for filling hoppers thanks to the large capacity.
  • Fast turns at the headland thanks to the short compact frame.
  • Low pulling resistance thanks to the low weight and special shares.
  • System using the front and rear rollers for depth guidance and excellent tracing. Perfect leveling, compaction and soil cultivation in a single pass.

Rugged design

High-strength refined materials in connection with eXtra STEEL line technology guarantee long service life of our machines even in the most difficult conditions.

Machine operation without lubrication
Maintenance-free bearing of all working parts providing for machine operation without the need of lubrication.
Tyres resistant to penetration and wear and tear
Large transport low-pressure radial tyres resistant to penetration and wear.

Easy Operation

The minimum number of adjustment and lubrication points makes the operation, control as well as subsequent maintenance a very simple task that anyone can manage.

Pressurized hopper

Smartly designed machine

Screw dispenser Fert+
Modern screw dispenser. Fertilizer guiding to the fertilization units.
Screw dispenser Fert+

Parameters

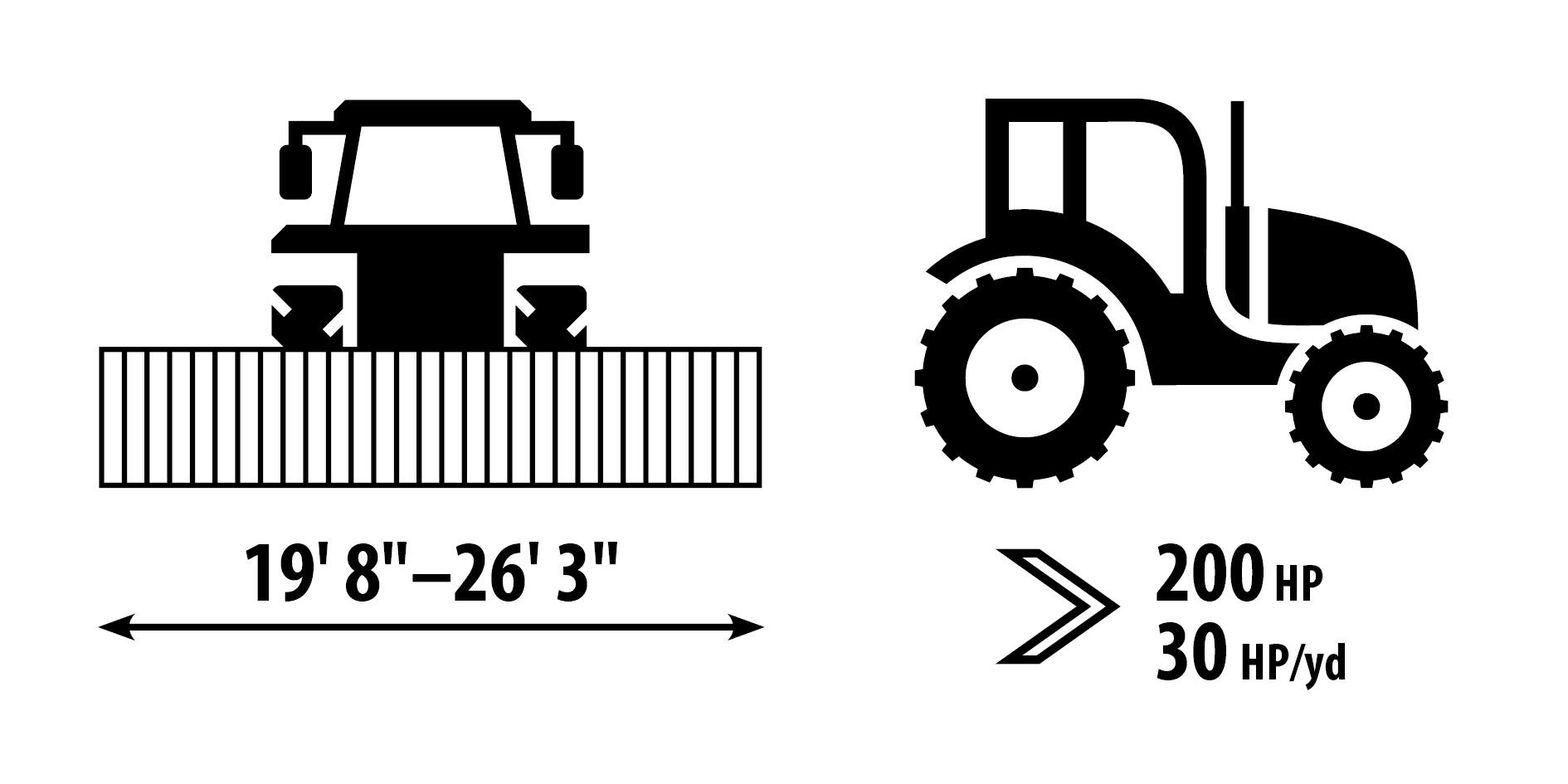

Technical parameters Units Falcon 6 PRO Tandem Falcon 8 PRO Tandem
Working width ft. 19' 8" 26' 3"
Transport width ft. 9' 10" 9' 10"
Transport height ft. 10' 10" 13' 1"
Total machine length ft. 29' 6" 29' 6"
Working depth in. 0"─4" 0"─4"
Hopper capacity with fertilization
(ratio 40:60)
bu. 170.3 170.3 / 241.2
Hopper filling height ft. 9' 7" 9' 7" / 11' 2"
Dimensions of the filling opening with fertilization ft. 4' 8" x 2' 0" 4' 8" x 2' 0"
Number of sowing shares pcs 24 32
Working performance ac/h 14.8─22.2 19.8─29.7
Towing vehicle 1 kW
HP
147
200
205
280
Working speed mph 5─9 5─9
Maximum transport speed 4 mph 19 19
Maximum slope availability ° 6 6
Dimensions of tire – transport   405/70 R20
420/65 R20
405/70 R20
420/65 R20
Brake type / distribution 3, 4   air / two-line air / two-line
Required pressure 3 kPa 8,5 8,5
Number of hydraulic circuits / pressure bar 4 / 200 4 / 200
Number of hydro-couples / type   6 / ISO 12,5 6 / ISO 12,5
Non-pressure return line (max. 5 bar)   1 / ISO 20 1 / ISO 20
Oil flow of hydraulic fan gal/min 7.9─10.6 7.9─10.6
Oil flow for machine control gal/min 13.2─15.8 13.2─15.8
Electric system requirement   12 V DC / 40 A 12 V DC / 40 A
Tractor hitch requirement   TBZ cat. 3 TBZ cat. 3
Machine weight 2 lb. 14,330─16,534 20,062─23,765


1 Recommended towing vehicle, the actual pulling force may significantly change according to the tilling depth, soil conditions, inclination of land, wear of working units and their adjustment.
2 Machine weight according to the equipment.
3 Alternative to hydraulic brake / operating pressure of 130 ± 5 bar.
4 Transport / brake system: Follow national provisions valid for transport of machines on public roads. Verify legal provisions valid in the country, regulations on maximum allowable total weights and axle loads and also on necessary possible use of the brake system. If you have any questions, please contact our sales representative.

Optional

Photo gallery

Video

Files

Accessories

Display Units

BASIC-Terminal
Equipment
Display Dimensions 5,7"
ISO-BUS OK
Seed Passing Sensor Control OK
Hopper Level Reading OK
Fan Speed Reading OK
Dispenser Speed Reading OK
Motor Speed Reading OK
Number of Motors (Dispensing) 3
Tramline Flap Control OK
Seed Drill Position Display OK
Work Lighting Control OK
Hopper Lighting Control OK
Marker Control OK
Pre-emergent Marking Control OK
Adding Seed Batch during Work OK
Micro Seeding OK
Simultaneously Running Screens 1
Camera Input x
GSM Modem x

Müller Elektronik: ISOBUS DRILL-Controller

TOUCH800®
Equipment
Display Dimensions 8"
ISO-BUS OK
Seed Passing Sensor Control OK
Hopper Level Reading OK
Fan Speed Reading OK
Dispenser Speed Reading OK
Motor Speed Reading OK
Number of Motors (Dispensing) 3
Tramline Flap Control OK
Seed Drill Position Display OK
Work Lighting Control OK
Hopper Lighting Control OK
Marker Control OK
Pre-emergent Marking Control OK
Adding Seed Batch during Work OK
Micro Seeding OK
Simultaneously Running Screens 2
Camera Input OK
GSM Modem x

Müller Elektronik: ISOBUS DRILL-Controller

SMART570®
Equipment
Display Dimensions 5,7"
ISO-BUS OK
Seed Passing Sensor Control OK
Hopper Level Reading OK
Fan Speed Reading OK
Dispenser Speed Reading OK
Motor Speed Reading OK
Number of Motors (Dispensing) 3
Tramline Flap Control OK
Seed Drill Position Display OK
Work Lighting Control OK
Hopper Lighting Control OK
Marker Control OK
Pre-emergent Marking Control OK
Adding Seed Batch during Work OK
Micro Seeding OK
Simultaneously Running Screens 1
Camera Input x
GSM Modem x

Müller Elektronik: ISOBUS DRILL-Controller

Topcon
Equipment
Display Dimensions 8"
ISO-BUS OK
Seed Passing Sensor Control OK
Hopper Level Reading OK
Fan Speed Reading OK
Dispenser Speed Reading OK
Motor Speed Reading OK
Number of Motors (Dispensing) 3
Tramline Flap Control OK
Seed Drill Position Display OK
Work Lighting Control OK
Hopper Lighting Control OK
Marker Control OK
Pre-emergent Marking Control OK
Adding Seed Batch during Work OK
Micro Seeding OK
Simultaneously Running Screens 2
Camera Input OK
GSM Modem x

Müller Elektronik: ISOBUS DRILL-Controller

x Not available
OK Included

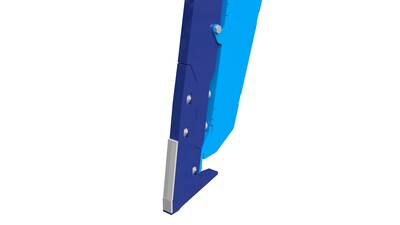

Chisels

Chisel with spike

Shares

Arrow share for full-area sowing and additional seed fertilization

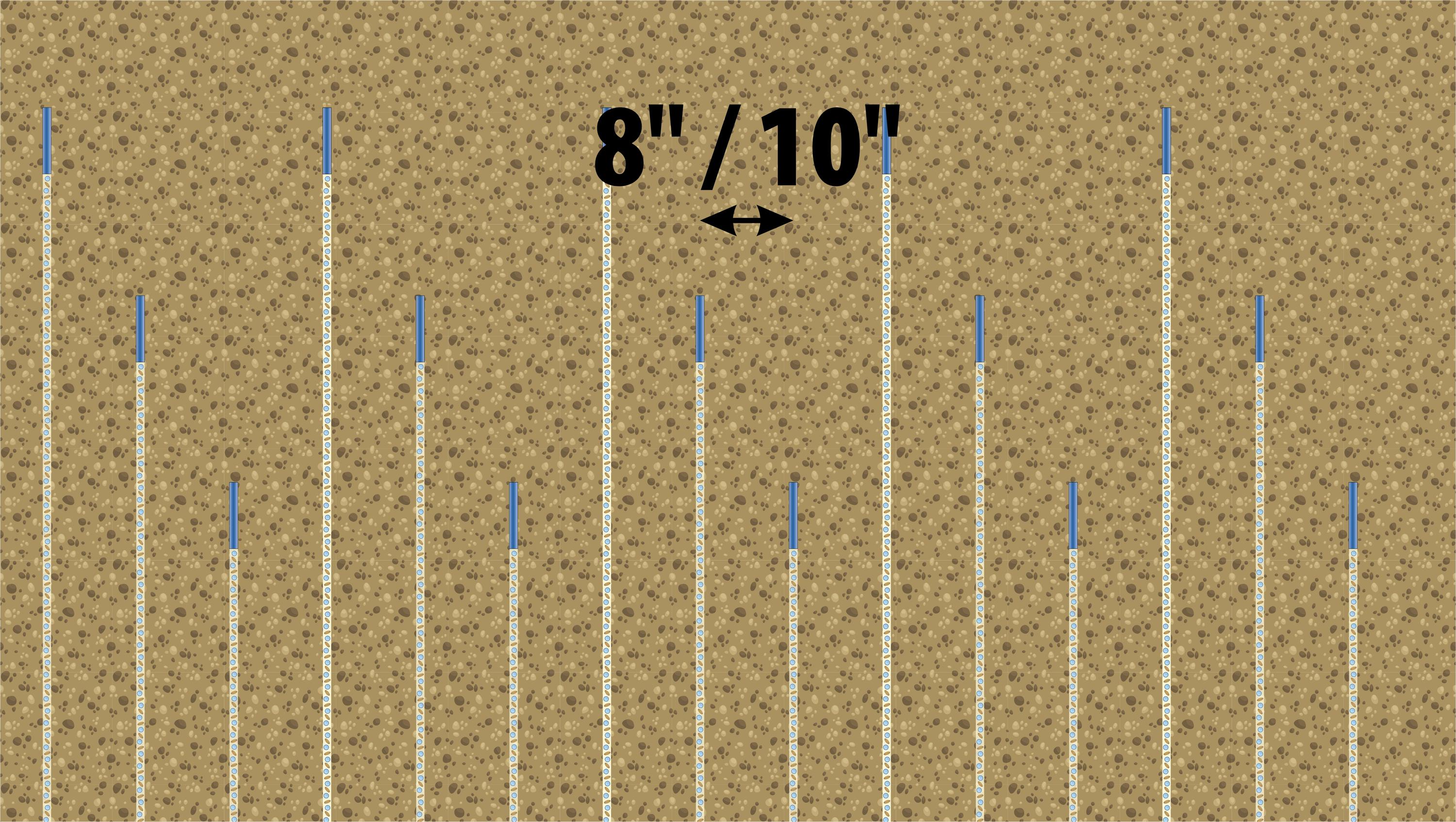

Narrow share for strip sowing and starting fertilization
