Compact seed drill Falcon Compact

Wide possibilities of applying fertilizers and sowing crops in one operation

Variant FertS

Secí stroj Falcon PRO | Konfigurace stroje bez přihnojováníSecí stroj Falcon PRO | Konfigurace stroje bez přihnojováníSecí stroj Falcon PRO | Konfigurace stroje bez přihnojování

Secí stroj Falcon CompactSecí stroj Falcon CompactSecí stroj Falcon Compact

Varianta Fert+

Secí stroj Falcon PRO | Varianta Fert+Secí stroj Falcon PRO | Varianta Fert+Secí stroj Falcon PRO | Varianta Fert+

Secí stroj Falcon PRO | Varianta Fert+Secí stroj Falcon PRO | Varianta Fert+Secí stroj Falcon PRO | Varianta Fert+

Technology

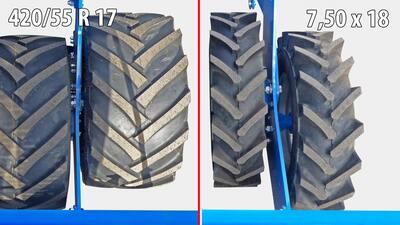

Falcon Compact: Wide tyres for spacing of 125 / 167 mm

Falcon Compact: Narrow tyres for spacing of 150 mm

1 Basic soil levelling zone. Precisely leveled soil surface allows uniform subsequent consolidation and loosening the seedbed.
2 Soil pre-processing zone. The pre-processing of the soil can be made with various working tools, either over the entire sowing depth or in zones up to 10 cm. Soil pre-processing ensures aeration, levelling and optimum loosening. There is also optimal spreading of plant residues.
3 Zone of soil reconsolidation and restoration of deep capillarity. Deep compaction ensures effective soil water rise to the soil surface even in dry conditions.
4 Seedbed formation and seed placement zone. The double disc seeding coulters effectively create a compacted seedbed (V-groove) and precisely deposit the seed to the required depth. Thanks to the high down-pressure, up to 70% of the weight of the machine can be transferred to the seeding coulters. The compacted seedbed and V-groove ensure excellent seed contact with soil and soil water.
5 The side seed press zone. The copy wheel compresses the V- groove with the seed, causing the seed to squeeze sideways to the soil. There is loosened space above the seed for easy emergence of plants.
6 Seed cover and soil levelling zone. The integrated harrow ensures excellent seed coverage and precise soil surface levelling.

Technics

Compact seed drill Falcon Compact

  1. Double-row pre-processing disc section
  2. Rubber-tyre roller for optimal soil compaction
  3. Double-disc drill coulters with a fixed spacing of 125 / 150 / 167 mm

Falcon Compact is designed for sowing all common crops with spacing of 125 / 150 / 167mm, including most cereals, legumes, green fertilizers as well as some clover crops and oilseeds in unprepared soil.

Falcon Compact provides pre-sowing preparation of soil, seedbed preparation, soil compaction and reliable sowing with a large seeding range of 0.5 to 350kg/ha in a single pass.

Falcon Compact is designed for sowing all common crops with spacing of 125 / 150 / 167mm, including most cereals, legumes, green fertilizers as well as some clover crops and oilseeds in unprepared soil.

Falcon Compact provides pre-sowing preparation of soil, seedbed preparation, soil compaction and reliable sowing with a large seeding range of 0.5 to 350kg/ha in a single pass.

High Output and Labour Quality

  • Low pulling resistance thanks to the low weight
  • Shorter downtime for filling up hoppers thanks to the large capacity
  • Fast turns at headland thanks to the short compact construction
  • Precise depth guidance with even soil compaction
  • Levelling and compacting surface in front of each seed coulter
  • Low pulling resistance thanks to the low weight
  • Shorter downtime for filling up hoppers thanks to the large capacity
  • Fast turns at headland thanks to the short compact construction
  • Precise depth guidance with even soil compaction
  • Levelling and compacting surface in front of each seed coulter

Light, but Robust Frame

The frame from the high-strength eXtra STEEL line guarantees a long service life of the machines, even under the most demanding conditions thanks to the high flexibility of the frame and the low weight of the machine.

Massive Compact Frame
A shortened, compact (not foldable), but strong frame.
Large Hopper
A single-chamber hopper with the capacity of 2,800─5,000L with comfortable access and a large input opening.
Maintenance free bearings
The maintenance-free placement of all discs with the diameter of 490m provides operation that does not require lubrication, with rubber protection against overload.
Maintenance-free Placement of Coulters
The resistant and maintenance-free rubber mounting of the drill coulters helps adapt to the terrain and provides protection against overload.

Easy Operation

The minimum number of adjustment and lubrication points makes the operation, control as well as subsequent maintenance a very simple task that anyone can manage.

  • Easy setting of the sowing depth, coulter pressure and seeding amount.
  • Simple electronic system with intuitive control.
  • Minimum adjustment points.
  • Minimum lubrication points.
Easy hopper filling with seeds
Wide and long service platform for safe and comfortable filling of the hopper with seeds.
Adjustable side deflectors
Height and lengthwise adjustable side deflectors for regulation of the processed soil and for continuous connection of the individual passes.
Setting the working depth of the pre-processing section
Easy setting of the working depth according to a well-arranged chart using distance washers on piston-rods.
Farmet dispenser
A modern roller dispenser with interchangeable rollers.
Adjustment of sowing depth
Very simple and fast adjustment of the required sowing depth.
Adjusting the depth and pressure
Patented depth adjustment and rear leveller pressure adjustment in a single step.

Smart Machine Design

Compact design
The compact design is also simpler and lighter while preserving the high requirements for strength and resistance of the machine, even in the most difficult conditions.
Seedbed preparation
The double pre-sowing disc section perfectly levels the topsoil crosswise and loosens soil to the depth of the seedbed.
Tines with two discs
The discs of the pre-sowing section are installed in pairs on the tines. The robust and wide rubber bearing reliably protects the working parts from damage.
Optimal soil compaction
In front of each coulter there is a tyred roller made from reinforced tyres. The tyres have a special design resistant to wet clay sticking.
Adjustment of sowing depth
Possibility of adjustment of various sowing depths on even and odd coulters.
Double-disc drill coulters
Thanks to the tested design, they also penetrate soil very well when there is a large content of crop residue, and together with the press-wheel, they place seeds at the set depth.

Roller metering units of fertiliser

Parameters

Technical Parameters Units Falcon 3 Compact Falcon 4 Compact Falcon 4 FIX Compact Falcon 6 Compact Falcon 7,2 Compact
Working width mm 3 000 4 000 4 000 6 000 7 200
Transport width mm 3 000 3 000 4 000 3 000 3 000
Transport height mm 2 800 2 800 2 800 2 800 2 800
Total machine length mm 7 000  7 000 7 000  7 000 7 000
Working depth mm 0─100 0─100 0─100 0─100 0─100
Hopper volume without additional fertilization l 2 800 2 800 2 800 4 000 4 000
Hopper volume with additional fertilization
(division 40:60)
l 4 000 4 000 4 000 5 000 5 000
Hopper filling height mm 2 600 2 600 2 600 2 600 2 600
Dimensions of the filling opening mm 520 x 1920  520 x 1920 520 x 1920  520 x 1920 520 x 1920
Number of coulters pcs 24 / 20 / 18 32 / 26 / 24 32 / 26 / 24 48 / 40 / 36 58 / 48 / 43
Row spacing 2 mm 125 / 150 / 167 125 / 150 / 167 125 / 150 / 167 125 / 150 / 167 125 / 150 / 167
Pressure of drill coulters kg 50–120 50–120 50–120 50–120 50–120
Number of discs pcs 23 31 31 46 55
Diameter of sowing discs mm 355 355 355 355 355
Working output ha/h 3─4,5 4─6 4─6 6─9 7,2─11,3
Towing vehicle 1 kW
HP
88
120
103
140
103
140
130
195
155
215
Working speed km/h 10─20 10─20 10─20 10─20 10─20
Maximum transport speed 3 km/h 25 25 25 25 25
Maximum slope availability ° 6 6 6 6 6
Dimension of tyre - transport   7,5 * 16
420/55 R 17
7,5 * 16
420/55 R 17
7,5 * 16
420/55 R 17
7,5 * 16
420/55 R 17
7,5 * 16
420/55 R 17
Number of hydraulic circuits / pressure bar  2 / 210  2 / 210 2 / 210   2 / 210  2 / 210
Number of hydraulic couplers / type    4 / ISO 12,5  4 / ISO 12,5 4 / ISO 12,5   4 / ISO 12,5  4 / ISO 12,5
Non-pressure return line (max. 5 bar)    1 / ISO 20  1 / ISO 20 1 / ISO 20   1 / ISO 20  1 / ISO 20
Oil flow of hydraulic fan l/min 30─40 30─40 30─40 30─40 30─40
Oil flow for machine control l/min  30 30  30 30 30
Electric system requirement   12 V DC / 25 A 12 V DC / 25 A 12 V DC / 25 A 12 V DC / 25 A 12 V DC / 25 A
Tractor hitch requirement   TPH cat. 2 and 3 TPH cat. 2 and 3 TPH cat. 2 and 3 TPH cat. 2 and 3 TPH cat. 2 and 3
Machine weight kg 3 800  4 800 4 400 6 800 8 600


1 Recommended towing vehicle, the actual pulling force may significantly change according to the tilling depth, soil conditions, inclination of land, wear of working units and their adjustment.
2 Row spacing 150 mm is intended only for the version of machines with narrow tires. Row spacing 125/167 mm is intended only for the version of machines with wide tires.
3 Transport / brake system: Follow national provisions valid for transport of machines on public roads. Verify legal provisions valid in the country, regulations on maximum allowable total weights and axle loads and also on necessary possible use of the brake system. If you have any questions, please contact our sales representative.

Optional

Photo gallery

Video

Files

Accessories

Display Units

BASIC-Terminal
Equipment
Display Dimensions 5,7"
ISO-BUS OK
Seed Passing Sensor Control OK
Hopper Level Reading OK
Fan Speed Reading OK
Dispenser Speed Reading OK
Motor Speed Reading OK
Number of Motors (Dispensing) 3
Tramline Flap Control OK
Seed Drill Position Display OK
Work Lighting Control OK
Hopper Lighting Control OK
Marker Control OK
Pre-emergent Marking Control OK
Adding Seed Batch during Work OK
Micro Seeding OK
Simultaneously Running Screens 1
Camera Input x
GSM Modem x

Müller Elektronik: ISOBUS DRILL-Controller

TOUCH800®
Equipment
Display Dimensions 8"
ISO-BUS OK
Seed Passing Sensor Control OK
Hopper Level Reading OK
Fan Speed Reading OK
Dispenser Speed Reading OK
Motor Speed Reading OK
Number of Motors (Dispensing) 3
Tramline Flap Control OK
Seed Drill Position Display OK
Work Lighting Control OK
Hopper Lighting Control OK
Marker Control OK
Pre-emergent Marking Control OK
Adding Seed Batch during Work OK
Micro Seeding OK
Simultaneously Running Screens 2
Camera Input OK
GSM Modem x

Müller Elektronik: ISOBUS DRILL-Controller

SMART570®
Equipment
Display Dimensions 5,7"
ISO-BUS OK
Seed Passing Sensor Control OK
Hopper Level Reading OK
Fan Speed Reading OK
Dispenser Speed Reading OK
Motor Speed Reading OK
Number of Motors (Dispensing) 3
Tramline Flap Control OK
Seed Drill Position Display OK
Work Lighting Control OK
Hopper Lighting Control OK
Marker Control OK
Pre-emergent Marking Control OK
Adding Seed Batch during Work OK
Micro Seeding OK
Simultaneously Running Screens 1
Camera Input x
GSM Modem x

Müller Elektronik: ISOBUS DRILL-Controller

Topcon XD+
Equipment
Display Dimensions 12,1"
ISO-BUS OK
Seed Passing Sensor Control OK
Hopper Level Reading OK
Fan Speed Reading OK
Dispenser Speed Reading OK
Motor Speed Reading OK
Number of Motors (Dispensing) 3
Tramline Flap Control OK
Seed Drill Position Display OK
Work Lighting Control OK
Hopper Lighting Control OK
Marker Control OK
Pre-emergent Marking Control OK
Adding Seed Batch during Work OK
Micro Seeding OK
Simultaneously Running Screens 5
Camera Input OK
GSM Modem for a fee

Müller Elektronik: ISOBUS DRILL-Controller

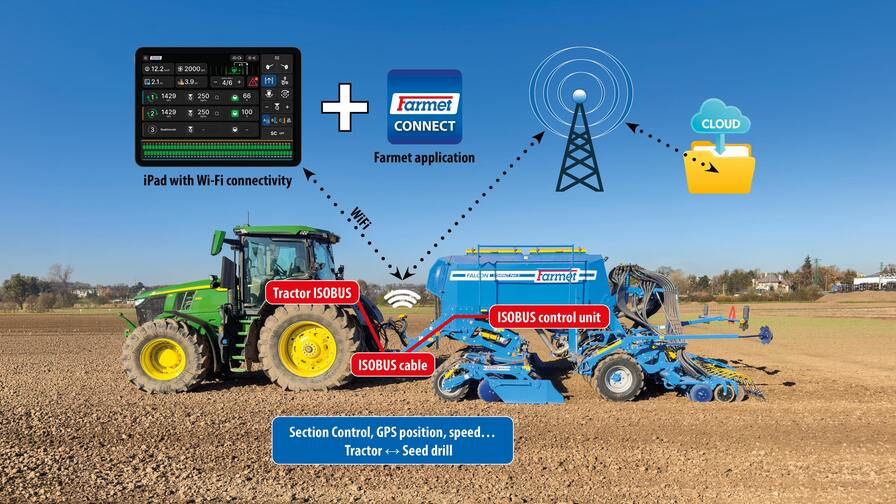

iPad wifi connect
Equipment
Display Dimensions 11"
ISO-BUS OK
Seed Passing Sensor Control OK
Hopper Level Reading OK
Fan Speed Reading OK
Dispenser Speed Reading OK
Motor Speed Reading OK
Number of Motors (Dispensing)
Tramline Flap Control OK
Seed Drill Position Display OK
Work Lighting Control OK
Hopper Lighting Control OK
Marker Control OK
Pre-emergent Marking Control OK
Adding Seed Batch during Work OK
Micro Seeding OK
Simultaneously Running Screens
Camera Input OK
GSM Modem OK

ISOBUS DRILL-Controller

x Not available
OK Included

Optional equipment

Hydraulically foldable markers

Markers controlled hydraulically and automatically through control system.

Marking of track rows
