Disc cultivator SOFTER PRO

Tillage up to 13 cm with full-surface undercut and mixing

Disc cultivator Softer PRO

Technology

1	Preliminary preparation zone a) Flexi-cut - cutting crop residue b) Flexi-board - levelling soil surface
2	Full-surface tillage zone. The double-row disc section with aggressive geometry ensures perfect full-surface undercut to depth of 3.5–13 cm with intensive mixing of crop residues. The disc section also spreading well crop residues over the surface.
3	Clods crumbling and soil re-compaction zone. Optimum soil re-compaction ensures good water infiltration and soil water capillarity to the surface.

High performance and quality of work

High working speed up to 15 km/h.
Symmetrically arranged two rows of serrated discs for reliable penetration into the soil, levelling and intensive mixing.
Working angle of the discs and down-pressure to each disc ensure uncompromising penetration even to heavy and over-dried soils and perfect undercut of the processed profile.
High-quality rubber suspension for optimal working angles of the disc.
Precise deep guiding with optimum soil compaction.

Technics

Disc cultivator Softer PRO

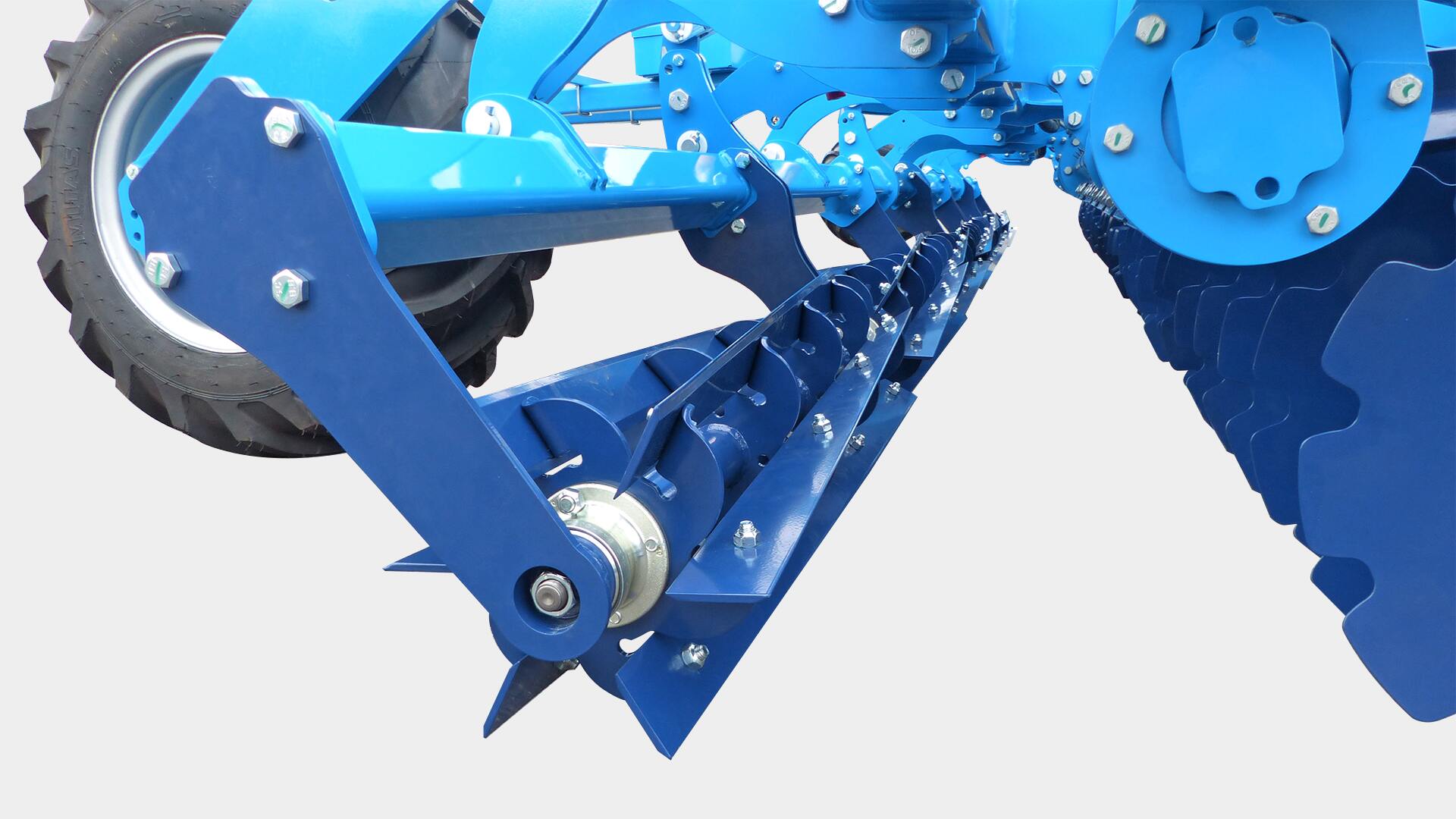

Possibility to install front tools: Flexi-cut for effective crop residue cutting or Flexi-board for levelling soil surface.

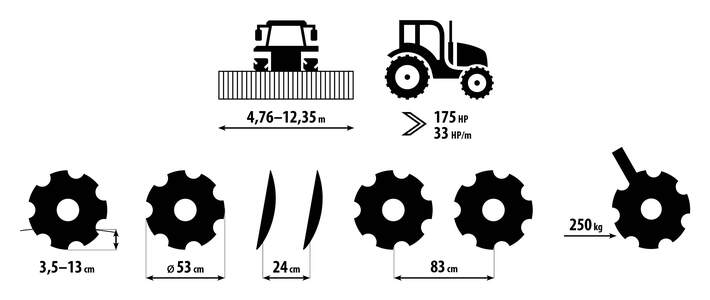

Discs with Ø 530 mm, symmetrically arranged in two rows, undercut the soil. The working depth is 3.5–13 cm.
Clods are crumbled by the rear roller.

Disc cultivator Softer PRO

Possibility to install front tools: Flexi-cut for effective crop residue cutting or Flexi-board for levelling soil surface.
Discs with Ø 530 mm, symmetrically arranged in two rows, undercut the soil. The working depth is 3.5–13 cm.
The additional Micro Drill machine for planting crops, that can be seeded onto the soil surface. This includes, for example, mustard, phacelia, clover and grass.
Clods are crumbled by the rear roller.

Discs with sharpened all-round

Discs with the diameter 530 mm are arranged in two rows. In case of contact with an obstacle, each disc is individually effectively protected by rubber suspension.

The discs penetrate into the soil perfectly and also cut crop residues.

The discs are mounted in maintenance-free bearings with excellent service life. Optimum discs geometry ensures high-quality work with very good productivity and high percentage of incorporated crop residues. The discs retain ideal working angle even with partially worn discs geometry . The disc 24 cm spacing ensures good throughflow of crop residues.

Robust design

High-strength refined materials in connection with eXtra STEEL line technology guarantee long service life of our machines even in the most difficult conditions.

Maintenance-free disc bearings.
Maintenance-free rubber suspension.

Massive transport axle with brakes

Controlled from the tractor cabin.

Maintenance free bearings SKF

Maintenance-free disc bearings ensuring machine operation without additional lubrication.

Maintenance-free rubber suspension

Durable and maintenance-free rubber suspension for terrain adaptation with protection against overload.

One disc - one tine

The individual placement of each disc on a separate tine allows for higher pressure and better penetration into the soil, eliminates clogging and does not transmit shocks to the bearings of adjacent discs.

Easy operation

Due to minimum adjusting and lubricating points, the operation and subsequent maintenance are very easy steps that anybody can perform.

Minimum adjustment points.
Minimum lubrication points.

Hydraulic depth adjustment

The working depth of the discs can be conveniently adjusted hydraulically directly from the tractor cabin.

Safe machine control

Intuitive adjustment and operation.

Easy side deflector adjustment

Precise smooth connection between each passes.

Flexi-cut / Flexi-board hydraulic control

Controlled from the tractor cabin, can be changed during operation.

Smartly performed designed machine

The advantage of this machine is its multipurposeness and adjustability bringing high variability work.

Skilful when working in the field due to a short and compact design.
Low operating costs due to light machine construction without need extra weight.
Very good self-cleaning capabilities of the space between the disc and the tine.

Aggressive disc angle

Ensures full-surface undercut at any working depth.

All-round sharpened disc

Easier disc penetration into the soil.

Transport position

A unique folding system enabling the machine with the working span up to 12.35 m to be folded to the transport width 3 m and height 4 m and thus complies with the regulations for vehicles operation on the public road.

Symmetrical arrangement of discs

The symmetrical arrangement of the discs eliminates lateral forces transmitted to the tractor.

Automatic side frame down-pressure

Side frames with hydraulic pressure perfectly follow uneven terrain.

Depth gauge

Easy to read during work from the tractor cabin.

Front working tools

Front working tools can be fixed in front of the work discs. Choose between Flexicut cutting rollers or Flexiboard front levelling bar.

High machine throughput

Hook tines increase the machine throughput.

Flipping transport axle

The flipping transport axle increases the pressure of the cultivating discs.

Rollers in one row

Rollers in one row ensure even soil compaction even in the corners and edges of the field and the possibility of fast turning on the headlands directly on the rollers.

Stable when crossing road

The rigid solid construction of the main frame and axle makes the machine very stable during transport. Pneumatic twin-hose brakes ensure a high degree of safety for fast efficient road transport.

Parameters

Technical parameters	Units	Softer 500 PRO	Softer 600 PRO	Softer 700 PRO	Softer 800 PRO
Working width	mm	4 930	5 900	6 850	7 560
Transport width	mm	3 000	3 000	3 000	3 000
Transport height	mm	2 700	3 180	3 660	4 000
Total machine length	mm	7 300	7 300	7 300	7 300
Working depth	mm	35–130	35–130	35–130	35–130
Number of discs – front row Number of discs – rear row	pcs	21 20	25 24	29 28	32 31
Diameter of discs	mm	530	530	530	530
Working performance	ha/h	4,9–7,4	5,9–8,9	6,9–10,3	7,6–11,3
Towing vehicle ¹	kW HP	130–190 175–255	150–225 200–300	175–260 240–360	200–300 270–405
Working speed	km/h	10–15	10–15	10–15	10–15
Maximum slope availability	°	6	6	6	6
Dimension of tyre - transport		19.0/45–17 14 PR	19.0/45–17 14 PR	19.0/45–17 14 PR	19.0/45–17 14 PR
Brake type / distribution ⁴		air / two-line	air / two-line	air / two-line	air / two-line
Required pressure	kPa	8,5	8,5	8,5	8,5
Number of hydraulic circuits / pressure ³	bar	3–6 / 200	3–6 / 200	3–6 / 200	3–6 / 200
Number of hydro-couples / type ³		6–12 / ISO 12,5	6–12 / ISO 12,5	6–12 / ISO 12,5	6–12 / ISO 12,5
Tractor hitch requirement		TBZ cat. 3; bottom hitch K80; lug Ø 50, 70 mm
Machine weigh ²	kg	5 600	6 400	7 300	8 200

Technical parameters	Units	Softer 1050 PRO	Softer 1250 PRO
Working width	mm	10 400	12 350
Transport width	mm	3 000	3 000
Transport height	mm	3 850	4 000
Total machine length	mm	7 900	7 900
Working depth	mm	35–130	35–130
Number of discs – front row Number of discs – rear row	pcs	44 45	52 53
Diameter of discs	mm	530	530
Working performance	ha/h	10,5–16	12–18
Towing vehicle ¹	kW HP	265–400 355–535	305–465 410–625
Working speed	km/h	10–15	10–15
Maximum slope availability	°	6	6
Dimension of tyre - transport		550/45-22,5	550/45-22,5
Brake type / distribution ⁴		air / two-line	air / two-line
Required pressure	kPa	8,5	8,5
Number of hydraulic circuits / pressure	bar	4 (6) / 200	4 (6) / 200
Number of hydro-couples / type		6 / ISO 12,5	6 / ISO 12,5
Tractor hitch requirement		TBZ cat. 3; bottom hitch K80; lug Ø 50, 70 mm
Machine weight ²	kg	13 000	13 800

¹ Recommended towing vehicle, the actual pulling force may significantly change according to the tilling depth, soil conditions, inclination of land, wear of working units and their adjustment.
² Machine weight with LTX roller.
³ According to the machine equipment.
⁴ Transport / brake system: Follow national provisions valid for transport of machines on public roads. Verify legal provisions valid in the country, regulations on maximum allowable total weights and axle loads and also on necessary possible use of the brake system. If you have any questions, please contact our sales representative.

Optional

Accessories

Rollers

Tube roller TRS

Diameter	600 mm
Weight	100 kg/m

Double roller DR

Diameter	400/350 mm
Weight	180 kg/m

Double ring roller DRR

Diameter	540/540 mm
Weight	195 kg/m

LTX roller

Diameter	586 mm
Weight	200 kg/m

Disc roller SDR

Diameter	580 mm
Weight	220 kg/m

V roller VR

Diameter	600 mm
Weight	175 kg/m

Double V-ring DVR

Diameter	600/600 mm
Weight	190 kg/m

Proper selection of the type of the rear roller contributing significantly to the final quality of the tillage is very important. The soil is recompacted by the roller and then it is the same way crumbled and levelled. The selection of the type of the roller depends on the soil type and on the manner of use of the machine.

Roller	Tube-shaped TRS	Double DR	Double ring DRR	LTX
Crumbling	●●○○	●●●○	●●●○	●●○○
Stamping	●●●○	●●●○	●●●●	●●●●
Depth guiding	●●●○	●●●●	●●●●	●●●●
Resistance against clogging	●○○○	●●●○	●●●●	●●●○
Suitability for stony soils	●●●○	●●●○	●●●○	●●●○
Suitability for wet soils	●○○○	●●○○	●●●●	●●●●
Heavy soils	●●○○	●●●●	●●●●	●●●●
Medium soils	●●●○	●●●●	●●●●	●●●●
Light soils	●●●●	●●●●	●●●●	●●●○

Roller	Disk SDR	VR	Double V-ring DVR
Crumbling	●●●○	●●●○	●●●○
Stamping	●●●●	●●●●	●●●●
Depth guiding	●●●●	●●●●	●●●●
Resistance against clogging	●●●○	●●●●	●●●●
Suitability for stony soils	●●●○	●●●○	●●●○
Suitability for wet soils	●●●●	●●●●	●●●●
Heavy soils	●●●●	●●●●	●●●●
Medium soils	●●●●	●●●●	●●●●
Light soils	●●●○	●●●●	●●●●
