| 1 | Basic soil levelling zone. Precisely levelled soil surface allows uniform subsequent compaction and cultivation a seedbed. |
| 2 | Soil pre-processing zone. The pre-processing of the soil can be made with various working tools, either over the entire sowing depth or in zones up to 25 cm. Soil pre-processing ensures aeration, levelling and optimum cultivation. There is also optimal spreading of crop residues. |
| 3 | Fertilizer storage zone. Granular fertilizers are placed in the root zone of future plants, either directly below each row or between two rows. Depth of fertilizer can be 6–25 cm depending on used section. |
| 4 | Seedbed formation and seed placement zone. The double disc seeding coulters effectively create a compacted seedbed (V-groove) and precisely deposit the seed to the required depth. Thanks to the high down-pressure, up to 70% of the weight of the machine can be transferred to the seeding coulters. The compacted seedbed and V-groove ensure excellent seed contact with soil and soil water. |
| 5 | The side seed press zone. The copy wheel compresses the V- groove with the seed, causing the seed to squeeze sideways to the soil. There is loosened space above the seed for easy emergence of plants. |
| 6 | Seed cover and soil levelling zone. The integrated harrow ensures excellent seed coverage and precise soil surface levelling. |
Falcon SW is a modular carrier consisting of a single-chamber hopper with the capacity of 4 / 6 m3 (or a two-chamber hopper with the capacity of 6 / 8 m3), a metering device, a fan, a simple transport axle, a control unit and a three-point hitch that allows the connection of various mounted devices. Falcon SW can also be connected to a wide seeding section for sowing narrow-row crops, a mounted seed drill for sowing wide-row crops.
Falcon SW can also be equipped with an optional pre-processing section, just like the modular Falcon Seed Drill. The sections can be replaced according to the selected technology.
Falcon SW is a modular carrier consisting of a single-chamber hopper with the capacity of 4 / 6 m3 (or a two-chamber hopper with the capacity of 6 / 8 m3), a metering device, a fan, a simple transport axle, a control unit and a three-point hitch that allows the connection of various mounted devices. Falcon SW can also be connected to a wide seeding section for sowing narrow-row crops, a mounted seed drill for sowing wide-row crops.
Falcon SW can also be equipped with an optional pre-processing section, just like the modular Falcon Seed Drill. The sections can be replaced according to the selected technology.
The minimum number of adjustment and lubrication points makes the operation, control as well as subsequent maintenance a very simple task that anyone can manage.
| Technical Parameters | Units | Falcon SW |
|---|---|---|
| Transport width | cm | 300 |
| Transport height | cm | 290─400 |
| Total machine length | cm | 750 |
| Hopper capacity without fertilization | l | 4 000 / 6 000 |
| Hopper capacity with fertilization (ratio 40:60) |
l | 6 000 / 8000 |
| Hopper filling height | cm | 265 |
| Dimensions of the filling opening without fertilization / with fertilization | cm | 200 x 52 / 120 x 52 |
| Working speed | km/h | 10─20 |
| Maximum slope availability | ° | 6 |
| Dimension of tyre - transport | 700/50-22,5 | |
| Type of brake / distribution 1, 2 | air / double-hose | |
| Required pressure 1 | kPa | 8,5 |
| Number of hydraulic circuits / pressure | bar | 4 / 200 |
| Number of hydraulic couplers / type | 6 / ISO 12,5 | |
| Non-pressure return line (max. 5 bar) | 1 / ISO 20 | |
| Oil flow of hydraulic fan | l/min | 30─40 |
| Oil flow for machine control | l/min | 50─60 |
| Electric system requirement | 12 V DC / 40 A | |
| Tractor hitch requirement | TPH cat. 3 | |
| Machine weight | kg | 6 500─7 140 |
1 Hydraulic brake alternative / operating pressure 130 ± 5 bar.
2 Transport / brake system: Follow national provisions valid for transport of machines on public roads. Verify legal provisions valid in the country, regulations on maximum allowable total weights and axle loads and also on necessary possible use of the brake system. If you have any questions, please contact our sales representative.
| Technical parameters | Units | |||
|---|---|---|---|---|
| Working width of section | m | 6 | 8 | 9 |
| Number of drill coulters Spacing 12,5 / 25 cm |
pc | 48 | 64 | 72 |
| Number of drill coulters Spacing 15 / 30 cm |
pc | 40 | - | 60 |
| Number of drill coulters Spacing 15,4 / 30,8 cm |
pc | - | 52 | - |
| Number of drill coulters Spacing 16,7 / 33,4 cm |
pc | 36 | 48 | 54 |
| Number of coulters for additional fertilisation Spacing 25 cm |
pc | 24 | 32 | 36 |
| Number of coulters for additional fertilisation Spacing 30 / 30,8 cm |
pc | 20 | 27 | 30 |
| Number of coulters for additional fertilisation Spacing 33,4 cm |
pc | 18 | 24 | 27 |

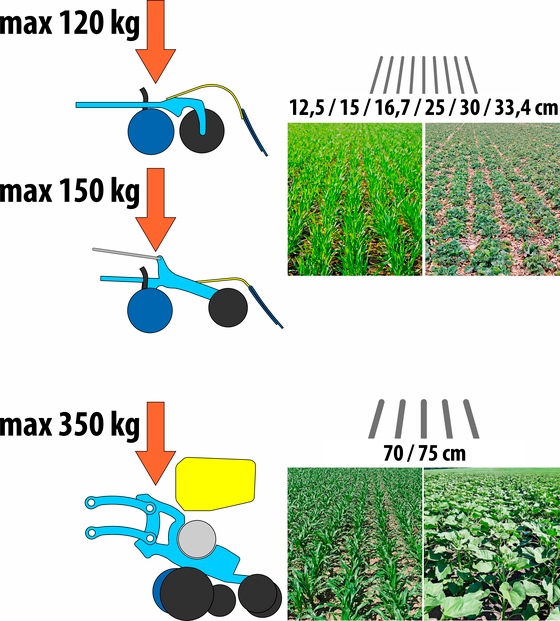

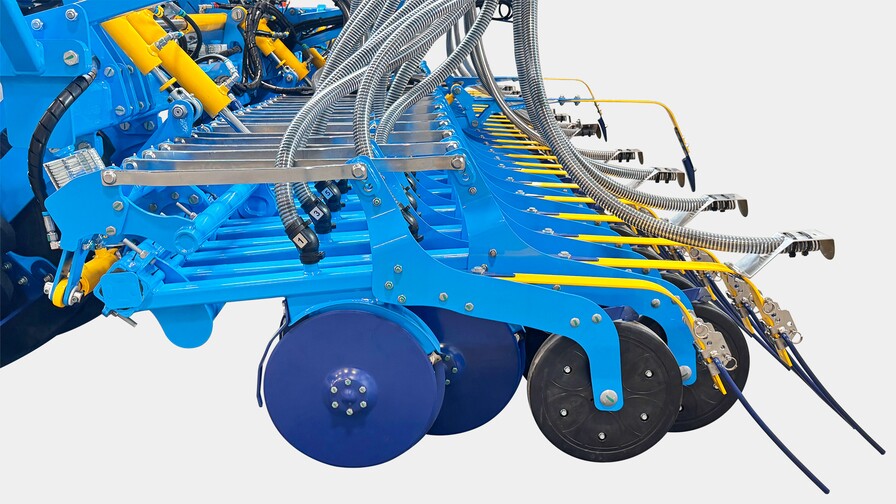

| Coulter pressure – oscillating Coulter pressure – parallelogram |
kg | 15–120 15–150 |
15–120 15–150 |
15–120 15–150 |
| Fertilizer coulter pressure | kg | to 200 | to 200 | to 200 |
| Diameter of sowing disc of two-disc coulter / pressure wheel | cm | 35,5 / 33 | 35,5 / 33 | 35,5 / 33 |
| Technical parameters | Units | ||
|---|---|---|---|
| Number of sowing units | pc | 6 | 8 |
| Working width | cm | 420 / 450 | 560 / 600 |
| Spacing of sowing units | cm | 70 / 75 | 70 / 75 |
| Hopper volume - 1 sowing coulter | l | 35 | 35 |
| Pressure of drill coulters | kg | 350 | 350 |
| Diameter of sowing discs | cm | 39 | 39 |

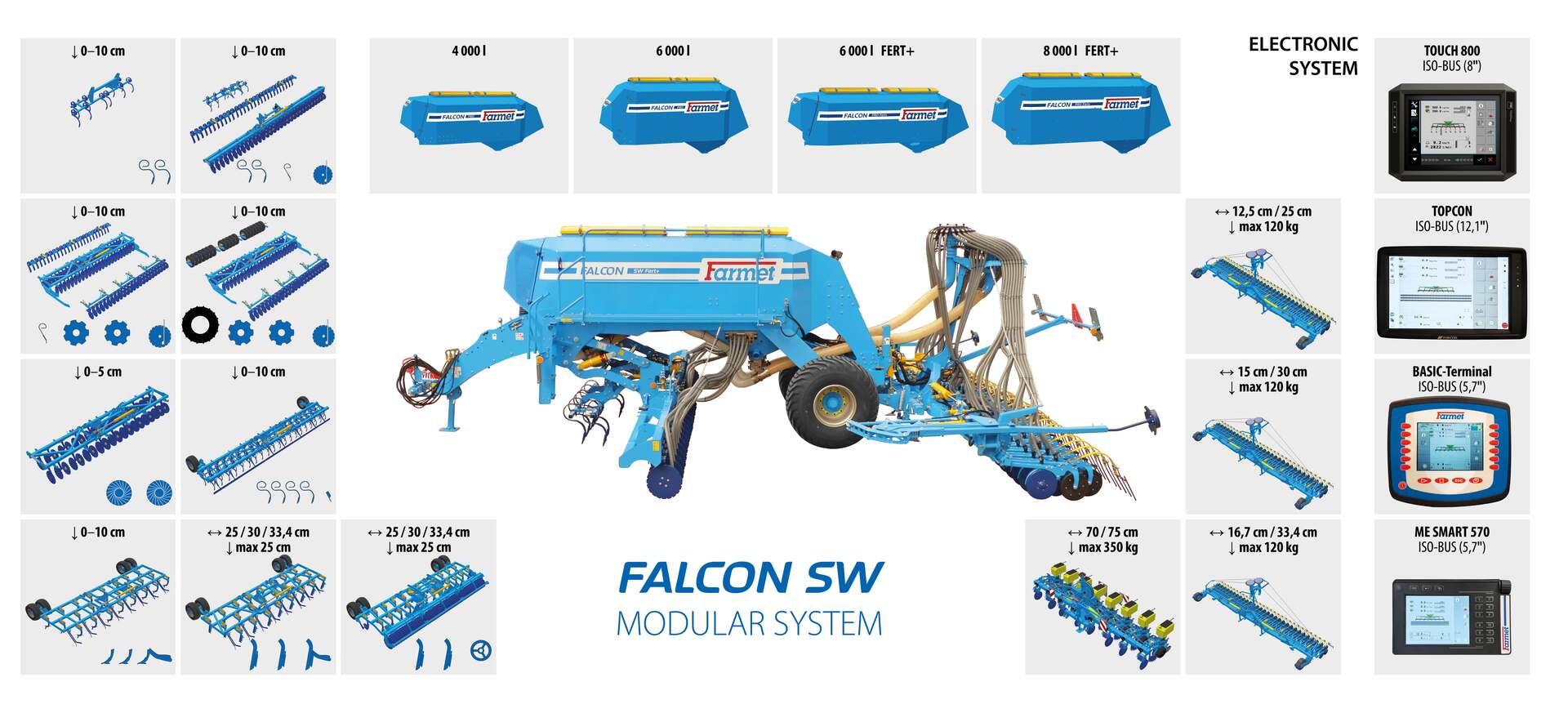

You can choose from a wide offer of versions in each working section according to the selected sowing or cultivating technology with fertilizer application. You can choose the size of the bin, pre-processing section, sowing section as well as cultivating section.

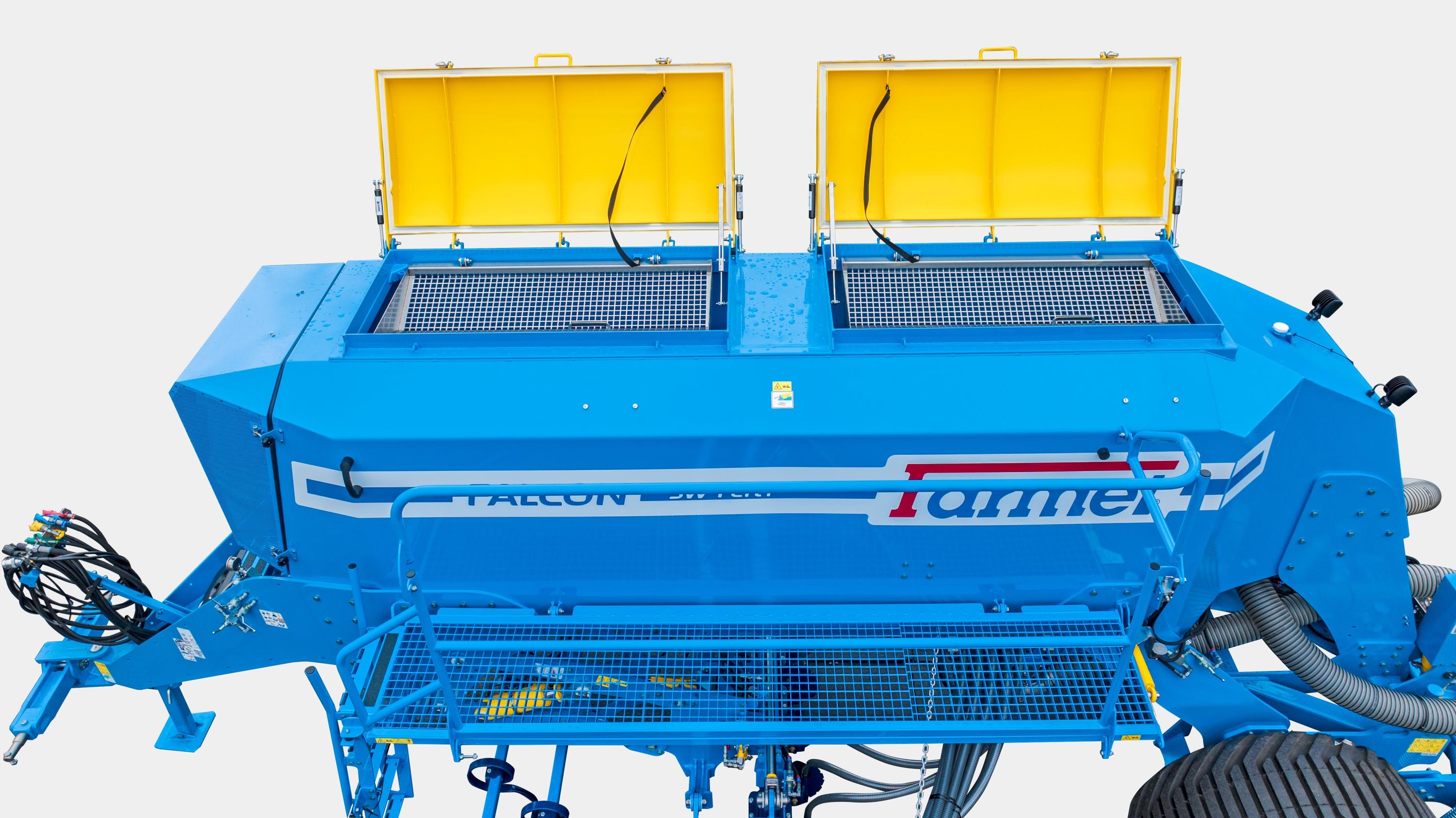

Large hopper
Hopper with capacity of 4 / 6 m3, a two-chamber hopper with capacity of 6 / 8 m3 can be supplied upon request, seeds and fertilizer distribution 60:40.
Connection via three-point hitch, cat. 3.

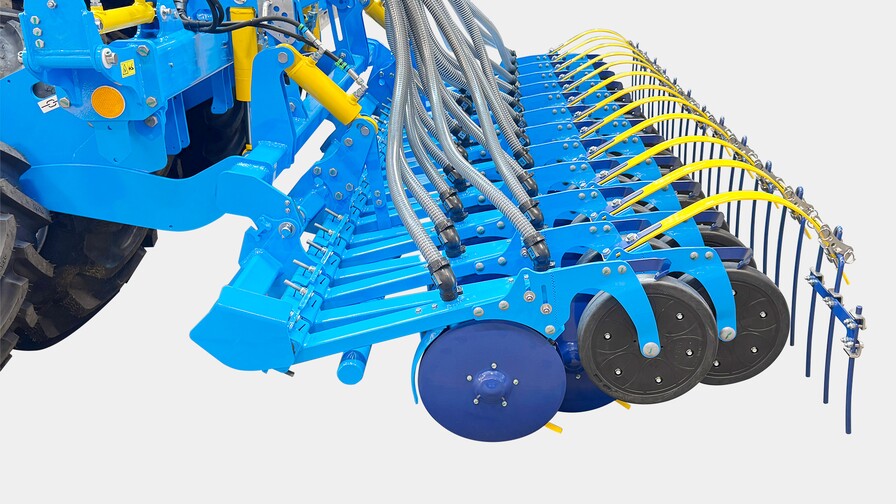

Double-disc sowing section (spacing 12,5 / 15 / 16,7 cm), up to the width of 9 meters
Spacing 12,5 / 15 / 16,7 cm – suitable for sowing cereals, legumes
Double-disc sowing section (spacing 25 / 30 / 33,4 cm), up to the width of 9 meters
Spacing 25 / 30 / 33,4 cm – in combination with the pre-processing three-row chisel section STRIP TILL, it is suitable for strip soil tillage, sowing with fertilization in a single line up to the depth of 25 cm. Ideal for sowing winter rape.
Precise sowing of wide-row crops, working width 6 / 8 rows at spacing of 70 / 75 cm
For sowing wide-row crops (corn, sunflower). With possibility of fertilization on both sides of the row.
The Falcon SW Modular Seed Drill allows for work without the front pre-processing section. A pre-processing section can be installed upon request.
Pre-processing disc section for full-area soil processing
A universal working section, soil processing up to the seedbed depth, max. 10 cm. Possibility to combine with the front Flexi-board paddle leveller.
Flexi-board – front paddle leveller
For uniform spreading of clods and crop residue along the entire machine width.
Pre-processing 4-row chisel section for full-area soil processing
Mainly suitable for wet conditions – sowing spring crops.
Pre-processing 2- row chisel section (spacing 25 / 30 / 33,4 cm), for STRIP-TILL technology + disk roller, diameter 58 cm
Strip-till loosening with the option of additional fertilization using granulated fertilizers up to the depth of 25 cm.
| Main Crops | Front Pre-processing Section | Rear Sowing or Processing Section | Additional Fertilization | |
|---|---|---|---|---|
 |
cereals legumes |
no pre-processing section disc section disc section + Flexi-board Flexi-board 4-row chisel section |
double-disc sowing section for sowing narrow-row crops (spacing 12.5 / 15 / 16.7 cm) |
YES |
 |
corn sunflower |
no pre-processing section disc section disc section + Flexi-board Flexi-board 4-row chisel section |
precise sowing of wide-row crops |
YES |
 |
winter rape |
STRIP chisel section |
double-disc sowing section with sowing in line of soil processing (spacing 25 / 30 / 33.4 cm) |
YES |

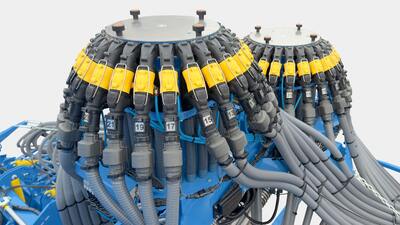

Seed counting and sowing control for each individual coulter.
| Equipment | |
|---|---|
| Display Dimensions | 11" |
| Seed Passing Sensor Control | OK |
| Hopper Level Reading | OK |
| Fan Speed Reading | OK |
| Dispenser Speed Reading | OK |
| Motor Speed Reading | OK |
| Number of Motors (Dispensing) | |
| Tramline Flap Control | OK |
| Seed Drill Position Display | OK |
| Work Lighting Control | OK |
| Hopper Lighting Control | OK |
| Marker Control | OK |
| Pre-emergent Marking Control | OK |
| Adding Seed Batch during Work | OK |
| Micro Seeding | OK |
| Simultaneously Running Screens | |
| Camera Input | OK |
| GSM Modem | OK |
| Equipment | |
|---|---|
| Display Dimensions | 12,1" |
| Seed Passing Sensor Control | OK |
| Hopper Level Reading | OK |
| Fan Speed Reading | OK |
| Dispenser Speed Reading | OK |
| Motor Speed Reading | OK |
| Number of Motors (Dispensing) | 3 |
| Tramline Flap Control | OK |
| Seed Drill Position Display | OK |
| Work Lighting Control | OK |
| Hopper Lighting Control | OK |
| Marker Control | OK |
| Pre-emergent Marking Control | OK |
| Adding Seed Batch during Work | OK |
| Micro Seeding | OK |
| Simultaneously Running Screens | 5 |
| Camera Input | OK |
| GSM Modem | for a fee |
| Equipment | |
|---|---|
| Display Dimensions | 8" |
| Seed Passing Sensor Control | OK |
| Hopper Level Reading | OK |
| Fan Speed Reading | OK |
| Dispenser Speed Reading | OK |
| Motor Speed Reading | OK |
| Number of Motors (Dispensing) | 3 |
| Tramline Flap Control | OK |
| Seed Drill Position Display | OK |
| Work Lighting Control | OK |
| Hopper Lighting Control | OK |
| Marker Control | OK |
| Pre-emergent Marking Control | OK |
| Adding Seed Batch during Work | OK |
| Micro Seeding | OK |
| Simultaneously Running Screens | 2 |
| Camera Input | OK |
| GSM Modem | x |
| Equipment | |
|---|---|
| Display Dimensions | 5,7" |
| Seed Passing Sensor Control | OK |
| Hopper Level Reading | OK |
| Fan Speed Reading | OK |
| Dispenser Speed Reading | OK |
| Motor Speed Reading | OK |
| Number of Motors (Dispensing) | 3 |
| Tramline Flap Control | OK |
| Seed Drill Position Display | OK |
| Work Lighting Control | OK |
| Hopper Lighting Control | OK |
| Marker Control | OK |
| Pre-emergent Marking Control | OK |
| Adding Seed Batch during Work | OK |
| Micro Seeding | OK |
| Simultaneously Running Screens | 1 |
| Camera Input | x |
| GSM Modem | x |
| Equipment | |
|---|---|
| Display Dimensions | 5,7" |
| Seed Passing Sensor Control | OK |
| Hopper Level Reading | OK |
| Fan Speed Reading | OK |
| Dispenser Speed Reading | OK |
| Motor Speed Reading | OK |
| Number of Motors (Dispensing) | 3 |
| Tramline Flap Control | OK |
| Seed Drill Position Display | OK |
| Work Lighting Control | OK |
| Hopper Lighting Control | OK |
| Marker Control | OK |
| Pre-emergent Marking Control | OK |
| Adding Seed Batch during Work | OK |
| Micro Seeding | OK |
| Simultaneously Running Screens | 1 |
| Camera Input | x |
| GSM Modem | x |
| x | Not available |
| OK | Included |
Sowing of fine seeds.
