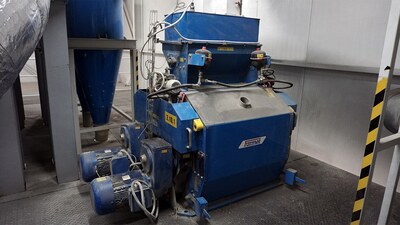

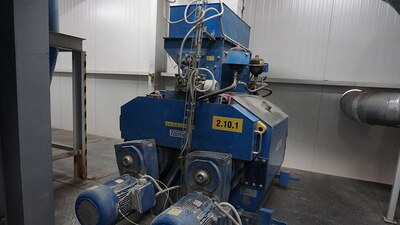

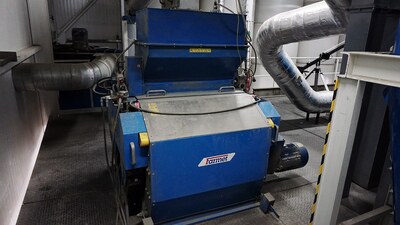

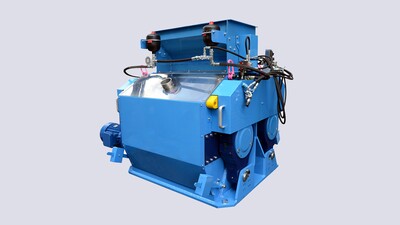

FP 4010

The flaking mill FP 4010 is based on an exceptionally robust design, which guarantees its durability and long service life as well as reducing unwanted vibrations. A notable advantage of this machine is the simple regulation of the pressing force that acts upon the seed; this allows optimized force for each seed type. The force is regulated via altering pre-set hydraulic components.

Technology Description

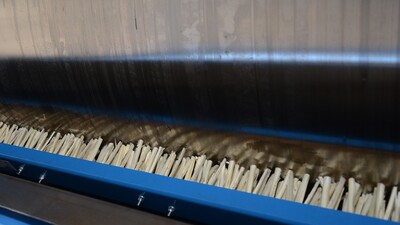

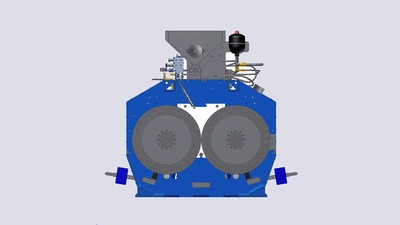

The main components of the flaking mill are cylinders. These are made of a special alloy with solid surface, which protects the cylinders from wear and tear and thus extends their service life. The flaking mill runs problem-free, which is ensured by an integrated magnetic separator for the capture and removal of potential metallic particles that can occur in the material. Another reliability-increasing component is the integrated cleaning brushes, which make sure that the cylinders are always clean, leading to a continuous flaking without unwanted interruptions.

Technical Parameters

The flaking mill FP 4010 is characterized by small dimensions and a performance of 4,000 kg per hour. It is suitable for both rapeseed and sunflower seed and soya.


The flaking mill can be supplemented with a spectrum of hoppers, conveyors and equipment for treatment and storage of the material. The best solution is usually our turnkey delivery, which fulfils your requirements and guarantees a solution optimized from both the technical and economic perspectives, as well as comprehensive automatization.
