IMPACT PS Planter

1	Fertilizer placement zone. Fertilizer is placed about 5 cm next to the seed in depth of 6–12 cm. While the fertilizer is being placed, the seedbed is also partially compacted.
2	Crop residue spreading zone. The clearing stars efficiently remove crop residue from the surface for seeding.
3	Seedbed formation and seed placement zone. The double disc coulters efficiently create a compacted seedbed (V-groove) and place the seeds precisely at the required depth. Due to the high down-pressure, the seeding coulters can carry up to 70% of the machine weight. The compacted seedbed and V-groove provide excellent contact of the seed with soil and soil water.
4	Zone for pressing the seed into the V-groove and its stabilization in the precise place.
5	Side seed compression zone. The press roller presses the V-groove with the seed, due to which the seed is pressed into the soil on the side. A loose area for easy crop emergence stays above the seed.

Electronic seed monitoring system

Variable Dosing of Fertilizer and Seed

Examples of possible configurations

Planter Impact 8 PS

High-strength refined materials in connection with eXtra STEEL line technology guarantee long service life of our machines even in the most difficult conditions.

---



Impact is designed for precision sowing of wide-row crops (maize, sunflower, oilseed rape) with the option of applying granular fertilisers.

High stability of the seed coulters and precise seed placement.

Precise fertiliser placement below the seed, even in difficult conditions

High performance and work quality

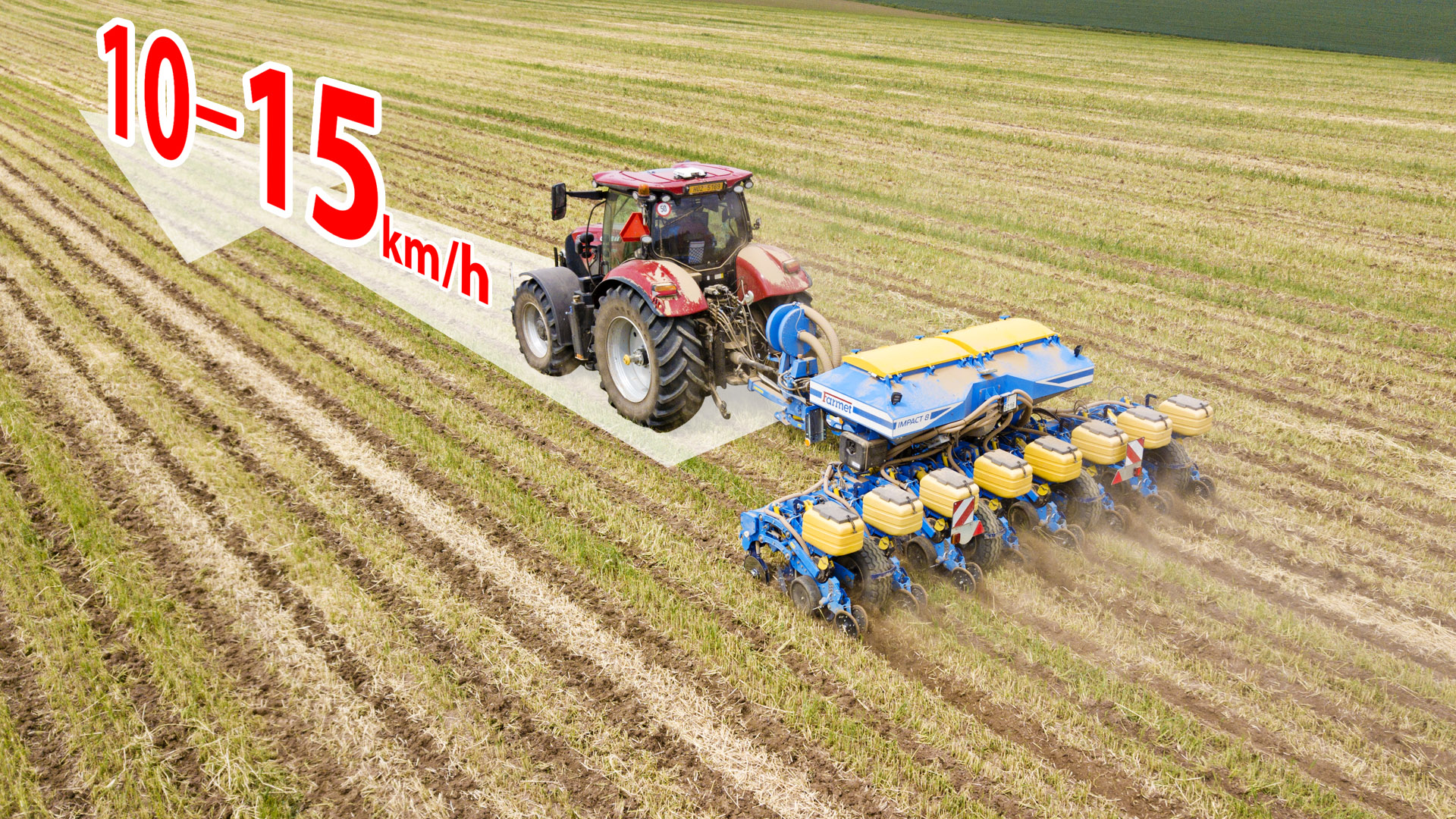

• High working speed of 10–15 km/h, high sowing reliability.
• Highly advanced electronic control system for monitoring each seed individually.
• Electronic control of all machine functions during operation – ISOBUS system.
• Fertilisation with disc units.
• Strip tillage and seedbed preparation.

Sowing into prepared soil after ploughing (conventional technology)

Sowing into prepared soil after loosening

Strip-till technology – sowing into loosened strips

Robust design

Support wheels

Driving on its own wheels does not put additional load on the tractor.

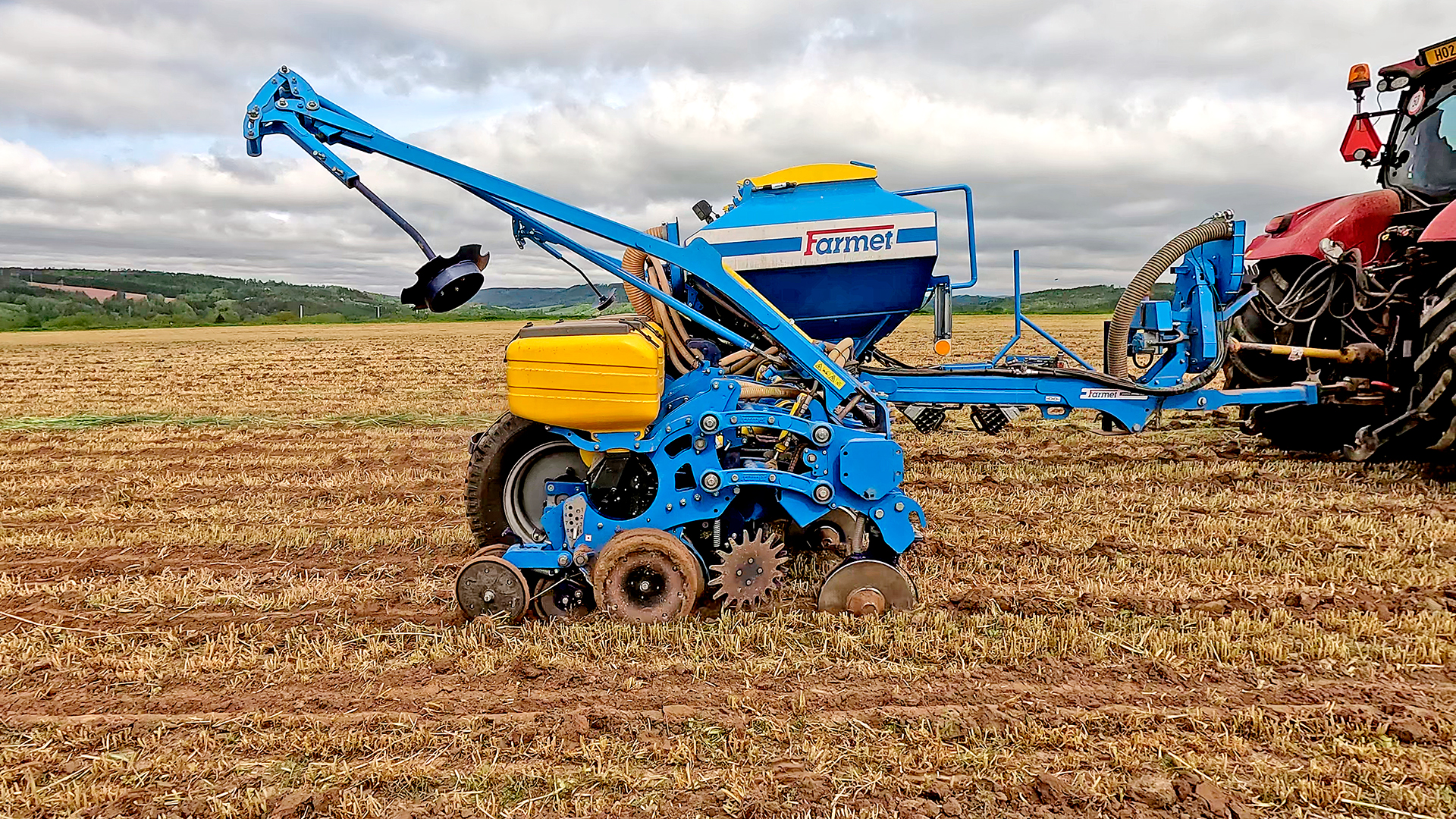

Double-disc seed units

Proven seed units with hydraulic downforce of up to 350 kg per unit.

Spring-mounted parallelogram

Prevents any potential vibrations from being transferred to the seed unit.

Hydraulic block

Tractor connection with two hydraulic circuits.

Folding system

Folding from 6 m to 3 m. Complies with the road transport width.

Precision sowing of wide-row crops

Precision sowing of wide-row crops with a row spacing of 70 or 75 cm.

Precise seed metering

Precise seed metering ensured by a proven metering unit.

High coulter pressure: up to 350 kg

Easy operation

Fertiliser placement depth adjustment

Adjustment using clips on the support wheels.

Sowing depth adjustment

Adjustment using a pin on the seed unit.

Folding platform

Easy access to the fertiliser hoppers during filling.

Hydraulically operated markers

Hydraulically operated markers with mechanical overload protection (shear bolt).

Quick-release fertiliser coulter system

Possibility of sowing with or without fertiliser.

Fertiliser pressurised metering system

Fertiliser application rate of 40–250 kg/ha, easily adjustable using interchangeable rollers. Electronically controlled metering.

Combined fertiliser and seed delivery system

Pressurised fertiliser metering system, vacuum seed metering system.
