Technology

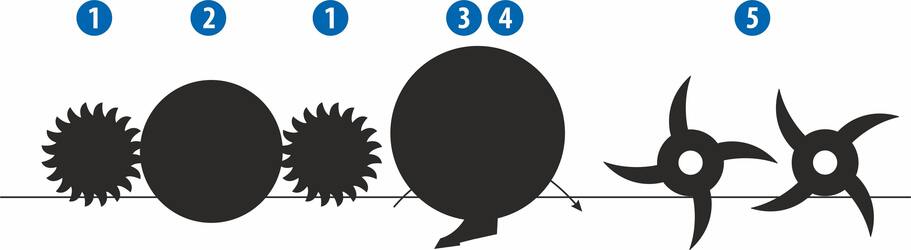

Strip-till cultivator Strip-Till

1 Crop residue disruption zone. Crop residue is effectively lifted into the inter-strips. The first row of disc harrows is optional equipment.
2 Cutting zone. A disc with a perpendicular angle setting cuts through the layer of the soil profile.
3 Loosening and fertilizer placement zone. Loosening to a depth of 20–35 cm using chisels with special geometry ensures the formation of wide loosened strips. Granular fertilizers are placed in these loosened strips at two depths.
4 Strip forming zone. Large side discs ensure efficient forming of loose strips while increasing the quality of crumbling clods.
5 Final clod crumbling and soil reconsolidation zone. Optimum soil reconsolidation ensures good water infiltration and soil moisture rise.

Technics

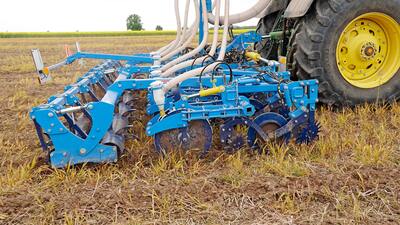

Strip-till cultivator Strip-Till

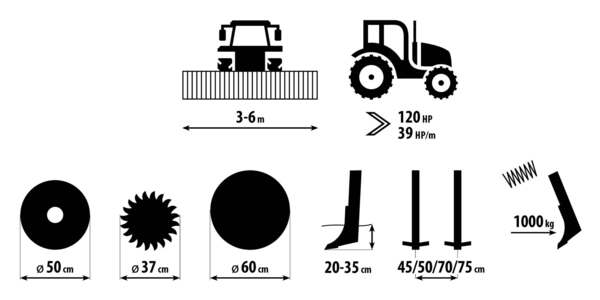

  1. The front disc Ø 500 mm with the vertical angle cuts through the layer of crop residues. The spreading disk Ø 370 mm places crop residues into inter rows.
  2. The spreading disk Ø 370 mm places plant residues into inter-rows.
  3. The massive share (with side discs, Ø 600 mm) loosens soil in a strip up to the depth of 35 cm.
  4. The double rear spiked roller crushes clods and compacts the top layer of the cultivated row.

Provides several operations in a single pass – places crop residues into interrows, loosens soil up to the depth of 35 cm where fertiliser can be applied at two depth levels, crushes any potential clods and then compacts the processed strip.

Soil processing up to the depth of 35 cm

The construction of the frame and working parts is designed for processing soil up to the depth of 35 cm. The robust share enters the depth of soil to loosen it and process it in the form of a strip.

High Performance and Labour Quality

  • Due its design and low tractive resistance allows for high working speed
  • Due its design and low tractive resistance allows for high working speed

Parameters

Technical Parameters Units Strip-Till 4 Strip-Till 6 Strip-Till 8 Strip-Till 12 FIX
Working width mm 3 000 (2 800) 4 500 (4 200) 6 000 (5 600) 6 000 (5 400)
Transport width mm 3 000 (2 800) 3 000 (2 800) 3 000 (2 800) 6 000 (5 400)
Transport height mm 2 500 2 600 3 350  2 500
Total length of the machine mm 3 000 3 050 3 050 3 050
Working depth mm 200─350 200─350 200─350 200─350
Tine spacing mm 500 (450)
750 (700)
500 (450)
750 (700)
500 (450)
750 (700)
500 (450)
Number of tines pcs 4 6 8 12
Working capacity ha/h 2,4─3,6 3,6─5,4 4,8─7,2 4,8─7,2
Towing vehicle 1 kW
HP
90─150
120─200
135─225
175─300
180─300
235─400
180─300
235─400
Working speed km/h 8─12 8─12 8─12 8─12
Maximum transport speed 3 km/h 20 20 20 20
Tractor hitch requirement   TPH cat. 3 TPH cat. 3 TPH cat. 3  TPH cat. 3
Machine weight 2 kg 1 650 2 900 3 700  4 460

1 Recommended towing vehicle, the actual pulling force may significantly change according to the processing depth, soil conditions,  sloping of land, wear of working members and their adjustment.
2 Weight without fertilizer distribution and Microdrill.
3 Transport / brake system: Follow national provisions valid for transport of machines on public roads. Verify legal provisions valid in the country, regulations on maximum allowable total weights and axle loads and also on necessary possible use of the brake system. If you have any questions, please contact our sales representative.

Optional

Photo gallery

Video

Files

Accessories

Chisels

Shares
Share width 206 mm
Share body hardness up to 48 HRC
Widia plate hardness up to 92 HRA
Hardness of hard facing up to 60 HRC
Shares
Share width 25 mm
Wing width 100 mm
Share body hardness up to 48 HRC
Hardness of hard facing up to 60 HRC
Shares
Share width 25 mm
Wing width 100 mm
Share body hardness up to 48 HRC
Widia plate hardness up to 92 HRA
