Tine cultivator Fantom



Technology

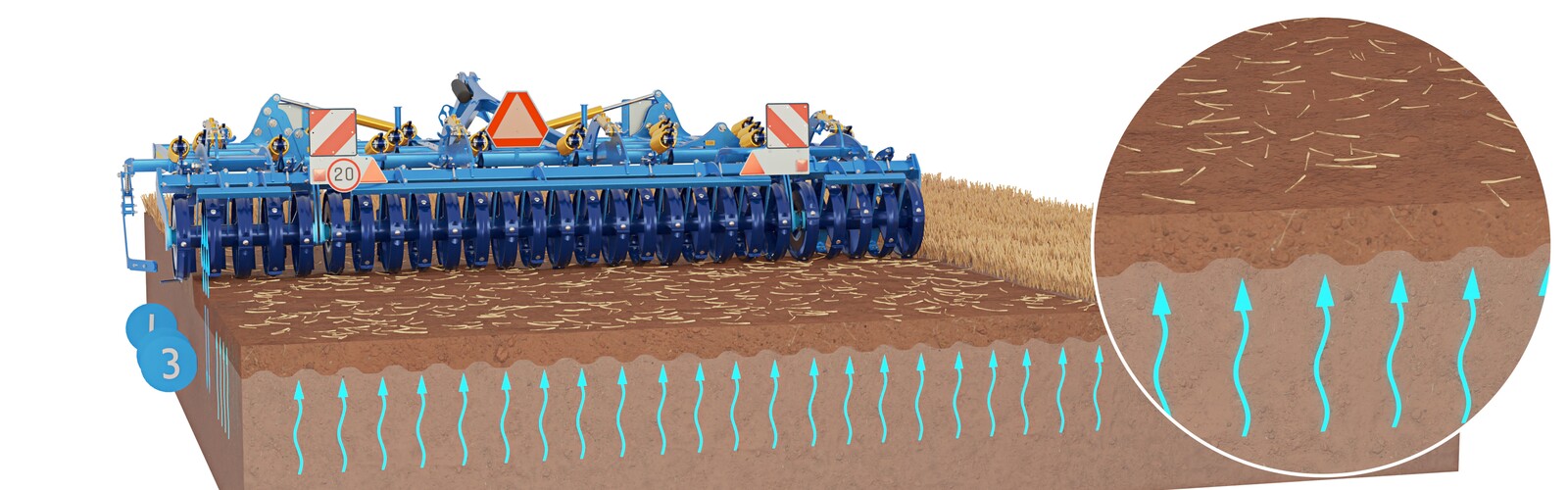

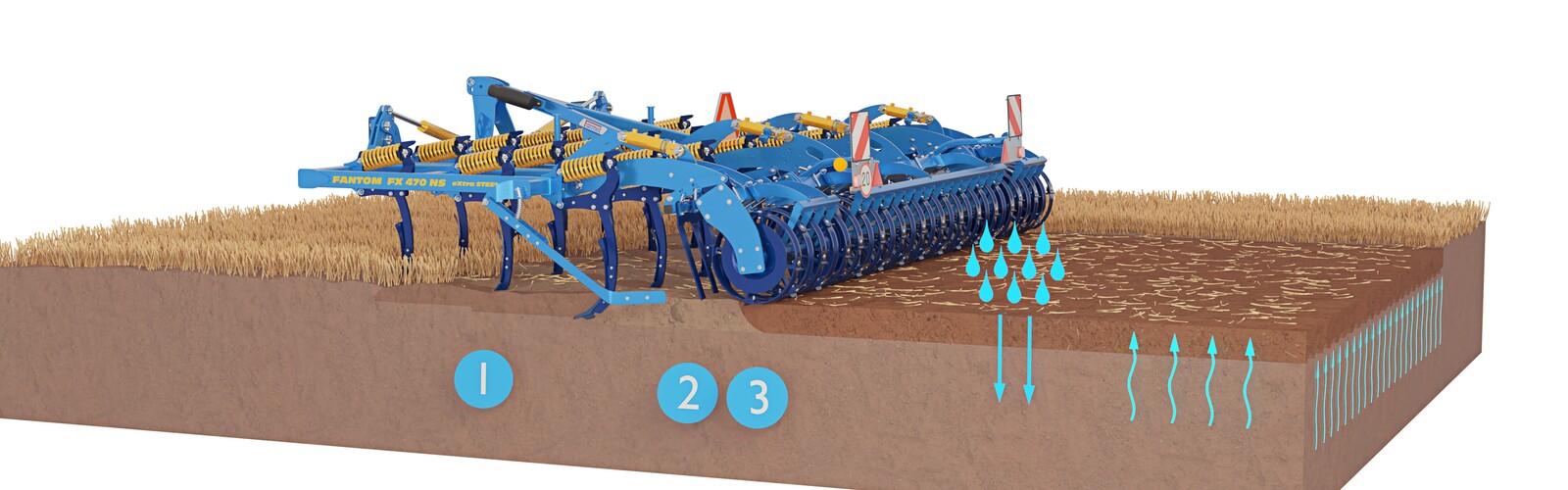

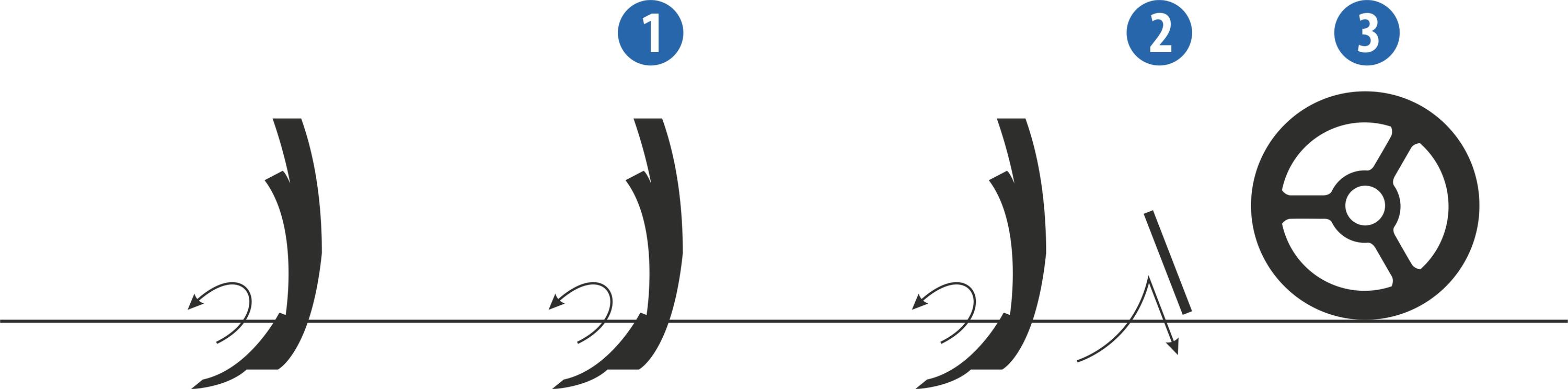

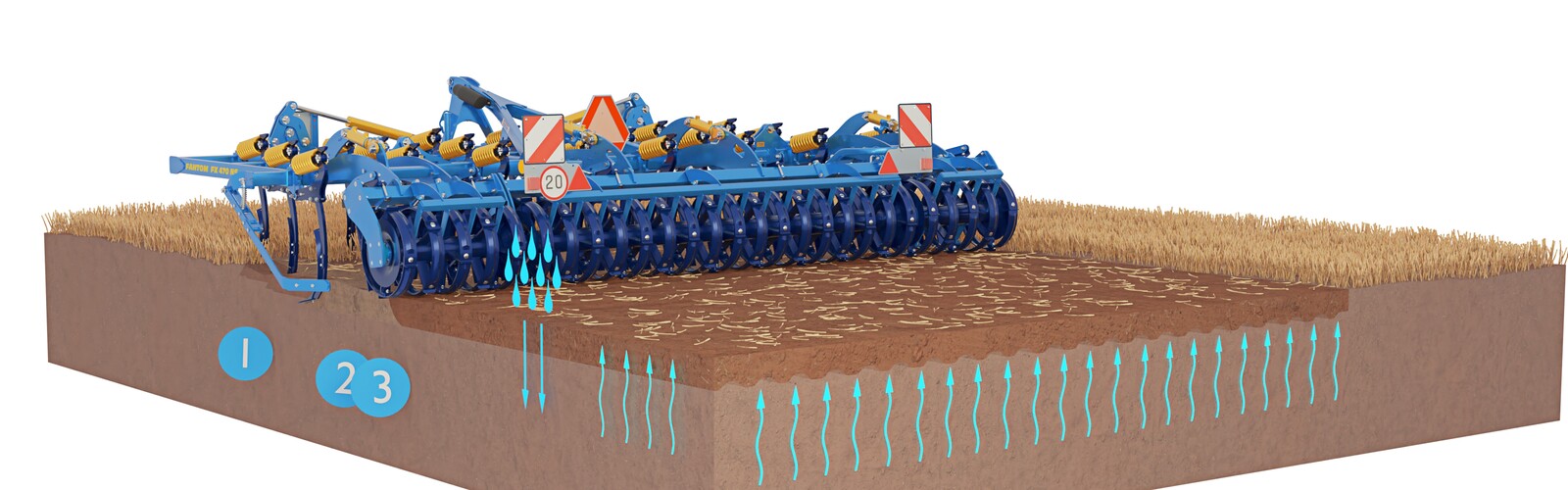

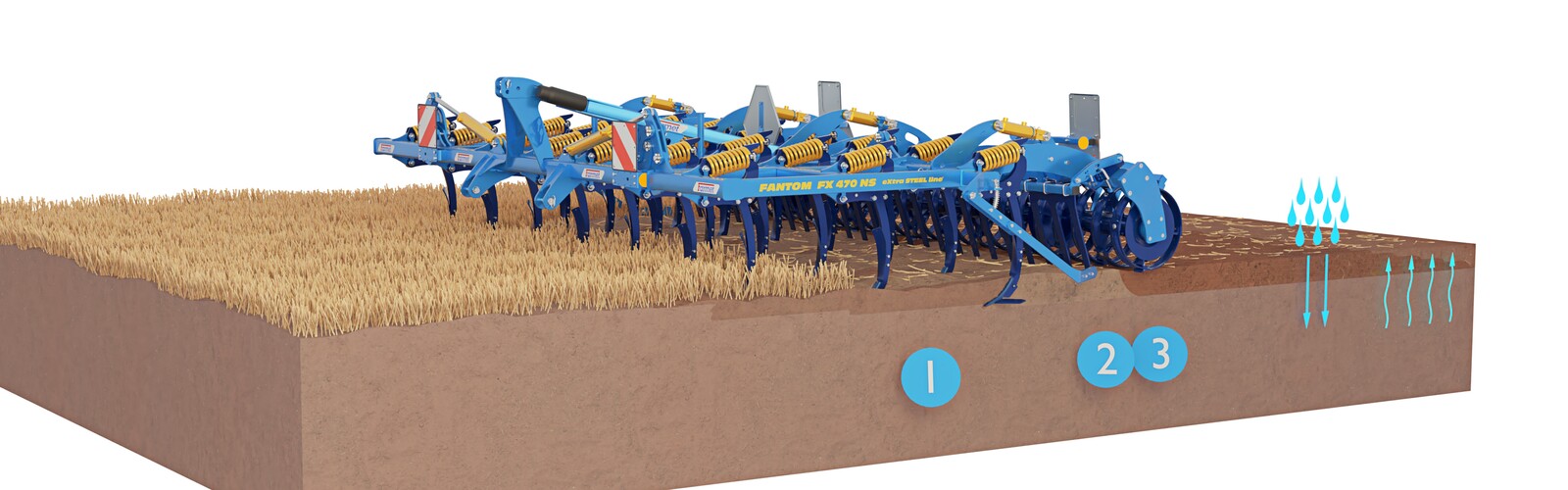

1 Tillage zone. Tillage depth 4–15 cm. The tines arranged in three rows with optimized geometry and small final spacing ensure excellent full-surface  tillage and intensive mixing soil with crop residues.
2 Furrow-levelling zone. Levelling elements also increase the spreading out of crop residues.
3 Clods crumbling and soil compaction zone. Optimal soil re-compaction ensures good water infiltration and soil water capillarity to the surface.

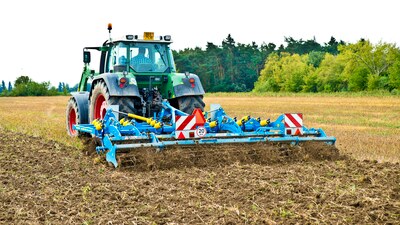

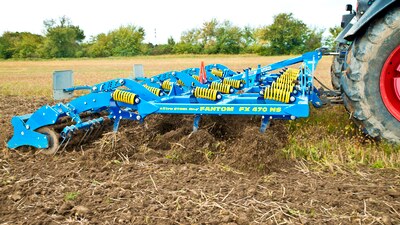

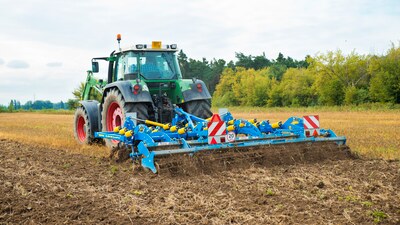

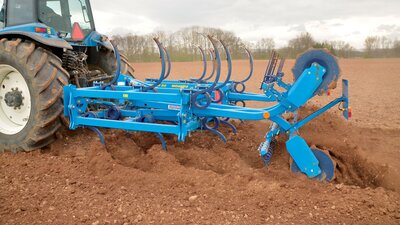

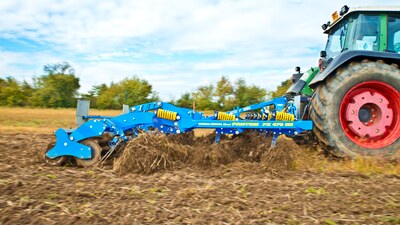

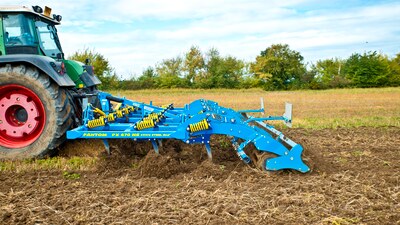

The Cultivator Fantom N/NS is a mounted machine with three rows of tines suitable for full-surface after harvest stubble cultivation with intensive mixing effect.

The complex machine can be used for stubble cultivation and pre-sowing tillage

There is the asymmetric bar harrow for levelling the surface behind tines. The harrow is characterized by efficient levelling effect and high throughflow for crop residues. The tube roller ensures optimal soil re-compaction and also precise deep guiding of the machine.

Universal machine with a low purchase price and high utility value

Due to its design, the Fantom cultivator is very versatile and can be used both for stubble-cultivation and pre-sowing tillage, as well as for incorporation manure. Low machine weight decreases loading of the rear tractors parts during transportation. Due to its simple and robust design, the Fantom cultivator offers optimal compromise between the purchase price and utility value.

The Cultivator Fantom N/NS is a mounted machine with three rows of tines suitable for full-surface after harvest stubble cultivation with intensive mixing effect.

The complex machine can be used for stubble cultivation and pre-sowing tillage

There is the asymmetric bar harrow for levelling the surface behind tines. The harrow is characterized by efficient levelling effect and high throughflow for crop residues. The tube roller ensures optimal soil re-compaction and also precise deep guiding of the machine.

Universal machine with a low purchase price and high utility value

Due to its design, the Fantom cultivator is very versatile and can be used both for stubble-cultivation and pre-sowing tillage, as well as for incorporation manure. Low machine weight decreases loading of the rear tractors parts during transportation. Due to its simple and robust design, the Fantom cultivator offers optimal compromise between the purchase price and utility value.

High performance

  • High working speed up to 12 km/h.
  • Low pulling requirement and excellent mixing of the soil due to the tines optimized design.

High quality of work

  • Precise deep guiding with optimal soil compaction.
  • Excellent penetration of the tines into the soil.
  • Maintenance-free working units fitted with carbide plates for minimal wear.
  • The tines design ensures high throughflow for crop residues.

Technics

Tine cultivator Fantom N/NS

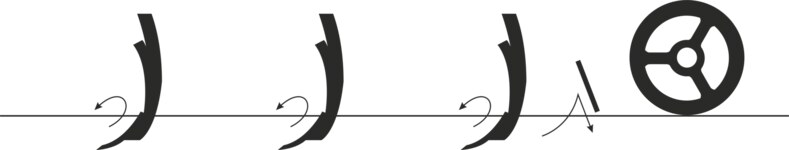

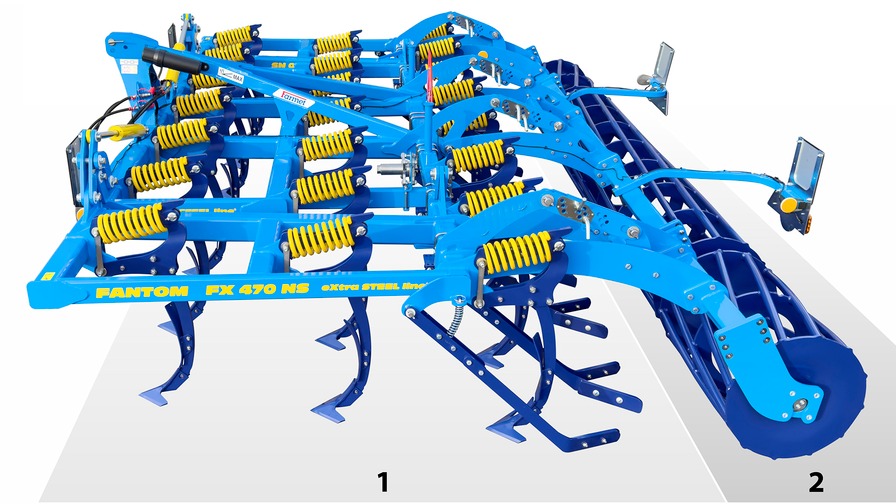

  1. The soil is tillaged by the tines arranged in three rows.
  2. The soil is compacted by the rear roller.

Robust design

High-strength refined materials in connection with eXtra STEEL line technology guarantee long service life of our machines even in the most difficult conditions.

Abrasion-resistant steel
The time-tested tines are made of high-strength abrasion-resistant steels fitted with carbide plates. The variant with hard facings along the guiding increases the lifespan of the tines even more.
Spring protection
Durable and maintenance-free spring protection with high release force of 310 kg on the tip of the tine.
Quick clamping system of chisels
The quick clamping system of chisels (wedge, bolt) enables very fast replacement of the chisels without loss risk of the working units.

Easy operation

Due to minimum adjusting and lubricating points the operation and subsequent maintenance are very easy steps that anybody can perform. Working depth adjustment or levelling harrows in this case is a simple mechanical adjustment of the machine.

  • Minimum lubrication points.
  • Minimum adjustment points.

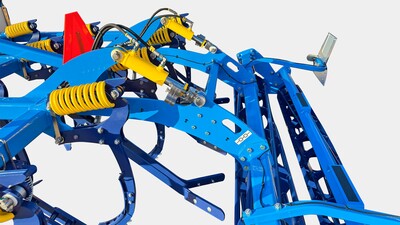

Working depth adjustment
Easy working depth adjustment by the pin on the rollers.

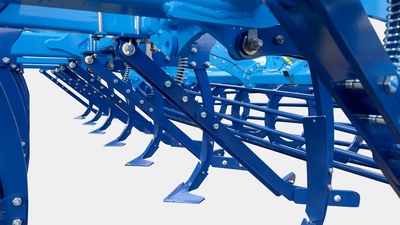

Harrows adjustment
Adjustment of levelling harrows by the pin.

Smartly performed designed machine

The advantage of this machine is its multipurposeness and adjustability bringing high work variability.

  • Skilful when working in the field due to a short and compact design.
  • Smooth position of the machine in the field due to a short compact design.
  • Possibility to work with folded machine.

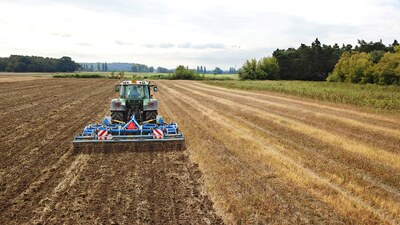

Working width 3 m
Work with folded machine.
Working width 4.7 m
Full working width.

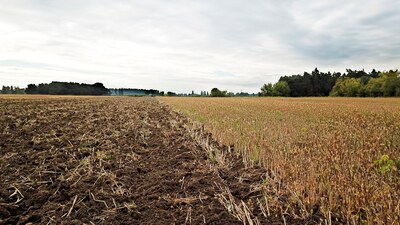

Full-surface stubble cultivation
When equipped with sided wings, it can be used for full-surface undercut up to the depth of 15 cm.

Parameters

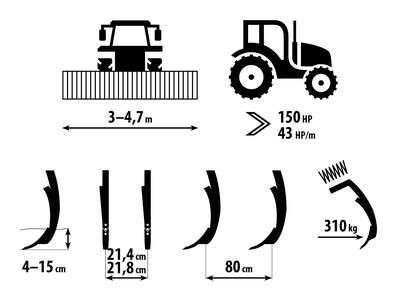

Technical parameters Units Fantom 300 N Fantom 350 N Fantom 470 NS
Working width mm 3 000 3 500 4 700
Transport width mm 3 000 3 500 3 000
Transport height mm 1 330 1 380 1 930
Total machine length mm 3 330 3 330 3 450
Working depth mm 40–150 40–150 40–150
Number of tines pcs 13 16 22
Tine spacing mm 218 214 214
Number of tine rows pcs 3 3 3
Row spacing mm 800 800 800
Release force of tines kg 310 310 310
Frame clearance mm  730 730 730
Working performance ha/h 2,4–3,6 2,8–4,2 3,7–5,5
Towing vehicle 1 kW
HP
95–165
130–225
110–180
150–240
150–225
200–300
Working speed km/h 8–12 8–12 8–12
Maximum transport speed 3 km/h 20 20 20
Maximum slope availability ° 6 6 6
Number of hydraulic circuits / pressure bar      1 / 200
Number of hydro-couples / type        2 / ISO 12,5
Tractor hitch requirement   TPH cat. 2 and 3 TPH cat. 2 and 3 TPH cat. 2 and 3
Machine weight 2 kg 1 200 1 350 2 000


1 Recommended towing vehicle, the actual pulling force may significantly change according to the tilling depth, soil conditions, inclination of land, wear of working units and their adjustment.
2 Machine weight with tube roller.
3 Transport / brake system: Follow national provisions valid for transport of machines on public roads. Verify legal provisions valid in the country, regulations on maximum allowable total weights and axle loads and also on necessary possible use of the brake system. If you have any questions, please contact our sales representative.

N - mounted machine
NS - mounted foldable machine

Optional

Photo gallery

Video

Files

Accessories

Rollers

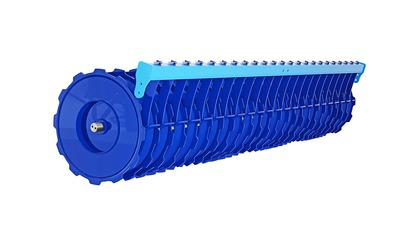

Disc roller SDR
Diameter 525 mm
Weight 170 kg/m

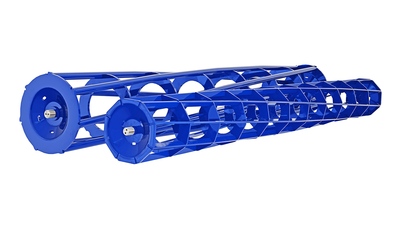

Double roller DR
Diameter 400/300 mm
Weight 135 kg/m
Ring roller RR
Diameter 520 mm
Weight 160 kg/m

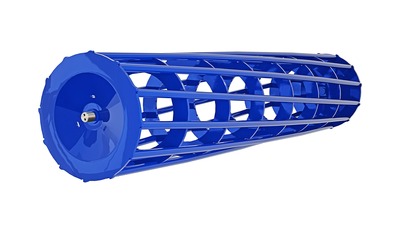

Tube roller TRS
Diameter 600 mm
Weight 100 kg/m

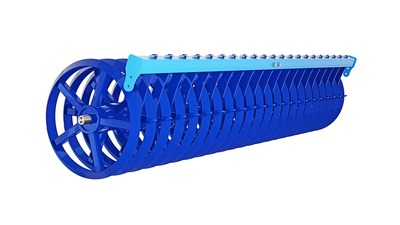

V roller VR
Diameter 550 mm
Weight 160 kg/m

Proper selection of the type of the rear roller contributing significantly to the final quality of the tillage is very important. The soil is recompacted by the roller and then it is the same way crumbled and levelled. The selection of the type of the roller depends on the soil type and on the manner of use of the machine.

Roller Tube-shaped
TRS
Double
DR

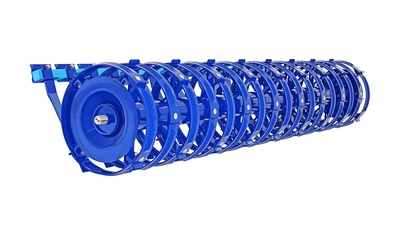

 Ring
RR
Disk
SDR
VR
Crumbling ●●○○ ●●●○ ●●●○ ●●●○ ●●●○
Stamping ●●●○ ●●●○ ●●●● ●●●● ●●●●
Depth guiding ●●●○ ●●●● ●●●● ●●●● ●●●●
Resistance against clogging ●○○○ ●●●○ ●●●● ●●●○ ●●●●
Suitability for stony soils ●●●○ ●●●○ ●●●○ ●●●○ ●●●○
Suitability for wet soils ●○○○ ●●○○ ●●●● ●●●● ●●●●
Heavy soils ●●○○ ●●●● ●●●● ●●●● ●●●●
Medium soils ●●●○ ●●●● ●●●● ●●●● ●●●●
Light soils ●●●● ●●●● ●●●● ●●●○ ●●●●

Working tools

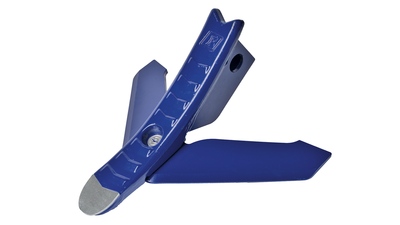

Chisel 50 CARBIDE
Chisel width 50 mm
Chisel thickness up to 55 HRC
Chisel body hardness up to 92 HRA
Hardness of hard facing up to 60 HRC
Chisel service life + 400-600 %
Chisel 50 MULTICARBIDE PRO
Chisel width 50 mm
Chisel body hardness up to 55 HRC
Widia plate hardness up to 92 HRA



40 CARBIDE share with exchangeable wings
Share width 280 mm
Share body width 43 mm
Share thickness 6 mm
Body hardness up to 55 HRC
Carbide plate hardness up to 92 HRA

For all-area undercutting

Chisel 50 MULTICARBIDE
Chisel width 50 mm
Chisel body hardness up to 55 HRC
Widia plate hardness up to 92 HRA
Chisel service life + 400-600 %
Share 230 mm
Share width 230 mm
Share thickness 8 mm
Body hardness up to 55 HRC

Optional equipment

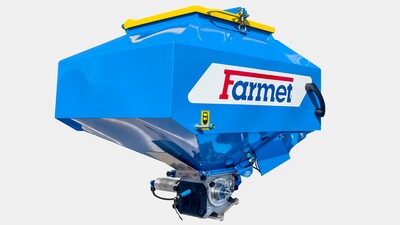

Micro Drill

Sowing of fine seeds.
