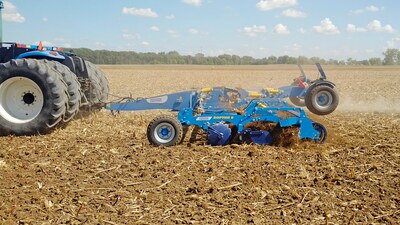

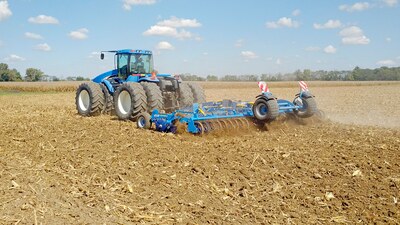

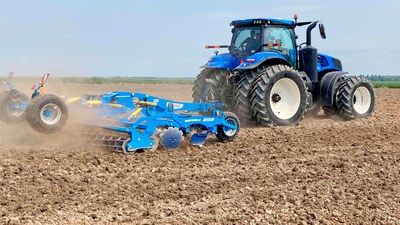

SOFTER PS Disc cultivator

Loosening up to 13 cm with full-area undercut and mixing

Klausti pas pardavėją Atsarginės dalys

Pilno apskritimo diskiniai peiliai su agresyviu pjovimo kampu

Bekompromisis įsiskverbimas net į sunkius ir sausus dirvožemius

Greitas seklus ražienų apdorojimas

Viso pločio apipjaustymas iki 13 cm gylio su intensyviu likučių maišymu

Daugiau apie technologiją

Vienas diskas viename laikiklyje

Tikslus gylio valdymas per visą darbo plotį

Daugiau apie diskų geometriją

Techninės priežiūros nereikalaujantis guolių ir diskų išdėstymas

Pilni techniniai parametrai

Parametrai

Technology

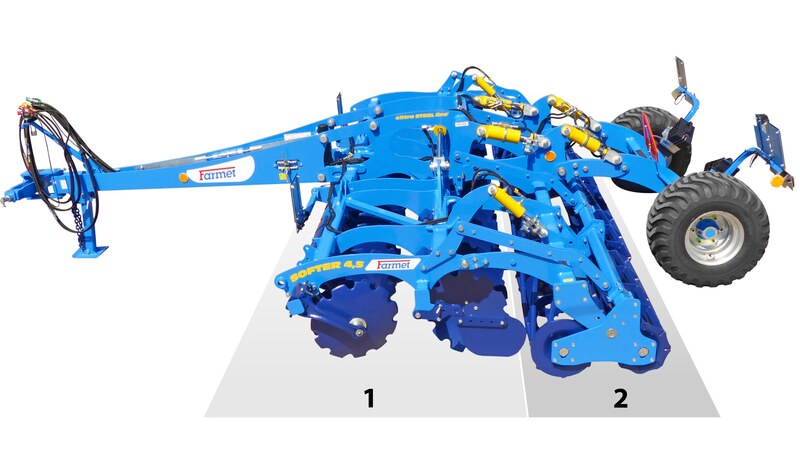

1	Full-area loosening zone. The double-row disc section with aggressive geometry ensures perfect full-area undercut to depth of 3,5–13 cm with intensive mixing of plant residues. The disc section also spreading well plant residues over the area.
2	Clod crumbling and soil reconsolidation zone. Optimum soil reconsolidation ensures good water infiltration and soil moisture rise.

High performance and quality of work

High working speed up to 15 km/h.
Gear disks for safe penetration into the soil and intensive mixing.
Working angle of the disks and pressure to each disk ensure uncompromising penetration even to heavy and over-dried soils and perfect undercut of the processed profile.
High quality rubber mounting for optimal working angles of the disk.
Precise deep guiding with optimum soil compaction.

Technics

Galimų konfigūracijų pavyzdžiai

Disc cultivator Softer 4 PS

Ø 560 mm diski divās rindās ar hidraulisku dziļuma regulēšanu; aizmugurējais dubultais veltnis DUR nodrošina lielisku mašīnas dziļuma vadību un optimālu augsnes pievelšanu.

Disc cultivator Softer 4,5 PS

Ø 560 mm diski divās rindās ar hidraulisku dziļuma vadību; aizmugurējais dubultais veltnis DR nodrošina lielisku mašīnas dziļuma vadību un optimālu augsnes pievelšanu.

Disc cultivator Softer 8 PS

Microdrill sējas agregāts; Ø 560 mm diski divās rindās ar hidraulisku dziļuma regulēšanu; aizmugurējais dubultais veltnis DUR nodrošina lielisku mašīnas dziļuma vadību un optimālu augsnes pievelšanu.

Aukštos tvirtumo rafinuotos medžiagos kartu su eXtra STEEL line technologija garantuoja mūsų įrenginių ilgą tarnavimo laiką net pačiomis sudėtingiausiomis sąlygomis.

Disks with dentate circumference

Disks with the diameter of 510 mm / 560 mm are located in two rows. For the case of contact with an obstacle, each disk is separately effectively protected by means of rubber mounting.

The disks are placed in maintenance-free bearings with excellent service life. Optimum geometry of disks ensures high-quality work with very good productivity and high percentage of incorporated plant residues. The disks retain ideal working angle even with partially worn geometry of disks. The disk spacing of 24 cm ensures good free flow of plant residues.

Galima rinktis iš kelių diskų variantų

DURA+ lygus diskas

Ø 510 mm

DURA+ smulkaus pjovimo diskas

Ø 510 mm

DURA+ standartinis diskas

Ø 510 mm / Ø 560 mm

Tvirtas dizainas

High-strength materials

High-strength refined materials used for crucial nodes to ensure long service life. Strongly dimensioned frame of high-strength steels.

Maintenance free bearings

Maintenance-free placement of the disks ensuring operation of the machine with no need of additional lubrication.

Maintenance-free rubber mounting

Resistant and maintenance-free rubber mounting for adaptation to terrain with protection against overload.

Easy operation

Due to minimum of adjusting and lubricating points the operation and subsequent maintenance are very easy steps that anybody can perform.

Minimum of adjustment points.
Minimum of lubrication points.
No angles adjustments or translation of disks are needed.

Continuous connection of runs

Individually height-adjustable deflector for smooth connection between each passes.

Direction of the processed soil

The height and longitudinally adjustable side deflector for ideal direction of the processed soil.

Adjustment of working depth

Easy adjustment of the working depth according to the overview table using the distance washers on the roller piston rods.

Šoninių sekcijų hidraulinis prispaudimas

Šoninių sekcijų hidraulinis prispaudimas su slėgio akumuliatoriumi, užtikrinantis tolygų mašinos svorio pasiskirstymą visoje darbinėje plotyje ir leidžiantis šoninėms sekcijoms amortizuotis nelygioje vietovėje.

Smartly performed designed machine

The advantage of this machine is its multipurposeness and adjustability bringing high variability of work.

Skilful when working in the field due to a short compact design.
Light construction of the machine with no need of weighing down results in low operating costs.
Very good self-cleaning capabilities of the space between the disc and the tine.

Full-perimeter disc edges

Easier disc soil penetration.

Permanent pressure of the side frames

Automatic terrain tracing and permanent pressure of the side frames in Softer 8 and Softer 11 PS due to compensating accumulation vessel.

Micro Drill Seeding Unit

The sophisticated design of the machine allows for an installation of the Micro Drill Seeding Unit for sowing catch crop or for planting grass directly.

More information about Micro Drill >

Parameters

Technical parameters	Units	Softer 4 P FIX	Softer 4 PS	Softer 4,5 PS	Softer 5 PS	Softer 6 PS	Softer 8 PS	Softer 9 PS W	Softer 11 PS ⁶	Softer 12 PS W ⁶
Working width	mm	3 990	3 990	4 470	4 950	5 910	7 360	8 320	10 690	11 670
Transport width	mm	4 330	3 000	3 000	3 000	3 000	3 000	4 000	3 000	4 000
Transport height	mm	1 600	2 400	2 650	2 900	3 370	4 000	4 000	4 000	4 000
Total machine length	mm	6 675	6 675	6 675	6 675	6 675	6 850	6 850	6 850	6 850
Working depth	mm	35–130	35–130	35–130	35–130	35–130	35–130	35–130	35–130	35–130
Number of discs – front row Number of discs – rear row	pcs	17 16	17 16	19 18	21 20	25 24	31 30	35 34	45 44	49 48
Diameter of discs	mm	510 / 560	510 / 560	510 / 560	510 / 560	510 / 560	510 / 560	510 / 560	510 / 560	510 / 560
Working performance	ha/h	4–6	4–6	4,5–6,8	5–7,5	6–9	8–12	9–13,5	11–16,5	12–18,1
Towing vehicle ¹	kW HP	110–160 150–215	110–160 150–215	120–180 160–240	130–190 175–255	150–225 200–300	200–300 270–405	220–320 295–430	245–370 330–495	280–410 380–550
Working speed	km/h	10–15	10–15	10–15	10–15	10–15	10–15	10–15	10–15	10–15
Maximum slope availability	°	6	6	6	6	6	6	6	6	6
Dimension of tyre - transport		400/60-15,5	400/60-15,5	400/60-15,5	400/60-15,5	400/60-15,5	500/50-17	520/50-17	500/50-17	520/50-17
Brake type / distribution ^{4, 5}		–	air / two-line	air / two-line	air / two-line	air / two-line	air / two-line	air / two-line	air / two-line	air / two-line
Required pressure ⁴	kPa	–	8,5	8,5	8,5	8,5	8,5	8,5	8,5	8,5
Number of hydraulic circuits / pressure ³	bar	2 (3) / 200	3 (4) / 200	3 (4) / 200	3 (4) / 200	3 (4) / 200	3 (4) / 200	3 (4) / 200	3 (4) / 200	3 (4) / 200
Number of hydro-couples / type ³		4 (6) / ISO 12,5	6 (8) / ISO 12,5	6 (8) / ISO 12,5	6 (8) / ISO 12,5	6 (8) / ISO 12,5	6 (8) / ISO 12,5	6 (8) / ISO 12,5	6 (8) / ISO 12,5 ³	6 (8) / ISO 12,5
Tractor hitch requirement		TBZ cat. 3	TBZ cat. 3	TBZ cat. 3	TBZ cat. 3	TBZ cat. 3	TBZ cat. 3	TBZ cat. 3	TBZ cat. 3	TBZ cat. 3
Apytikslis mašinos svoris ²	kg	3 600	3 900	4 000	4 350	4 990	6 700	7 600	9 200	10 920

Recommended towing vehicle, the actual pulling force may significantly change according to the processing depth, soil conditions, inclination of land, wear of working members and their adjustment.

Dažniausiai naudojamos mašinos konfigūracijos apytikslis svoris. Tikslus svoris gali labai skirtis priklausomai nuo konkrečios įrangos. Kreipkitės į savo prekybos atstovą.

An additional hydraulically controlled supporting leg for the version of the machine with a drawbar attached to the fixed bottom hitch.

⁴

Alternative of the brake type: hydraulic, pressure 130 ± 5 bar (designed for the French market).

⁶

When selecting the rollers of disk plough-harrow Softer 11 PS, Softer 12 PS W, first contact the sales representative of the company Farmet a. s.

half mounted foldable machine

P FIX

semi-mounted not-folding machine, transport width more than 3 metres

PS W

semi-mounted folding machine, transport width more than 3 metres

⁵ Transportas / stabdžių sistema: Vadovaukitės nacionaliniais teisės aktais, galiojančiais mašinų transportavimui viešaisiais keliais. Patikrinkite galiojančius teisės aktus toje šalyje, taisykles dėl didžiausios leistinos bendrosios masės ir ašių apkrovų, taip pat dėl būtino stabdžių sistemos naudojimo. Jei turite kokių nors klausimų, susisiekite su mūsų pardavimo atstovu.

Mes nuolat tobuliname avo produktus, kad galėtume pasiūlyti geriausius sprendimus atitinkančius šiuolaikines technologijų tendencijas bei klientų poreikius. Dėl šios priežasties kai kurie siūlomi gaminiai gali skirtis nuo pateiktų interneto svetainėje. Privalomi techniniai duomenys ir parametrai patvirtinami užsakymo metu.

Optional

Priedai

Rollers

Tube roller TRS

Diameter	600 mm
Weight	100 kg/m

Double roller DR

Diameter	400/350 mm
Weight	180 kg/m

Double ring roller DUR (DRR)

Diameter	540/540 mm
Weight	195 kg/m

Double ring roller cannot be used for Softer 11 PS, Softer 12 PS W.

LTX roller

Diameter	586 mm
Weight	200 kg/m

Disk roller SDR

Diameter	580 mm
Weight	220 kg/m

Double FLAT roller DFR

Diameter	520/520 mm
Weight	165 kg/m

Double FLAT roller cannot be used for Softer 11 PS, Softer 12 PS W.

V roller VR

Diameter	600 mm
Weight	175 kg/m

Double V-ring DVR

Diameter	550/550 mm
Weight	180 kg/m

Double V-ring cannot be used for Softer 11 PS, Softer 12 PS W.

Proper selection of the type of the rear roller contributing significantly to the final quality of the processing is very important. The soil is recompacted by the roller and then it is the same way crumbled and levelled. The selection of the type of the roller depends on the soil type and on the manner of use of the machine.

Roller	Tube-shaped TRS	Double DR	Double ring DUR	Double DFR	LTX	Disk SDR	VR	Double V-ring DVR
Crumbling	●●○○	●●●●	●●●○	●●●○	●●●○	●●●○	●●●○	●●●○
Stamping	●●●○	●●●○	●●●●	●●●●	●●●●	●●●●	●●●●	●●●●
Depth guiding	●●●○	●●●●	●●●●	●●●●	●●●●	●●○○	●●○○	●●○○
Resistance against clogging	●○○○	●●●○	●●●●	●●●●	●●●○	●●●●	●●●○	●●●○
Suitability for stony soils	●●●○	●●●○	●●●○	●●●○	●●●○	●●●○	●●●○	●●●○
Suitability for wet soils	●○○○	●●○○	●●●●	●●●●	●●●●	●●●●	●●●●	●●●●
Heavy soils	●●○○	●●●●	●●●●	●●●●	●●●●	●●●●	●●●●	●●●●
Medium soils	●●●○	●●●●	●●●●	●●●●	●●●●	●●●●	●●●●	●●●●
Light soils	●●●●	●●●●	●●●●	●●●●	●●○○	●●●○	●●●○	●●●○
