Seedbed combinator Kompaktomat PS

Seedbed combinator Kompaktomat PS



Seedbed combinator Kompaktomat PS

Technology

Kompaktomat PS

1 Tractor track cultivation zone. Perfect cultivation of the tracks eliminates uneven emergence of plants after sowing.
2 Basic soil levelling zone. Precisely levelled soil surface allows uniform subsequent compaction and cultivation the seedbed.
3 Soil pre-compaction zone by the front roller. The front roller crumbles clods on the surface, but at the same time it compacts the soil and restores the soil capillarity.
4 Seedbed zone. The soil is cultivated by the share section to the set depth. The depth should be the same as the future sowing depth. Duck foot shares allow full-surface undercut and weed control.
5 Furrow-levelling zone behind a share cultivating section.
6 Rear roller soil compaction zone. The roller finely crumbles clods and ensures the final compaction of the seedbed so that the soil capillarity is fully restored. Intensive soil water capillarity to the surface ensures good emergence of plants even in the dry season.
7 Final soil levelling zone. The rear bar or final rollers ensure a perfect levelled surface with minimum clods for subsequent sowing.

Seedbed combinators Kompaktomat are time-tested machines designed for seedbed preparation of the soil after ploughing.

Wide range of working spans

Semi-mounted machines are offered with the working span from 3 m to 9.7 m. Wide range of working spans covers both small farmers with small tractors and large agricultural holdings equipped with powerful tractors.

Excellent levelling of the surface, fine crumbling of clods

During one run the soil is perfectly tilled to the state required for sowing of crops. The advantage of the machine is excellent levelling of the surface, fine crumbling of clods and formation of well-compacted seedbed. The land is perfectly levelled also due to levelling bars that can level and spread even high unevenness.

Seedbed combinators Kompaktomat are time-tested machines designed for seedbed preparation of the soil after ploughing.

Wide range of working spans

Semi-mounted machines are offered with the working span from 3 m to 9.7 m. Wide range of working spans covers both small farmers with small tractors and large agricultural holdings equipped with powerful tractors.

Excellent levelling of the surface, fine crumbling of clods

During one run the soil is perfectly tilled to the state required for sowing of crops. The advantage of the machine is excellent levelling of the surface, fine crumbling of clods and formation of well-compacted seedbed. The land is perfectly levelled also due to levelling bars that can level and spread even high unevenness.

A single run perfectly prepares the soil for sowing of crops

Due to high working speed, high working performance can be achieved even with lower working span of the Kompaktomat machine. A key consideration here is that due to its well-considered design and favourable weight Kompaktomat can prepare the soil after ploughing during one run, whereas the soil is tilled not only on the surface, but in the whole horizon.

During the run Kompaktomat performs several working operations, during which the surface of the soil is levelled and compacted to the depth. In the cultivated soil capillarity is restored and in the required depth the seedbed is formed. The clods are finely crumbled.

Easy operation and possibility of aggregation with other machines

Optionally the combinator can be equipped with hydraulic adjustment of depth of the share section and hydraulic adjustment of the front leveller. Semi-mounted machines can also be equipped with the rear three-point linkage of category 2, where additional crumbling crosskill rollers can be aggregated. These rollers are suitable especially for summer when hard dry clods must be intensively crumbled. Aggregation of the seed drill and formation of productive sowing combination is another possibility. For this purpose Kompaktomat can also be equipped with additional water distribution.

Minimum maintenance requirements

The control elements of the seedbed combinator are designed in order to achieve maximum safety of workers. Simple but quality construction with minimum maintenance requirements.

WRONG
During unequal cultivation of the soil there is a danger of wrong and unequal emergence of plants.
CORRECT
Uniform cultivation of the soil using seedbed combinator Kompaktomat determines equal emergence of plants.

Excellent compaction → ensures water absorption and water capillary to the surface

High performance and quality of work

  • 7 operations performed during one run.
  • High working speed up to 14 km/h.
  • Excellent re-compaction and restoration of soil capillarity ensuring equal emergence.
  • Precise adjustment of the depth of the tines ensures precise preparation of the seedbed for each crop.
  • Automatic protection of tines ensures trouble-free operation.
  • Excellent levelling effect of field unevenness.
  • 7 operations performed during one run.
  • High working speed up to 14 km/h.
  • Excellent re-compaction and restoration of soil capillarity ensuring equal emergence.
  • Precise adjustment of the depth of the tines ensures precise preparation of the seedbed for each crop.
  • Automatic protection of tines ensures trouble-free operation.
  • Excellent levelling effect of field unevenness.

Technics

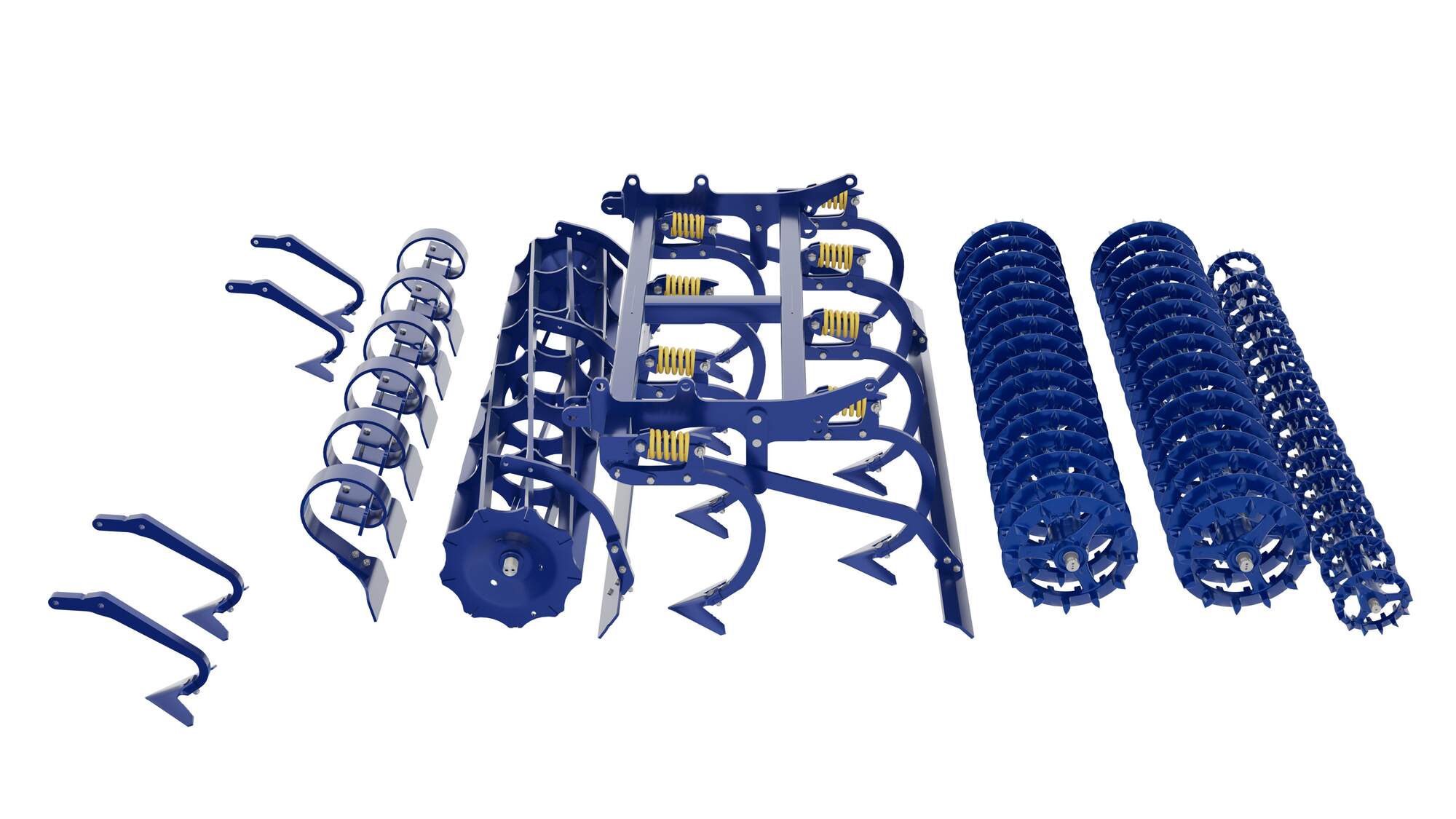

Seedbed combinator Kompaktomat PS

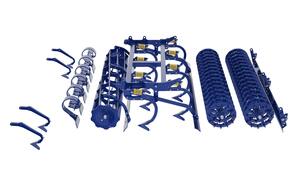

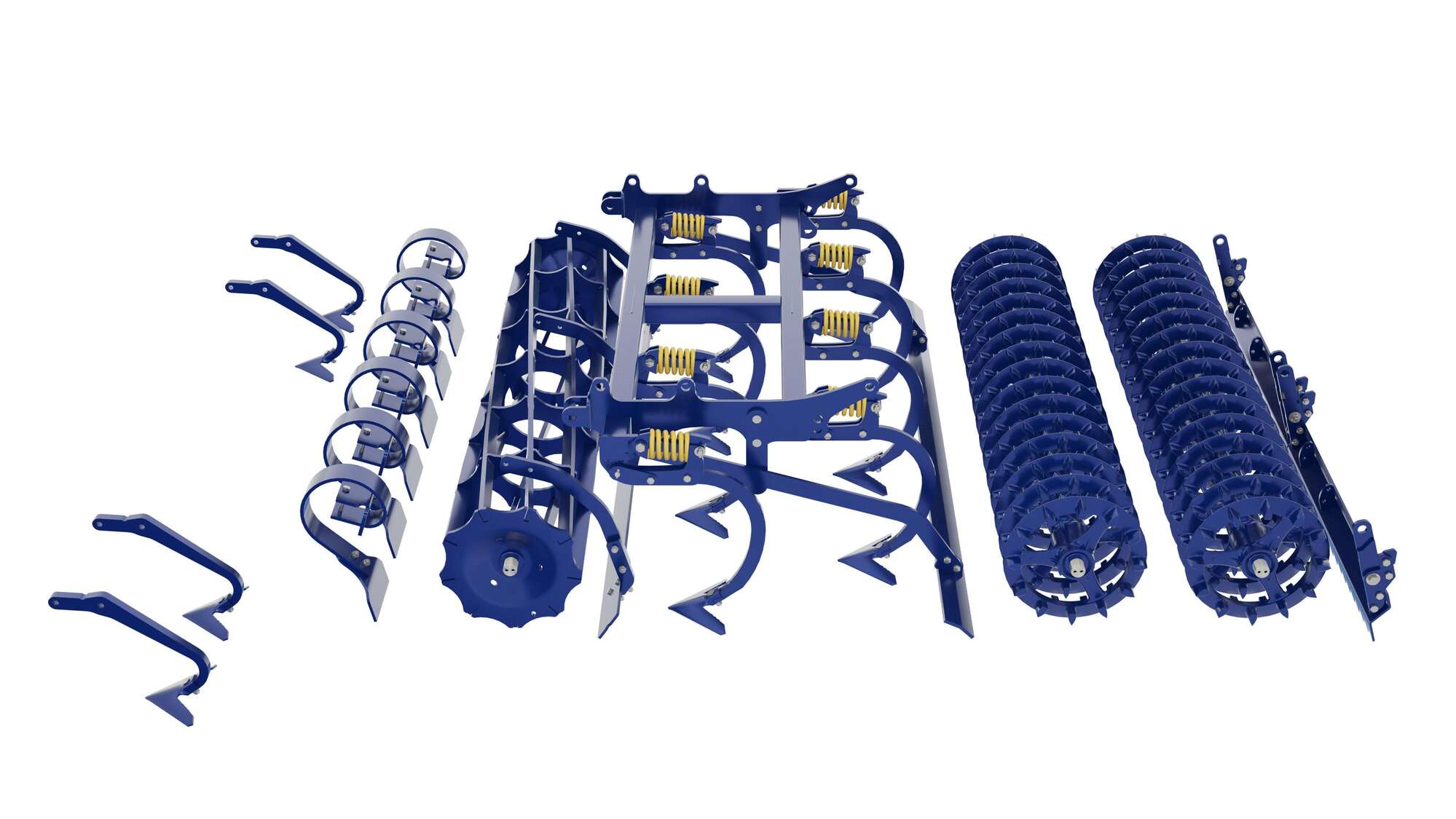

  1. Tractor track cultivators for lifting of the compacted soil.
  2. Front levelling bar for coarse levelling of the surface.
  3. Front roller for rough crumbling of clods.
  4. Share working section undercuts and cultivates the soil.
  5. Central levelling bar levels the cultivated soil and the soil is directed below the rear roller.
  6. The rear roller for fine soil cultivation.
  7. The rear levelling bar levels the surface.

Seedbed combinator Kompaktomat PS LONG

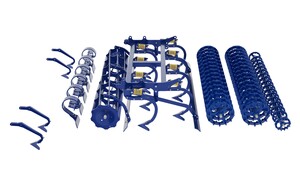

  1. Tractor track cultivators for lifting of the compacted soil.
  2. Front levelling bar for coarse levelling of the surface.
  3. Front roller for rough crumbling of clods.
  4. The extended four-row share working section with increased throughflow undercuts and cultivates soil.
  5. Central levelling bar levels the cultivated soil and the soil is directed below the rear roller.
  6. The rear roller for fine soil cultivation.
  7. The rear levelling bar levels the surface.

Seedbed combinator Kompaktomat PS LONG

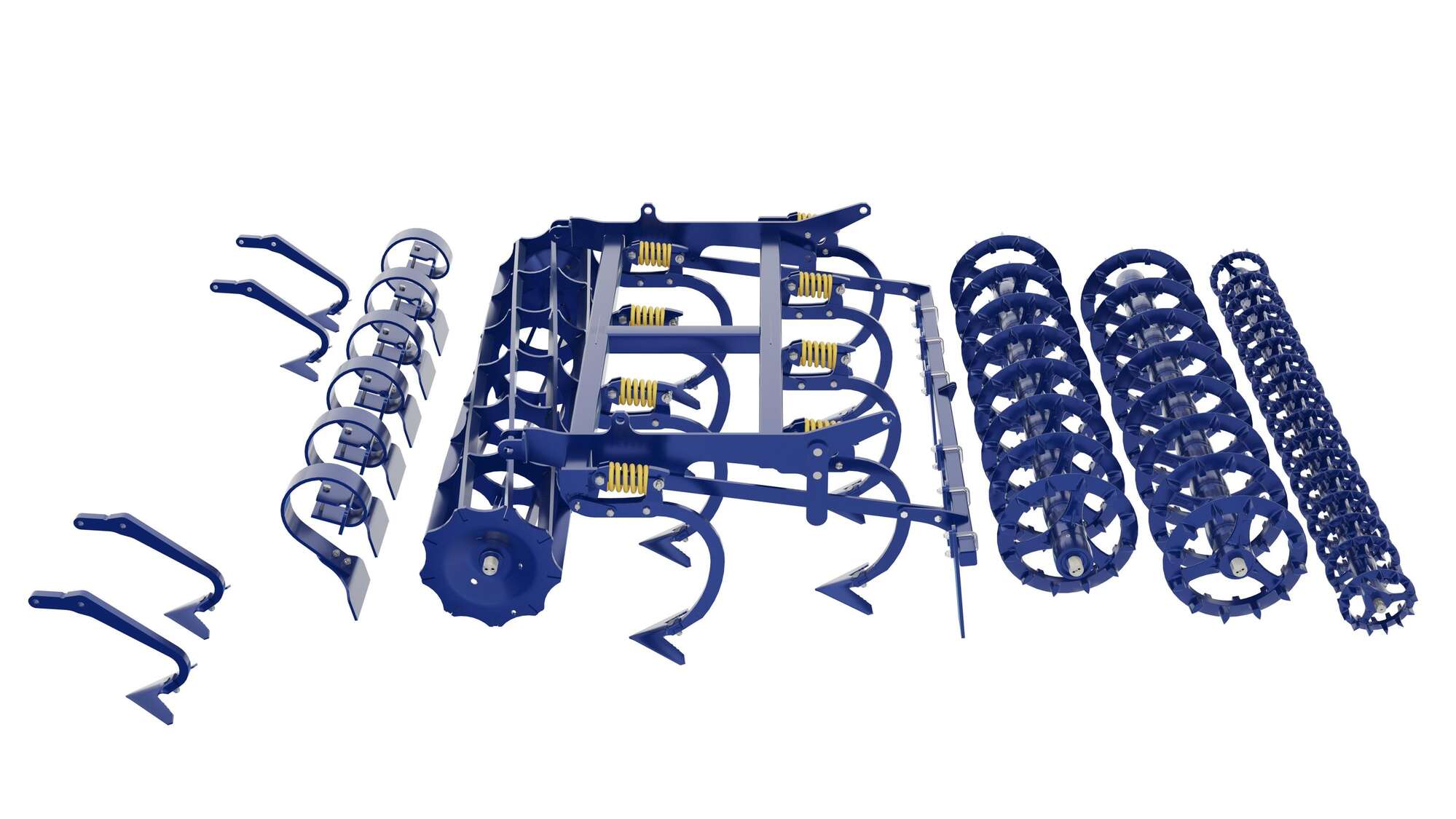

  1. Tractor track cultivators for lifting of the compacted soil.
  2. Front levelling bar for coarse levelling of the surface.
  3. Front roller for rough crumbling of clods.
  4. The extended double-row share working section with increased throughflow undercuts and cultivates soil.
  5. Central levelling bar levels the cultivated soil and the soil is directed below the rear roller.
  6. The rear roller for fine soil cultivation.
  7. The rear levelling bar levels the surface.

Robust design

High-strength refined materials in connection with eXtra STEEL line technology guarantee long service life of our machines even in the most difficult conditions.

High-strength materials
High-strength refined materials used for key places to ensure long service life. Strongly dimensioned frame.
Robust levelling bar
The robust front levelling bar ensuring tear off upper layers of topsoil.
Protection of tines
Automatically protected tines.

Easy operation

Due to minimum of adjusting and lubricating points the operation and subsequent maintenance are very easy steps that anybody can perform.

  • Minimum of adjustment points.
  • Minimum of lubrication points.
Front levelling bar
Adjustment of the height of the front levelling bar.
Levelling bar behind shares
Adjustment of the height behind the duck foot shares.
Working depth
Adjustment of working depth of the tines.

Smartly designed machine

The advantage of this machine is its multi-purspose and adjustability bringing high variability of work.

Folding for the transport is designed so that:

  • the machine does not exceed the maximum transport width of 3 metres and maximum transport height of 4 metres
  • folding is hydraulic and fully automatic

Folding for the transport is designed so that:

  • the machine does not exceed the maximum transport width of 3 metres and maximum transport height of 4 metres
  • folding is hydraulic and fully automatic

Option of several types of share sections

Differences between individual sections are described in more detail in the tab Accessory

Section AL
Section CF
Section AP
Section AL4

Possibility of aggregation with other machines

Semi-mounted seedbed combinators Kompaktomat K 300 P – K 1000 PS enable aggregation with other devices or machines. For this purpose they must be additionally equipped with the rear three-point linkage of category 2; it is equipment over standard.

Aggregation of seedbed combinators Kompaktomat with additional rollers

For aggregation with e.g. crumbling rollers it is sufficient to additionally equip the combinator with the rear three-point linkage only.

Aggregation of seedbed combinators Kompaktomat with the seed drill

For aggregation with a pneumatic seed drill, the combinator can be extended by the hydraulic drive of fan and hydraulic circuit for control of the seed drill markers.

Parameters

Technical parameters – unbraked variant

Technical parameters Units Kompaktomat
K 300 P
Kompaktomat
K 400 PS
Kompaktomat
K 450 PS
Kompaktomat
K 500 PS
Kompaktomat
K 600 PS
Working width mm 3 000 4 000 4 500 5 000 6 000
Transport width mm 3 000 3 000 3 000 3 000 3 000
Transport height mm  1 650 2 670  3 030  2 790 3 230
Total machine length mm 5 965 5 965 5 965 6 105 6 105
Working depth mm 0–100 0–100 0–100 0–100 0–100
Number of tines – duck foot AL
Number of tines – chisel CF
Number of tines – duck foot AP
pcs 13
30
12
18
39
16
20
47
20
23
49
23
27
59
24
Working performance ha/h 2,2–3,2 3–4 3,5–4,5 3–5 3,5–6
Towing vehicle 1 kW
HP
70
95
90
125
110
150
120
165
130
180
Working speed km/h 10–14 10–14 10–14 10–14 10–14
Maximum transport speed 4 km/h 30 30 30 30 30
Maximum slope availability ° 11 6 6 6 6
Dimension of tyre - transport   400/60-15,5 400/60-15,5 400/60-15,5 19,0/45-17 19,0/45-17
Number of hydraulic circuits / pressure bar  2–4 / 200 2–4 / 200  2–4 / 200 2–4 / 200 2–4 / 200
Number of quick-coupling devices / type    4–8 / ISO 12,5 4–8 / ISO 12,5  4–8 / ISO 12,5 4–8 / ISO 12,5 4–8 / ISO 12,5

Tractor hitch requirement
Axial spacing of lower suspension joints
(alternative spacing)

mm 1 010
(920)
1 010
(920)
1 010
(920)
1 010
(920)
1 010
(920)
Tractor hitch requirement
Hole diameter of lower suspension joints for machine suspension pins
(alternative Ø)
mm 37,5
(29)
37,5
(29)
37,5
(29)
37,5
(29)
37,5
(29)
Tractor hitch requirement   TPH cat. 2 and 3; lower hitch K80; eye Ø 40, 50, 70 mm
Axle load kg 1 960 2 080 2 240 2 730 2 950
Machine weight 2 kg 2 360 3 010 3 340 4 025 4 360

Technical parameters – braked variant

Technical parameters Units Kompaktomat
K 500 PS
Kompaktomat
K 600 PS
Kompaktomat
K 700 PS
Kompaktomat
K 800 PS
Kompaktomat
K 1000 PS
Working width mm 5 000 6 000 7 000 8 000 9 850
Transport width mm 3 000 3 000 3 000 3 000 3 000
Transport height mm  2 790 3 230 3 830  4 000 4 000
Total machine length mm 6 105 6 105 6 105 6 105 6 660
Working depth mm 0–100 0–100 0–100 0–100 0–100
Number of tines – duck foot AL
Number of tines – chisel CF
Number of tines – duck foot AP
pcs 23
49
23
27
59
24
31
69
31
35
77
32
43
91
38
Working performance ha/h 3–5 3,5–6 4,5–7 5,5–8 8,5–10
Towing vehicle 1 kW
HP
120
165
130
180
150
205
160
220
180
245
Working speed km/h 10–14 10–14 10–14 10–14 10–14
Maximum transport speed 4 km/h 30 30 30 30 30
Maximum slope availability ° 6 6 6 6 6
Dimension of tyre - transport   19,0/45-17 19,0/45-17 19,0/45-17 19,0/45-17 19,0/45-17
Brake type / distribution 3   air / two-line air / two-line air / two-line air / two-line air / two-line
Required pressure 3 kPa 8,5 8,5 8,5 8,5 8,5
Dimensions of brakes   300/60 300/60 300/60 300/60 300/90
Number of hydraulic circuits / pressure bar  2–4 / 200 2–4 / 200  2–4 / 200 2–4 / 200 2–4 / 200
Number of quick-coupling devices / type    4–8 / ISO 12,5 4–8 / ISO 12,5  4–8 / ISO 12,5 4–8 / ISO 12,5 4–8 / ISO 12,5

Tractor hitch requirement
Axial spacing of lower suspension joints
(alternative spacing)

mm 1 010
(920)
1 010
(920)
1 010
(1 045)
1 010
(1 045)
1 010
(1 045)
Tractor hitch requirement
Hole diameter of lower suspension joints for machine suspension pins
(alternative Ø)
mm 37,5
(29)
37,5
(29)
37,5
(50)
37,5
(50)
37,5
(50)
Tractor hitch requirement   TPH cat. 2 and 3; lower hitch K80; eye Ø 40, 50, 70 mm
Axle load kg 2 730 2 950 3 360 3 620 4 520
Machine weight 2 kg 4 025 4 360 4 960 5 345 6 920

Seedbed combinator Kompaktomat PS LONG

Technical parameters Units Kompaktomat
K 500 PS LONG
Kompaktomat
K 600 PS LONG
Kompaktomat
K 700 PS LONG
Kompaktomat
K 800 PS LONG
Kompaktomat
K 1000 PS LONG
Working width mm 5 000 6 000 7 000 8 000 10 000
Transport width mm 3 000 3 000 3 000 3 000 3 000
Transport height mm  2 790 3 230 3 830  4 000 4 000
Total machine length mm 6 355 6 355 6 355 6 355 6 910
Working depth mm 0–100 0–100 0–100 0–100 0–100
Number of tines – duck foot AL
Number of tines – duck foot AL4
Number of tines – chisel CF
Number of tines – duck foot AP
pcs 23
41
49
23
27
47
59
24
31
55
69
31
35
61
77
32
43
91
38
76
Working performance ha/h 3–5 3,5–6 4,5–7 5,5–8 8,5–10,0
Towing vehicle 1 kW
HP
120
165
130
180
150
205
160
220
180
245
Working speed km/h 10–14 10–14 10–14 10–14 10–14
Maximum transport speed 4 km/h 30 30 30 30 30
Maximum slope availability ° 6 6 6 6 6
Dimension of tyre - transport   19,0/45-17 19,0/45-17 19,0/45-17 19,0/45-17 19,0/45-17
Brake type / distribution 3   air / two-line air / two-line air / two-line air / two-line air / two-line
Required pressure 3 kPa 8,5 8,5 8,5 8,5 8,5
Braked / unbraked variant   yes / yes yes / yes yes / yes yes / no yes / no
Dimensions of brakes   300/60 300/60 300/60 300/60 300/60
Number of hydraulic circuits / pressure bar  2–4 / 200 2–4 / 200  2–4 / 200 2–4 / 200 2–4 / 200
Number of quick-coupling devices / type    4–8 / ISO 12,5 4–8 / ISO 12,5  4–8 / ISO 12,5 4–8 / ISO 12,5 4–8 / ISO 12,5

Tractor hitch requirement
Axial spacing of lower suspension joints
(alternative spacing)

mm 1 010
(920)
1 010
(920)
1 010
(1 045)
1 010
(1 045)
1 010
(1 045)
Tractor hitch requirement
Hole diameter of lower suspension joints for machine suspension pins
(alternative Ø)
mm 37,5
(29)
37,5
(29)
37,5
(50)
37,5
(50)
37,5
(50)
Tractor hitch requirement   TPH cat. 2 and 3; lower hitch K80; eye Ø 40, 50, 70 mm
Axle load kg 2 810 3 030 3 460 3 720 4 850
Machine weight 2 kg 4 125 4 460 5 110 5 495 7 420


1 Recommended towing vehicle, the actual pulling force may significantly change according to the tilling depth, soil conditions, inclination of land, wear of working units and their adjustment.
2 Machine variant weight: front bar roller, section AL, rear crosskill roller with leveller.
3 Alternative of the brake type: hydraulic, pressure 130 ± 5 bar (designed for the French market).
4 Transport / brake system: Follow national provisions valid for transport of machines on public roads. Verify legal provisions valid in the country, regulations on maximum allowable total weights and axle loads and also on necessary possible use of the brake system. If you have any questions, please contact our sales representative.

P - semi-mounted machine
PS - semi-mounted foldable machine

Modulability

Kompaktomat STANDARD - suitable for more intensive soil processing after plowing with a minimum of crop residues

Kompaktomat LONG - suitable for processing soil after loosening with a large amount of crushed crop residues on the surface

Optional

Photo gallery

Video

Files

Kompaktomat PS LONG

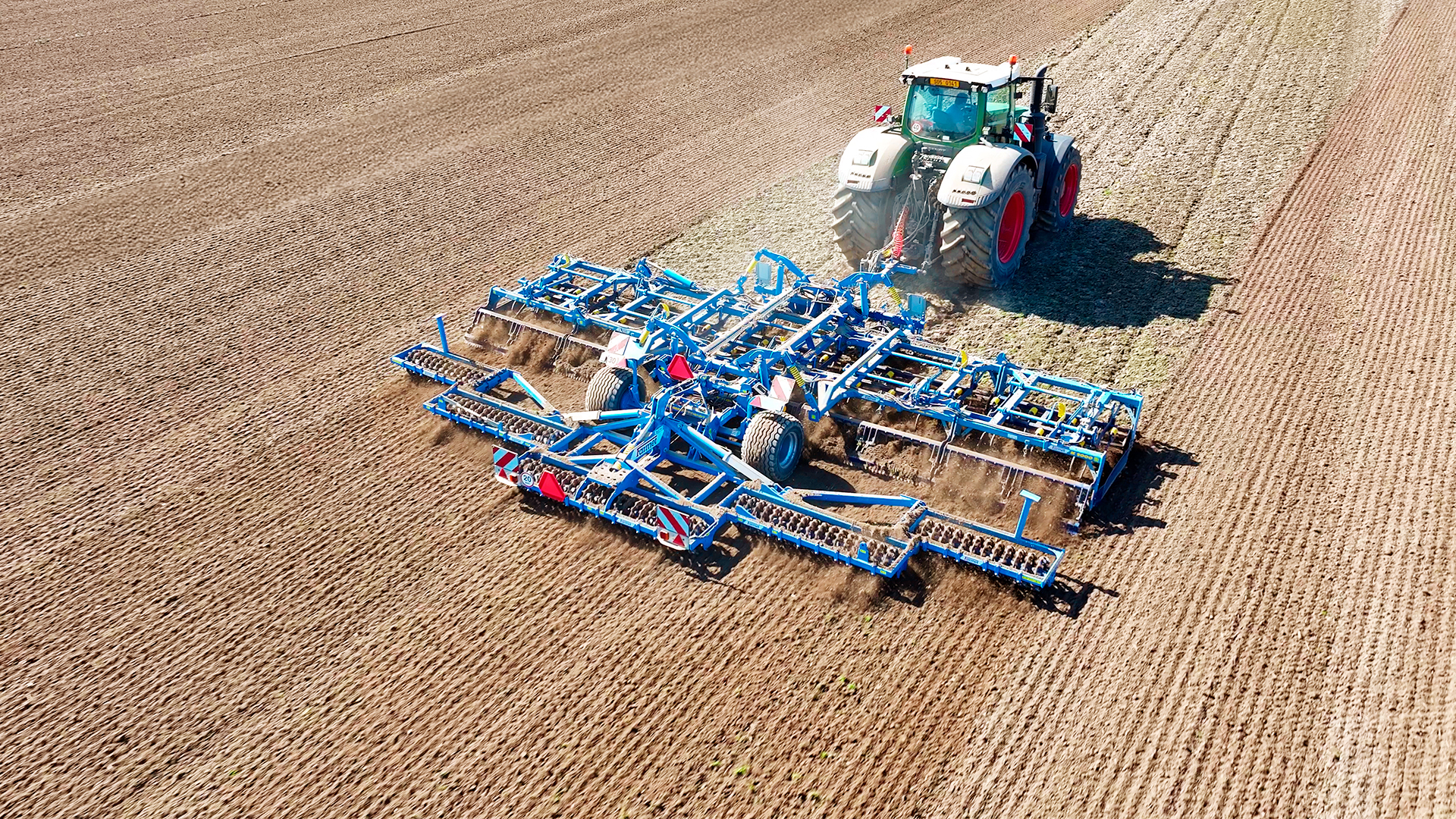

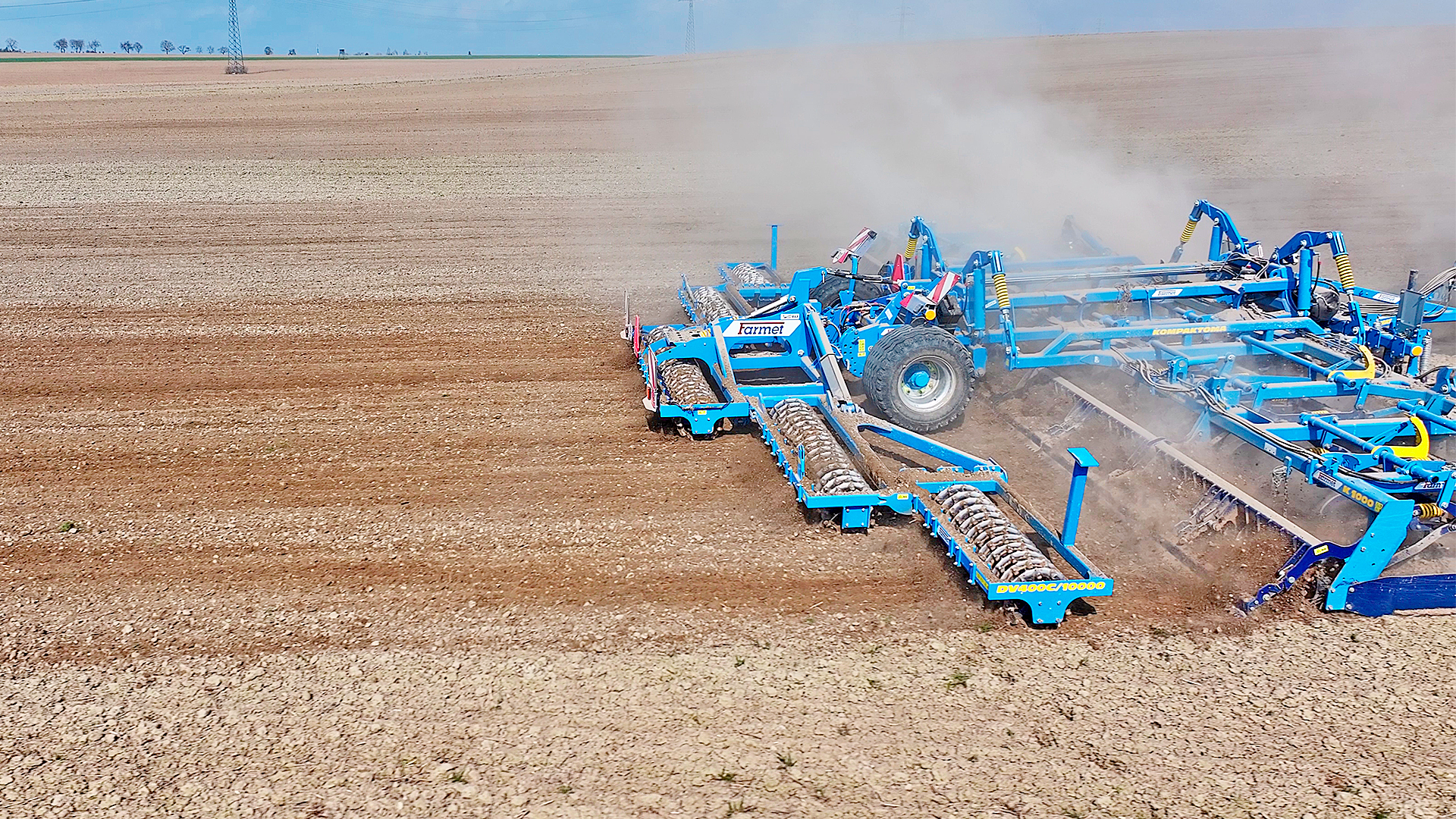

Kompaktomat K 1000 PS & DV 1000 NS

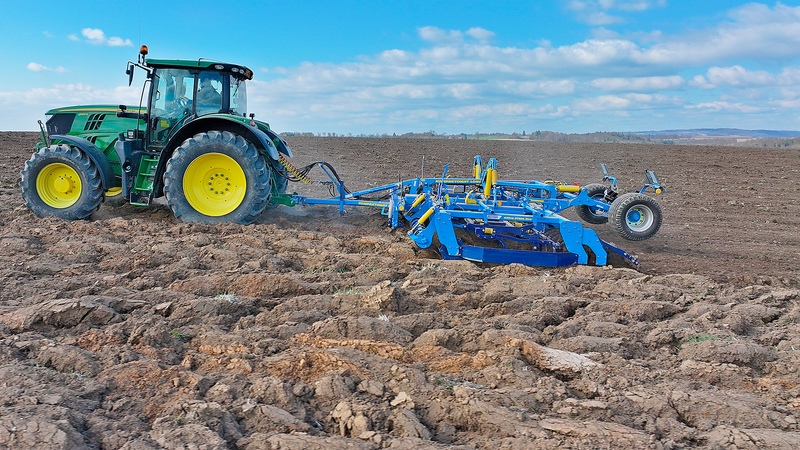

Kompaktomat K 800 PS LONG

Accessories

Rollers

Crosskill roller CR
Diameter 400 mm
Weight 170 kg/m



May be applied as the rear roller only.

Excellent work in light, medium and heavy soils, quality compaction and clod crumbling.

Double crosskill roller DCR
Diameter 400 mm
Weight 202 kg/m



May be applied as the rear roller only.

Excellent work in light, medium and heavy soils, quality compaction and clod crumbling. When compared to crosskill roller, more intense clod crumbling.

Spiral bar roller SB
Diameter 400 mm
Weight 60 kg/m



May be applied as the front and rear roller.

Quality clod crumbling. Suitable for wet conditions.

Bar roller BR
Diameter 400 mm
Weight 60 kg/m



May be applied as the front and rear roller.

Quality clod crumbling. Not very suitable for wet conditions.

Ring roller RR
Diameter 400 mm
Weight 115 kg/m



May be applied as the front and rear roller.

Quality work in all types of soil, good depth guiding, suitable even for more humid soils.

Two crosskill rolles CR + CR
Diameter 400 mm
Weight 340 kg/m



May be applied as the rear roller only.

Excellent work in light, medium and heavy soils, quality compaction and clod crumbling.

Double crosskill roller DCRL
Diameter 400 mm
Weight 202 kg/m



May be applied as the rear roller only.

Excellent work in light, medium and heavy soils, quality compaction and clod crumbling. When compared to crosskill roller, more intense clod crumbling.

Spiral bar roller SB + Crosskill roller CR
Diameter 400 mm
Weight 230 kg/m



May be applied as the front and rear roller.

Quality clod crumbling. Suitable for wet conditions.

Proper selection of the type of the roller contributing significantly to the final quality of the tillage is very important. The selection of the type of the roller depends on the soil type and on the manner of use of the machine.

Rollers Crosskill
CR
Bar
BR
Spiral bar
SB
Ring
RR
Crumbling  ●●●● ●●●○ ●●●○ ●●○○
Stamping  ●●●● ●●●○ ●●●○ ●●●●
Depth guiding  ●○○○ ●●●○ ●●●○ ●●●●
Resistance against clogging  ●●●○ ●●○○ ●●●○ ●●●●
Suitability for stony soils  ●●○○ ●●●○ ●●●○ ●●●○
Suitability for wet soils  ●●○○ ●○○○ ●●●○ ●●●●
Heavy soils  ●●●○ ●●○○ ●●○○ ●●●○
Medium soils  ●●●● ●●●○ ●●●○ ●●●○
Light soils  ●●●● ●●●● ●●●● ●●●○
Rollers Double crosskill
DCR
Double crosskill
DCRL
 Two crosskill rolles
CR + CR
Spiral bar roller + Crosskill roller
SB + CR
Crumbling ●●●● ●●○○ ●●●● ●●●●
Stamping ●●●● ●●●● ●●●● ●●●●
Depth guiding ●●○○ ●●○○ ●●○○ ●●●○
Resistance against clogging ●●●●  ●●●○  ●●●○ ●●○○
Suitability for stony soils ●●○○ ●●●● ●●○○ ●●○○
Suitability for wet soils ●●●○ ●●○○ ●●○○ ●○○○
Heavy soils ●●●● ●●●●  ●●●○ ●●○○
Medium soils ●●●● ●●●● ●●●● ●●●○
Light soils ●●●● ●●●● ●●●● ●●●●

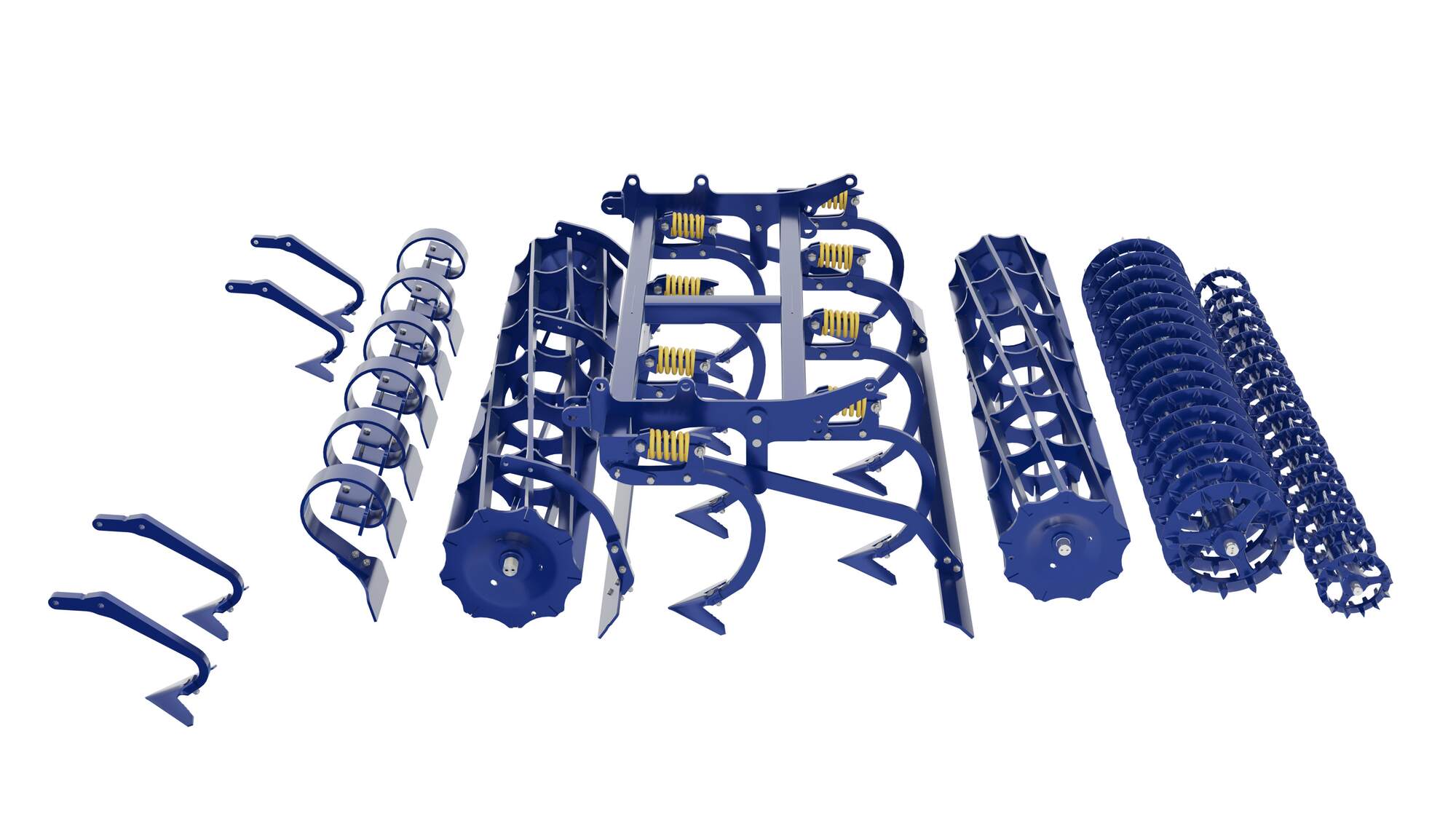

Working tools

Kompaktomat share

For the AL / AP section.

Chisel CARBIDE

For the CF section.

Blade of elastic share

For the CF section.

Kompaktomat share

For the AL4 section.


Section

Section AL

The share section is equipped with duck foot shares of the width 25 cm in two rows. Each of the shares is protected with leaf spring. This share section is suitable for lighter soil conditions without crop residues. By default, the height-adjustable coordination bar is located behind the shares.

Section CF

The share section is equipped with narrow shares of the width 3.5 cm in four rows. This share section is suitable for soil tillage in spring when it is not desirable to extract wet soil to the surface, or in heavy soils. Behind the shares, the directing bar is placed as standard.

Section AP

The universal share section is equipped with duck foot shares of the width 25 cm in two rows. The shares are mounted on tine holders with geometry improving the throughflow of crop residues. Therefore, this share section is suitable for land with a higher amount of crushed crop residues and heavy soils. By default, the height-adjustable coordination bar is located behind the shares.

Section AL4

Variant for Kompaktomat LONG

Four-row section with shares mounted on flexible tines.

Section AL AL-L 1 CF CF-L 1 AP AP-L 1 AL4 1

Number of rows of shares (pcs) /
Row spacing (mm)

2 / 400  2 / 510 4 / 240  4 / 265 2 / 490  2 / 600 4 / 270
Leveller behind shares ●●●● ●●●● ●●●● ●●●● ●●●● ●●●● ●●●●
Full-area tillage ●●●● ●●●● ●●○○ ●●○○ ●●●● ●●●● ●●●●
Suitability for light soils ●●●● ●●●● ●●●● ●●●● ●●●● ●●●● ●●●●
Suitability for medium soils ●●●○ ●●●○ ●●●○ ●●●○ ●●●● ●●●● ●●●●
Suitability for heavy soils ●●●○ ●●●○ ●●●○ ●●●○ ●●●● ●●●● ●●●●
Suitability for stony soils ●●●○ ●●●○ ●●●○ ●●●○ ●●●● ●●●● ●●●○
Suitability for wet soils ●●○○ ●●○○ ●●●● ●●●● ●●○○ ●●○○ ●●●○
Resistance against clogging ●●○○ ●●○○ ●●●○ ●●●○ ●●●○ ●●●○ ●●●○

1 The section is designed for Kompaktomat LONG. It provides better throughput due to the extended spacing.


Track cultivators

Track cultivator with duck foot share CA

Automatically unprotected tractor track cultivator with the duck foor share. More suitable for lighter soils without the risk of “dragging” of wet clods to the surface.

Track cultivator with chisel share CC

Automatically unprotected tractor track cultivator with the chisel share. More suitable for heavier soils with the risk of “dragging” of wet clods to the surface.


Levellers

Fixed leveller

Automatically unprotected leveller in the toothed profile. Massive construction for precise smoothing of the rough furrow.
FL = fixed mechanical skid, FH = fixed hydraulic skid.

Flexi-board

Automatically unprotected leveller from separate flexible segments. Better clod crumbling.
L = Flexi-board, FB = hydraulic Flexi-board.


Finish section

Rear leveller

Passive levelling of the soil surface behind the rear roller. It can be applied behind all types of rear rollers.

Stops of the Rear leveller

Swing stops for possibility of more aggressive adjustment of the rear leveller.

Finish roller RF

Active crumbling of remaining clods behind the rear roller.

Finish roller RFC

Active crumbling of remaining clods behind the rear roller.

Can be used for all types of rollers in Kompaktomat LONG.
Cannot be used after the rear double-row rollers in Kompaktomat PS.


Rear linkage – aggregation with other machines

Hydraulic circuit for control of the sowing machine markers

Possibility of additionally mounting a single-hose or two-hose circuit for controlling the sowing machine markers to the Kompaktomat machine with the rear TPS.

Hydraulic circuit for drive of the sowing machine fan

Circuit for drive of pneumatic sowing machine fan can be optionally mounted on Kompaktomat with rear TPH.

Rear hitch TPH category 2 + 3

In the rear part of the semi-mounted Kompaktomat machines, the rear hitch for aggregation with other machine can be installed. Part of the rear suspension is a two-hose circuit for folding the additional equipment.


Variants of hinges

Hitch TPH

T2, T3, T4 – aggregation into arms of the rear hitch.

T2 – drawing pins Ø 28 mm
T3 – drawing pins Ø 36 mm
T4 – drawing pins Ø 50 mm

Loop for the lower hitch

C40, C50, C70 – aggregation into the solid agro-linkage. Maximum vertical load of the towing eye 3,000 kg.

C40 – drawing pin Ø 40 mm
C50 – drawing pin Ø 50 mm
C70 – drawing pin Ø 70 mm

Hitch K80 Ø 80 mm

K80 – aggregation into the solid agro-linkage. Maximum vertical load of the towing eye 3,000 kg.
K80 – towing ball 80 mm


Optional equipment

Hydraulic control of the depth

Increased productivity:

  • control from the comfort of the tractor cabin
  • possibility of continuous change in the position setting according to the current conditions without having to stop the set
  • elimination of unpleasant physical effort

Can also be installed additionally to older machines.

Hydraulic control of the levelling bars

Increased productivity:

  • control from the comfort of the tractor cabin
  • possibility of continuous change in the position setting according to the current conditions without having to stop the set
  • elimination of unpleasant physical effort

Can also be installed additionally to older machines.

An additional leveller mounted behind the front roller FRL

Designed for Kompaktomat LONG.

Automatically released leveller with the option to set the bottom position. The leveller provides more intense mixing = finer soil structure.
