Tine cultivator Fantom CLASSIC

Technology

Tine cultivator Fantom CLASSIC

1 Levelling soil surface zone. It can be used well in seedbed preparation.
2 Tillage zone. Tillage depth 4–15 cm. The tines arranged in four rows with optimized geometry and small final spacing ensure excellent full-surface  tillage and intensive soil mixing with crop residues.
3 Furrow-levelling zone. Levelling discs also increase the effect of incorporating crop residues.
4 Clods crumbling and soil re-compaction zone. Optimal soil re-compaction ensures good water infiltration and soil water capillarity to the surface.

The semi-mounted 4-row tine cultivator Fantom CLASSIC with low pulling requirement and variable tillage depth up to 15 cm.

Intensive and fine tillage

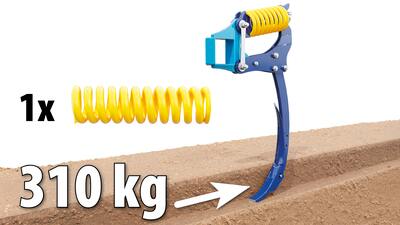

Intensive and fine tillage is enabled due to the 170 mm tine spacing. There is a spring protection on the tines with a very high release force of 310 kg on the tip of the tine. The cultivator is characterized by consistent working depth even in more difficult conditions.

The semi-mounted 4-row tine cultivator Fantom CLASSIC with low pulling requirement and variable tillage depth up to 15 cm.

Intensive and fine tillage

Intensive and fine tillage is enabled due to the 170 mm tine spacing. There is a spring protection on the tines with a very high release force of 310 kg on the tip of the tine. The cultivator is characterized by consistent working depth even in more difficult conditions.

High performance and quality of work

  • High working speed up to 12 km/h.
  • Low pulling requirement and excellent mixing of the soil due to the tines optimized design.

Technics

Tine cultivator Fantom CLASSIC

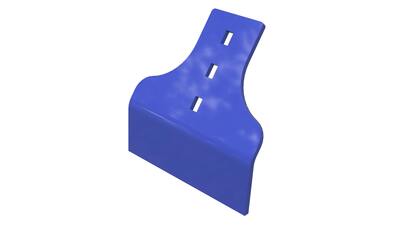

  1. Possibility to install front tools: Flexi-cut for effective crop residue cutting or Flexi-board for levelling surface, crumbling clods.
  2. Optional working units in 4 rows.

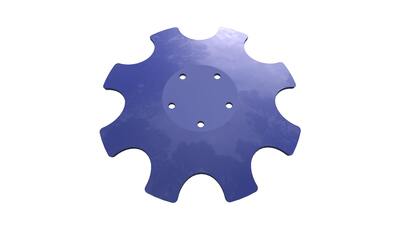

  3. The rear  levelling  discs arranged behind the working units in front of the row of rollers with the aim to level the soil surface in front of the rollers are easily height-adjustable.
  4. Optional rear rollers for various conditions.

Tine cultivator Fantom CLASSIC

  1. Possibility to install front tools: Flexi-cut for effective crop residue cutting or Flexi-board for levelling surface, crumbling clods.
  2. Optional working units in 4 rows.
  3. The rear  levelling  discs arranged behind the working units in front of the row of rollers with the aim to level the soil surface in front of the rollers are easily height-adjustable.
  4. Optional rear rollers for various conditions.

High quality of work

  • Precise deep guiding with optimum soil compaction.
  • Excellent penetration of the tines into the soil.
  • Maintenance-free working units fitted with carbide plates for minimal wear.
  • The tines design ensures high throughflow for crop residues.

Easy operation

Due to minimum adjusting and lubricating points the operation and subsequent maintenance are very easy steps that anybody can perform.

  • Minimum lubrication points.
  • Minimum adjustment points.

Smartly designed machine

The advantage of this machine is its multipurposeness and adjustability bringing high work variability.

Full-surface stubble cultivation
When equipped with sided wings, it can be used for full-surface undercut up to the depth of 15 cm.

Parameters

Technical parameters Units Fantom
650 CLASSIC
Fantom
850 CLASSIC
Fantom
1250 CLASSIC
Working width mm 6 300 8 550 12 250
Transport width mm 3 000 3 000 3 000
Transport height mm 3 650 4 000 4 000
Total machine length mm 8 000 8 700 8 200
Working depth mm 40–150 40–150 40–150
Number of tines pcs 33 45 64
Tine spacing mm 190 190 190
Number of tine rows pcs 4 4 4
Row spacing mm 595–620 595–620 595–620
Release force of tines kg 310 310 310
Frame clearance mm  570 570 570
Working performance ha/h 4,4–7,2 6,8–10,2 10,0–15,0
Towing vehicle 1 kW
HP
200–300
270–410
245–370
330–500
330–440
450–675
Working speed km/h 8–12 8–12 8–12
Maximum transport speed 3 km/h 30 30 30
Maximum slope availability ° 6 6 6
Number of hydraulic circuits / pressure bar 5 / 200 5 / 200 5 / 200
Number of hydro-couples / type   8 / ISO 12,5 8 / ISO 12,5 8 / ISO 12,5
Tractor hitch requirement   TPH cat. 3; peg Ø 50, 70 mm; hinge K80 TPH cat. 3; peg Ø 50, 70 mm; hinge K80 peg Ø 50, 70 mm; hinge K80
Machine weight 2 kg 7 000 8 900 12 400


1 Recommended towing vehicle, the actual pulling force may significantly change according to the tilling depth, soil conditions, inclination of land, wear of working units and their adjustment.
2 Depends on the used type of the roller.
3 Transport / brake system: Follow national provisions valid for transport of machines on public roads. Verify legal provisions valid in the country, regulations on maximum allowable total weights and axle loads and also on necessary possible use of the brake system. If you have any questions, please contact our sales representative.

Optional

Photo gallery

Video

Files

Accessories

Rollers

Disc roller SDR
Diameter 580 mm
Weight 220 kg/m
LTX roller
Diameter 586 mm
Weight 200 kg/m

LTX roller cannot be used for Fantom 850 CLASSIC.

Tube roller TRS
Diameter 600 mm
Weight 100 kg/m
Double V-ring DVR
Diameter 550/550 mm
Weight 180 kg/m

Double V-ring cannot be used for Fantom 1250 CLASSIC.

Double ring roller DRR
Diameter 540/540 mm
Weight 195 kg/m

Double ring roller cannot be used for Fantom 1250 CLASSIC.

V roller VR
Diameter 600 mm
Weight 175 kg/m
Double FLAT roller DFR
Diameter 520/520 mm
Weight 165 kg/m

Proper selection of the type of the rear roller contributing significantly to the final quality of the tillage is very important. The soil is recompacted by the roller and then it is the same way crumbled and levelled. The selection of the type of the roller depends on the soil type and on the manner of use of the machine.

Roller Tube-shaped
TRS
Double ring
DRR
Double
DFR
LTX
Crumbling ●●○○ ●●●○ ●●●○ ●●○○
Stamping ●●●○ ●●●● ●●●● ●●●●
Depth guiding ●●●○ ●●●● ●●●● ●●●●
Resistance against clogging ●○○○ ●●●● ●●●● ●●●○
Suitability for stony soils ●●●○ ●●●○ ●●●○ ●●●○
Suitability for wet soils ●○○○ ●●●● ●●●● ●●●●
Heavy soils ●●○○ ●●●● ●●●● ●●●●
Medium soils ●●●○ ●●●● ●●●● ●●●●
Light soils ●●●● ●●●● ●●●● ●●●○
Roller Disk
SDR
VR Double V-ring
DVR
Crumbling ●●●○ ●●●○ ●●●○
Stamping ●●●● ●●●● ●●●●
Depth guiding ●●●● ●●●● ●●●●
Resistance against clogging ●●●○ ●●●● ●●●●
Suitability for stony soils ●●●○ ●●●○ ●●●○
Suitability for wet soils ●●●● ●●●● ●●●●
Heavy soils ●●●● ●●●● ●●●●
Medium soils ●●●● ●●●● ●●●●
Light soils ●●●○ ●●●● ●●●●

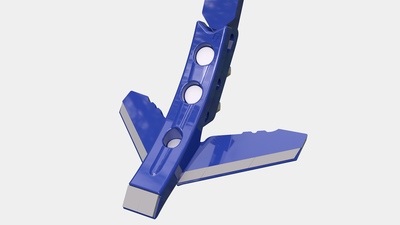

Chisels

Chisel 50 CARBIDE
Chisel width 50 mm
Chisel thickness up to 55 HRC
Chisel body hardness up to 92 HRA
Hardness of hard facing up to 60 HRC
Chisel service life + 400-600 %
Chisel 50 MULTICARBIDE PRO
Chisel width 50 mm
Chisel body hardness up to 55 HRC
Widia plate hardness up to 92 HRA



40 CARBIDE share with exchangeable wings
Share width 280 mm
Share body width 43 mm
Share thickness 6 mm
Body hardness up to 55 HRC
Carbide plate hardness up to 92 HRA

For all-area undercutting

Chisel 50 MULTICARBIDE
Chisel width 50 mm
Chisel body hardness up to 55 HRC
Widia plate hardness up to 92 HRA
Chisel service life + 400-600 %
Share 230 mm
Share width 230 mm
Share thickness 8 mm
Body hardness up to 55 HRC


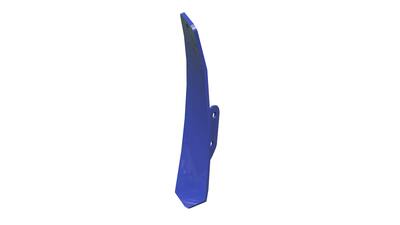

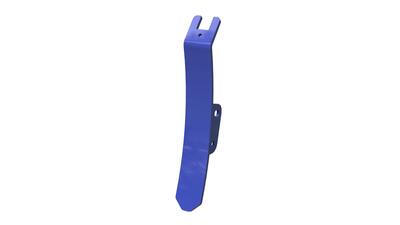

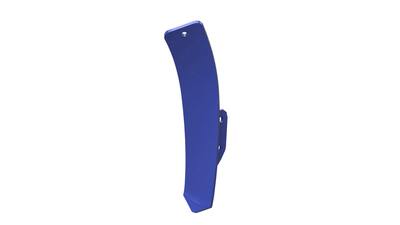

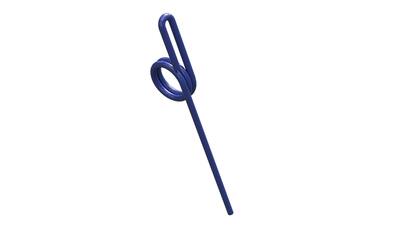

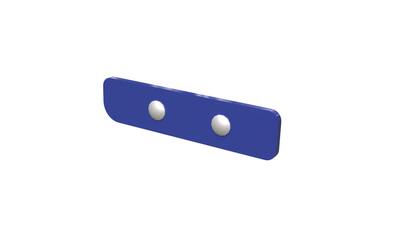

Variants of hinges

Loop for the lower hinge Ø 50 mm, Ø 70 mm
Set of pins for TPH hinge category 4
TPH category 3
Hinge K80 Ø 80 mm

Optional equipment

Supporting depth wheels – set
Electro-Hydraulic Circuit distributor

Divides 1 tractor circuit into 3 circuits.

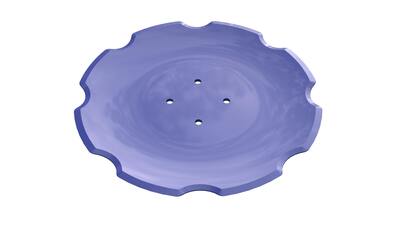

Flexi-cut
