Technology

Tine cultivator Fantom PRO

1 Levelling soil surface zone. It can be used well in seedbed preparation.
2 Tillage zone. Tillage depth 4–15 cm. The tines arranged in five rows withoptimized geometry and small final spacing ensure excellent full-surface  tillage and intensive soil mixing with crop residues.
3 Furrow-levelling zone. Levelling discs also increase the effect of incorporating crop residues.
4 Clods crumbling and soil re-compaction zone. Optimal soil re-compaction ensures good water infiltration and soil water capillarity to the surface. The rollers can be also easily removed and work without rollers.

The semi-mounted 5-row modular cultivator Fantom PRO with low pulling requirement and variable tillage depth is suitable for spring, summer and autumn work and due to its modularity it can start the spring work very soon since it can handle even more wet soil.

Excellent throughflow of crop residues

Tines with 190 mm spacing are arranged in 5 rows. Due to its optimized spacing in combination with 655 mm high framework clearance an excellent throughflow of crop residues and resistance to clogging are achieved. The tapping system of  sided wings and chisels enables their easy and fast replacement.

Fantom PRO is equipped with an integrated axle and support wheels. Due to this, it is possible to operate the machine without rear accessories (e.g. rollers or harrows). The quick-clamping system is used for attachment of the rear accessories. This way the disconnection or connection is a question of a few minutes.

The semi-mounted 5-row modular cultivator Fantom PRO with low pulling requirement and variable tillage depth is suitable for spring, summer and autumn work and due to its modularity it can start the spring work very soon since it can handle even more wet soil.

Excellent throughflow of crop residues

Tines with 190 mm spacing are arranged in 5 rows. Due to its optimized spacing in combination with 655 mm high framework clearance an excellent throughflow of crop residues and resistance to clogging are achieved. The tapping system of  sided wings and chisels enables their easy and fast replacement.

Fantom PRO is equipped with an integrated axle and support wheels. Due to this, it is possible to operate the machine without rear accessories (e.g. rollers or harrows). The quick-clamping system is used for attachment of the rear accessories. This way the disconnection or connection is a question of a few minutes.

Possibility to work even without the rear roller

The rear accessories is connected through the parallelogram ensuring perfect terrain tracing and consequently the modular system enables replacement or full disconnection of the rear rollers and other accessories. Due to the integrated axle, the machine can operate without the rear accessories when the  shares or chisels located behind the wheels perform smoothing and tillage of the formed tracks. The integrated axle also ensures good controllability and quick turning during operation and during transport as well. The 655 mm high frame clearance provides optimum throughflow and adaptability to field conditions. Quality tillage and mixing soil with subsequent incorporation of crop residues with relatively low pulling requirement is ensured by the replaceable  shares or chisels. Possible replacement of shares is quick and easy due to the quick-clamping system (wedge or bolt).

The rear accessories is connected through the parallelogram ensuring perfect terrain tracing and consequently the modular system enables replacement or full disconnection of the rear rollers and other accessories. Due to the integrated axle, the machine can operate without the rear accessories when the  shares or chisels located behind the wheels perform smoothing and tillage of the formed tracks. The integrated axle also ensures good controllability and quick turning during operation and during transport as well. The 655 mm high frame clearance provides optimum throughflow and adaptability to field conditions. Quality tillage and mixing soil with subsequent incorporation of crop residues with relatively low pulling requirement is ensured by the replaceable  shares or chisels. Possible replacement of shares is quick and easy due to the quick-clamping system (wedge or bolt).

High variability

Tips of  share are standardly fitted with carbide plates ensuring prolonged service life and  optimal geometry of  tines throughout the lifetime of the machine. There are the levelling discs located behind the shares. The discs ensure levelling of the soil surface. To achieve an  optimal surface structure and good re-compaction, there is an option of an appropriate rear roller. Down-pressure of the rollers can be choose – either with the own weight of the connecting device or with the hydraulic force. When the working depth is changed, the down-pressure is automatically adapted so that the soil is compacted with the same force. There are several types of rear rollers. The roller provides re-compaction of the soil, crumbling clods and levelling the surface. Due to the quick-clamping system it is possible to easily replace the rollers, e.g. for the bar harrows, or operate absolutely without the rear accessories. Readjustment of the machine can be performed during operation by the hydraulic circuits.

Tips of  share are standardly fitted with carbide plates ensuring prolonged service life and  optimal geometry of  tines throughout the lifetime of the machine. There are the levelling discs located behind the shares. The discs ensure levelling of the soil surface. To achieve an  optimal surface structure and good re-compaction, there is an option of an appropriate rear roller. Down-pressure of the rollers can be choose – either with the own weight of the connecting device or with the hydraulic force. When the working depth is changed, the down-pressure is automatically adapted so that the soil is compacted with the same force. There are several types of rear rollers. The roller provides re-compaction of the soil, crumbling clods and levelling the surface. Due to the quick-clamping system it is possible to easily replace the rollers, e.g. for the bar harrows, or operate absolutely without the rear accessories. Readjustment of the machine can be performed during operation by the hydraulic circuits.

High performance

  • High working speed up to 12 km/h.
  • Low pulling requirement and excellent mixing of the soil due to the tines optimized design.
  • Full-surface undercut when  sided wings are used.
  • A reliable quick-clamping system of tines (wedge, bolt) saves time.
  • Simple operation and controllability.
  • Quick turning on the transport wheels.
  • Working depth adjustment and comfortable control of the Flexi-board during  operation from the tractor cabin.
  • Maintenance-free working units placement in hard metal bushes.
  • Excellent penetration of the tines into the soil.
  • Precise depth guidance even during operation without the rollers due to the support wheels.
  • Hydraulically adjustable down-pressure of the rollers.
  • High working speed up to 12 km/h.
  • Low pulling requirement and excellent mixing of the soil due to the tines optimized design.
  • Full-surface undercut when  sided wings are used.
  • A reliable quick-clamping system of tines (wedge, bolt) saves time.
  • Simple operation and controllability.
  • Quick turning on the transport wheels.
  • Working depth adjustment and comfortable control of the Flexi-board during  operation from the tractor cabin.
  • Maintenance-free working units placement in hard metal bushes.
  • Excellent penetration of the tines into the soil.
  • Precise depth guidance even during operation without the rollers due to the support wheels.
  • Hydraulically adjustable down-pressure of the rollers.

Technics

Tine cultivator Fantom PRO

  1. Hydraulically controlled front Flexi-board leveller for smoothing of the soil surface and crumbling clods before the whole tillage.
  2. Working units in 5 rows and hydraulically adjustable working depth during operation.
  3. The rear levelling discs arranged behind the working units in front of the row of rollers with the aim to level the soil surface in front of the rollers are easily height-adjustable.
  4. Optional rear rollers for various conditions and possibility to work even without the rear roller which can be replaced by the Flexi-board or harrow through the quick-clamping system; the machine is turning on its chassis.

Tine cultivator Fantom PRO

  1. Hydraulically controlled front Flexi-board leveller for smoothing of the soil surface and crumbling clods before the whole tillage.
  2. Working units in 5 rows and hydraulically adjustable working depth during operation.
  3. The rear levelling discs arranged behind the working units in front of the row of rollers with the aim to level the soil surface in front of the rollers are easily height-adjustable.
  4. Optional rear rollers for various conditions and possibility to work even without the rear roller which can be replaced by the Flexi-board or harrow through the quick-clamping system; the machine is turning on its chassis.

Robust design

High-strength refined materials in connection with eXtra STEEL line technology guarantee long service life of our machines even in the most difficult conditions.

High-strength materials
High-strength refined materials used for crucial nodes to ensure long service life. Strongly dimensioned frame of high-strength steels.
Massive placement
Massive placement of all rotary connections ensures prolonged service life. Furthermore, it is an easily rebuildable solution.
Abrasion-resistant steel
The time-tested shares are made of high-strength abrasion-resistant steels and they are equipped with carbide plates. The variant with hard facings along the guiding increases the lifespan of the tines even more.
Spring protection
Durable and maintenance-free spring protection with high release force of 310 kg on the tip of the tine.
Incorporation of crop residues
Due to higher clearance of the frame and wider space between the tines, Fantom PRO can be used for full-surface after harvest stubble-cultivation with intensive mixing effect. Excellently incorporates crop residues into the soil.
Quick clamping system of tines
The quick clamping system of tines (wedge, bolt) enables very fast replacement of the shares without loss risk of the working units.

Easy operation

Due to minimum adjusting points the operation and subsequent maintenance are very easy steps that anybody can perform.

  • Minimum adjustment points.
Working depth adjustment
Easy working depth adjustment by the hydraulic circuit of the machine chassis.
Down-pressure of rollers
The down-pressure of rollers is provided by the own weight of the rollers and it can be increased with the hydraulic circuit.
Adjustment of Flexi-board
Simple adjustment of the Flexi-board can be performed during operation by the hydraulic circuit.
Quick clamping system of rollers
Simple disconnection and connection of the rear rollers – possibility of working without the rear rollers.

Smartly designed machine

The advantage of this machine is its multipurposeness and adjustability bringing high work variability.

Skilful when turning in the field
The cultivator is equipped with an integrated axle. Easy turning on the transport wheels at headlands.
Optimal tine arrangement
The optimal tine arrangement with high spancing of 190 mm was enabled by the extra-long frame.
High frame clearance
The 655 mm high frame clearance provides excellent throughflow of crop residues.
Good stability at work due its design
The floating drawbar ensures perfect terrain tracing.
Folding system
A unique folding system enabling the machine with the working span up to 7.9 m to be folded to the transport width of 3 m and height of 4 m and thus complies with the regulations for vehicles operation on the public road.
Full-surface stubble-cultivation
When equipped with sided wings, it can be used for full-surface undercut up to the depth of 15 cm.

Předseťová příprava i podmítka

Standardní kypřící dláta

Pracovní jednotky pro velmi jemné prokypření a intenzivní promíchání půdy s rostlinnými zbytky. Lze je zaměnit za dlátka pro předseťovou přípravu.

Dlátka pro předseťovou přípravu

Pracovní jednotky pro intenzivní a jemné zpracování půdy do nastavené hloubky. Lze je zaměnit za standardní kypřící dláta.

Parameters

Technical parameters Units Fantom
650 PRO
Fantom
800 PRO
Fantom
850 PRO
Fantom
1050 PRO
Fantom
1250 PRO
Working width mm 6 550 8 050 8 450 10 350 12 250
Transport width mm 3 000 3 000 3 000 3 000 3 000
Transport height mm 3 550 4 000 4 275 3 700 4 000
Total machine length mm 9 900 9 900 9 900 10 400 10 400
Working depth mm 40–150 40–150 40–150 40–150 40–150
Number of tines pcs 35 43 45 57 67
Tine spacing mm 190 190 190 190 190
Number of tine rows pcs 5 5 5 5 5
Row spacing mm  790 790 790 790  790
Release force of tines kg 310 310 310 310 310
Number of supporting wheels pcs 4 6 6 8 8
Number of transport wheels pcs 2 2 2 2 2
Frame clearance mm   655 655 655 655  655
Working performance ha/h 5,2–7,8 6,4–9,6 6,8–10,2 8,4–12,6 10,0–15,0
Towing vehicle 1 kW
HP
200–300
270–405
230–350
310–475
245–370
330–495
295–400
400–550
400–440
550–675
Working speed km/h 8–12 8–12 8–12 8–12 8–12
Maximum transport speed 4 km/h 30 30 30 30 30
Maximum slope availability ° 6  6
Number of hydraulic circuits / pressure bar 5–6 / 200  5–6 / 200  5–6 / 200  5–6 / 200  5–6 / 200
Number of quick-coupling devices / type   12 / ISO 12,5  12 / ISO 12,5 12 / ISO 12,5  12 / ISO 12,5  12 / ISO 12,5
Tractor hitch requirement   TPH cat. 3; pin Ø 50, 70 mm; ball K80 pin Ø 50, 70 mm; ball K80
Machine weight 2 kg 8 300 9 300 9 500 12 700 13 800


1 Recommended towing vehicle, the actual pulling force may significantly change according to the tilling depth, soil conditions, inclination of land, wear of working units and their adjustment.
2 Depends on the used type of the roller.
4Transport / brake system: Follow national provisions valid for transport of machines on public roads. Verify legal provisions valid in the country, regulations on maximum allowable total weights and axle loads and also on necessary possible use of the brake system. If you have any questions, please contact our sales representative.

PRO - the transport axle is placed in front of the rear roller

Optional

Photo gallery

Video

Files

Fantom PRO - presowing combinator

Accessories

Rollers

Disc roller SDR
Diameter 525 mm
Weight 170 kg/m
Double ring roller DRR
Diameter 500/500 mm
Weight 185 kg/m
Tube roller TR
Diameter 500 mm
Weight 90 kg/m
Double spiked roller DSR
Diameter 570/570 mm
Weight 175 kg/m
Double FLAT roller DFR
Diameter 520/520 mm
Weight 165 kg/m
Double V-ring DVR
Diameter 510/510 mm
Weight 180 kg/m

Proper selection of the type of the rear roller contributing significantly to the final quality of the tillage is very important. The soil is recompacted by the roller and then it is the same way crumbled and levelled. The selection of the type of the roller depends on the soil type and on the manner of use of the machine.

Roller Double ring
DRR
Double
DFR
Double spiked
DSR
Tube
TR
Crumbling ●●●○ ●●●○ ●●○○ ●●○○
Stamping ●●●● ●●●● ●●●○ ●●●○
Depth guiding ●●●● ●●●● ●●●● ●●●○
Resistance against clogging ●●●● ●●●● ●●●● ●○○○
Suitability for stony soils ●●●○ ●●●○ ●●●○ ●●●○
Suitability for wet soils ●●●● ●●●● ●●●● ●○○○
Heavy soils ●●●● ●●●● ●●●● ●●○○
Medium soils ●●●● ●●●● ●●●● ●●●○
Light soils ●●●● ●●●● ●●●○ ●●●●
Roller Disk
SDR
Double V-ring
DVR
Crumbling ●●●○ ●●●○
Stamping ●●●● ●●●●
Depth guiding ●●●● ●●●●
Resistance against clogging ●●●○ ●●●●
Suitability for stony soils ●●●○ ●●●○
Suitability for wet soils ●●●● ●●●●
Heavy soils ●●●● ●●●●
Medium soils ●●●● ●●●●
Light soils ●●●○ ●●●●

Harrows

Flexi-board + harrow L-BH
Weight 62,5 kg/m
Three-row harrow + Bar roller RHR
Diameter 300 mm
Weight 165 kg/m
Harrow Flexi-board + harrow

Three-row harrow + Bar roller
Crumbling ●●○○ ●●●●
Stamping ●○○○ ●○○○
Resistance against clogging ●●●● ●●○○
Suitability for stony soils ●●○○ ●●○○
Heavy soils ●●○○ ●●○○
Medium soils ●●●● ●●●○
Light soils ●●●● ●●●●

Chisels

Chisel 50 CARBIDE
Chisel width 50 mm
Chisel thickness up to 55 HRC
Chisel body hardness up to 92 HRA
Hardness of hard facing up to 60 HRC
Chisel service life + 400-600 %

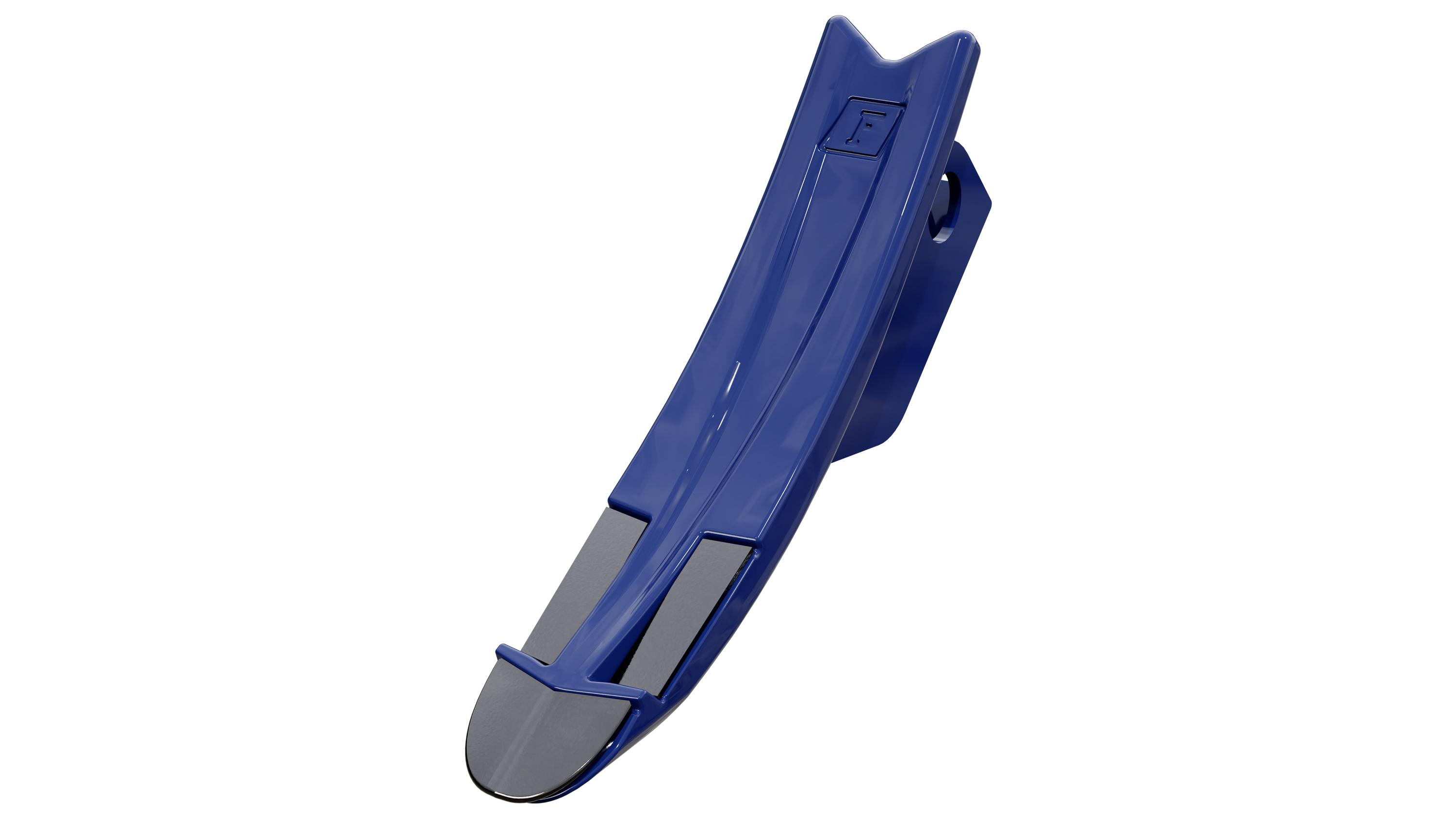

Chisel 50 MULTICARBIDE PRO
Chisel width 50 mm
Chisel body hardness up to 55 HRC
Widia plate hardness up to 92 HRA



40 CARBIDE share with exchangeable wings
Share width 280 mm
Share body width 43 mm
Share thickness 6 mm
Body hardness up to 55 HRC
Carbide plate hardness up to 92 HRA

For all-area undercutting

Chisel 50 MULTICARBIDE
Chisel width 50 mm
Chisel body hardness up to 55 HRC
Widia plate hardness up to 92 HRA
Chisel service life + 400-600 %

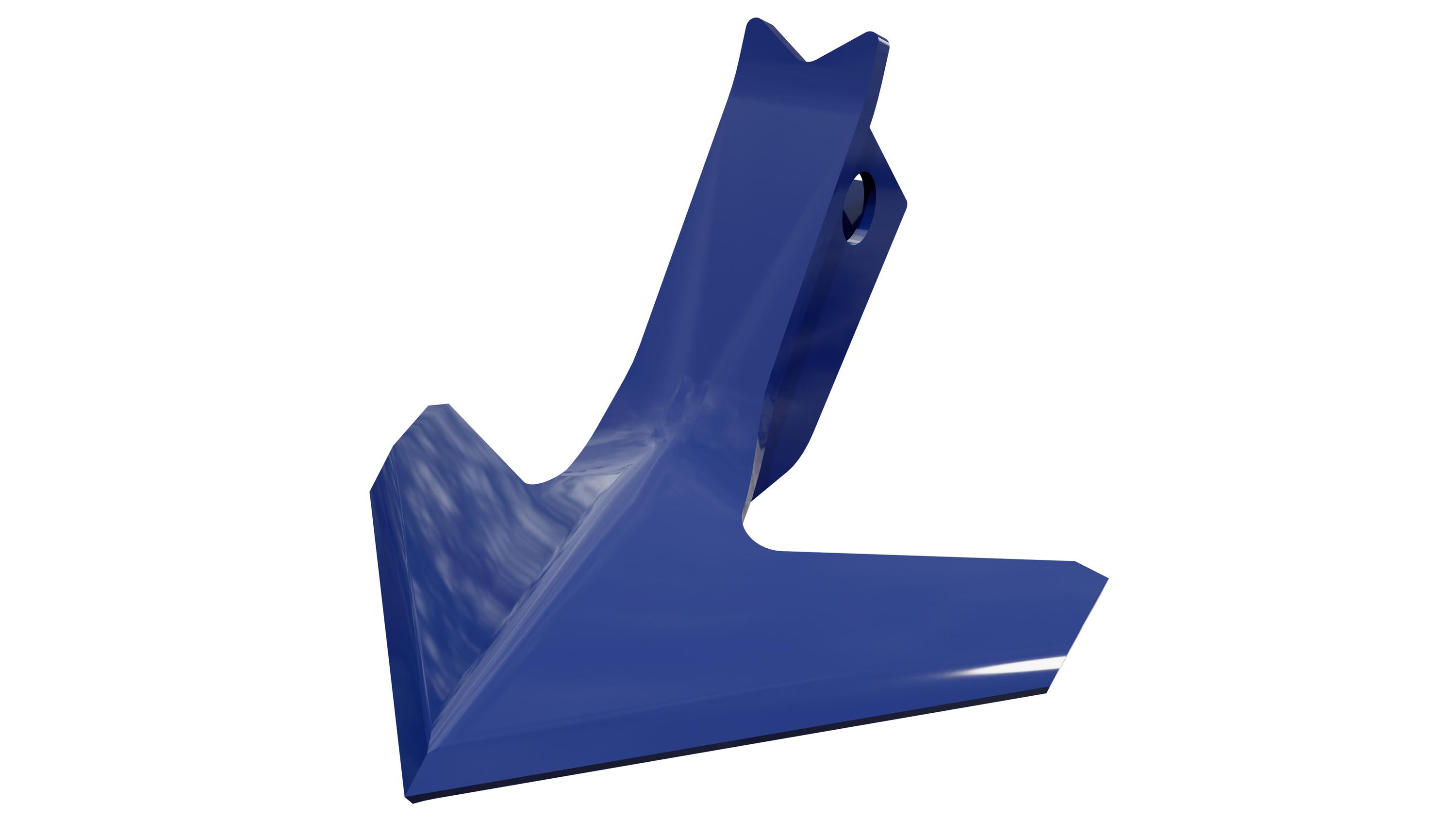

Share 230 mm
Share width 230 mm
Share thickness 8 mm
Body hardness up to 55 HRC
Chisel CARBIDE


Rear levellers

Flexi-board
Flexi-cut

Variants of hinges

Loop for the lower hinge Ø 50 mm, Ø 70 mm
Hitch K80 Ø 80 mm
TPH category 3
Set of pins for TPH hinge category 4

Optional equipment

Electro-Hydraulic Circuit distributor

Divides 1 tractor circuit into 3 circuits with electronic control.
