Tine cultivator TERRIX

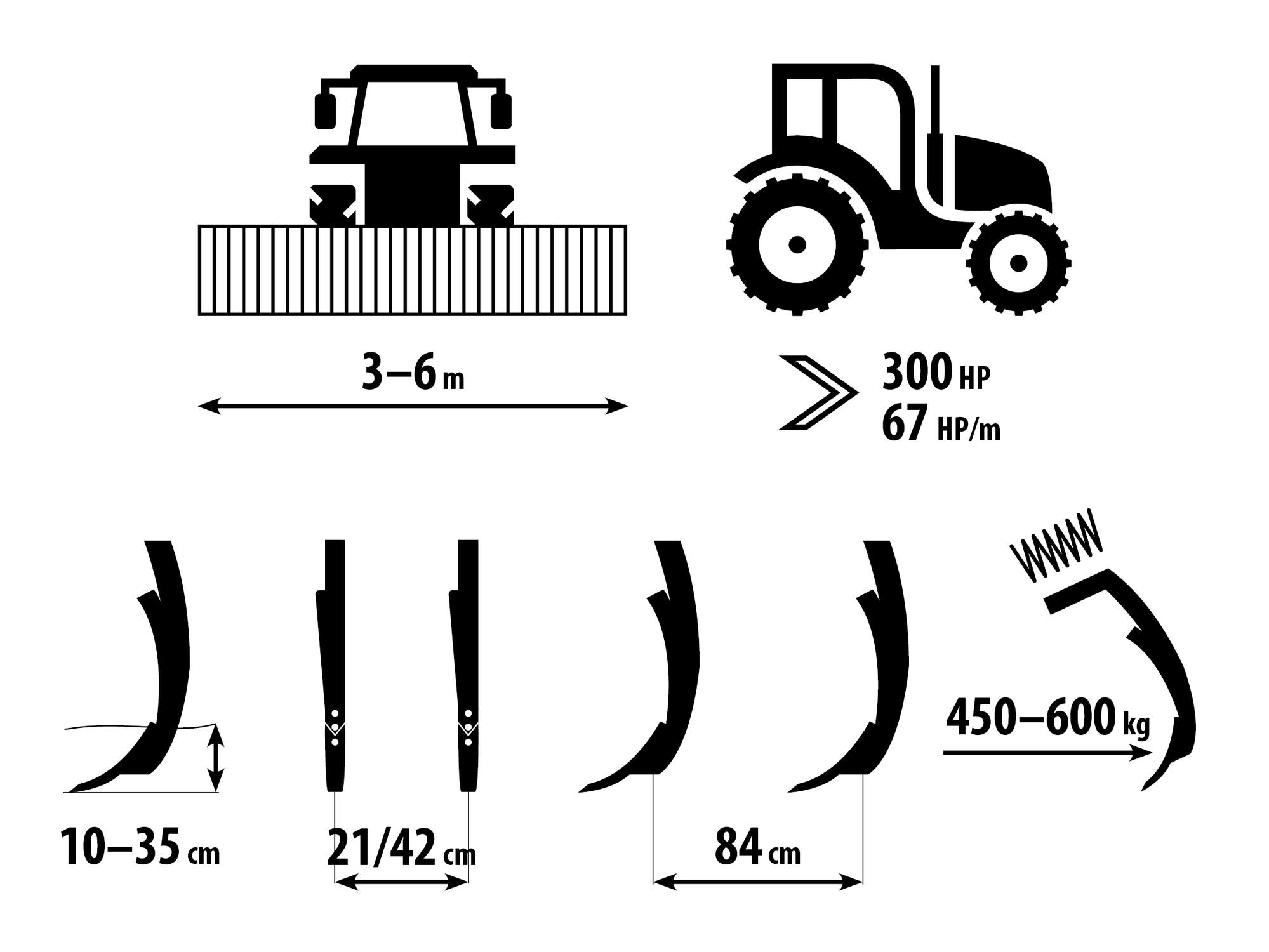

Full-surface tillage up to 35 cm with intensive mixing

Tine cultivator Terrix

Technology

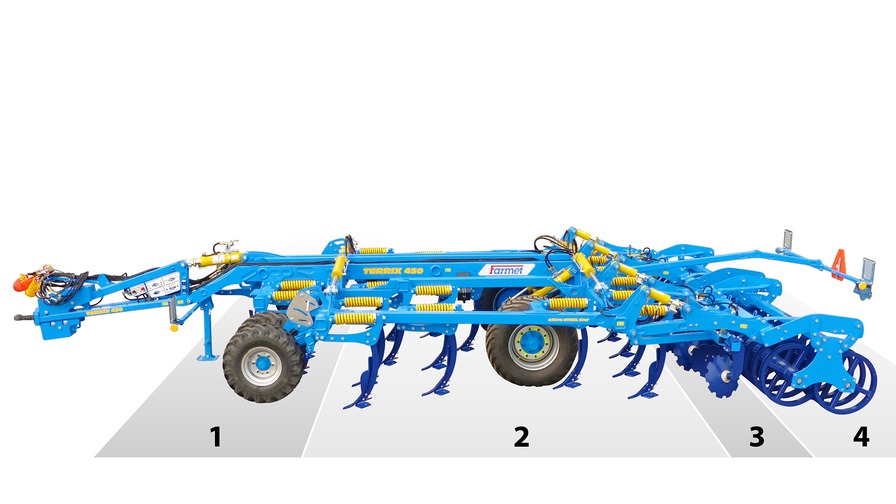

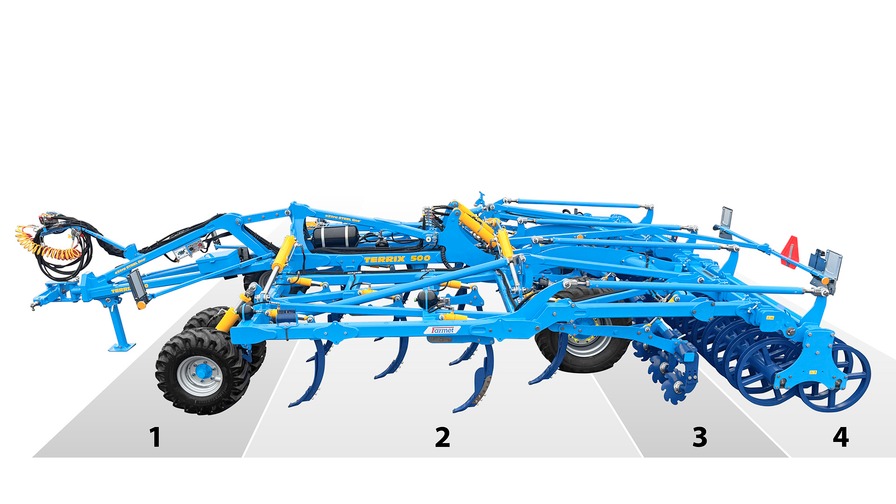

Terrix Quatro

1	Loosening zone. The loosening depth has a wide range of 10–35 cm. Full-area undercut wings can be used for loosening from 10 to 20 cm. The four-row optimized cultivation chisels ensure very good loosening and intensive mixing of the soil with the plant residues.
2	Furrow-levelling zone. Levelling discs also increase the effect of incorporating crop residues.
3	Clod crumbling and soil compaction zone. Optimum soil reconsolidation ensures good water infiltration and soil moisture rise.

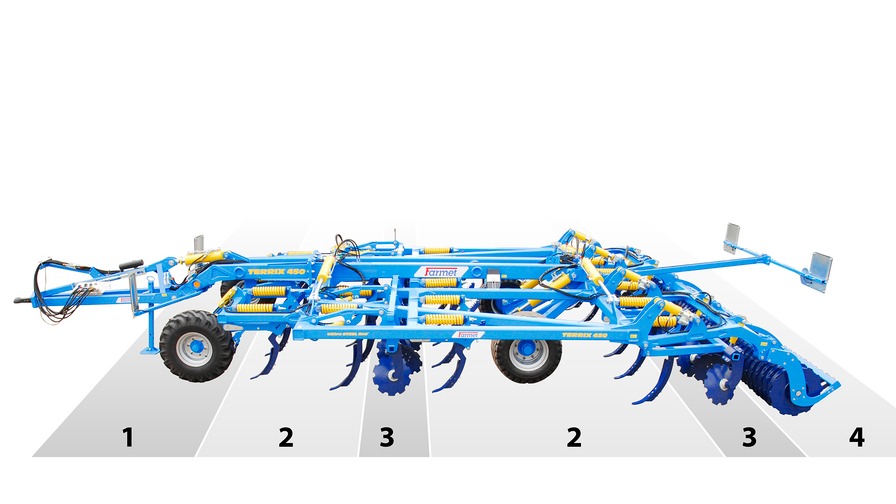

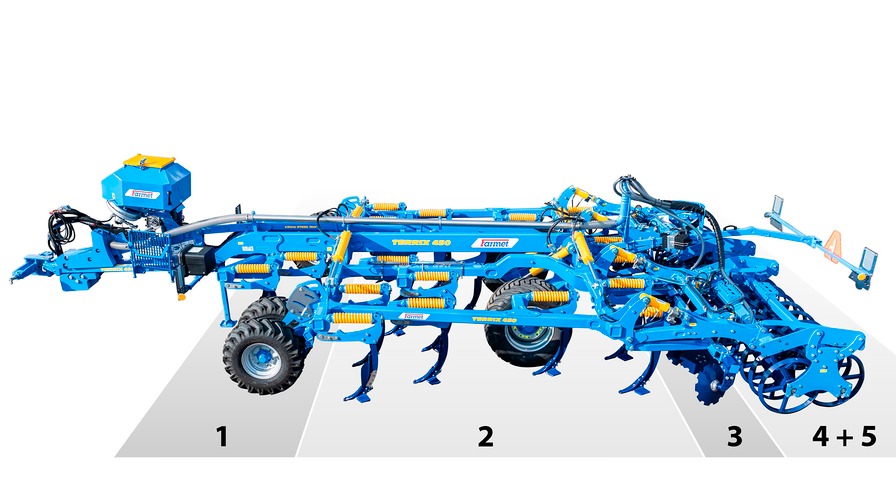

Terrix Dual

1	First loosening zone. The first and second chisel rows are arranged in tandem behind each other. The first row of chisels with optimized shape processes the soil to depth of 10–15 cm. The second row of special chisels make deeper loosened strips of soil behind the first row to depth of 15–35 cm.
2	First furrow-levelling zone. Levelling discs also increase the effect of incorporating crop residues.
3	Second loosening zone. The third and fourth chisel rows are arranged in tandem behind each other again and it is loosening the intermediate soil strips behind the first loosening zone. The third chisels row process again soil from 10 to 15 cm. The fourth chisels row again makes deeper loose strips of soil behind the third row to depth of 15–35 cm.
4	The second furrow-levelling zone. Levelling discs also increase the effect of incorporating crop residues.
5	Clod crumbling and soil compaction zone. Optimum soil re-compaction ensures good water infiltration and soil water capillarity to the surface.

High performance and quality of work

Great solution for all types of soils, excellent for heavy soils
High permeability of soil and crop residue
High level of crop residue mixing and incorporation
Deep overall (Terrix Quatro) or zone (Terrix Dual) loosening with minimal clod formation

Technics

Tine cultivator Terrix Quatro PS

Supporting tracing wheels for even soil processing.
Four rows of massive shares for stubble cultivation and deep loosening up to the depth of 35cm.
Levelling discs forming a fine soil structure on the surface.
The rear roller provides good reverse compaction, crumbles the clods and levels off the field surface.

Tine cultivator Terrix Dual PS

Supporting tracing wheels for even soil processing.
Four rows of massive shares for stubble cultivation and deep loosening up to the depth of 35cm.
Levelling discs forming a fine soil structure on the surface.
The rear roller provides good reverse compaction, crumbles the clods and levels off the field surface.

Robust design

High-strength refined materials in conjunction with eXtra STEEL line technology guarantee long life of our machines even in the most difficult conditions.

Abrasion-resistant steel

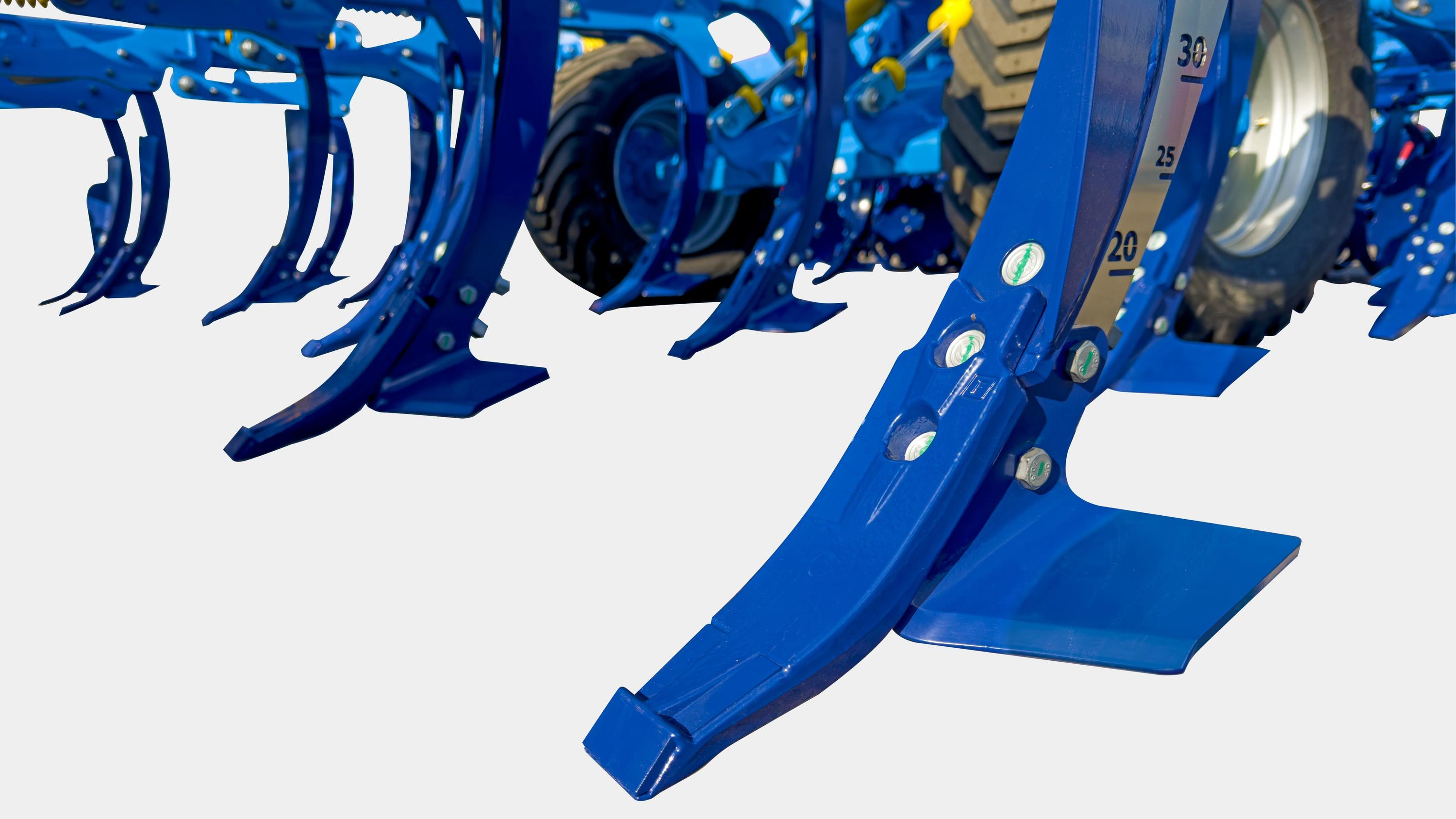

The time-tested ploughshares are made of high-strength abrasion resistant steels and they are equipped with widia plates at the point of the share. The top part of the share can be supplemented with other widia plates or tungsten carbide weld deposits to extend the durability even more.

Spring protection

Resistant and maintenance-free spring protection of the cultivating discs with a high release force of 450kg.

Graph of release force

Protection against overload

Effective protection of the machine and working members against damage.

Easy operation

Due to minimum of adjusting and lubricating points the operation and subsequent maintenance are very easy that everybody can perform.

Minimum of adjustment points.

Quick clamping system of rollers

Simple disconnection and connection of the rear rollers – possibility of working without the rear rollers.

Parameters

Technical parameters	Units	Terrix Quatro 450 PS	Terrix Dual 450 PS	Terrix Quatro 600 PS	Terrix Dual 600 PS
Working width	mm	4 500	4 500	6 000	6 000
Transport width	mm	3 000	3 000	3 000	3 000
Transport height	mm	3 340	3 340	4 000	4 000
Total machine length	mm	10 500	10 500	10 500	10 500
Working depth	mm	100─350	100─350	100─350	100─350
Number of tines	pcs	23	22	29	30
Tine spacing	mm	210	420	210	420
Number of tine rows	pcs	4	4	4	4
Row spacing	mm	min. 940	min. 940	min. 940	min. 940
Release force of tines	kg	450	450	450	450
Frame clearance	mm	870	870	870	870
Diameter of levelling discs	mm	460	460	460	460
Working performance	ha/h	3,6─5,4	3,6─5,4	4,8─7,2	4,8─7,2
Towing vehicle ¹	kW HP	225─350 300─450	225─350 300─450	350─460 450─600	350─460 450─600
Working speed	km/h	8─12	8─12	8─12	8─12
Maximum transport speed ⁴	km/h	30	30	30	30
Maximum slope availability	°	6	6	6	6
Dimensions of tyre – transport		550/45-22,5	19.0/45-17	550/45-22,5	19.0/45-17
Brake type / distribution ^3, 4		without / air	without / air	without / air	without / air
Required pressure ³	kPa	5,5	5,5	5,5	5,5
Number of hydraulic circuits / pressure	bar	4+1 / 200	4+1 / 200	4+1 / 200	4+1 / 200
Number of hydro-couples / type		8 / ISO 12,5	8 / ISO 12,5	8 / ISO 12,5	8 / ISO 12,5
Tractor hitch requirement		TPH cat. 3 and 4; bottom hitch K80; lug Ø 50, 70 mm
Machine weight ²	kg	8 400	7 300	10 200	8 800

¹ Recommended towing vehicle, the actual pulling force may significantly change according to the processing depth, soil conditions, inclination of land, wear of working units and their adjustment.
² Machine weight with the LTX roller.
³ Alternative to hydraulic brake / operating pressure of 130 ± 5 bar.
⁴ Transport / brake system: Follow national provisions valid for transport of machines on public roads. Verify legal provisions valid in the country, regulations on maximum allowable total weights and axle loads and also on necessary possible use of the brake system. If you have any questions, please contact our sales representative.

PS - semi-mounted foldable machine

Optional

Photo gallery

Video

Files

User manual

Tine cultivator Terrix

Tine cultivator Terrix Dual 450 PS

Tine cultivator Terrix Dual 600 PS

Tine cultivator Terrix Quatro 450 PS

Tine cultivator Terrix Quatro 600 PS

Accessories

Rollers

Disc roller SDR

Diameter	580 mm
Weight	220 kg/m

Double ring roller DRR

Diameter	680/680 mm
Weight	340 kg/m

LTX roller

Diameter	586 mm
Weight	200 kg/m

V roller VR

Diameter	600 mm
Weight	175 kg/m

Tube roller TRS

Diameter	600 mm
Weight	100 kg/m

Double V-ring DVR

Diameter	680/680 mm
Weight	290 kg/m

Proper selection of the type of the rear roller contributing significantly to the final quality of the tillage is very important. The soil is recompacted by the roller and then it is the same way crumbled and levelled. The selection of the type of the roller depends on the soil type and on the manner of use of the machine.

Roller	Tube-shaped TRS	Double ring DRR	LTX	Disk SDR
Crumbling	●●○○	●●●○	●●○○	●●●○
Stamping	●●●○	●●●●	●●●●	●●●●
Depth guiding	●●●○	●●●●	●●●●	●●●●
Resistance against clogging	●○○○	●●●●	●●●○	●●●○
Suitability for stony soils	●●●○	●●●○	●●●○	●●●○
Suitability for wet soils	●○○○	●●●●	●●●●	●●●●
Heavy soils	●●○○	●●●●	●●●●	●●●●
Medium soils	●●●○	●●●●	●●●●	●●●●
Light soils	●●●●	●●●●	●●●○	●●●○

Roller	VR	Double V-ring DVR
Crumbling	●●●○	●●●○
Stamping	●●●●	●●●●
Depth guiding	●●●●	●●●●
Resistance against clogging	●●●●	●●●●
Suitability for stony soils	●●●○	●●●○
Suitability for wet soils	●●●●	●●●●
Heavy soils	●●●●	●●●●
Medium soils	●●●●	●●●●
Light soils	●●●●	●●●●

Chisels

Chisel 75 CARBIDE

Chisel width	75 mm
Chisel thickness	15 mm
Chisel body hardness	up to 55 HRC
Widia plate hardness	up to 92 HRA
Chisel service life	+ 100-200 %

Chisel 75 MULTICARBIDE

Share width	75 mm
Share body hardness	up to 55 HRC
Widia plate hardness	up to 92 HRA
Share service life	+ 150-400 %

Chisel 75 MULTICARBIDE PRO

Share width	75 mm
Share body hardness	up to 55 HRC
Widia plate hardness	up to 92 HRA
Share service life	+ 200-500 %

Chisel 40 CARBIDE

Chisel width	40 mm
Chisel thickness	25 mm
Chisel body hardness	up to 55 HRC
Widia plate hardness	up to 92 HRA
Chisel service life	+ 100-200 %
Diesel fuel consumption	- 10 %
