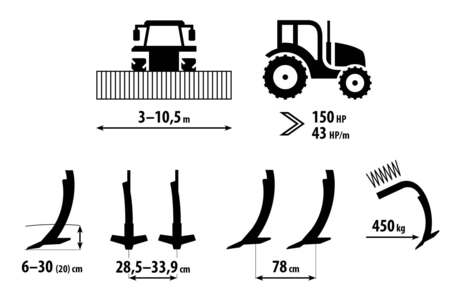

Tine cultivator Triolent



Technology

Triolent PS: Stubble cultivation to depth from 6 to 20 cm

Triolent PS: Tillage to depth of 30 cm

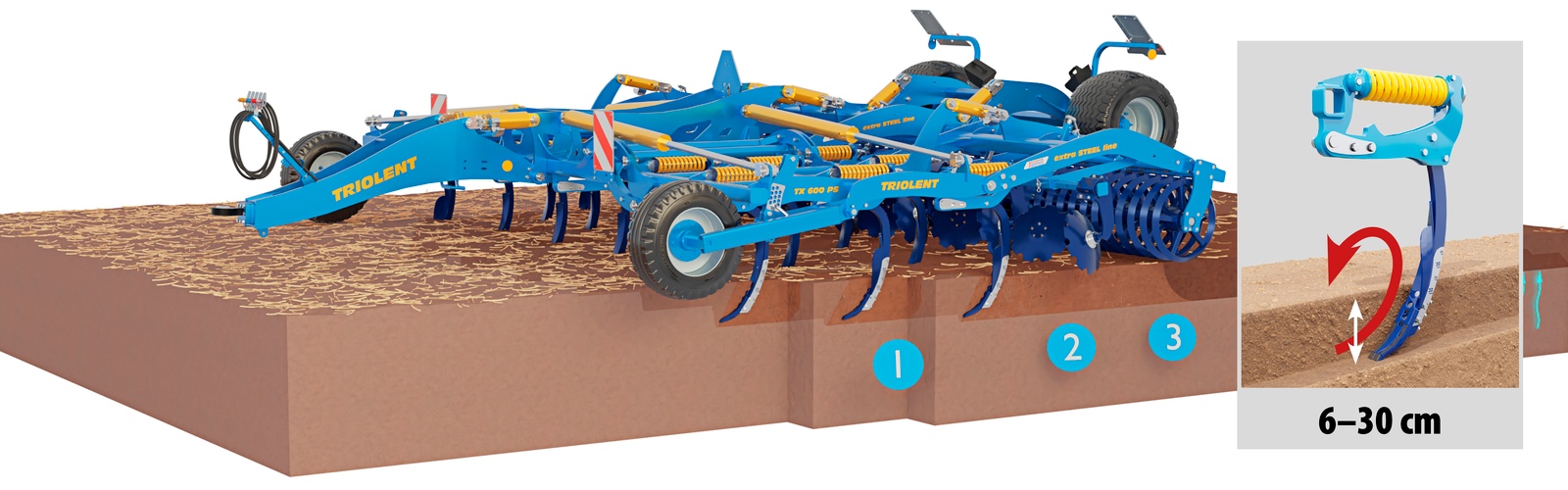

1 Tillage zone. The tillage depth has a wide range of 6–30 cm. For tillage from 6 to 20 cm can be used wings to full-surface undercut. The tines arranged in three rows with optimized geometry ensure excellent tillage and intensive mixing soil with crop residues.
2 Furrow-levelling zone. Levelling discs also increase the effect of incorporating crop residues.
3 Clods are crumbling and soil compaction zone. Optimum soil recompaction ensures good water infiltration and soil water capillarity to the surface.

Variants of fertiliser placement

The fertiliser is placed under the surface, put in lower part of processed soil profile
One part of the fertiliser is place under the surface in lower part of processed soil profile and the second part just under the surface + areal to the sides
The fertiliser is placed just under the surface + areal to the sides

High performance and quality of work

  • High working speed up to 12 km/h.
  • Low pulling requirement and excellent soil mixing due to tines optimized design.
  • Excellent throughflow of crop residues.
  • The spiral shape of tines upper part for controlled soil flow.
  • Maintenance-free working units fitted with carbide plates for minimal wear.
  • High working speed up to 12 km/h.
  • Low pulling requirement and excellent soil mixing due to tines optimized design.
  • Excellent throughflow of crop residues.
  • The spiral shape of tines upper part for controlled soil flow.
  • Maintenance-free working units fitted with carbide plates for minimal wear.

Technics

Tine cultivator Triolent TX 400 P FIX

  1. The massive tines arranged in 3 rows ensure quality  soil tillage and incorporation of crop residues.
  2. The levelling discs for perfect levelling of surface.
  3. The back roller provides  optimal soil re-compaction, crumbling clods and levelling surface.

Tine cultivator Triolent PS

  1. The massive tines arranged in 3 rows ensure quality  soil tillage and incorporation of crop residues.
  2. The levelling discs for perfect levelling of surface.
  3. The back roller provides  optimal soil re-compaction, crumbling clods and levelling surface.

Robust design

High-strength refined materials in connection with eXtra STEEL line technology guarantee long service life of our machines even in the most difficult conditions.

High-strength materials
High-strength refined materials used for crucial nodes to ensure long service life. Strongly dimensioned frame of high-strength steels
Abrasion-resistant steel
The time-tested tines are made of high-strength abrasion-resistant steels.
Incorporation of crop residues
Full-surface stubble cultivationafter harvest with intensive mixing effect. Excellently incorporation of crop residues into the soil.
Spring protection

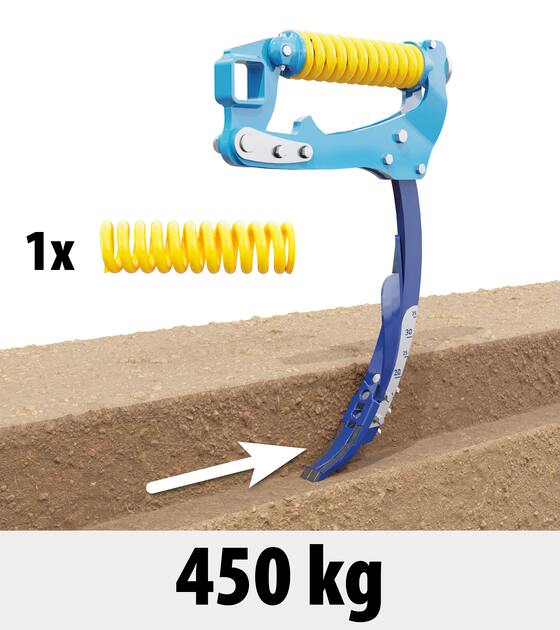

Durable and maintenance-free spring protection with high release force of 450 kg.
Release forces
Protection against overload
Effective machine protection and working units against damage.

Easy operation

Due to minimum adjusting and lubricating points the operation and subsequent maintenance are very easy steps that everybody can perform.

  • Minimum adjustment points.
  • Minimum lubrication points.
Working depth adjustment
Easy working depth adjustment of the tines according to the overview table by the setting washers.
Adjustable levelling discs
Height-adjustable levelling discs with easy adjustment, suspended by rubber elements.
Hydraulic setting of levelling discs
Optional equipment. Easy, quick and convenient disc setting from the tractor cabin, also available while working in the field.

Smartly performed designed machine

The advantage of this machine is its multipurposeness and adjustability bringing high work variability.

  • Skilful when working in the field due to short and compact design.
  • Stable due to short design and light axle.



Turning on rollers
Higher stability and quick turning at headlands due to possibility of turning on all rollers.
Suspended levelling discs
Suspended levelling discs for quality levelling soil surface.
Full-surface stubble cultivation
Chisels with wings for full-surface undercut up to 20 cm depth.
Folding system
Patented folding system enabling the machine with 7.9 m working width to be folded to 3 m transport width and 4 m height and thus complies with the regulations for vehicles operation on the public road.

Parameters

Technical parameters Units Triolent
TX 300 P
Triolent
TX 400 P FIX
Triolent
TX 470 PS
Working width mm 3 000 4 000 4 700
Transport width mm 3 000 4 000 3 000
Transport height mm 1 400 1 400 1 400
Total machine length mm  7 495 7 495  7 495
Working depth mm 60–300 60–300 60–300
Number of tines pcs 10 14 16
Tine spacing mm 300 285 294
Number of tine rows pcs 3 3 3
Row spacing mm 780 780 780
Release force of tines kg 450 450 450
Frame clearance mm  880 880 880
Diameter of levelling discs mm 460 460 460
Working performance ha/h  2,4–3,6 3,2–4,8  3,8–5,6
Towing vehicle 1 kW
HP
110–165
150–225
125–190
170–255
150–220
200–300
Working speed km/h 8–12 8–12 8–12
Maximum transport speed 4 km/h 25 25 25
Maximum slope availability ° 6 6 6
Dimension of tyre - transport   19.0/45-17  19.0/45-17   19.0/45-17
Brake type / distribution 3, 4   air / two-line air / two-line air / two-line
Required pressure 3 kPa 8,5 8,5 8,5
Number of hydraulic circuits / pressure bar 2 / 200 2 / 200  3 / 200
Number of hydro-couples / type   4 / ISO 12,5 4 / ISO 12,5 6 / ISO 12,5
Tractor hitch requirement   TPH cat. 3 and 4; lower hitch K80; eye Ø 40, 50, 70 mm
Machine weight 2 kg 3 750 4 260 4 620
Technical parameters Units Triolent
TX 600 PS
Triolent
TX 800 PS
Triolent
TX 1050 PS
Working width mm 6 200 7 900 10 500
Transport width mm 3 000 3 000 3 000
Transport height mm 3 300 4 000 4 000
Total machine length mm 7 495 7 495 7 495
Working depth mm 60–300 60–300 60–200
Number of tines pcs 19 25 31
Tine spacing mm 326 316 339
Number of tine rows pcs 3 3 3
Row spacing mm 780 780 780
Release force of tines kg 450 450 450
Frame clearance mm  880 880 600
Diameter of levelling discs mm 460 460 400
Working performance ha/h 4,8–7,2 6,4–9,6 8,4–12,6
Towing vehicle 1 kW
HP
245–370
330–500
295–440
400–600
370–550
500–750
Working speed km/h 8–12 8–12 8–12
Maximum transport speed 4 km/h 25 25 25
Maximum slope availability ° 6 6 6
Dimension of tyre - transport   19.0/45-17 19.0/45-17 550/45-22,5
Brake type / distribution 3, 4   air / two-line air / two-line air / two-line
Required pressure 3 kPa 8,5 8,5 8,5
Number of hydraulic circuits / pressure bar 3 / 200 3 / 200 3 / 200
Number of hydro-couples / type   6 / ISO 12,5 6 / ISO 12,5 6 / ISO 12,5
Tractor hitch requirement   TPH cat. 3 and 4; lower hitch K80; eye Ø 40, 50, 70 mm
Machine weight 2 kg 6 750 7 550 11 800


1 Recommended towing vehicle, the actual pulling force may significantly change according to the tilling depth, soil conditions, inclination of land, wear of working units and their adjustment.
2 Machine weight with LTX roller.
3 Alternative of the hydraulic brake / operating pressure 130 ± 5 bar.
4 Transport / brake system: Follow national provisions valid for transport of machines on public roads. Verify legal provisions valid in the country, regulations on maximum allowable total weights and axle loads and also on necessary possible use of the brake system. If you have any questions, please contact our sales representative.

PS - semi-mounted foldable machine

Optional

Photo gallery

Video

Files

Accessories

Rollers

Disc roller SDR
Diameter 580 mm
Weight 220 kg/m
Double ring roller DRR
Diameter 540/540 mm
Weight 195 kg/m
Double roller DR
Diameter 400/350 mm
Weight 180 kg/m
LTX roller
Diameter 586 mm
Weight 200 kg/m
Ring roller RR
Diameter 520 mm
Weight 160 kg/m
V roller VR
Diameter 600 mm
Weight 175 kg/m
Double V-ring DVR
Diameter 550/550 mm
Weight 180 kg/m

Proper selection of the type of the rear roller contributing significantly to the final quality of the tillage is very important. The soil is recompacted by the roller and then it is the same way crumbled and levelled. The selection of the type of the roller depends on the soil type and on the manner of use of the machine.

Rollers Double
DR
Ring
RR
Double ring
DRR
LTX
Crumbling ●●●○ ●●●○ ●●●○ ●●○○
Stamping ●●●○ ●●●● ●●●● ●●●●
Depth guiding ●●●● ●●●● ●●●● ●●●●
Resistance against clogging ●●●○ ●●●● ●●●● ●●●○
Suitability for stony soils ●●●○ ●●●○ ●●●○ ●●●○
Suitability for wet soils ●●○○ ●●●● ●●●● ●●●●
Heavy soils ●●●● ●●●● ●●●● ●●●●
Medium soils ●●●● ●●●● ●●●●  ●●●●
Light soils ●●●● ●●●● ●●●●  ●●●○



Válec Disk
SDR
VR Double V-ring
DVR
Crumbling  ●●●○ ●●●○ ●●●○
Stamping ●●●● ●●●● ●●●●
Depth guiding ●●●● ●●●● ●●●●
Resistance against clogging  ●●●○ ●●●● ●●●●
Suitability for stony soils  ●●●○ ●●●○ ●●●○
Suitability for wet soils ●●●● ●●●● ●●●●
Heavy soils ●●●● ●●●● ●●●●
Medium soils ●●●● ●●●● ●●●●
Light soils  ●●●○ ●●●● ●●●●

Chisels

Chisel 75 CARBIDE
Chisel width 75 mm
Chisel thickness 15 mm
Chisel body hardness up to 55 HRC
Widia plate hardness up to 92 HRA
Chisel service life + 100-200 %
Chisel 75 MULTICARBIDE
Share width 75 mm
Share body hardness up to 55 HRC
Widia plate hardness up to 92 HRA
Share service life + 150-400 %
Chisel 75 MULTICARBIDE PRO
Share width 75 mm
Share body hardness up to 55 HRC
Widia plate hardness up to 92 HRA
Share service life + 200-500 %
Chisel 40 CARBIDE
Chisel width 40 mm
Chisel thickness 25 mm
Chisel body hardness up to 55 HRC
Widia plate hardness up to 92 HRA
Chisel service life + 100-200 %
Diesel fuel consumption - 10 %


Variants of hinges

Set of pins for TPH hinge category 4
Hinge TPH category 3
Loop for the lower hinge Ø 40 mm, Ø 50 mm, Ø 70 mm
Hinge K80 ø 80 mm

Optional equipment

Protection by shear bolt

For soils without stones.

Micro Drill

Sowing of fine seeds.

Two-line single-circuit air brakes
Working parts release with a double compression spring
Hydraulic brakes
Left wing
Right wing
